Description

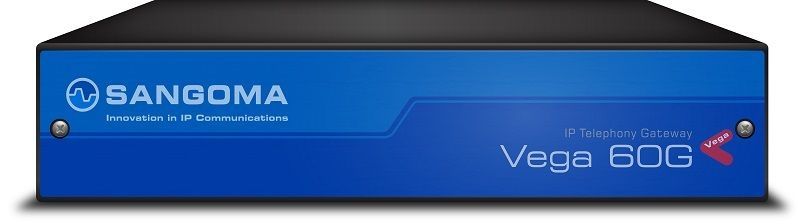

Sangoma Vega 60G 4 FXO Gateway (VEGA-60GV2-0004, VS0302)
The Vega 60G 4 FXO Media Gateway is designed to simplify the integration of analog phone systems trunks to a VoIP network.
Depending on the model, Vega 60G media gateways connect a range of legacy telephony equipment, including PBXs, ISDN telephones, the ISDN, analog phones & the PSTN to IP networks.
Vega Gateways are the most resilient gateways in their class, automatically re-routing calls to SIP and PSTN failover during catastrophic failure and maintaining internal phone connectivity. All features included in all Vega Gateways. No hidden costs for transcoding capabilities, VoIP / PSTN port or failover features.
Vega 60G "V2" units incorporates updates to a handful of internal components, including a faster processor and the doubling of onboard memory. Functionally, the hardware remains the same.
Sangoma Vega 60G 4 FXO Features
VoIP Interfaces
- SIP
- FAX support – up to G3 FAX, using T.38
- Modem support – up to V.90, using G.711
- Up to 16 VoIP channels
- Audio codecs:
- G.711 (a-law/u-law) (64 kbps)
- G.729a (8kbps)
- G.723.1 (5.3/6.4 kbps)
- G.726
Telephony Interfaces
ETSI BRI Models
- 2, 4, 8 or 16 S/T interfaces presented on RJ45
- Point to point or point to multipoint
- Each interface can be configured NT or TE
Analog Models
- 4 or 8 FXS ports presented on RJ11
- 4 or 8 FXO ports presented on RJ11
- 4 FXO and 4 FXS ports presented on RJ11
- 600R, 900R or CTR-21 line impedance
LAN Interfaces
- 1 x RJ-45 Gigabit Ethernet 1000BaseT / 100Base Tx / 10BaseT, full / half duplex
Telephony Features
Available on FXS ports:
- Call Waiting
- Call Forward Unconditional, Busy, No-Answer
- Call Transfer Blind, Consultative
- 3 Way Conference
- Do Not Disturb
- Message Waiting Indicator – Audible, Visual
- Music on Hold
- Executive Barge
Call Quality
- Adaptive jitter removal
- Comfort noise generation
- Silence suppression
- 802.1p/Q VLAN tagging
- Differentiated Services (DiffServ)
- Type of Service (ToS)
- QoS statistics reporting
- Echo cancellation (G.168 up to 64ms)
Security & Encryption
- Media – SRTP (Optional)
- SIP – TLS (Optional)
- Management – HTTPS, SSH Telnet
- Configurable user login passwords
- Enhanced Network Proxy (ENP) (Optional)
Physical Dimensions
- 1 U: 200mm (w) x 127mm (D) x 43mm (H)
- Weight: 0.8kgs (1.7lbs)
- Rackmount brackets supplied 107mm (2 pieces)
Power
- Standard product: External 12V 24W AC/DC adapter
Sangoma Vega 60G 4 FXO Compatibility
- Vega gateways support SIP & T.38 FAX
- Vega gateways can be configured for different country requirements, such as tones & line impedance
- Vega 60G BRI models support ETSI BRI
- Vega 60G Analog models support standard loop start signalling
