Yealink MeetingDisplay 65/75/86 – 4K UHD Anti-Glare Interactive Display

Options Available:

65" MeetingDisplay 65 - MD65 (1203690)
75" MeetingDisplay 75 - MD75 (1203691)
86" MeetingDisplay 86 - MD86 (1203692)

PLEASE NOTE: This product is oversized and may require a custom shipping quote.

The Yealink MeetingDisplay Series (65”, 75”, and 86”) redefines what professional meeting room displays can do. Designed specifically for Yealink Microsoft Teams Room (MTR) systems, these premium 4K displays seamlessly integrate with Yealink’s MeetingBar, UVC camera, and MCore components — giving businesses a truly unified collaboration experience.

Whether you’re outfitting a small huddle room or a large boardroom, the Yealink MeetingDisplay ensures crystal-clear visuals, simple setup, and effortless management from one interface.

Unified Design and Installation

Forget complicated installations and wall damage. The Yealink MeetingDisplay features custom mounting brackets embedded into the rear panel, allowing direct attachment of Yealink components such as the MeetingBar A40/A50, UVC cameras, and MCore mini-PCs — all in under 5 minutes.

The result is a clean, cable-free, professional setup that keeps your conference space looking modern and organized.

Smarter Meeting Management

The MeetingDisplay doesn’t just show content — it works intelligently with your Yealink MTR system to synchronize power, sleep, and wake functions, reducing energy use and streamlining daily operation.
Everything can be controlled from a single touch console, including brightness, audio settings, and configuration.

Powerful Performance, Exceptional Clarity

Stunning 4K UHD resolution (3840×2160)
High brightness (500 cd/m²) with anti-glare coating for any lighting condition
178° wide viewing angle ensures every participant sees clearly
10-bit color depth and 72% NTSC gamut deliver vivid, true-to-life visuals
Audio is equally robust, with dual 12W speakers built in for rich, room-filling sound.

All-in-One Connectivity

Enjoy flexible wired or wireless screen sharing through HDMI, AirPlay, Miracast, or Yealink’s Wireless Presentation Pod (where available). The display also includes:

Wi-Fi 6 and Bluetooth 5.1 for fast, stable connections
Dual RJ45 network ports for device passthrough
Multiple USB and HDMI inputs for external sources
RS232 and IP control support for advanced integration

Please see the Yealink MeetingDisplay Datasheet for more information

Specifications

Parameter	Description
Display Sizes	65", 75", and 86"
Display Type	IPS Panel
Surface Treatment	Anti-glare coating
Refresh Rate	60 Hz
Grayscale Response Time	8 ms
Color Gamut	72 % NTSC
Color Depth	1.07 B (10-bit)
Viewing Angle	178° (H) / 178° (V)
Contrast Ratio	1200 : 1
Resolution	3840 × 2160 (4K UHD)
Brightness	500 cd/㎡
Haze	25 %
Operation Time	7 × 18 h continuous operation
Audio	Built-in 12 W × 2 stereo speakers
Content Sharing – Wired	HDMI In
Content Sharing – Wireless	AirPlay, Miracast, Wireless Presentation Pod (unavailable in U.S.)
Video Inputs	HDMI In 2.0 × 3
Audio Output	3.5 mm Stereo Mini Jack (Output)
USB Ports	USB-A 2.0 × 2, USB-B 2.0 × 1
LAN Ports	RJ45 10/100/1000 M × 2
Control Ports	RS232 × 1, IP Control (via LAN)
Other Controls	Reset × 1
Wireless	Wi-Fi 6 (2.4 G & 5 G dual-band 802.11 a/b/g/n/ac/ax), Bluetooth 5.1, IR supported
Installation Methods	Wall-mounted or Floor-stand installation
Operating System	Android 13
Memory	4 GB RAM
Storage	32 GB Flash
Power Adapter	100 – 240 V AC 50/60 Hz
Power Consumption (65")	Max 210 W / Typical 183 W / Off < 0.5 W
Power Consumption (75")	Max 215 W / Typical 186 W / Off < 0.5 W
Power Consumption (86")	Max 323 W / Typical 268 W / Off < 0.5 W
Operating Temperature	0 – 40 °C
Storage Temperature	-20 – 60 °C
Operating Humidity	10 – 95 %
Warranty	3 years

Bracket Compatibility

Bracket	Compatible Devices
MD-WallMount	MeetingDisplay 65, 75, 86 (sold separately)
MD-AVBracket-S	MeetingBar A40, SmartVision 40, MSpeaker Pro

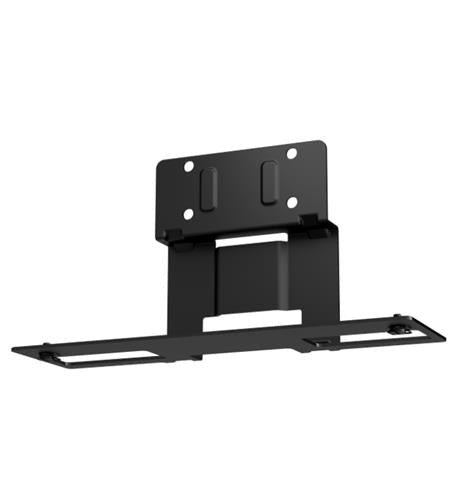

MD-AVBracket-L	MeetingBar A50, S50

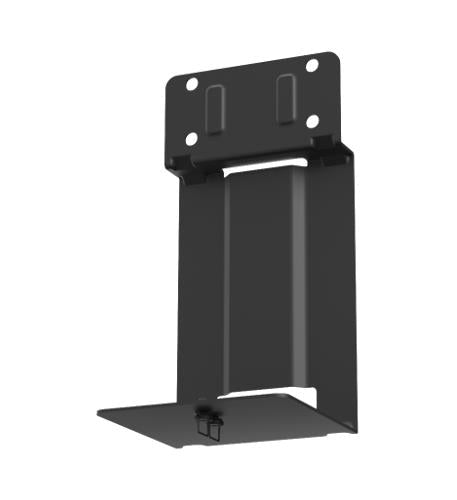

MD-PTZBracket	UVC86, SmartVision 80
MCore Bracket	MCore 4 (included in the package)

Suggested Bundles

Bundle	Recommended Brackets
MeetingDisplay 65/75 + MeetingBar A40	Wall: MD-WallMount + MD-AVBracket-S Mobile: MB-FS-Lift + MD-AVBracket-S
MeetingDisplay 65/75 + MVC S40	Wall: MD-WallMount + MD-AVBracket-S + MCore Bracket Mobile: MB-FS-Lift + MD-AVBracket-S + MCore Bracket
MeetingDisplay 75/86 + MeetingBar A50	Wall: MD-WallMount + MD-AVBracket-L Mobile: MB-FS-Lift + MD-AVBracket-L
MeetingDisplay 75/86 + MVC S50	Wall: MD-WallMount + MD-AVBracket-L + MCore Bracket Mobile: MB-FS-Lift + MD-AVBracket-L + MCore Bracket
MeetingDisplay 86 + MVC S80/MVC 860	Wall: MD-WallMount + MD-PTZBracket + MCore Bracket Mobile: MB-FS-Lift + MD-PTZBracket + MCore Bracket
MeetingDisplay 86 + MVC S80/MVC 860 + MSpeaker Pro	Wall: MD-WallMount + MD-PTZBracket or MD-AVBracket-S + MCore Bracket Mobile: MB-FS-Lift + MD-PTZBracket or MD-AVBracket-S + MCore Bracket

Main Unit Dimensions & Weight

Parameter	MeetingDisplay 65	MeetingDisplay 75	MeetingDisplay 86
Bare Device Dimensions (W × D × H)	1456 × 58 × 834 mm	1680 × 57 × 959 mm	1927 × 61 × 1099 mm
Packaging Dimensions (W × D × H)	1590 × 185 × 925 mm	1815 × 185 × 1055 mm	2065 × 215 × 1155 mm
Net Weight	19.9 kg (43.9 lbs)	28.4 kg (62.6 lbs)	45.2 kg (99.6 lbs)
Gross Weight	28.2 kg (62.2 lbs)	38.7 kg (85.3 lbs)	58.7 kg (129.4 lbs)
VESA Hole Specs	400 × 400 mm	600 × 400 mm	600 × 400 mm
VESA Mount Screw	M8	M8	M8
Bezel Width (L/R/U/D)	6 / 6 / 6 / 7.5 mm	6 / 6 / 6 / 8.5 mm	9 / 9 / 9 / 9 mm
Quantity per Box	1 unit	1 unit	1 unit

Package Contents

MeetingDisplay (size selected)
3 m AC Power Cable
3 m CAT5E Network Cable
Quick Start Guide
Cable Pack and Ties
Remote Controller (IR) + 2 × AAA Batteries
MCore Bracket (compatible with MCore 4; MCore sold separately)
