Description
The Algo 1211 Single Button is a smart-relay accessory that adds one physical call or alert button to a compatible Algo IP endpoint you already have. Facilities and IT teams use it when a speaker, strobe, paging adapter, or similar Algo host is nearby and they do not want another network drop or PoE port. Short press and long-press give two configurable actions. The host endpoint powers the button, watches the wiring, and runs SIP, multicast, or API workflows.
The Telecom Spot Take
Buy the 1211 when the room already has a compatible Algo endpoint on firmware v5.7 or later. That is the whole point versus the 8211 IP Single Button, which needs its own PoE drop and costs more because it is a standalone SIP device. One button, two actions, swap-in labels, and a multi-color ring so staff can see ready versus pressed. Keep it indoors and dry. Algo is clear that the 1211 is not a standalone life-safety or mass-notification system. It starts a workflow the host endpoint and your UC or notification platform already know how to run.
Key Features
- Smart-relay accessory, not a standalone IP phone: Connects to the Relay Input on a compatible Algo IP endpoint. No dedicated Ethernet port, no PoE injector, and no extra SIP registration on the button itself.
- Press and long-press: One physical button supports two configurable actions, so a tap and a hold can start different workflows on the host.
- Host-run actions: When pressed, the connected endpoint can play a tone (local and/or multicast), place a two-way SIP call, place a SIP call with pre-recorded audio, send API requests, send an SNMP trap, stream microphone audio (behavior depends on the host model), or cancel an action already running.
- Powered and supervised by the host: The endpoint supplies power over the same twisted pair and reports button status on its Status page. Set as an operational button or as a supervised panic button. Algo Device Management Platform (ADMP) can then show status, connectivity, and readiness.

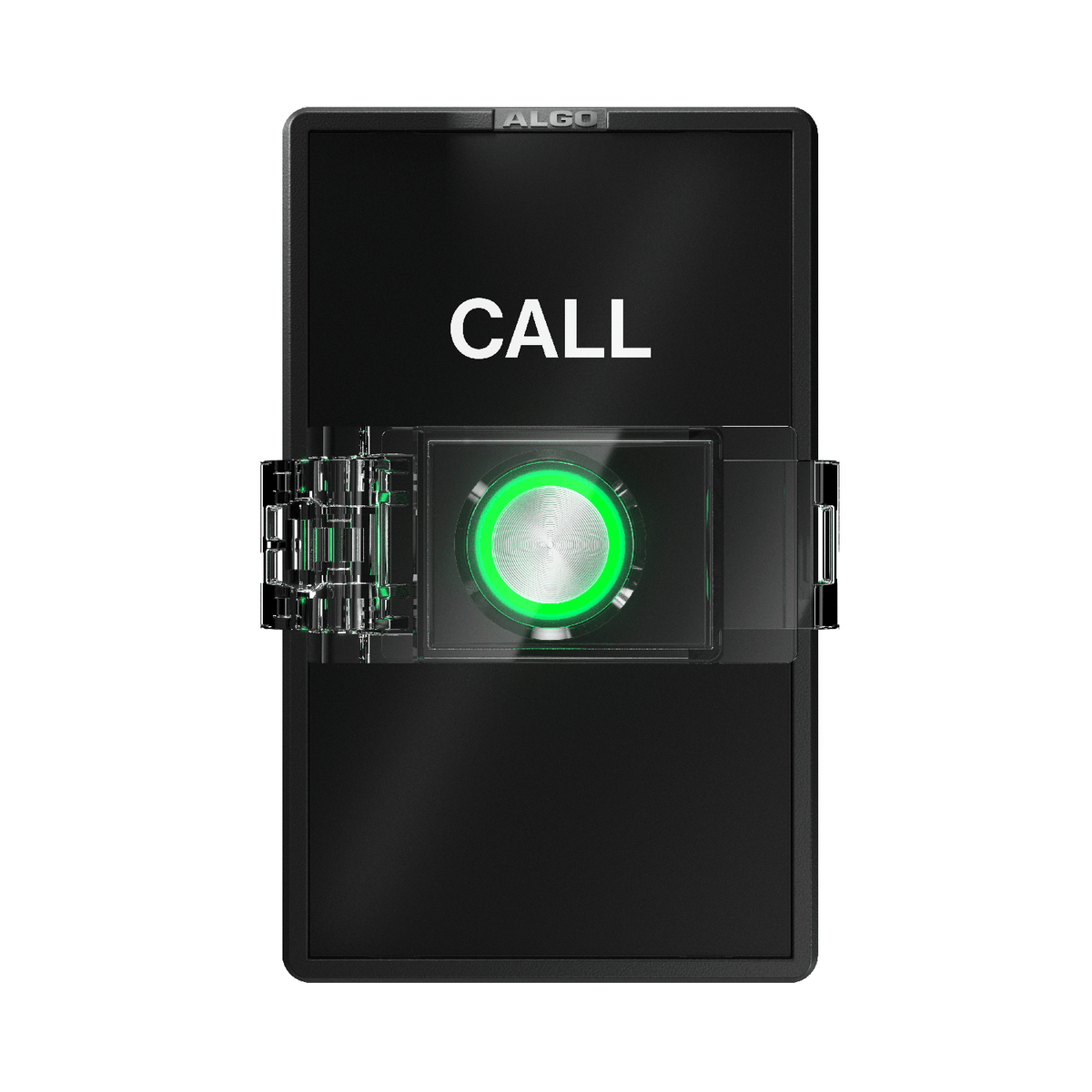

- Multi-color LED ring: Set blue, red, green, or amber with off / low / medium / high brightness and steady, slow flash, fast flash, or double-flash patterns so people can see idle versus activated.
- Selectable faceplate labels: Five labels ship with the unit. Name the button by room, language, or response type. Install and test first — the label covers the mounting screws and is hard to peel off later.

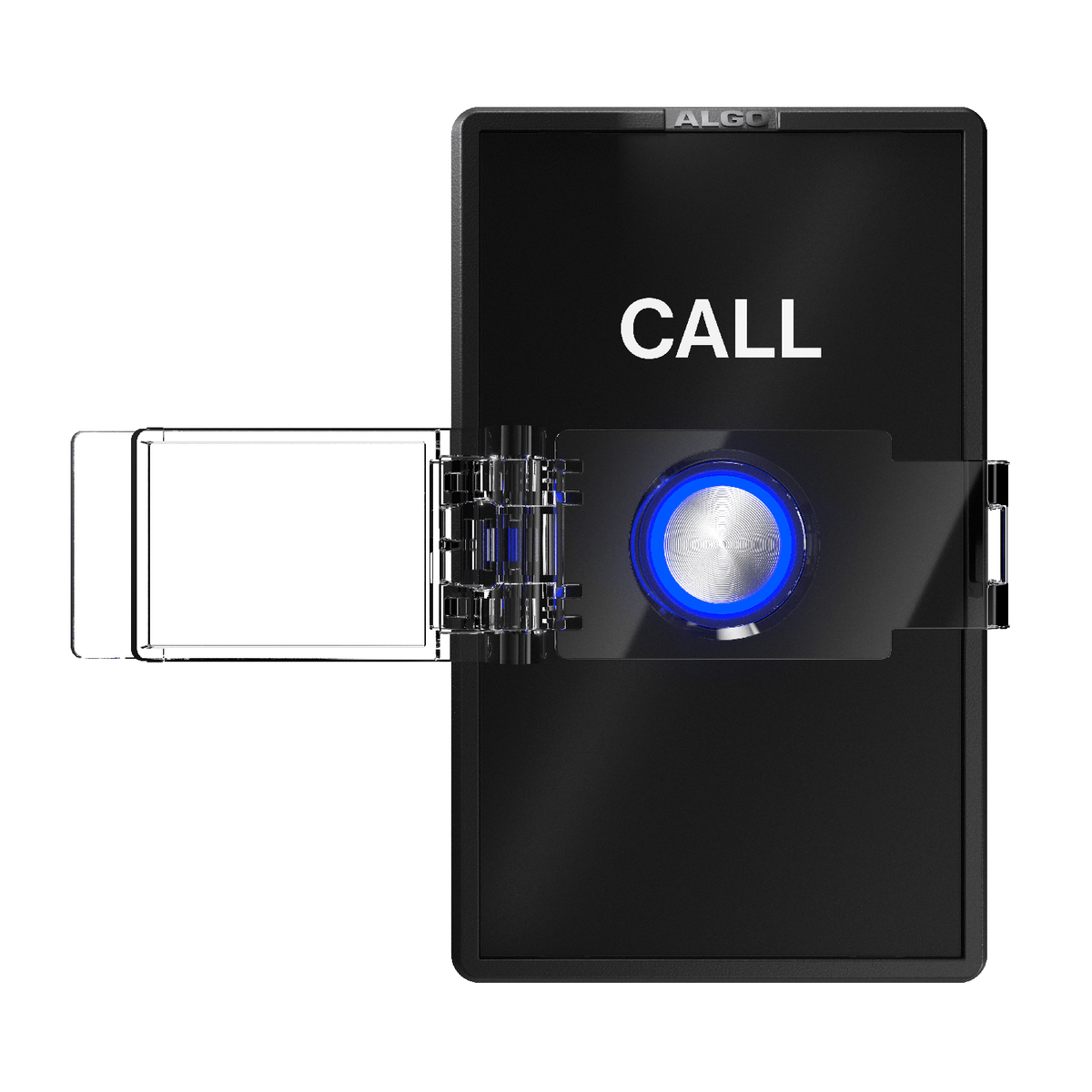

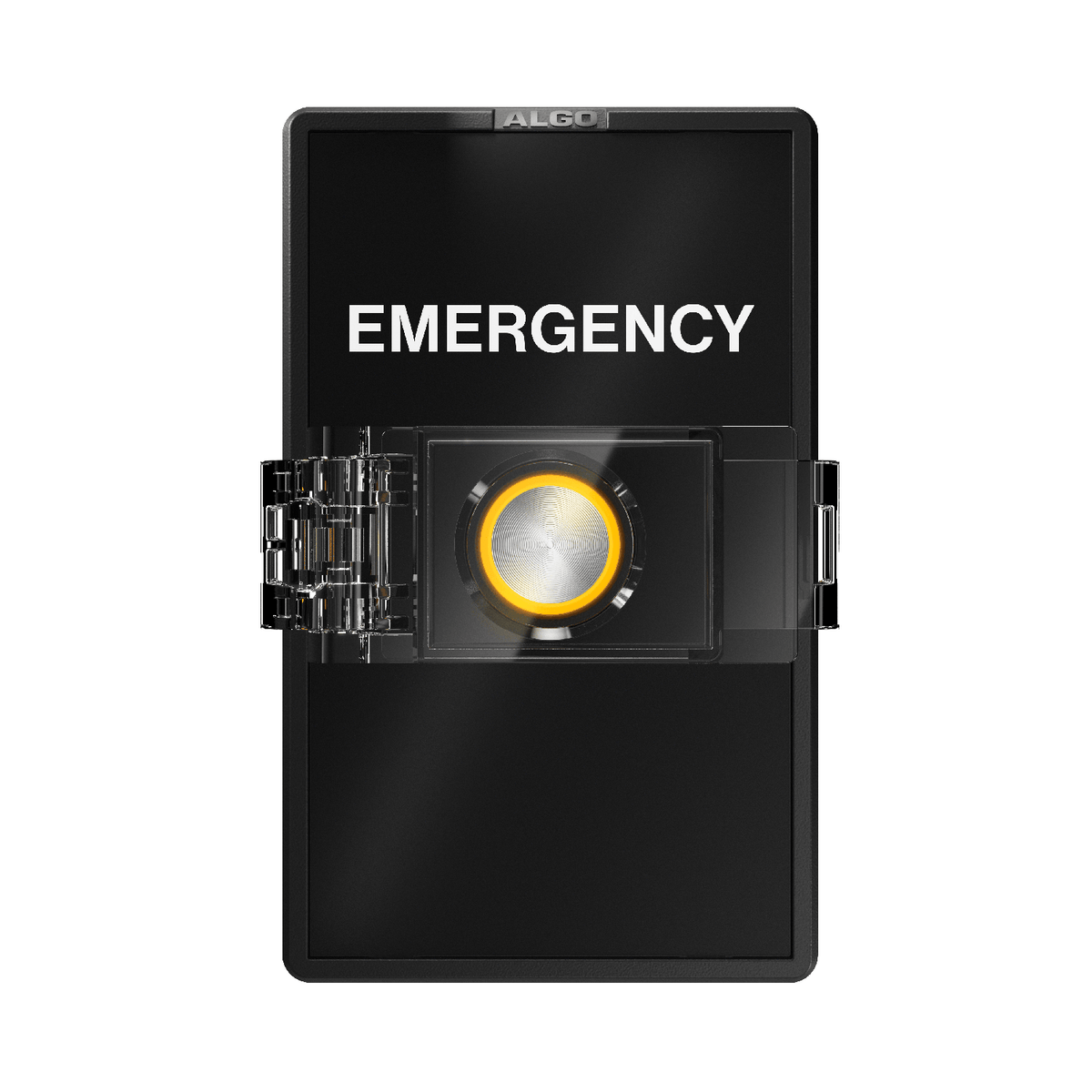

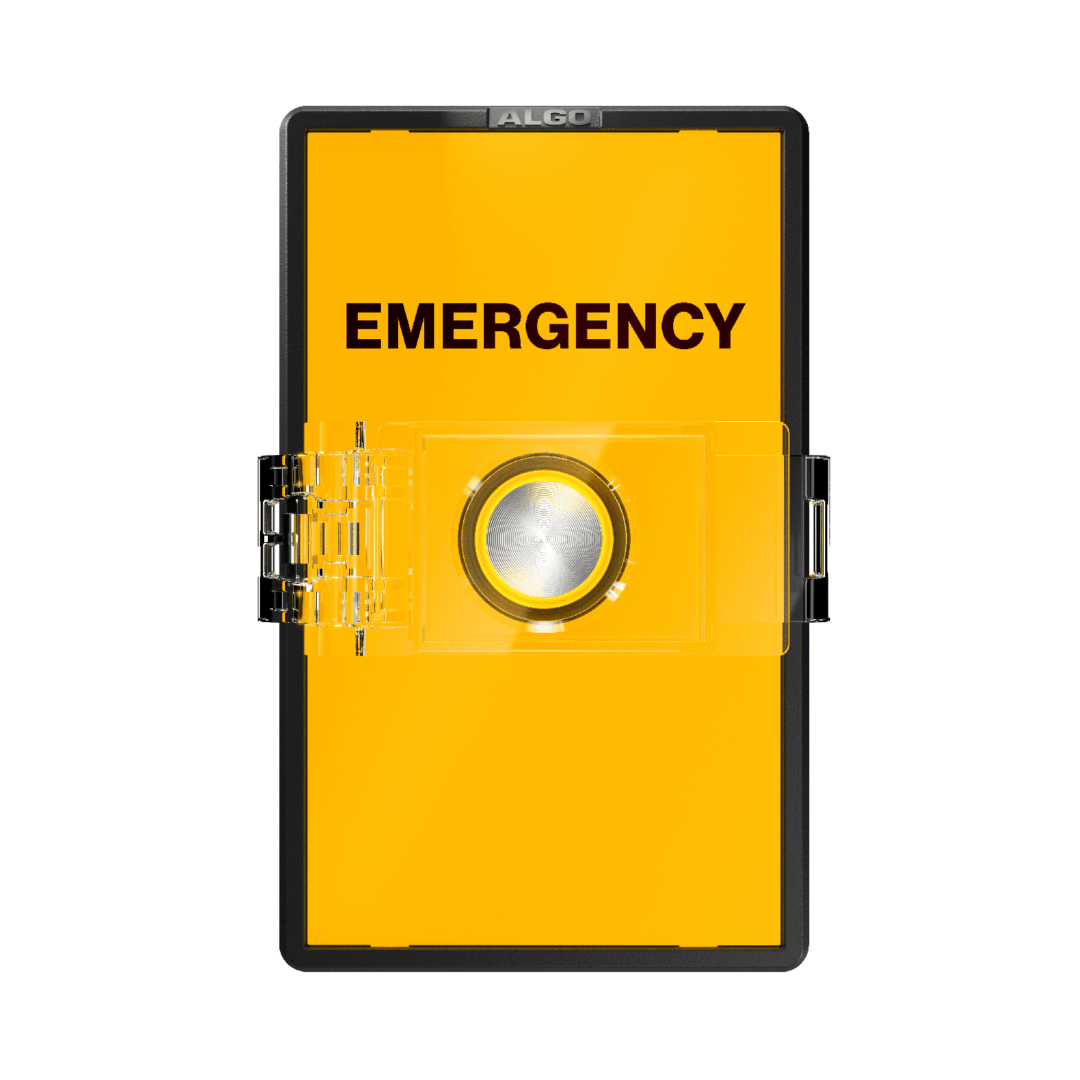

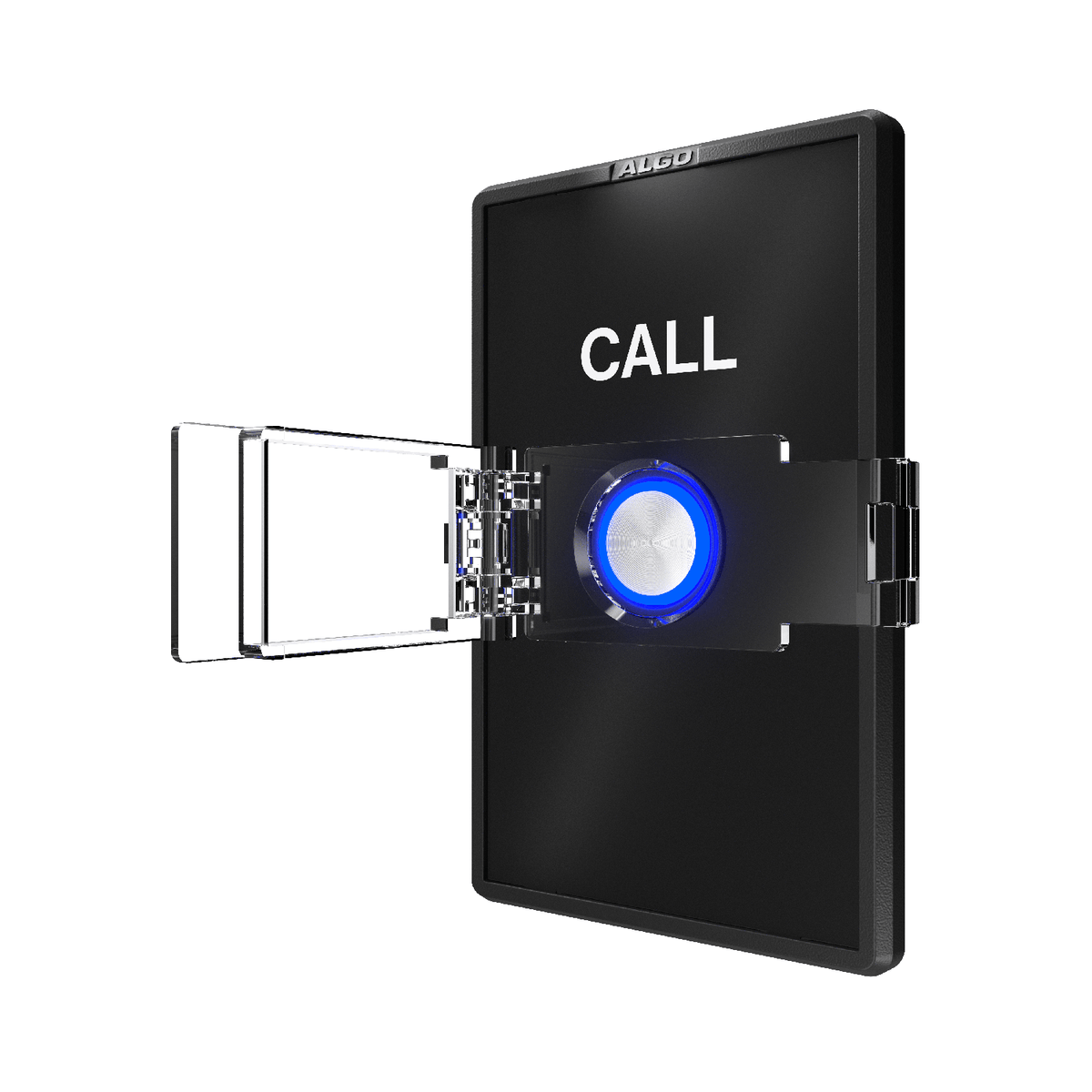

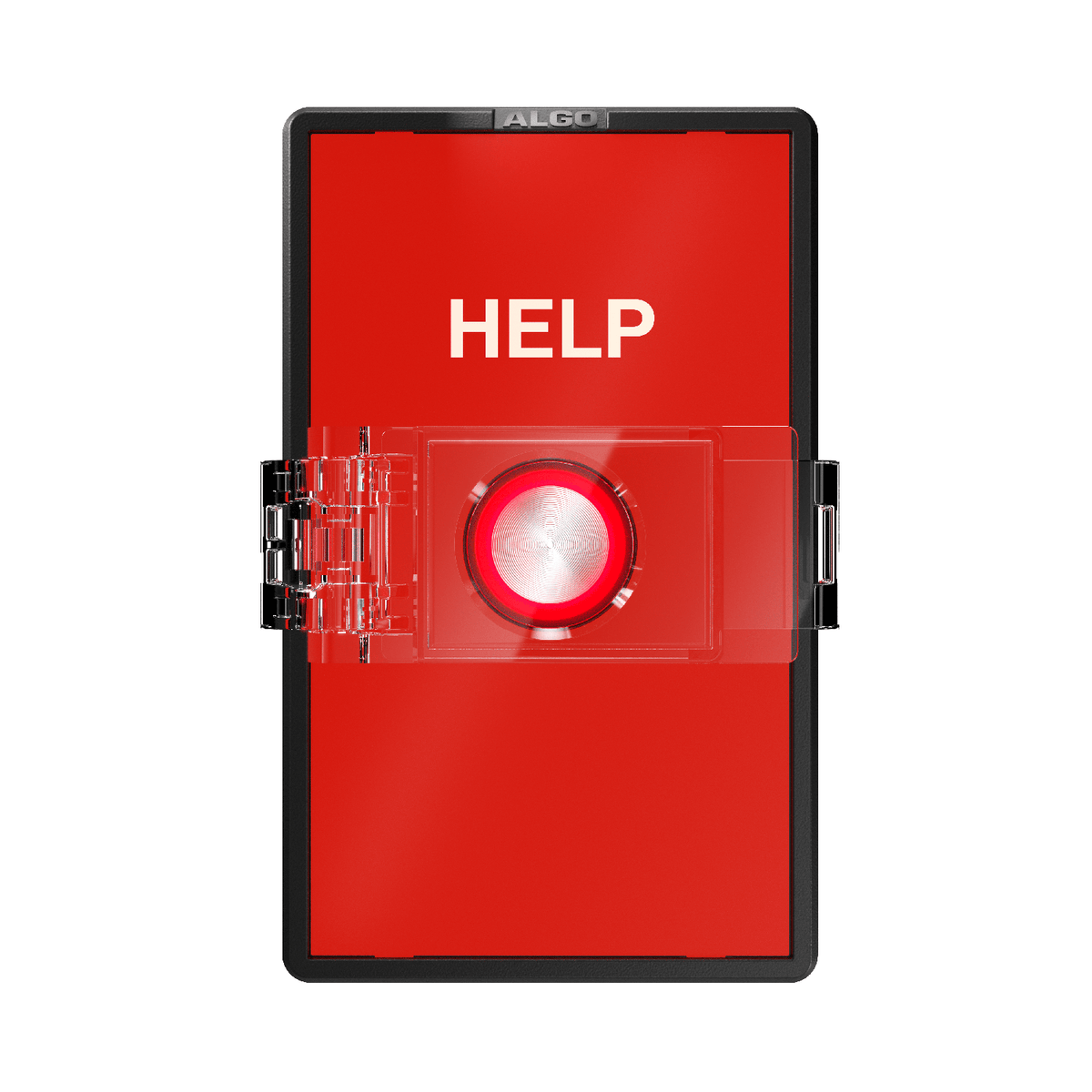

- Optional protective cover: A snap-on cover is included and helps cut accidental presses while still leaving the button reachable.

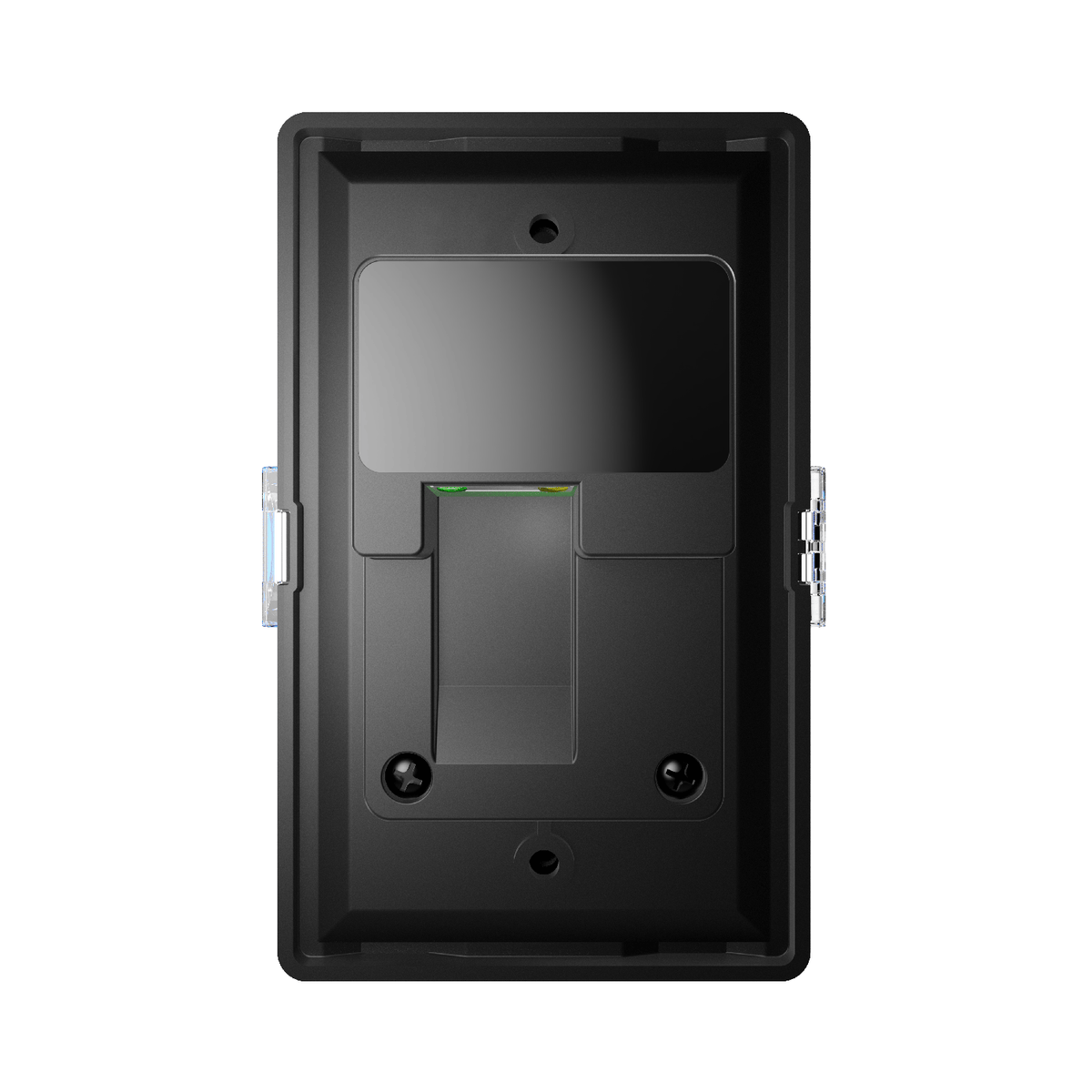

- Long homerun, simple wire: One 24 AWG twisted pair, polarity-independent, up to 1,000 feet (300 m) from the host. Terminal block on the button.

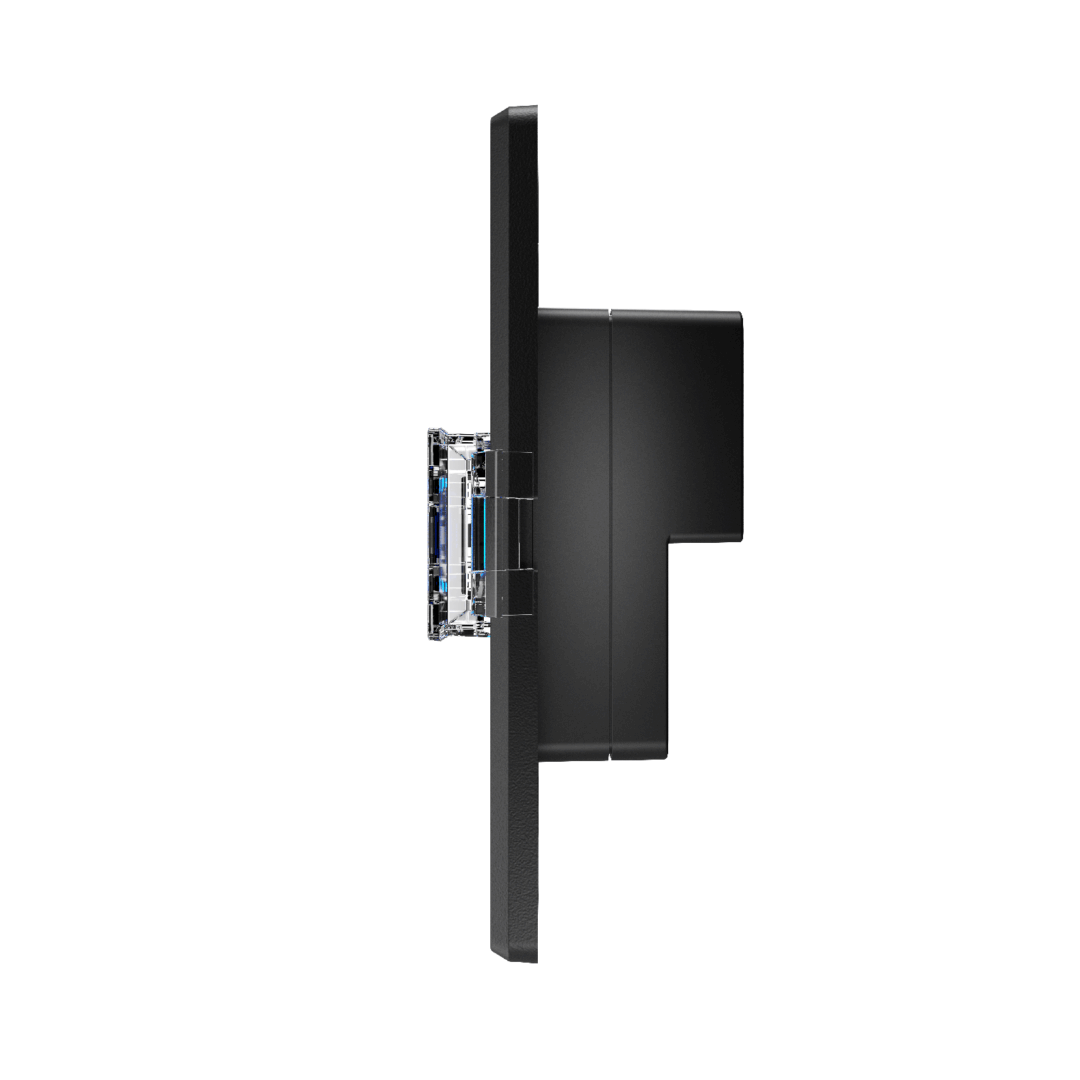

- Single-gang mount: Flush or surface mount to a single-gang electrical box or low-voltage bracket (box/bracket not included). Product size is 2.8" × 1.4" × 4.5". Indoor dry locations only.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 1211 Single Button |
| Brand | Algo Communication Products Ltd. |
| SKU / order code | 1211 |
| Official name | 1211 Single Button |
| Product type | Smart relay accessory (single configurable button) |
| Buttons / actions | One configurable button; press and long-press for two actions total |
| Connection | Smart relay to a compatible Algo IP endpoint (Relay Input port) |
| Requires host Algo IP endpoint | Yes. Host firmware v5.7 or later |
| Power | Supplied by the connected Algo IP endpoint |
| Supervision | Monitored on the host endpoint Status page; ADMP when configured as a panic button |
| Wiring | Terminal block; 24 AWG single twisted pair; polarity-independent |
| Maximum cable length | 1,000 ft (300 m) from the host endpoint |
| Configurable actions (on host) | Play tone; two-way SIP voice call; SIP call with tone; send API request; send SNMP trap; stream mic audio (host-dependent); cancel action |
| Button illumination | Configurable LED ring; colors blue, red, green, amber; patterns steady, slow flash, fast flash, double flash; brightness off, low, medium, high (product table lists 3 illuminated brightness levels) |
| Labeling | Selectable / interchangeable faceplate labels (5 included) |
| Protective cover | Optional snap-on cover included |
| Configuration | On the host web interface (typically Additional Features → Input/Output; 8063 uses Basic Settings → Inputs). Set Relay Input Mode to Algo 1211 Single Button |
| Management | Host endpoint web interface; ADMP panic-button status and event logs when enabled |
| Environment | +32 to +104°F (0 to +40°C); 10–95% RH noncondensing; dry indoor locations only |
| Dimensions (product) | 2.8" × 1.4" × 4.5" (7.0 cm × 3.5 cm × 11.4 cm) |
| Weight (product) | 0.17 lb (76 g) |
| Weight (shipping) | 0.30 lb (134 g) |
| Mounting | Flush or wall surface mount; single-gang electrical box or low-voltage bracket (not included); Algo logo at top; two flat-head screws included |
| Package contents | Algo 1211 Single Button; optional button cover; labels (×5); mounting screws (×2). Single-gang box / low-voltage bracket not included. |
Frequently Asked Questions
Does the Algo 1211 work without another Algo device?
No. The 1211 is only a smart-relay accessory. It must connect to the Relay Input of a compatible Algo IP endpoint running firmware v5.7 or later. If the wall has Ethernet and no host speaker or adapter nearby, look at the Algo 8211 IP Single Button instead.
What happens when someone presses the button?
The host endpoint runs the action you assigned. Algo documents press and long-press separately. Available action types (depending on the host model) include play a tone, make a two-way SIP call, make a SIP call that plays a stored file, send API requests, send an SNMP trap, stream microphone audio, or cancel an action already in progress. Instant actions such as API or SNMP cannot be canceled after they fire.
What is in the box, and what do I still need?
Algo’s user guide lists the 1211 button, one optional cover, five faceplate labels, and two mounting screws. You still need a compatible Algo IP endpoint on firmware v5.7 or later, 24 AWG twisted-pair wire, and a single-gang box or low-voltage bracket. The box and bracket are not included.
Where can I mount it, and is it outdoor-rated?
Mount it flush or on the surface of a single-gang box or low-voltage bracket, logo end up. Wiring can run up to 1,000 feet. It is rated only for dry indoor locations, 32 to 104°F. Algo tells installers to contact Algo support for outdoor or wet work, and not to run the wiring outside the building without lightning protection.
What is the difference between the 1211 and the 1212?
Both are smart-relay accessories that hang off a compatible Algo endpoint. The 1211 has one button and two actions. The 1212 has two buttons and four actions, plus extra override options between the top and bottom buttons.
