Description
The Algo 8212 IP Dual Button is a standalone PoE SIP endpoint with two physical buttons on one faceplate. Facilities and IT teams use it where one network drop needs two labeled workflows—often an everyday call on one button and an emergency alert on the other. Each button has a short press and a long-press, for four configurable actions. Power is IEEE 802.3af Class 0 PoE.
The Telecom Spot Take
Choose the 8212 when the wall already has Ethernet and you need two separately labeled buttons that register as their own SIP device. That is the difference versus Algo’s 1212 dual accessory, which must hang off a compatible Algo speaker or paging adapter. Same housing and indoor rating as the 8211 single-button IP model—just a second button and two more actions. Keep it indoors and dry. Algo is clear that the 8212 is not a standalone life-safety or mass-notification system. It starts a workflow you already designed on your UC or notification platform.
Key Features
- Standalone IP endpoint: Connects to the LAN over PoE. No host Algo speaker, strobe, or paging adapter is required for the buttons to work.
- Two buttons, four actions: Top and bottom buttons are configured independently. Each supports a press and a long-press, so one faceplate can start four different workflows.
- Typical split: Algo describes the pair as often used for an operational call on one button and an emergency alert on the other. Labels and LED colors make that split obvious to staff.
- Configurable actions: Manufacturer-supported actions include multicast a tone, place an outbound SIP call with pre-recorded audio, start an InformaCast scenario, send API requests, send an SNMP trap, or cancel an active action.

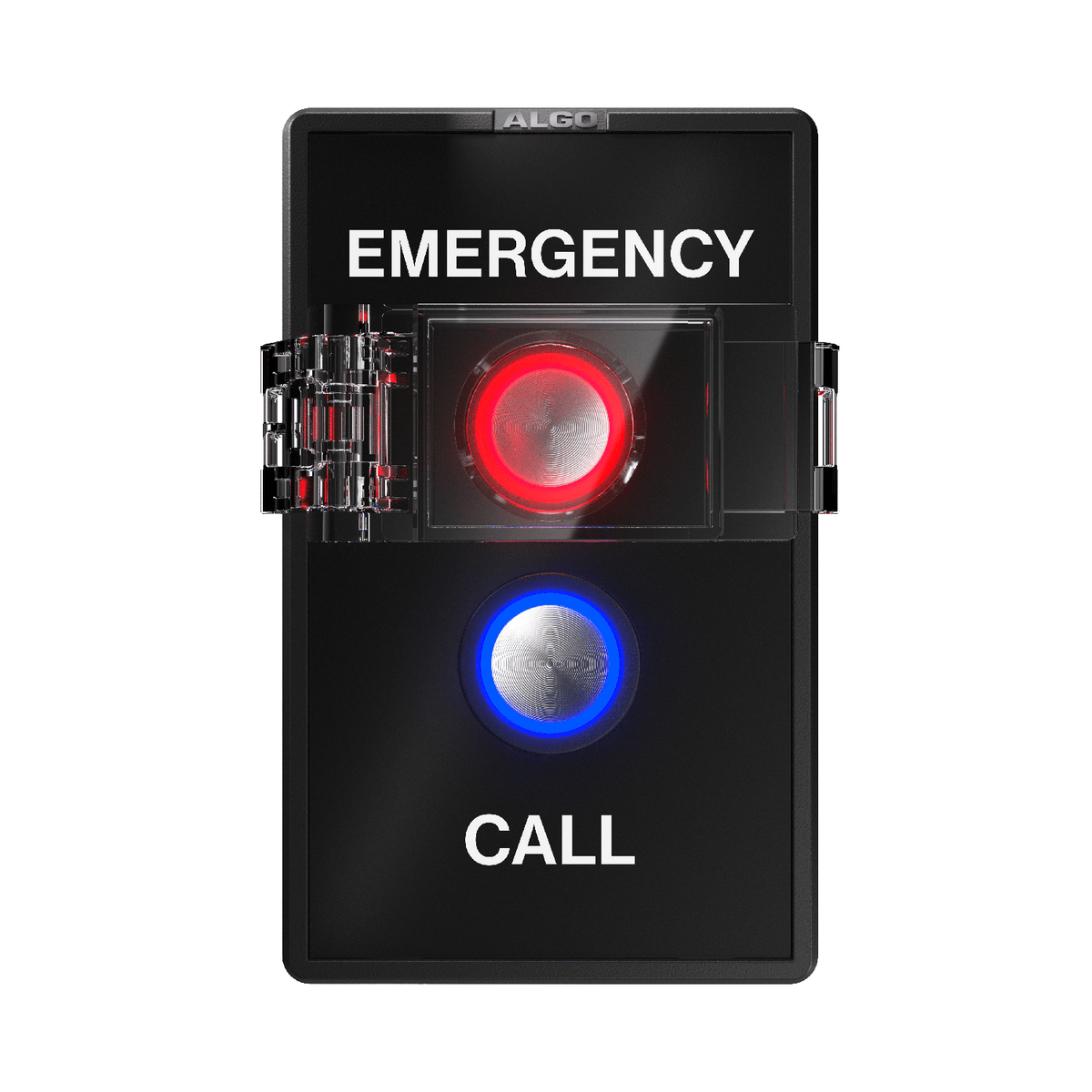

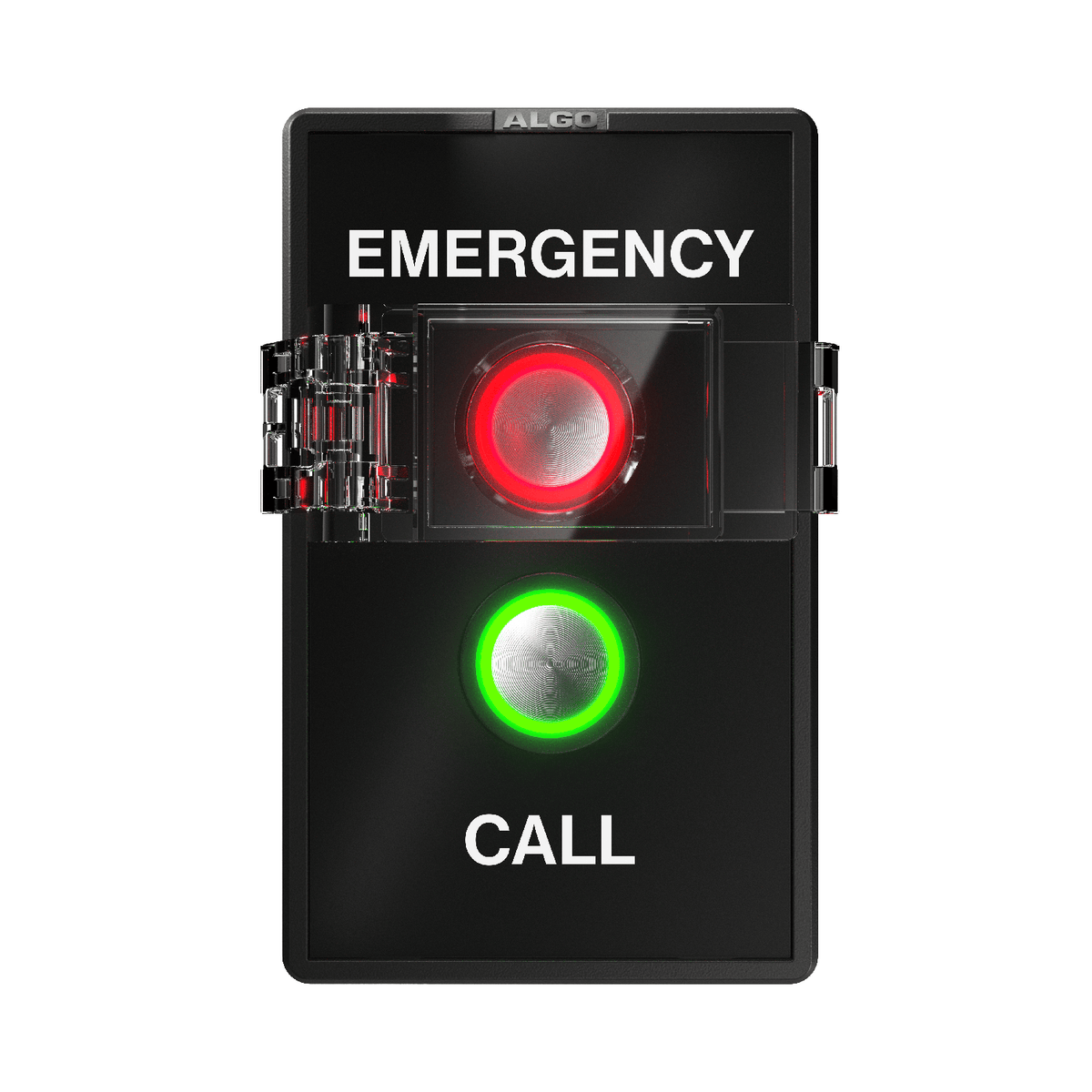

- Multi-color LED rings: Set blue, red, green, or amber with off / low / medium / high brightness and steady, slow flash, fast flash, or double-flash patterns so staff can see ready versus pressed on each button.
- Selectable faceplate labels: Swap the inserts to name each button by room, language, or response type. Algo says to install and test the unit before applying the labels, because the labels cover the mounting screws.

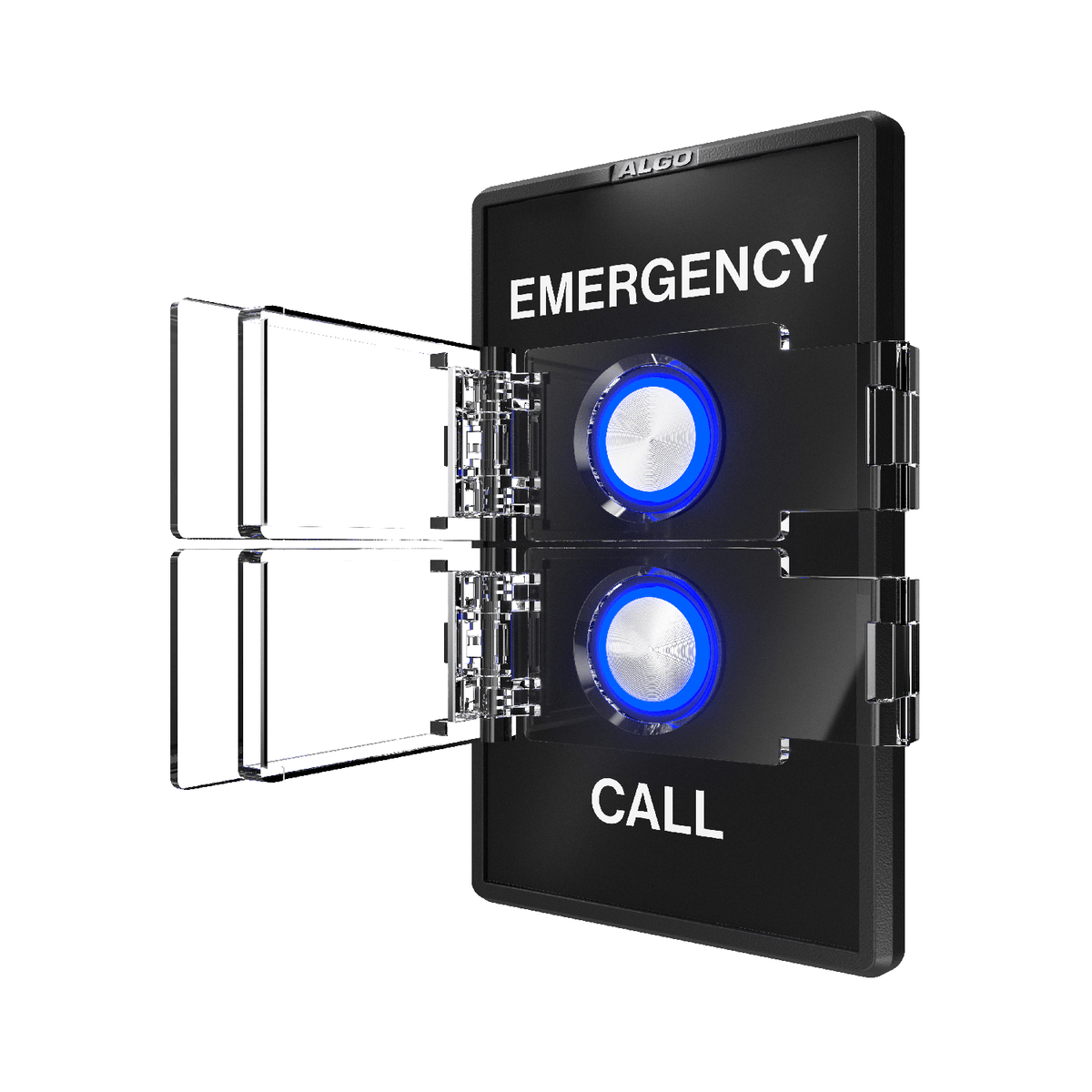

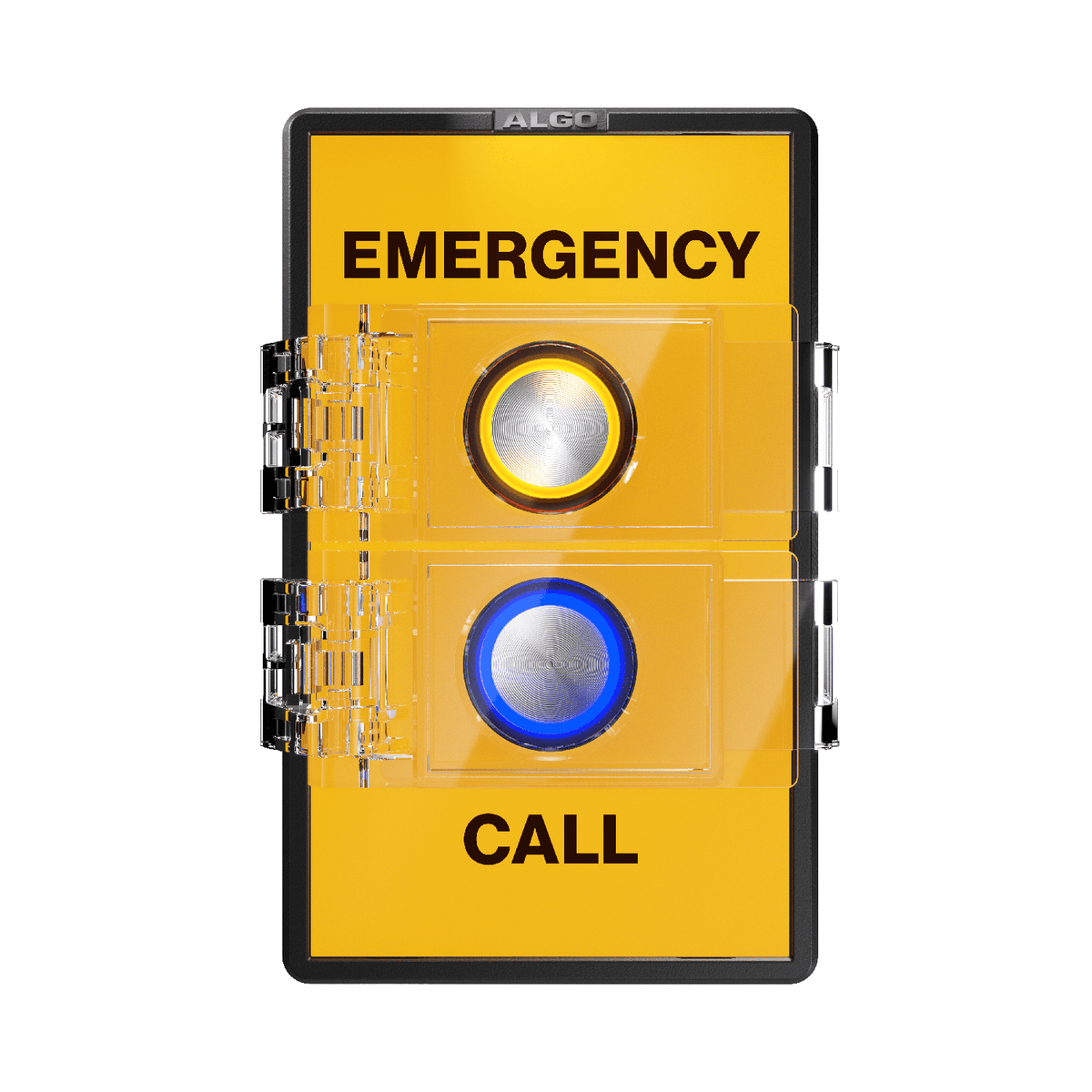

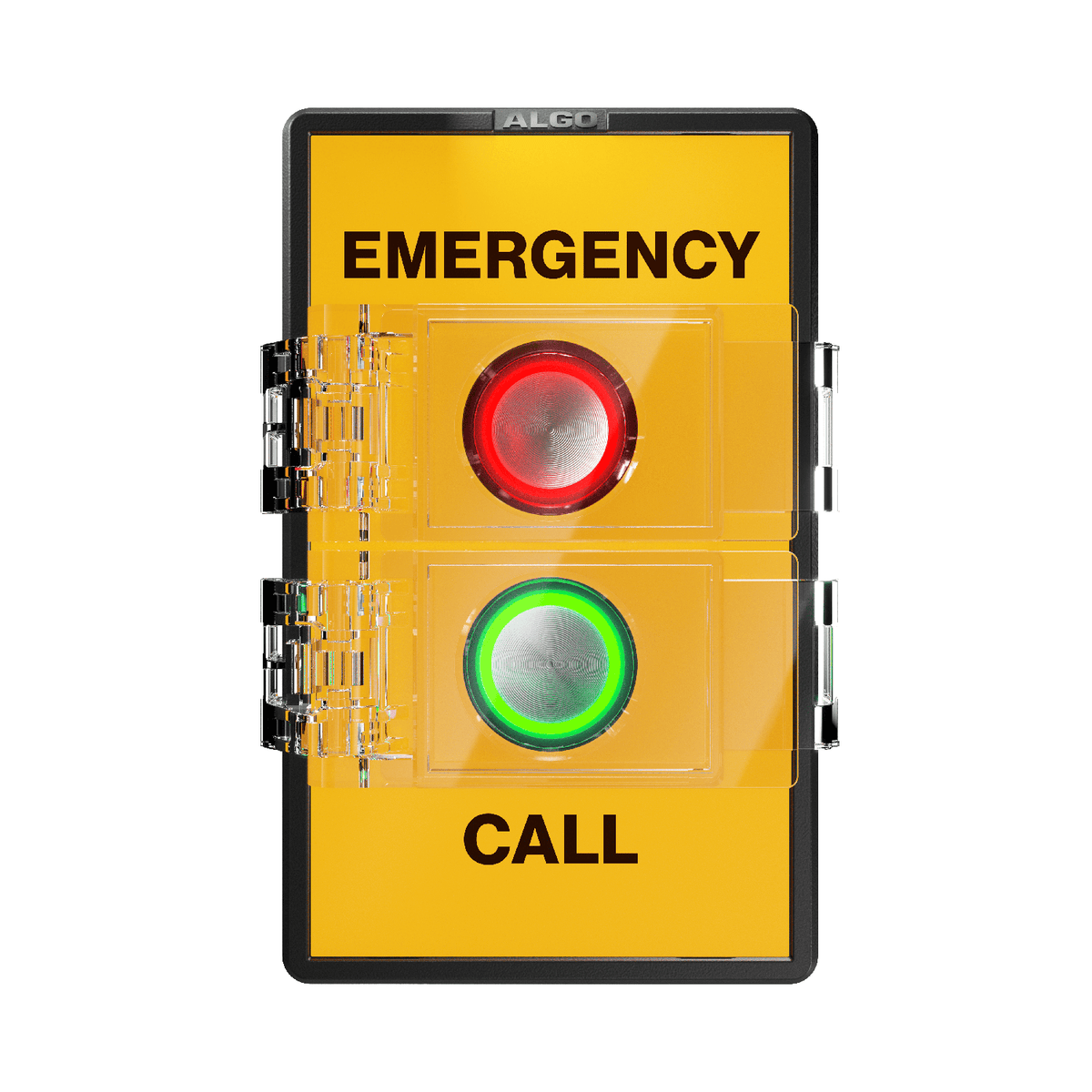

- Optional protective covers: Snap-on covers can go on one button or both. They help cut accidental presses while still allowing access when someone needs the button.
- SIP, multicast, and API: One SIP extension for outbound calls with pre-recorded audio; RTP multicast send to 50 zones with stored audio; RESTful API support. Compatibility list also includes Poly Group Page, InformaCast, and Microsoft Teams.
- Supervision and management: Direct network supervision. Compatible with Algo Device Management Platform (ADMP), the Algo 8300 IP Controller, third-party SNMP tools, and RTCP. When either button is used as a supervised panic button, ADMP can show status, connectivity, and readiness.

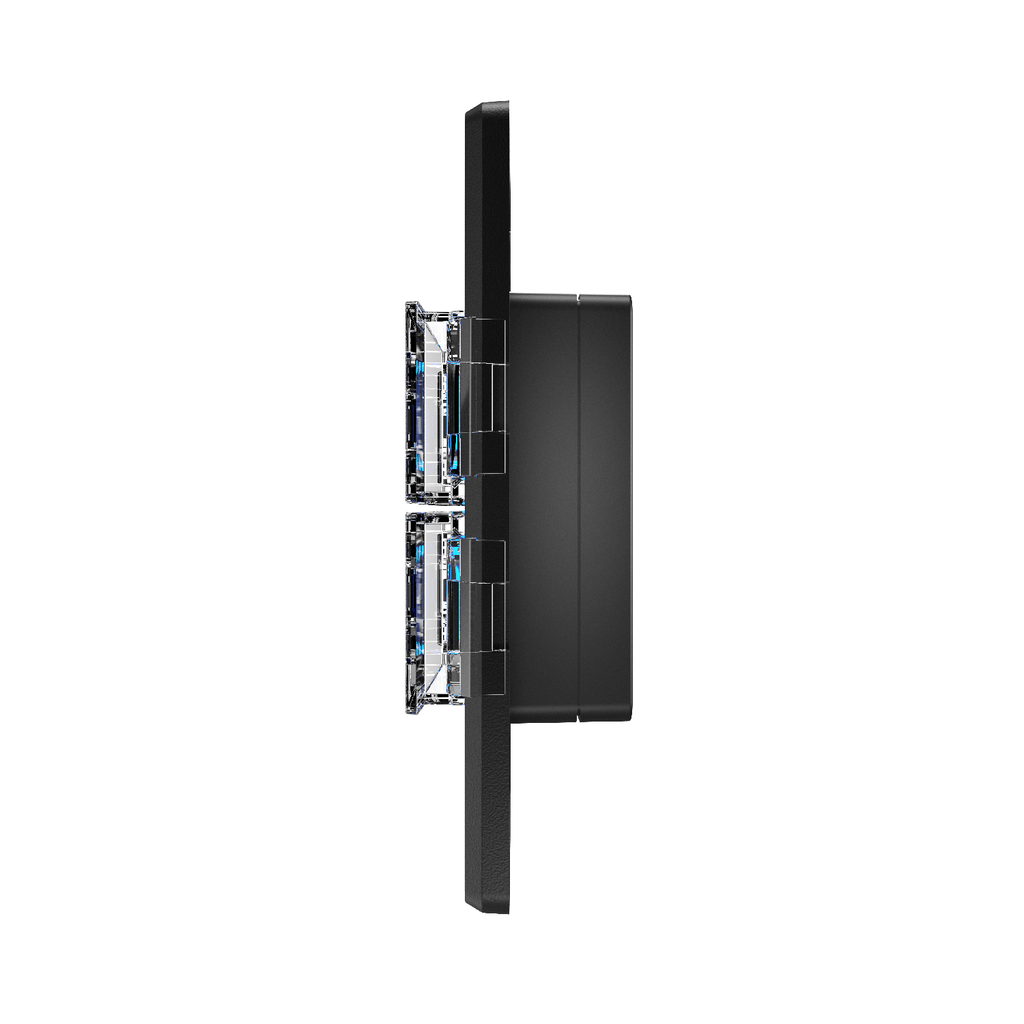

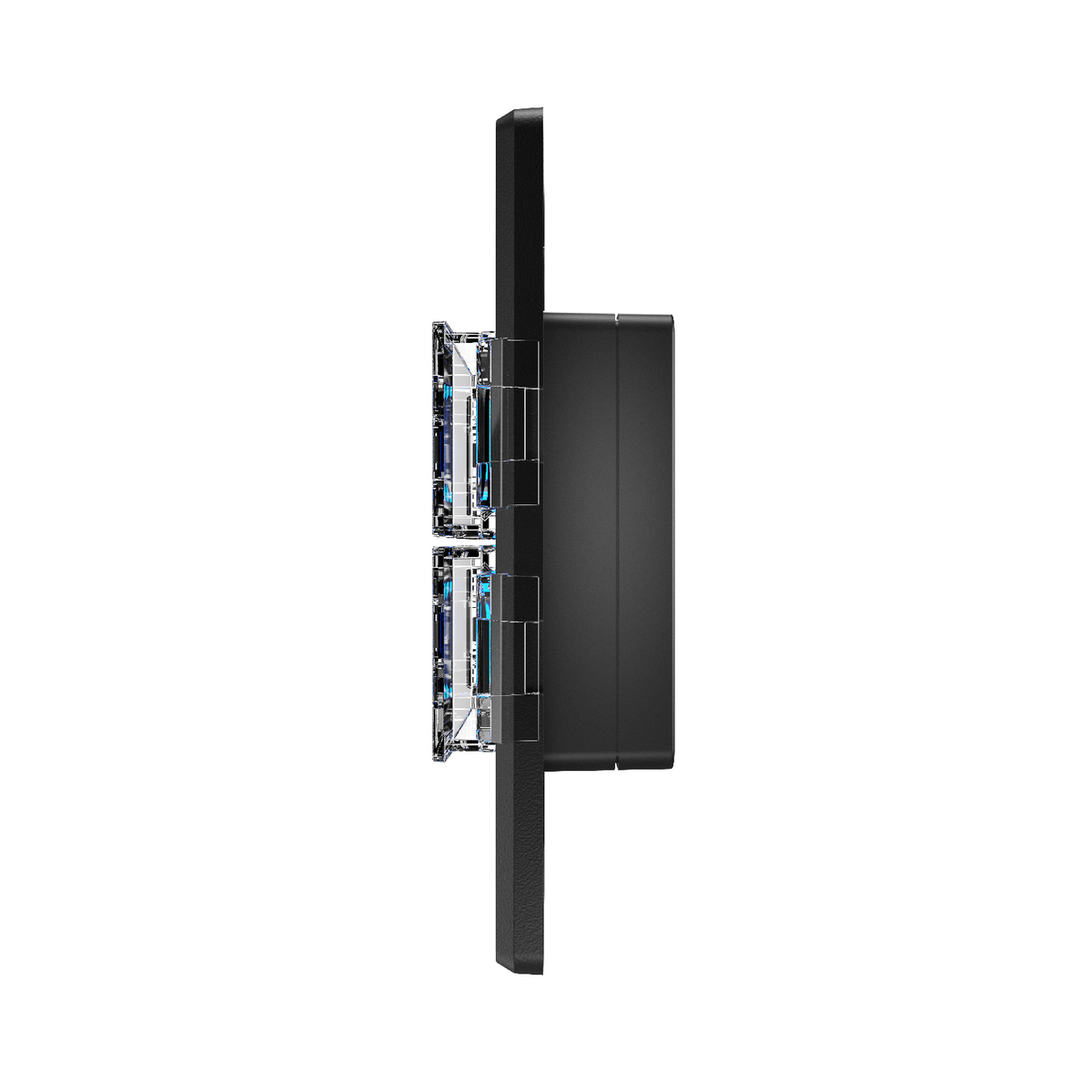

- Single-gang mount: Flush or surface mount to a single-gang electrical box or low-voltage bracket. Product size is 2.8" × 1.4" × 4.5". Indoor dry locations only.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 8212 IP Dual Button |
| Brand | Algo Communication Products Ltd. |
| SKU / order code | 8212 |
| Product type | Standalone IP dual-button endpoint |
| Buttons | Two independently configurable buttons; press and long-press on each (4 actions total) |
| Connection | Direct network connection via PoE (does not require a host Algo IP endpoint) |
| Power | PoE IEEE 802.3af Class 0, 48 V, 15.4 W |
| SIP extensions | One SIP extension for outbound SIP calls with pre-recorded audio |
| SIP signaling / transport | UDP, TCP, RTP |
| SIP security | TLS, SRTP, mutual authentication |
| SIP audio codecs | G.711 µ-law, G.711 A-law, G.722 wideband |
| Multicast | RTP multicast send, 50 zones, with pre-recorded audio |
| Multicast audio codecs | G.711 µ-law, G.711 A-law, G.722 wideband, Opus Fullband, L16 |
| Listed compatibility | RESTful API, Poly Group Page, InformaCast, Microsoft Teams |
| Configuration | Web interface or provisioning server |
| Web interface | HTTP, HTTPS |
| Provisioning | TFTP, FTP, HTTP, HTTPS; DHCP options 66, 150, 160; reboot via SIP check-sync |
| ZTP | Supported |
| Supervision | ADMP, Algo 8300 IP Controller, third-party SNMP, RTCP |
| Networking | IPv4, IPv6, DHCP, VLAN, mDNS |
| Link layer | LLDP, CDP |
| Network security | IEEE 802.1X |
| QoS / NAT | DSCP; STUN, TURN, CRLF keep-alive, SIP Outbound |
| Address resolution / redundancy | DNS, SRV; secondary and tertiary SIP server |
| Time | NTP server (up to four) |
| Audio storage | 1 GB for WAV or MP3 files |
| Button illumination | Configurable LED ring on each button; colors blue, red, green, amber; patterns steady, slow flash, fast flash, double flash; brightness off, low, medium, high |
| Labeling | Interchangeable / selectable faceplate label inserts |
| Protective covers | Optional snap-on covers for one button or both (button frame and button cover) |
| Environment | +32 to +104°F (0 to +40°C); 10–95% RH noncondensing; dry indoor locations only |
| Dimensions (product) | 2.8" × 1.4" × 4.5" (7.0 cm × 3.5 cm × 11.4 cm) |
| Weight (product) | 0.17 lb (76 g) |
| Weight (shipping) | 0.30 lb (134 g) |
| Mounting | Flush or wall surface mount; single-gang electrical box or low-voltage bracket | Documented hardware with the unit | 8212 button; faceplate labels; flat-head mounting screws; optional protective covers (pre-assembled button frame and cover). |
Frequently Asked Questions
Does the Algo 8212 need another Algo speaker or paging adapter?
No. The 8212 is a standalone IP endpoint. It takes PoE, registers for SIP, and runs its configured actions on its own. Buy the 1212 Dual Button instead if you already have a compatible Algo endpoint nearby and want a lower-cost smart-relay pair that does not consume a switch port.
What happens when someone presses a button?
You assign the short press and the long-press on the top and bottom buttons separately. Algo documents these action types: play a tone over multicast, make an outbound SIP call with pre-recorded audio (and multicast the tone), start an InformaCast scenario, send API requests, send an SNMP trap, or cancel an action already in progress. The 8212 stores up to 1 GB of WAV or MP3 audio for those playback actions.
Can it be used as a panic or duress button?
Algo says the 8212 can be set as everyday operational buttons or as fully supervised panic buttons. If either button is configured as a panic button, ADMP can show device status, connectivity, and readiness. The same product page states it is not a standalone life-safety or mass-notification system. It depends on your network, power, configuration, and the platforms it calls. Plan testing and failover before you treat it as an emergency control.
Where can I mount it, and is it outdoor-rated?
Mount it flush or on the surface of a single-gang box or low-voltage bracket, logo end up. It is rated only for dry indoor locations, 32 to 104°F. Algo tells installers to contact Algo support for outdoor or wet work, and not to run the wiring outside the building without lightning protection.
What is the difference between the 8212 and the 8211?
Both are standalone PoE SIP buttons with the same indoor rating and size. The 8211 has one button and two actions (press and long-press). The 8212 has two buttons and four actions. .
What power and network does the 8212 need?
One IEEE 802.3af Class 0 PoE drop at 48 V (15.4 W class). After you plug it in, the buttons stay steady blue for about one minute during boot, then the lights turn off until you set the idle LED state. Configure it from the web interface or a provisioning server. Zero-touch provisioning is supported.
