Description

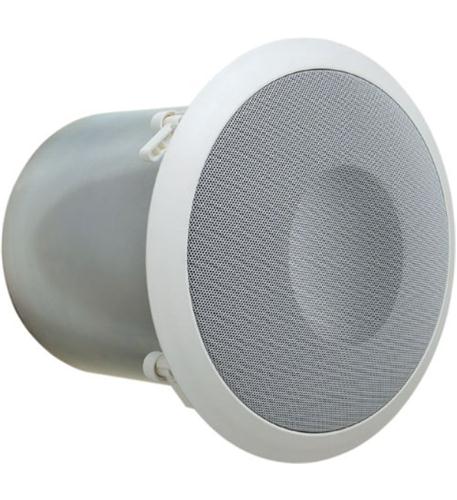

The Bogen OCS1 Orbit Ceiling Speaker delivers high-intelligibility audio for paging and background music applications. Its coincident-mounted coaxial driver with MLS and MDT technologies provides detailed sound and wide 140-degree dispersion, minimizing the number of ceiling speakers needed for uniform coverage.
Key Features
- 6.5" MDT Metal-Alloy Woofer + 3/4" Tweeter - Coincident-mounted coaxial driver with MLS and MDT technologies for detailed sound and high intelligibility
- 140-Degree Wide Dispersion - Broad coverage pattern reduces the number of speakers needed for uniform coverage
- Spiderless Driver - One-piece metal-alloy construction with computer-matched venting for extended bass response
- Flexible Ceiling Compatibility - Installs in hard-surface ceilings, suspended ceilings, and new construction with optional TBCR bracket
- UL 2043 Listed - Meets plenum smoke and heat release requirements
Technical Specifications
- LF Driver: 6.5-inch metal-alloy MDT cone
- HF Driver: 3/4-inch polycarbonate tweeter
- Dispersion: 140 degrees
- System Compatibility: 16-ohm, 70V, 100V
- Finish: White
