Description

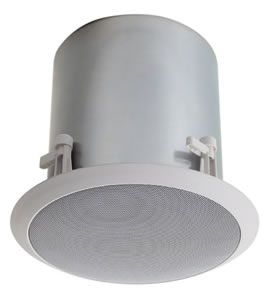

The Bogen HFCS1 is a high-fidelity coaxial ceiling speaker that delivers detailed, wide-dispersion audio for both paging and background music in commercial installations. Its flexible power taps support 70V, 100V, and 16-ohm systems from a single unit.
Key Features
- 6.5" + 3/4" Coaxial Driver - Wide-dispersion coaxial design delivers broad, even coverage for both speech and music
- Computer-Matched Venting - Precision-designed back can and venting system for full bass output in ceiling cavities
- Flexible Power Taps - Selectable taps: 32, 16, 8, 4, 2, and 1 watt at 70V; 32, 16, 8, 4, and 2 watt at 100V; plus 16-ohm
- Plug-In Connector with Loop-Through - Loop-through terminals simplify daisy-chaining multiple speakers on a single circuit
- Seismic Cable Attachment - Seismic cable attachment point meets safety code requirements for suspended ceiling installations
- Swing-Out Installation Clamps - Integral clamps secure the speaker to the ceiling tile without additional hardware
- UL 2043 Listed - Meets UL 2043 plenum smoke and heat release requirements
Technical Specifications
- LF Driver: 6.5 inches
- HF Driver: 3/4 inch tweeter
- Power Taps (70V): 32, 16, 8, 4, 2, 1 watts
- Power Taps (100V): 32, 16, 8, 4, 2 watts
- Low-Impedance: 16-ohm
- Finish: White
