Description

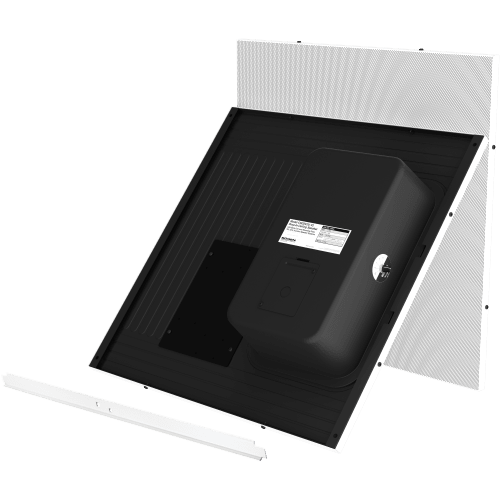

Need clear, reliable audio in offices, schools, hospitals, or retail spaces? The Bogen CSD2X2U-V2 is a versatile 2x2 drop-in ceiling speaker that installs in minutes and delivers full-range sound for paging, background music, or announcements.
What makes it special? It works straight out of the box with standard 8-ohm or 70V/25V systems, but you can also convert it into a Nyquist passive IP speaker or even use it as a source speaker to power additional 25V/70V speakers downstream. Plenum-rated and built tough, it's the flexible choice for modern VoIP and traditional audio installations.
Our Expert Take: If you're running a Bogen Nyquist system or planning to migrate toward IP audio, this speaker is a smart pick. For pure 70V paging jobs, it's rock-solid and cost-effective.
Key Features
- Versatile Operation - Works with 8-ohm, 25V, or 70V systems
- Power Taps - 4W, 2W, 1W, 0.5W, 0.25W (70V/25V)
- Full-Range Sound - 95 Hz - 20 kHz frequency response with 94 dB sensitivity
- Easy Conversion - Turn it into a Nyquist IP speaker or source speaker for daisy-chaining more 70V speakers
- Plenum-Rated - Meets UL 2043 and UL 62368 safety standards
- Simple Install - Drops into standard 2x2 ceiling tile grid
- Rugged Build - Industrial-grade steel enclosure with 8" main cone + high-frequency cone and 10-oz magnet
- Wide Dispersion - 100° at 2 kHz for even coverage
Technical Specifications
- Speaker Type: Full-range 2x2 drop-in ceiling speaker (sold as pair)
- Driver: 8" treated paper main cone with secondary high-frequency cone
- Magnet Weight: 10 oz
- Frequency Response: 95 Hz to 20 kHz
- Sensitivity: 94 dB (SPL @ 1W/1m)
- Power Taps (70V/25V): 4W, 2W, 1W, 0.5W, 0.25W
- Dispersion: 100° @ 2 kHz (6 dB down)
- Connections: Wire nuts (included in electrical box)
- Enclosure: Industrial-grade steel, plenum-rated
- Dimensions: 24" W x 4-7/8" H x 24" D
- Weight: 14 lb (pair)
