Description

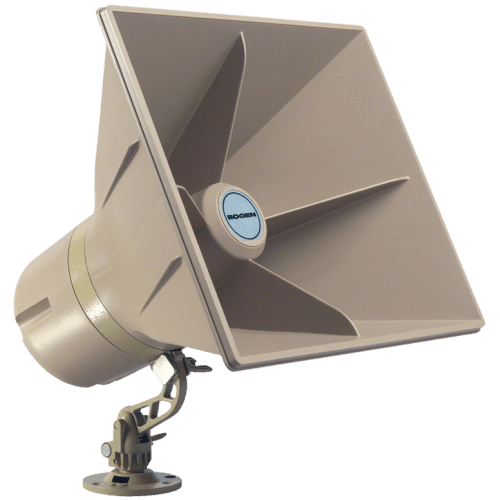

Looking for a simple, tough speaker that cuts through noise without complicated setups or high power bills? The Bogen SAH5 is a compact 5-watt self-amplified horn that brings reliable voice paging and background music to smaller spaces - indoors or out.
Built with modern digital switching amplifier technology, this horn runs cooler and draws far less current than older analog models. That means you can use longer cable runs, fewer power supplies, and still get dependable performance even in hot environments or with continuous background music playing.
Whether you're paging in a small warehouse bay, a loading dock, a garage, or an outdoor work area, the SAH5 keeps announcements clear and intelligible. Its unique flare shape focuses sound exactly where you need it, so listeners hear every word without distortion or drop-off.
Expert Tip from The Telecom Spot: When mounting outdoors, always position the access cover bump facing downward so water drains away. Use the included electrical box strap for secure installs, and consider the optional BC1 beam clamp for I-beam mounting. Pair it with a quality 24V DC power supply sized for your total current draw (the SAH5 uses only 4 CU / 200 mA typical).
Key Features
- 5-Watt Built-in Digital Switching Amplifier - High efficiency with very low DC current draw and minimal heat
- Weatherproof & UV-Protected Housing - Reliable performance indoors or outdoors
- Rotatable Horn Flare - Switch between 120° x 90° or 90° x 120° dispersion for perfect coverage
- Cast Aluminum Swivel Mount - Rotate, tilt, or swivel in any direction for easy aiming
- Operates on Standard 24V DC - Works with common paging power supplies
- Indexed Volume Control - Simple front-panel adjustment
- Screw Terminal Connections - Quick and secure wiring
- Includes Mounting Strap - Ready for electrical box or strap mounting
- Two-Year Manufacturer Warranty
Technical Specifications
- Power Rating: 5W
- Power Supply Voltage: 24V DC (nominal)
- Typical Current Consumption: 4 CU (200 mA)
- Maximum Sound Level: 119 dB SPL
- Input Sensitivity: 125 mVrms
- Frequency Response: 275 Hz - 14 kHz
- Input Impedance: 2k ohms
- Dispersion: 120° x 90° (rotatable to 90° x 120°)
- Dimensions: 10-5/8" W x 12" H x 11-1/2" D
- Weight: 6 lb
- Housing: Weatherproof, UV-protected plastic (mocha finish)
- Mounting: Cast aluminum swivel mount + included electrical box strap
- Connections: Screw terminal strip for audio (T/R) and power (+/-)
