Description
Need a simple way to connect your Bogen Nyquist IP paging system to real-world devices like fire alarms, lockdown buttons, sensors, and clocks?

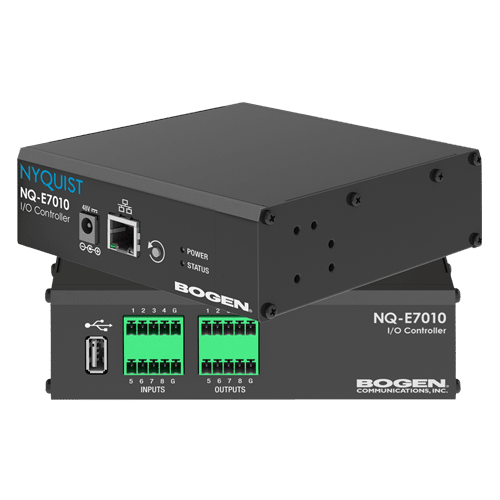

The Bogen Nyquist NQ-E7010 Input/Output Controller makes it easy. It gives you 8 dry contact closure inputs to detect triggers from third-party equipment and 8 relay driver outputs to control things like bells, door locks, or clock sync pulses.
Powered by PoE (or optional 48V DC), this compact unit mounts on a wall or shelf and works seamlessly with Nyquist E7000 and C4000 systems. It's the perfect bridge that turns your IP paging setup into a smarter, more responsive communication and safety solution for schools, offices, warehouses, and commercial buildings.
Our Expert Take: This little box delivers rock-solid reliability with simple setup through the Nyquist web interface. The dry contact inputs are forgiving and work with almost any third-party sensor. The open-collector outputs drive relays cleanly without extra power in most cases.
Key Features
- 8 Dry Contact Closure Inputs - Perfect for monitoring fire alarms, lockdown buttons, door sensors, or any switch closure
- 8 Open-Collector Relay Driver Outputs - Trigger external actions like bell rings, door unlocks, clock sync pulses, or lights (500mA max per output)
- PoE Class 3 Powered - IEEE 802.3af compliant; just plug into your network switch (optional 48VDC 15W power supply available)
- 10/100 Ethernet - Reliable network connection
- USB 2.0 Host Port - Reserved for future features
- Compact & Flexible Mounting - Wall or shelf mount; only 5.6" W x 5.4" D x 1.7" H (2" with feet)
- Easy Configuration - Set rules, schedules, and logic directly in the Nyquist system software
- 5-Year Limited Warranty - Peace of mind from a trusted brand
Technical Specifications
- Inputs: 8 dry contact closure inputs (1 ground per 4 inputs)
- Outputs: 8 open-collector relay driver outputs (500mA maximum per ground sink)
- Network: 10/100 Ethernet
- Power: PoE Class 3 (IEEE 802.3af) or optional 48VDC 15W power supply
- USB: 1 x USB 2.0 Host Port (Type A) - future use
- Dimensions: 5.6" W x 5.4" D x 1.7" H (2" H with rubber feet)
- Mounting: Wall or shelf mount
- Operating Temperature: -15°C to +40°C (based on system specs)
