Description

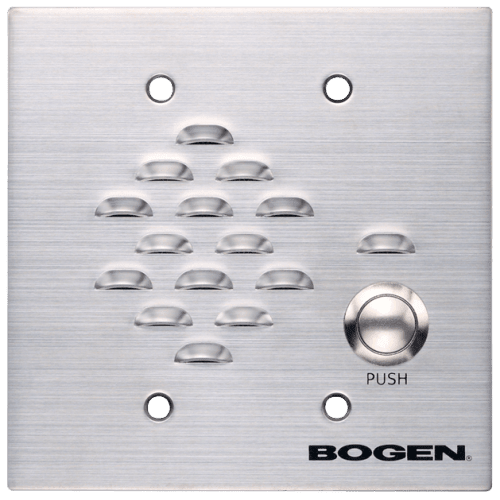

If your business, school, or facility needs reliable two-way communication at doors and entry points without the hassle of extra wiring, the Bogen Nyquist IP Entry Door Phone NQ-EDP01 is built for exactly that. This rugged, weather-resistant IP intercom station lets visitors press one heavy-duty button and instantly connect to your Nyquist paging system-or any SIP 2.0 compliant VoIP platform. Powered by standard PoE over a single Cat5 cable, it installs in minutes and stands up to indoor or outdoor use while resisting vandalism thanks to its brushed stainless-steel faceplate. Whether you're adding secure check-in at a loading dock, main entrance, or gated area, the NQ-EDP01 delivers clear, hands-free conversation every time.
The Telecom Spot Expert Review
At The Telecom Spot, the NQ-EDP01 stands out as one of the most straightforward and durable IP door phones in the Nyquist lineup.
What we love:
- True plug-and-play PoE setup-no separate power runs needed.
- Vandal-resistant stainless construction that holds up in high-traffic outdoor spots.
- Flexible standalone SIP mode means you're not locked into a full Nyquist deployment if you're just starting small.
Expert Take: It's not the cheapest door phone on the market, but you get rock-solid Bogen reliability and crystal-clear audio that cheaper plastic units simply can't match. In noisy environments we recommend tweaking the mic threshold via the web UI (takes 60 seconds) and you're golden. Setup tip from our techs: Use a UL/IEC 60950-22 IP54-rated outdoor junction box and caulk around the rough opening for true weatherproofing.
Pros
- Weather-resistant for indoor/outdoor use
- Vandal-resistant stainless steel faceplate
- Easy Cat5/PoE installation
- Works with Nyquist or any SIP 2.0 system
- Adjustable mic & speaker volume
Cons
- Half-duplex (one person speaks at a time)
- Max operating temp 35 °C (great for most U.S. climates)
- No built-in door relay (pair with a separate controller if electric strike needed)
Key Features
- Two-way half-duplex intercom - Perfect for clear visitor-to-reception or security communication
- Weather-resistant & vandal-resistant - Brushed stainless steel faceplate with gasket and heavy-duty call button
- PoE Powered (802.3af Class 1) - Single Cat5 cable carries power and data
- Standalone SIP Mode - Works with any SIP 2.0 compliant third-party VoIP system
- Nyquist Native Integration - Auto-discovers on Nyquist E7000 / C4000 networks
- Hands-free operation - No handset required
- Easy wiring - 8-position 110 punch-down block (22-26 AWG solid wire)
- Adjustable audio - Microphone and speaker volume levels via web UI
- Reset options - Simple reboot or factory reset with the hidden button
- Flush or surface mount - Includes dress bezel and gasket for clean installs
Technical Specifications
- Power: PoE 802.3af Class 1
- Connections: 8-position, 4-pair 110 punch-down block (22-26 AWG solid conductor)
- Dimensions (fully assembled): 5" W x 5" H x 2-1/4" D
- Aluminum box: 4-5/8" W x 4-5/8" H x 2" D
- Product Weight: 4 lb
- Max Operating Temperature: 35 °C
- Audio: Half-duplex, adjustable mic & speaker volume
- Call Button: Heavy-duty, front-panel
- Faceplate: Brushed stainless steel with mounting gasket
- Compliance: FCC Part 15 Class A, IEEE 802.3af
- Mounting: Fits standard dual-gang electrical box (flush or surface)
