Description

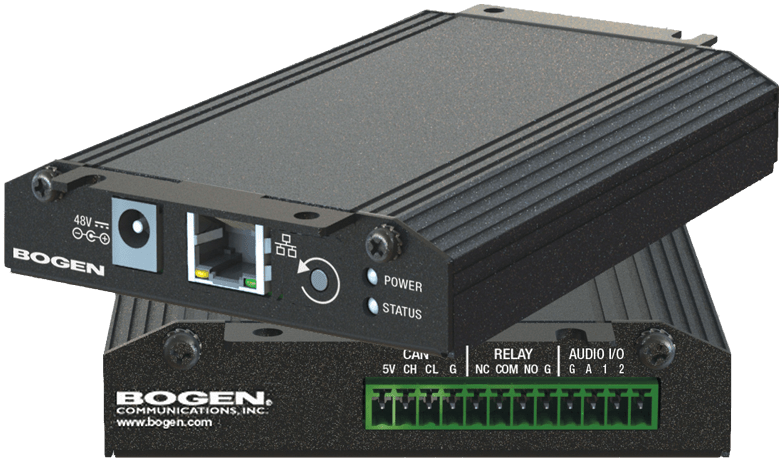

Tired of ripping out perfectly good analog speakers just to go IP? The Bogen NQ-GA10P makes upgrading simple and affordable. This compact, plenum-rated module connects to any low-impedance (8-ohm) analog speaker and instantly turns it into a full-featured Power-over-Ethernet (PoE) IP paging and talkback intercom endpoint.
Powered by Bogen's reliable Nyquist platform, it delivers clear 10-watt audio for paging, background music, and two-way intercom calls - all without running new power cables. Installers love the flexible mounting options and web-based setup. Facilities teams appreciate the clean sound, talkback capability, and future-proof integration with Nyquist systems. Whether you're refreshing a school, office, warehouse, or retail space, the NQ-GA10P gives you modern VoIP performance while protecting your existing speaker investment.
Our honest take: If your project involves a mix of existing 8-ohm speakers and you want to avoid the cost and disruption of full speaker replacement, the NQ-GA10P is an excellent choice. Setup is straightforward via the Nyquist web interface, and the Form-C relay gives you extra control options (door locks, lights, etc.). Just remember: for 70V distributed systems, you'll want to add the separate NQ-GAXMR1 transformer.
We've found it pairs beautifully with Bogen's digital call switches and existing ceiling speakers. Real-world performance is solid, and the plenum rating saves time and money on every job.
Key Features
- PoE Powered - 802.3af compliant; runs on standard network PoE for simple, low-cost installation.
- 10-Watt Class D Amplifier - Clean, efficient power with 20 Hz - 20 kHz frequency response (±0.25 dB at 1W) and ultra-low distortion.
- 8-Ohm Speaker Output - Directly drives any standard low-impedance analog speaker.
- Built-in Talkback - Supports two-way intercom with compatible call switches and push-to-talk microphones (Bogen DDU250 or equivalent).
- Flexible Call Switch Support - Works with analog (CA15C/CA-21B) and digital (NQ-E7020) call switches.
- Control Relay - Form-C SPDT relay (2A) for triggering external devices.
- DSP Audio Processing - Noise rejection and voice optimization for clear paging even in challenging environments.
- Web-Based Configuration - Easy setup and management through the Nyquist system interface.
- Multiple Mounting Options - In-wall, in-ceiling, shelf, or surface mount with integrated slotted flanges.
- Plenum-Rated (UL 2043) - Safe for air-handling spaces without additional enclosures.
- Optional Accessories - External 48VDC power supply (PS4815W) if PoE isn't available; pairs with ANS500M for ambient noise sensing.
Technical Specifications
- Amplifier Power: 10 watts RMS into 8 ohms
- Frequency Response: 20 Hz - 20 kHz ±0.25 dB (at 1 watt)
- Total Harmonic Distortion: < 0.03%
- Speaker Output: 8-ohm low-impedance
- Power Source: PoE 802.3af or optional 48VDC external supply (PS4815W)
- Network: 10/100 Ethernet
- Relay: One Form-C SPDT, 2A rating
- Cooling: Convection (fanless)
- Mounting: In-wall, in-ceiling, shelf, or device mount; integrated slotted flanges
- Compliance: UL 2043 plenum-rated
- Dimensions & Weight: Compact plenum package (exact measurements vary slightly by mounting; refer to installation guide)
- Operating Temperature: Standard commercial range
