Description

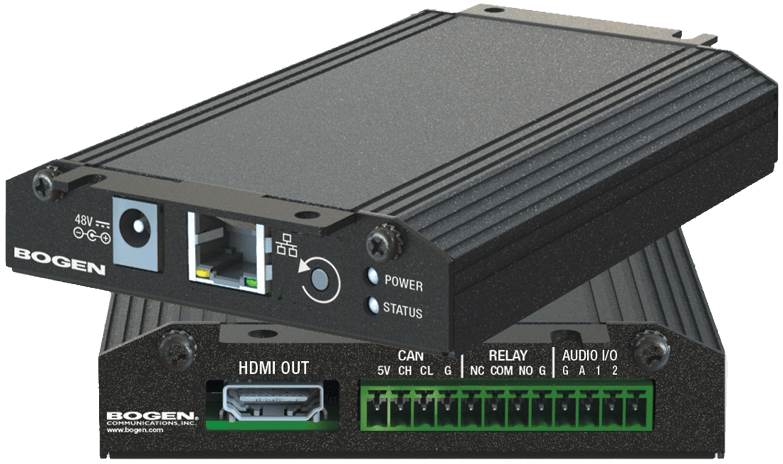

Tired of outdated analog paging that's hard to hear or impossible to reply to? The Bogen NQ-GA10PV changes that. It turns any standard low-impedance (8-ohm) analog speaker into a modern Power-over-Ethernet (PoE) IP speaker with crystal-clear paging, two-way talkback, and even HDMI video output for displaying announcements, emergency alerts, or digital clocks right on a connected screen.
This compact, UL 2043 plenum-rated module is built for easy installation in ceilings or walls without extra power outlets. It runs on standard PoE, uses smart DSP for noise rejection, and works seamlessly with Bogen's Nyquist platform or as a standalone solution. Whether you manage a busy school, office building, warehouse, or hospital, the NQ-GA10PV makes communication louder, clearer, and more interactive - all while keeping your install simple and cost-effective.
Real-world tip from our team: Pair it with the optional ANS500M ambient noise sensor in noisy areas like cafeterias or gyms. The system automatically raises the page volume so messages stay clear without blasting everyone out. Setup takes minutes through the clean web interface, and auto-discovery on a Nyquist server makes large deployments painless.
If you need video messaging today or might add it later, go with the NQ-GA10PV over the base NQ-GA10P. It future-proofs your investment without much extra cost.
Key Features
- 10-Watt Class D Amplifier - Powerful, efficient audio with low power draw so it runs comfortably on PoE 802.3af.
- HDMI Video Output - Display text messages, images, emergency alerts, or a digital/analog clock on any connected screen (Nyquist Release 2.0+).
- Built-in Talkback & Intercom - Two-way communication using compatible mics or call switches.
- DSP Noise Rejection - Voice-optimized sound stays clear even in noisy environments.
- Flexible Inputs - Supports push-to-talk microphones (like Bogen DDU250), analog call switches (CA15C), and digital call switches (NQ-E7020 series).
- Form-C Relay Output - Control third-party devices such as door locks or A/V equipment.
- CAN Bus Interface - Seamless integration with Bogen digital call switches.
- Plenum-Rated Design - UL 2043 certified with slotted flanges for safe, easy mounting above drop ceilings.
- Web-Based Configuration - Simple browser setup; auto-discovers on Nyquist systems.
- Optional Ambient Noise Sensing - Add the ANS500M module to auto-adjust volume for background music or pages.
- Optional 48VDC Power Supply - Use where PoE isn't available.
Technical Specifications
- Amplifier Power: 10 watts RMS into 8 ohms
- Speaker Output: Low-impedance 8-ohm
- Power: IEEE 802.3af PoE compliant; optional 48VDC 15W external supply (PS4815W)
- Network: 10/100 Ethernet, auto-discovery on Nyquist
- Video: HDMI output (NQ-GA10PV only) for messages and clock display
- Audio Processing: DSP with noise rejection and voice bandwidth optimization
- Inputs: Analog call switch, digital call switch (CAN bus), push-to-talk mic
- Output: Form-C SPDT relay (2A)
- Mounting: In-wall, in-ceiling, shelf, or surface; integrated slotted flanges
- Plenum Rating: UL 2043 certified
- Dimensions & Weight: Compact plenum-rated enclosure (exact measurements in install guide)
- Compliance: RoHS, FCC, CE
