Description
Need a simple, powerful way to extend paging and background music across your facility without complicated wiring or extra power outlets?

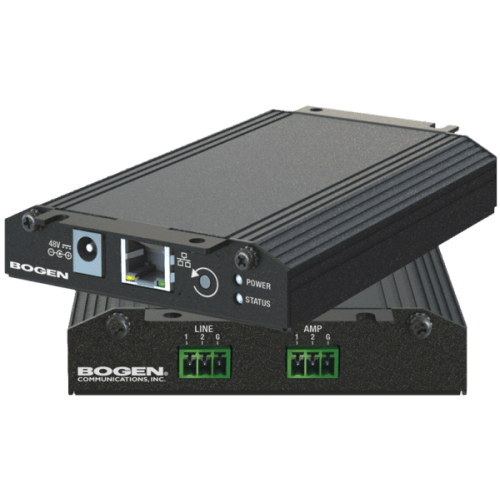

The Bogen Nyquist NQ-GA20P2 is a compact, plenum-rated 20-watt integrated amplifier designed exactly for that. It connects straight to your existing Nyquist (or compatible SIP) network via a single Ethernet cable, delivers clean Class D audio, and mounts almost anywhere - even inside plenum spaces.
Whether you're adding a single paging zone in a classroom, hallway, or office area, or layering in background music, this little powerhouse makes it straightforward and cost-effective. At The Telecom Spot, we've helped hundreds of schools and businesses deploy these units quickly and reliably.
Our pro tip for customers: Pair it with a standard 8-ohm speaker for low-impedance zones or add Bogen's optional NQ-GAXMR1 transformer if you need to drive a distributed 70V/25V speaker line. We also recommend testing your network switch's PoE+ budget before bulk deployments - most modern switches handle it fine, but older ones may need an upgrade or the optional 48VDC power supply.
Key Features
- 20W Class D amplification - Clean, efficient power with low heat and energy use
- Plenum-rated UL 2043 enclosure - Safe for installation above drop ceilings
- PoE+ (802.3at) powered - Single Ethernet cable for both data and power (optional external supply available)
- Nyquist network integration - One-way paging, intercom support, and full audio distribution
- Single 8-ohm speaker output plus balanced line output
- RJ-45 network connection with web-based configuration
- Front-panel LEDs for quick power and status checks
- Versatile mounting - In-wall, in-ceiling, shelf, or surface with built-in slotted flanges
- SIP-compatible for standalone use with third-party VoIP or paging systems
Technical Specifications
- Amplifier Type: 20W Class D
- Speaker Output: 1 x 8-ohm
- Line Output: 1 x balanced
- Network: RJ-45, Nyquist IP-based (SIP compatible)
- Power: PoE+ 802.3at compliant; optional 48VDC external supply (PS4830W)
- Configuration: Web-based GUI
- Mounting: UL 2043 plenum-rated package with integrated flanges
- Indicators: Front panel Power and Status LEDs
- Additional Ports: USB 2.0 (future use)
- Compliance: UL 2043, suitable for commercial and education installations
