Description

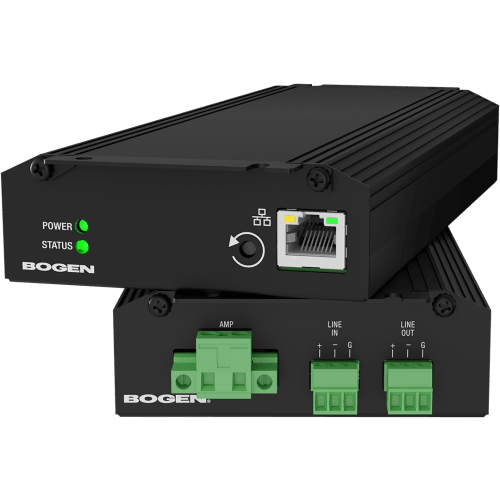

Need more punch in your IP paging system without running new power lines? The Bogen Nyquist NQ-GA40P3 delivers clean 40 watts of Class D amplification right over your existing Ethernet network using PoE++.
Whether you're expanding a single paging zone in a school, office, warehouse, or retail space, this plenum-rated amplifier module gives you the extra power to reach farther and sound louder - all while keeping installation simple and code-compliant.
It works perfectly inside the Bogen Nyquist C4000 or E7000 platforms, or as a standalone SIP/multicast endpoint with third-party VoIP systems. Plug it into a PoE++ switch (or use Bogen's optional injector) and you're ready to drive larger PA horns, more ceiling speakers, or even 25V/70V distributed systems with the matching transformer.
Expert Tip from Our Team: Pair the NQ-GA40P3 with the Bogen NQ-GAXMR1 transformer and a few Bogen CSD2X2 drop-in ceiling speakers for fast, high-quality 70V coverage in a single zone. We've seen this combo cover large open offices or gymnasiums with excellent intelligibility and almost zero setup headaches.
If you're still using older analog amps or under-powered IP modules, this 40W unit is the clean, modern replacement that future-proofs your audio distribution.
Key Features
- 40 Watts of Clean Class D Power - Drive larger horns, more speakers, or cover bigger areas with strong, distortion-free sound.
- PoE++ (802.3bt) Powered - Runs entirely on your Ethernet network. Optional Bogen PI5660W PoE injector available if your switch isn't PoE++ ready.
- Plenum-Rated Design - Safe for installation in air-handling spaces, walls, or above ceilings - no extra boxes needed.
- Balanced Line Input & Output - Add external audio sources or feed additional amplifiers easily.
- SIP & Multicast Standalone Mode - Works as an endpoint on third-party VoIP systems or inside full Nyquist C4000/E7000 paging platforms.
- Supports 25V/70V Distributed Systems - Just add the optional NQ-GAXMR1 transformer to power multiple high-impedance speakers.
- Compact & Easy to Mount - Flexible placement options for new or retrofit projects.
Technical Specifications
- Power Output: 40W (low-impedance)
- Amplifier Type: Class D
- Network: 10/100 Ethernet
- Power: PoE++ 802.3bt compliant (PoE++ switch or Bogen PI5660W injector)
- Audio I/O: Balanced line input and balanced line output
- Distributed Audio: Supports 25V/70V systems with optional NQ-GAXMR1 transformer
- Mounting/Compliance: Plenum-rated for flexible installation
- Frequency Response: 20 Hz - 20 kHz ±0.25 dB (per manufacturer data)
- Dimensions: 9" L x 3.69" W x 1.30" H
