Description

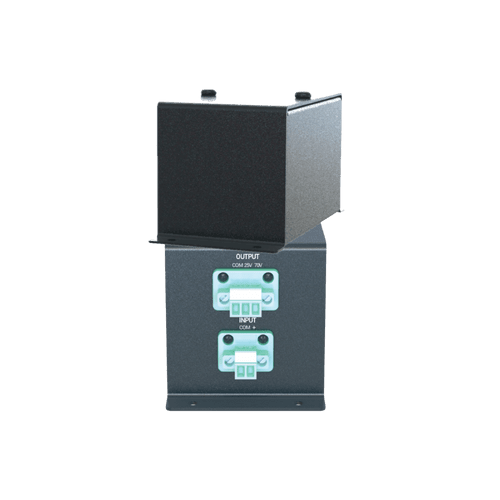

Need to run your Bogen Nyquist paging or background music system with regular 25V or 70V speakers? The Bogen NQ-GAXMR1 Distributed Audio Transformer makes it simple and reliable.
This compact 40-watt module gives you the impedance and voltage matching you need when pairing Bogen's low-impedance PoE amplifiers (like the NQ-GA10P, NQ-GA10PV, NQ-GA20P2, or NQ-GA40P3) with classic transformer-tapped speakers. Just connect it once and you're ready to cover classrooms, offices, warehouses, or retail spaces with clear, even sound.
Our take: If you're staying inside the Nyquist ecosystem with PoE amplifiers, the NQ-GAXMR1 is the cleanest match. For bigger zones needing more than 40W, look at higher-capacity Bogen modules. Generic transformers work but lack the exact plug-and-play fit and UL listing tailored for Nyquist.
The NQ-GAXMR1 is a smart little problem-solver. It lets you keep using the efficient PoE amplifiers Bogen designed for modern networks while still tapping into the huge installed base of 25V and 70V speakers that many facilities already own.
Key Features
- 40-watt maximum load capacity - plenty of power for most paging and background music zones
- One 2-pin pluggable Phoenix input connector
- One 3-pin pluggable Phoenix output connector
- Selectable 25V or 70V output (use only one at a time)
- Integrated mounting flanges with 4 included M4 x 6mm thread-forming screws
- Compact size: 2.559" H x 4.810" L x 2.5" W - weighs just 2.2 lbs
- Listed to UL Standard EN62368-1:2014 for the U.S. and Canada
- 5-year limited Bogen warranty
- Frequency response: 50 Hz - 15 kHz (±3 dB)
- Designed primarily for Bogen Nyquist low-impedance PoE amplifier modules
Technical Specifications
- Power Rating (RMS): 40 watts maximum
- Frequency Response: 50 Hz to 15 kHz, ±3 dB
- Distortion: 0.02% at 10W (50 Hz - 20 kHz)
- Input: 2-pin pluggable Phoenix connector (17.9 V rms max, 2.24 A rms max)
- Output: 3-pin pluggable Phoenix connector - 25V or 70V (one at a time)
- Dimensions: 2.559" H x 4.810" L x 2.5" W
- Weight: 2.2 lbs
- Safety Listing: UL EN62368-1:2014 (U.S. & Canada)
- Mounting: Integrated flanges with 4 M4 x 6mm screws included
Important note: Not for use in intercom applications with NQ-GA10P or NQ-GA10PV amplifiers.
