Description

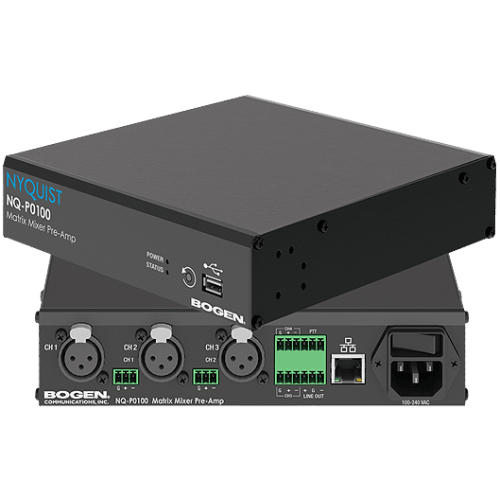

Tired of wrestling with complicated audio mixers or adding expensive modules just to get decent sound in multiple zones? The Bogen Nyquist NQ-P0100 changes that.
This compact 4-channel matrix mixer pre-amplifier gives you professional mixing power with built-in DSP, making it easy to blend microphones, background music, and other sources - then send the clean mix to your local amps or across the entire Nyquist network for paging and music distribution.
Whether you run a school with frequent announcements, a busy restaurant needing zoned background music, or a retail store that switches between paging and promo audio, the NQ-P0100 delivers clean, flexible sound without the hassle. It even works standalone if you don't need a full Nyquist server right now.
Real-world tip from our team: When setting up push-to-talk paging (like with a Bogen DDU-250 mic), always test the ducking settings in the DSP. It prevents music from overpowering announcements and keeps things crystal clear.
Who it's perfect for: Facility managers, AV contractors, school tech directors, and restaurants that need reliable multi-zone audio without breaking the budget.
Minor note: The 19" rack mount kit (NQ-RMK03) is sold separately - most customers mount it on a shelf or wall using the included brackets.
Key Features
- 4 configurable MIC/Line inputs - Use 3 XLR connectors plus 4 screw-terminal inputs for easy wiring
- Channel 1 doubles as an AES3 digital input for pristine digital sources
- Channel 4 supports push-to-talk microphones (great for paging stations)
- Phantom power available on mic inputs when needed
- Powerful web-based DSP with 16-band graphic EQ, 7-band parametric EQ, high/low/bandpass filters, noise gate, compressor/limiter, and signal/clip monitoring
- Mix audio and send it to the line-level output (for legacy amplifiers) or stream it over the Nyquist network for multi-zone distribution
- Nyquist network audio input - accept paging or music from the system
- Line-level monitor output for driving older non-Nyquist amps
- Compact 1 RU design - wall, shelf, or rack mountable (rack kit sold separately)
- Universal power supply (100-240 VAC)
- Standalone operation mode for use without a full Nyquist server
Technical Specifications
- Inputs: 4 software-selectable MIC/Line (3 XLR + 4 screw terminals); CH1 configurable as AES3 digital
- Phantom Power: +15 VDC (configurable per mic input)
- Output: Line-level balanced (for amps or monitoring)
- Frequency Response: 20 Hz - 20 kHz (line out)
- Mounting: Wall, shelf, or 19" rack (NQ-RMK03 kit optional); dimensions approx. 8.0" W x 1.70" H x 8.6" D
- Power: Universal 100-240 VAC
- Compliance: UL/CSA/EN 62368-1 safety; FCC Part 15 Class A, EN 55032/55035 EMC
- Additional: USB 2.0 host port (future use), RGB status LEDs
