Description
Need clear, reliable sound across your building without the hassle of complicated setups? The Bogen Nyquist 1-Channel Public Address Mixer Amplifiers deliver exactly what busy facilities need.

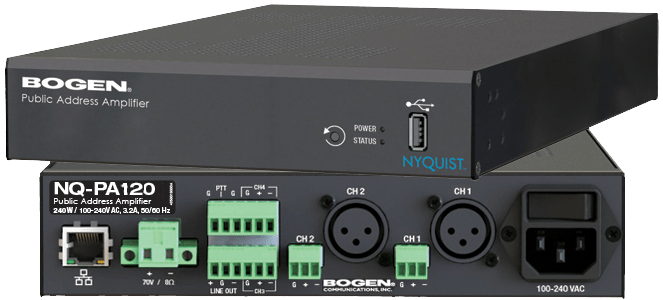

Available in 120-watt (NQ-PA120), 240-watt (NQ-PA240), and 600-watt (NQ-PA600) versions, these compact powerhouses combine mixing, amplification, and professional audio processing in one easy-to-deploy unit. They plug right into the Nyquist E7000 (education) or C4000 (commercial) IP-based paging platform, so you get crystal-clear announcements, background music, and emergency alerts with minimal wiring headaches.
Whether you run a school, warehouse, office complex, or retail space, these amplifiers give you the power and flexibility to reach every corner - loud and clear.
Our Expert Take: If you already use or plan to use a Nyquist E7000 or C4000 platform, these NQ-PA models are the smart, scalable choice. They give you plenty of headroom for future growth without overpaying for multi-channel amps you may never fully use.
Key Features
- Three power options (model dependent) - 120W, 240W, or 600W - so you match the amp exactly to your speaker load and coverage area
- 4 MIC/Line inputs (CH1-CH4) with balanced XLR and screw-terminal connections for microphones, music sources, or external devices
- Built-in professional DSP including 16-band graphic equalizer, adjustable high-pass/low-pass/bandpass filters, noise gate, compressor/limiter, signal present, and clip monitoring
- Full Nyquist IP integration - works seamlessly with Bogen's E7000 education and C4000 commercial paging platforms
- Multiple output configurations - supports 4-ohm, 8-ohm, 25V, and 70V speaker lines
- Network audio input for paging and distributed audio from the Nyquist system
- Compact 1RU design - rack, wall, or shelf mountable with optional kits
- Convection-cooled (fanless operation on many setups) for quiet performance
- Easy web-based control through the Nyquist GUI - no special software required
Technical Specifications
- Power Output: 120W (NQ-PA120), 240W (NQ-PA240), 600W (NQ-PA600)
- Inputs: 4 configurable MIC/Line inputs (2 XLR + 4 screw terminals)
- Outputs: 4-ohm / 8-ohm / 25V / 70V
- DSP Features: 16-band Graphic EQ, High/Low/Bandpass filters, Noise Gate, Compressor/Limiter, Signal/Clip indicators
- Network: Ethernet connection for Nyquist system integration
- Mounting: 1 RU rack-mountable (optional rack kit available)
- Cooling: Convection (fanless in typical use)
- Power: Standard AC (exact voltage per model - see spec sheet)
- Dimensions & Weight: Vary slightly by wattage - compact footprint for easy installation
