Description
Tired of complicated paging systems that need extra amps, messy wiring, and constant maintenance? The Bogen Nyquist NQ-S1810CT-T1 VoIP Ceiling Speaker changes the game.

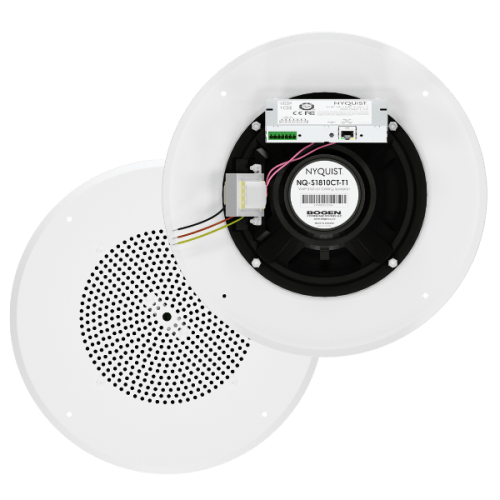

This sleek, pre-assembled ceiling speaker plugs right into your existing network with a single Cat5 (or better) cable and Power over Ethernet (PoE). It delivers crisp paging audio, supports two-way talkback through a high-quality MEMS microphone, and even powers up to four additional passive 25V/70V speakers in the same room or area.
Whether you're in a busy school hallway, a retail store, or an office building, this standalone SIP speaker makes announcements clear, setup simple, and expansion effortless - all without ripping out old infrastructure.
Expert Take: If you're migrating from old 25V/70V paging or adding zones without running new conduit, this speaker is a smart choice. Setup usually takes under 15 minutes per unit thanks to DHCP and the intuitive web interface. One tip from our team: Always test the relay output for muting local A/V systems during pages - it prevents feedback issues in classrooms and conference rooms.
Key Features
- PoE Powered - IEEE 802.3af Class 3 compliant - no separate power outlet or local power supply needed
- Built-in 10W Amplifier - Drives the main speaker plus up to 4 additional passive 25V/70V speakers in a local zone
- Two-Way Intercom - MEMS digital microphone with DSP noise rejection for clear talkback
- Standalone SIP Endpoint - Works with most third-party VoIP/SIP systems without a full Nyquist server
- Easy Installation - Pre-assembled, DHCP automatic deployment, single Cat5 cable connection
- Form-C Relay Output - Dry contact for muting local audio/video systems during pages
- CAN Bus Support - Connects easily to Nyquist Digital Call Switches (like NQ-E7020-G2)
- Reset Button - Quick factory restore right on the unit
- Plenum-Rated Design - Safe for use above drop ceilings
Technical Specifications
- Model: NQ-S1810CT-T1
- Ethernet: 10/100 Mbps
- Power: PoE Class 3 (IEEE 802.3af compliant) - no local power required
- Amplifier: 10W integrated
- Microphone: MEMS digital with DSP noise rejection and voice optimization
- Relay: Form-C SPDT, 2A @ 30V DC dry contact
- Interface: CAN Bus 2.0 for Nyquist call switches
- Dimensions: 13" diameter grille x 3.25" depth (ceiling mount)
- Installation: Pre-assembled for standard drop ceilings
- Accessories Available: RE84 recessed enclosure, TB8 tile bridge, MR8 mounting ring
