Description

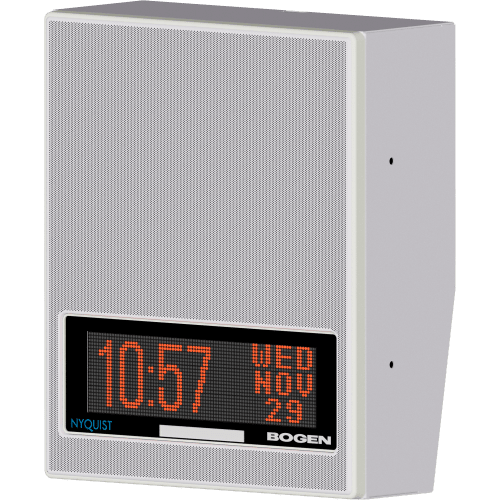

Tired of outdated paging systems that are hard to hear and even harder to update? The Bogen Nyquist NQ-S1810WBC changes the game. This PoE-powered VoIP wall baffle speaker delivers clear, two-way HD audio while adding a bright LED text display and attention-grabbing programmable flasher-all in one easy-to-install unit.
Perfect for schools, warehouses, offices, and commercial facilities that need reliable announcements, emergency alerts, and visual messaging without running extra wiring or dealing with complicated setups. Just plug it into your network with a single Cat5 cable and you're ready to go.
If you manage a school or busy facility and want one device that handles audio paging, visual notifications, and emergency alerting, this is one of the smartest upgrades you can make in the Nyquist family.
Our Expert Take: Highly recommended for any Nyquist E7000 or C4000 deployment where visual communication matters.
Key Features
- Crystal-Clear Two-Way Audio - 10W amplifier with DSP noise rejection and a dedicated MEMS microphone for excellent talkback quality
- Integrated LED Message Display - Shows clock (12/24-hour format with date), scrolls custom messages, or displays emergency announcements
- Programmable RGB Flasher - Choose from 8 colors and multiple patterns (slow, fast, double, etc.) to grab attention for different alert types
- Simple PoE Installation - Single Cat5 cable for power and data; supports DHCP for plug-and-play setup
- Built-in Relay - Form-C dry contact output (2A @ 30V DC) for triggering external devices
- CAN Bus Support - Connects easily to Nyquist Digital Call Switches (NQ-E7020-G2)
- Routines & API Ready - Trigger messages, alerts, and flashes automatically through system events
- Durable Build - Powder-coated steel back box with metal grille; surface or flush mount options (straight or 10° tilt)
- Power-Saving Mode - Schedule to turn off the display when not needed
- 72-Hour Backup Bell Schedules - Keeps bells running even during short network outages
Technical Specifications
- Amplifier: 10 Watts integrated
- Speaker: 8" paper cone, 10 oz magnet, 8 ohms
- Frequency Response: 95 Hz - 20 kHz
- Sensitivity: 94 dB (1W @ 1m)
- Dispersion: 110° minimum
- Microphone: High-performance MEMS for superior talkback
- Networking: 10/100 Ethernet, PoE Class 3 (IEEE 802.3af)
- Display: High-density dot matrix LED with anti-reflective cover; large characters (up to 1-15/16")
- Flasher: 3 high-intensity RGB LEDs (8 selectable colors)
- Relay Output: Form-C SPDT, 2A @ 30V DC
- Operating Temperature: 32°F to 100°F (non-condensing)
- Dimensions: 11.9" W x 13.8" H x 4.8" D
- Weight: 13 lbs
- Mounting: Surface or flush (straight or 10° down angle)
- Construction: Powder-coated steel back box, plastic bezel, powder-coated metal grille
- Certifications: UL62368-1, EN55032, EN55035
