Description

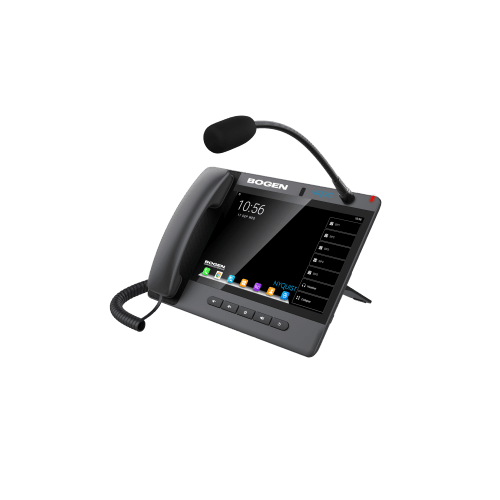

Tired of flipping through pages or hunting for the right button when you need to make an announcement right now? The Bogen NQ-ZPMS-G2 Nyquist Zone Paging Microphone Station makes high-volume paging simple and fast.
Designed for busy environments like schools, airports, factories, and large commercial buildings, this powerful station combines a crystal-clear flexible gooseneck microphone with a big 10.1-inch color touchscreen and 116 programmable one-touch DSS keys. Whether you're launching a zone page, managing bell schedules, or handling daily announcements, everything you need is right at your fingertips - no complicated menus or delays.
It also works as a full-featured VoIP phone with HD audio, so it's more than just a paging mic - it's your central command station for the entire Nyquist system.
Key Features
- 116 One-Touch DSS Keys on a bright 10.1" (1280 x 800) color touchscreen for instant zone selection
- Flexible Gooseneck Microphone with HD Voice for clear, hands-free paging and announcements
- HD Audio with G.722 and OPUS wideband codecs, full-duplex AEC, noise reduction, and 16kHz sampling
- Built-in Bluetooth 5.0 - pair wireless headsets or mobile devices easily
- 2.4GHz & 5GHz Wi-Fi plus dual Gigabit Ethernet ports with PoE support
- Android 9.0 OS for stability, security, and extra built-in apps (browser, calendar, etc.)
- Video calling support between NQ-ZPMS-G2 units
- HAC handset included for private conversations
- Adjustable stand with two angles (40° and 50°) for comfortable viewing
- Auto-provisioning and web management portal for easy mass deployment
- Compatible with Nyquist software version 5.0/8.0 and later
Technical Specifications
- Display: 10.1" color touchscreen, 1280 x 800 resolution
- Microphone: Flexible gooseneck with HD Voice (0-7 kHz frequency response)
- Audio Codecs: G.722, OPUS (wideband), G.711a/u (narrowband)
- Networking: Dual 10/100/1000 Mbps Ethernet ports (PoE), IPv4, 802.1x, VLAN support
- Wireless: Wi-Fi 802.11 b/g/n (2.4 GHz) / a/n/ac (5 GHz), Bluetooth 5.0
- Operating System: Android 9.0
- Power: PoE (IEEE 802.3af/at) or optional external power supply
- Call Features: Call hold, transfer, forwarding, intercom, speed dial, BLF, 1000-entry call logs
- Environmental: 0-45°C operating temperature, 10-95% non-condensing humidity
- Package Includes: NQ-ZPMS-G2 station, handset with cord, attachable stand, quick start guide
