Description
Need clean, powerful sound for your office, warehouse, retail store, or school without the hassle of extra transformers? The Bogen PS120-G2 delivers 120 watts of reliable audio in a flexible, easy-to-install package.

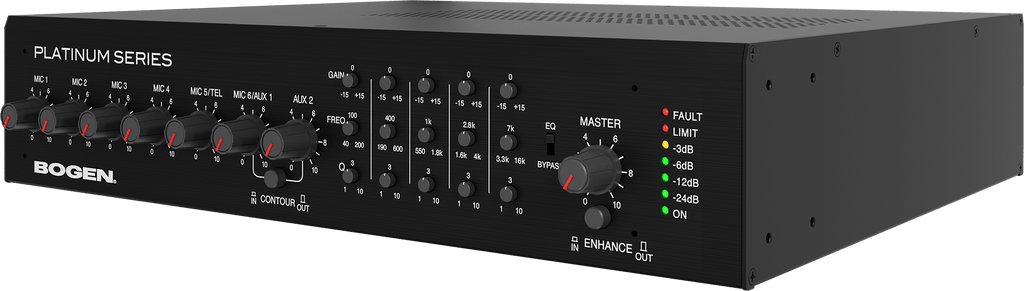

This next-generation Platinum Series mixer amplifier gives you everything you need in one unit: multiple microphone inputs for paging, rich background music, a built-in impedance matching transformer, and a handy rear-panel switch that lets you run 70V, 25V, or 8-ohm speakers-no extra hardware required. Whether you're announcing shifts in a busy facility or playing music in a waiting area, the PS120-G2 makes your sound system sound great and stay simple.
Our Expert Take: Perfect for small to medium installations (up to about 20-30 speakers depending on layout). If your space is larger or needs more power, step up to the PS240-G2. Overall, the PS120-G2 offers excellent value, flexibility, and the rock-solid reliability Bogen is known for.
Key Features
- 120 watts RMS power - plenty for most paging and background music systems

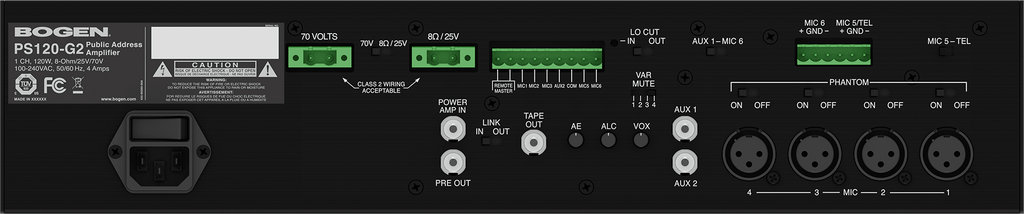

- Switchable 8-ohm / 25V / 70V outputs with separate connector blocks - no external transformer needed
- 4 dedicated XLR microphone inputs with selectable 13V phantom power
- Selectable MIC 5/TEL input and MIC 6/AUX 1 input plus dedicated AUX 2
- 5-band full parametric equalizer with independent Gain, Frequency, and Q controls
- Audio Enhancement circuit improves voice intelligibility
- Lo-cut filter on all mic channels reduces rumble
- True loudness contour on AUX inputs for better music at low volumes
- TEL paging with VOX, adjustable ALC, and selectable muting of music
- Preamp Out / Power Amp In jacks for adding external processors
- Tape output, level meter, and peak limiting
- Remote master volume control ready (optional GSRVC)
- Tamper-resistant Plexiglas front cover included
- Universal 100-240 VAC power supply with detachable IEC cord
- 2RU rack-mountable design
Technical Specifications
- Power Rating: 120 watts RMS
- Frequency Response: 20 Hz - 20 kHz (+0/-2 dB) @ 8-ohm/25V; 85 Hz - 20 kHz (+0/-3 dB) @ 70V
- Distortion: < 0.3% typical (20 Hz - 20 kHz)
- Signal-to-Noise Ratio: ≥ 70 dB (AUX/TEL); ≥ 60 dB (MIC)
- Speaker Outputs: 8-ohm, 25V, 70V (switch selectable)
- Inputs: 4 XLR MIC (balanced, Lo-Z), MIC 5/TEL, MIC 6/AUX 1, AUX 2 (RCA)
- Phantom Power: 13V DC (selectable on XLR inputs)
- AC Power: 100-240 VAC, 50/60 Hz (1.55A for PS120-G2)
- Dimensions: 16.5" W x 3.5" H x 13.5" D
- Shipping Weight: 19 lb
- Warranty: 5 years (manufacturer)
