Description

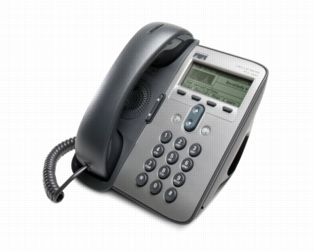

The Cisco Unified IP Phone 7911G fills the communication needs of cubicle, retail, classroom, or manufacturing workers or anyone who conducts low to moderate telephone traffic. Four dynamic soft keys guide users through core business features and functions, while a pixel-based display combines intuitive features, calling information, and extensible Markup Language (XML) services into a rich user experience. The Cisco Unified IP Phone 7911G offers numerous important security features plus the choice of IEEE 802.3af Power over Ethernet (PoE), Cisco inline power, or local power through an optional power adaptor.
The Cisco Unified IP Phone 7911G is designed to grow with your organization. A dynamic, soft key-activated feature set enables the phone to keep pace with your requirements through regular software upgrades. Moves, adds, and changes are easy; users can simply pick up their phones and move to a new location anywhere on the network. The Cisco Unified IP Phone 7911G also provides accessibility features to those with special needs.
Features:
- • Lighted Hold Key: Lights when pressed to put a call on hold and stays lit until the held call has been resumed,
- or flashes if one call is held while another is engaged; is dark when no calls are on hold
- • Lighted Menu Key: Lights when pressed to access voicemail messages, call logs, network settings, user preferences,
- corporate directories, and XML services; stays lit while menu items are active
- • Lighted Message Waiting Indicator: Lights when there is new voicemail and is visible on both the phone chassis and
- the handset; stays lit until new voicemail has been processed by the user
- • Graphical Display: Graphical monochrome display with resolution of 192 x 64 pixels provides a scrollable 3-line intuitive
- access to calling features and text-based XML applications; the Cisco Unified IP Phone 7911G also supports audio-based
- XML applications
- • Four Soft-Key Buttons and a Scroll Toggle Bar: Dynamically present calling options to the user; the scroll toggle bar allows
- easy movement through the displayed information
- • Network Features: Cisco Discovery Protocol; IEEE 802.1 p/q tagging and switching
- • Ethernet Switch: 10/100BASE-T Ethernet connection through two RJ-45 ports, one for the LAN connection, the other for
- connecting a downstream Ethernet device such as a PC
- • Volume Control: A volume-control toggle to provide easy decibel-level adjustments of the handset, monitor speaker, and ringer
- • Single-Position Foot Stand: Optimum display viewing and comfortable use of buttons and keys; the foot stand can be removed
- for wall mounting with mounting holes located on the base of the phone
- • Multiple Ring Tones: More than 24 user-adjustable ring tones
- • American Disabilities Act (ADA) Features: Hearing-aid-compatible (HAC) handset that meets the requirements set by the ADA;
- it also meets ADA HAC requirements for a magnetic coupling to approved hearing aids. The phone dialing pad also complies
- with the ADA
- • Signaling Protocol Support: Compatible with Cisco CallManager Version 3.3(5) and later, using the Skinny Client Control
- Protocol (SCCP)
- • Codec Support: G.711a, G.711, G.729a, G.729b, and G.729ab audio-compression codecs
- • Configuration Options: Provisioning of network parameters through Dynamic Host Configuration Protocol (DHCP)
- • Voice Quality: Comfort-noise generation and voice-activity-detection (VAD) programming on a system basis
