Description
Cyberdata 011375 Network Dual Door Strike Relay

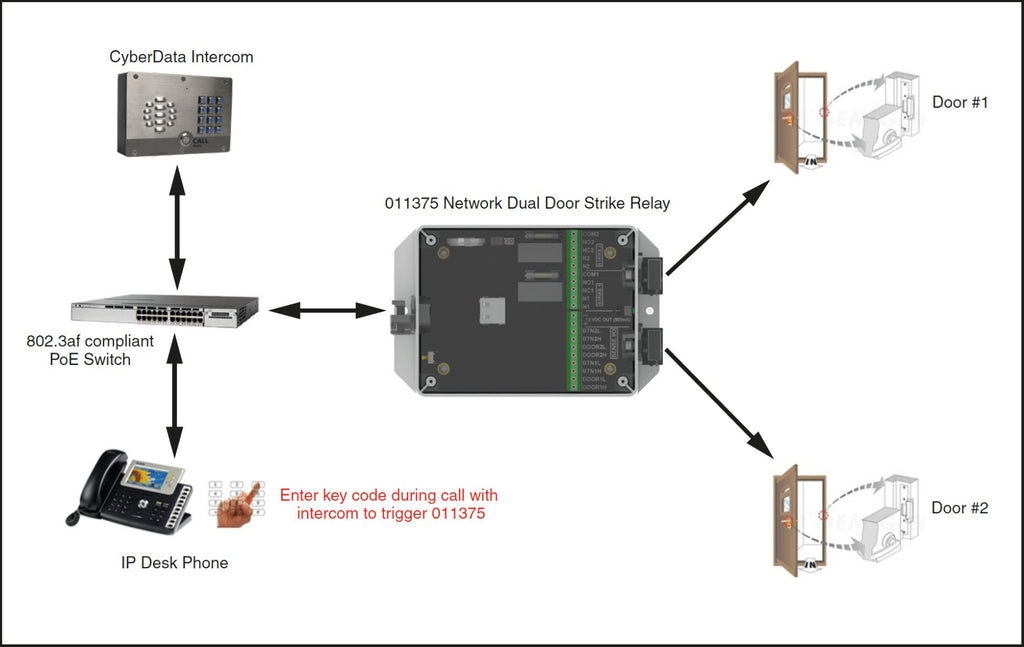

The CyberData Network Dual Door Strike Relay allows monitoring and control of two doors when used in a 'mantrap' or 'airlock' configuration. Power for the strikes can be from the internal 12V @ 500 mA supply or from an external source.
The CyberData Network Dual Door Strike Relay provides an encrypted communication method for secure access. All events are logged with a battery-backed up time stamp and can be sent to a network host.
Applications include electronic door strikes and other high current machine control.
This product directly interfaces to the CyberData line of SIP enabled and InformaCast enabled products and also provides an API for third party applications needing to integrate single or dual door locks as well as high current switching and monitoring.
This device does not register as a SIP endpoint
See Cyberdata 011375 Network Dual Door Strike Relay Datasheet for more information
Cyberdata Door Strike Relay Features
- AES encryption (up to 256 bit)
- Discoverable by CyberData VoIP products
- Web interface for configuration
- Real time clock with event logging function
- Supports Multicast Relay Activation
- Intrusion detection
- Dual 12A relays
- NO/NC contacts
- 12V @ 500 mA for direct powered strikes
- Opto-isolated sense inputs
- Wall mounting
- Cable strain relief
- Device status LED
- 2 Years Warranty
