Description

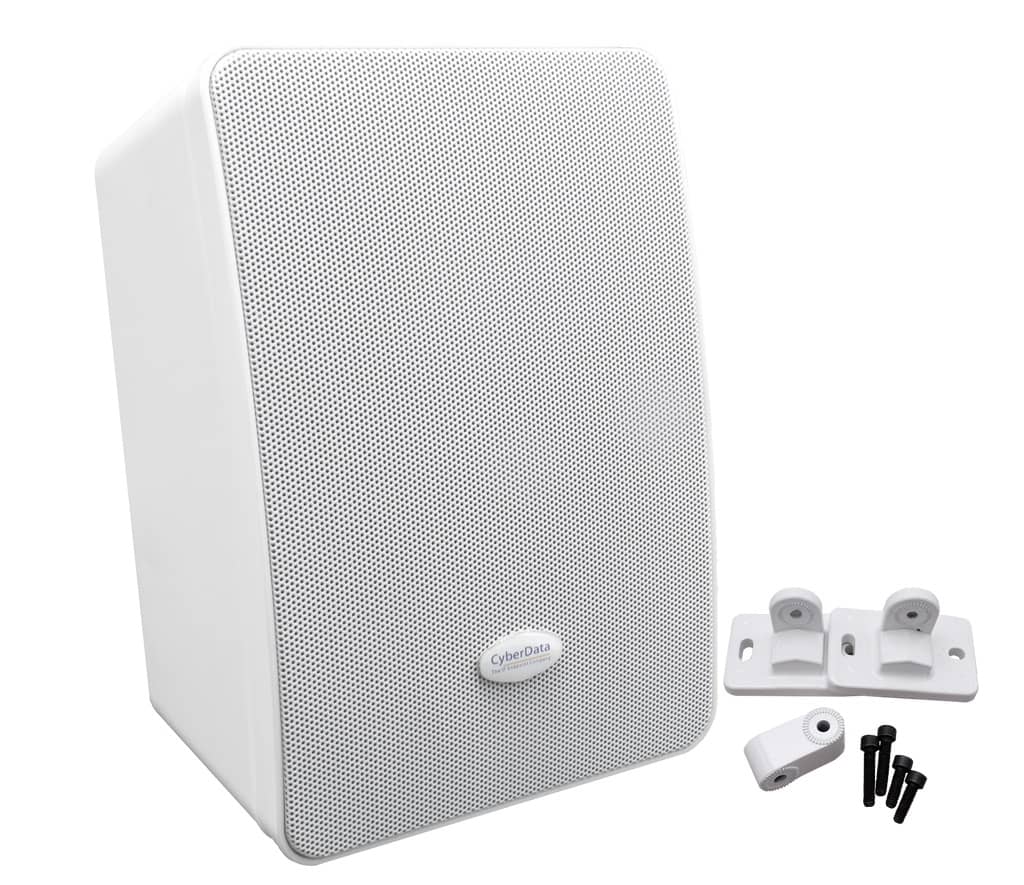

Need reliable, crystal-clear paging without the hassle of extra wiring? The CyberData 011512 wall mount speaker plugs right into your existing network with one PoE cable and gives you both SIP calling and multicast announcements. It’s loud (99dB at 1 meter), compact, and built for everyday use in offices, classrooms, hallways, and small-to-medium facilities. IT teams love how quickly it deploys and how well it works with Poly phones and most SIP systems.
The Telecom Spot Expert Take: If your team handles paging for schools, offices, or light industrial spaces, this speaker hits the sweet spot of performance and price. It supports simultaneous SIP and multicast so you never miss a page, even during high-traffic times. The 99dB output cuts through background noise without distortion, and the network-adjustable volume lets you fine-tune it once and forget it. Security is enterprise-grade with TLS 1.2 and SRTP, plus it auto-provisions and upgrades over the web—saving your techs hours of manual work. Perfect upgrade from analog speakers or older multicast-only units. (Based entirely on CyberData manufacturer specifications.)
Key Features
- Simultaneous SIP and multicast paging – Receive calls and announcements at the same time without dropping either.
- 99dB SPL audio output – Loud enough for medium-sized rooms yet clear and professional.
- Paging prioritization – Important alerts play first, even during regular announcements.
- Poly phone compatible + 10 multicast groups – Works right out of the box with popular phones and scales to multiple zones.
- Loud/Night Ringer function – Second SIP extension for after-hours or emergency alerts.
- Network-adjustable volume & high-efficiency driver – Fine-tune from any browser; no climbing ladders.
- PoE 802.3af power – Single Ethernet cable for power and data—simple install anywhere.
- Enterprise security – TLS 1.2 with mutual authentication and SRTP keeps your audio protected.
- Easy web management – HTTPS configuration, autoprovisioning, VLAN support, and firmware upgrades—all from one interface.
- Small footprint & included mounting hardware – Clean wall-mount look that fits any modern space.
Technical Specifications
| Specification | Details |
|---|---|
| Ethernet Interface | 10/100 Mbps |
| Protocols | RTP, SIP (RFC 3261) |
| Power Input | PoE 802.3af |
| Audio Output | 99 dB SPL @ 1 meter (PoE 802.3af) |
| Payload Types | G.711 a-law, G.711 μ-law, G.722, G.729 |
| Network Security | TLS 1.2, SRTP, HTTPS |
| Operating Temperature | -40°C to 55°C (-40°F to 131°F) |
| Humidity | 5–95%, non-condensing |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Storage Altitude | Up to 15,000 ft (4573 m) |
| Dimensions | 6.42 in [163 mm] L × 5.39 in [137 mm] W × 9.18 in [233 mm] H |
| Weight | 3.8 lbs [1.72 kg] (boxed 4.4 lbs [1.96 kg]) |
| Compliance | CE, RoHS, FCC Part 15 Class A, ICES-3 Class A, TAA Compliant |
| Warranty | 5 Years Limited |
| Part Number | 011512 |
Please see the Cyberdata SIP/Multicast VoIP Wall Mount Speaker Datasheet for more information
