Description

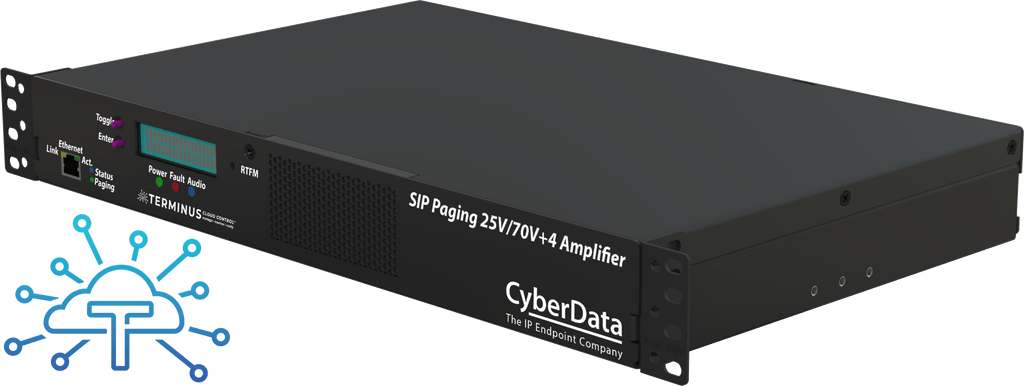

Powerful rack-mount amplifier that connects modern SIP phone systems to your existing 25V or 70V constant-voltage speakers.
If you're running a school, warehouse, manufacturing plant, or any large building with overhead paging speakers already wired in, the CyberData 011598 lets you move to a modern VoIP phone system without tearing out and replacing all those speakers. This hybrid amplifier gives you four independent analog zones plus full multicast capability, so you can keep your proven 25V/70V speakers and horns while gaining all the benefits of SIP paging, scheduled bells, background music, and night ringer functions.
Perfect for facilities managers and IT teams who need scalable, reliable overhead paging that works with both legacy analog infrastructure and today's cloud or on-premise VoIP platforms.
The Telecom Spot Expert Review
We've deployed dozens of CyberData paging solutions over the years, and the new 011598 is a game-changer for customers who aren't ready to go 100% IP endpoints. The four-zone design means one box can cover an entire floor or multiple buildings with separate paging groups – something the previous single-output models couldn't do without adding extra amplifiers.
Pros
- Four independent analog outputs – up to 392W continuous in 70V mode
- Built-in bell scheduler and background music input
- Full SIP + multicast support (including Poly channel paging)
- Rack-mount with clear LCD for on-site diagnostics
- Five-year warranty and excellent CyberData technical support
Cons
- Requires careful wattage calculation to avoid overloading zones
- No native InformaCast (see 011599 if you need it)
For more information, please see the Cyberdata SIP Paging 25V/70V +4 Amplifier Datasheet
Cyberdata SIP Paging 25V/70V Amplifier Features
- Supports one analog zone with hundreds* of 25V or 70V speakers/horns with a single home run cable to the Amplifier.
- Calendar based bell scheduler
- Support for security code to prevent unwanted paging access
- Supports 100 DTMF controlled paging groups, that can transmit audio via multicast and the single analog channel
- Can page to unlimited endpoints that are enabled to receive multicast or Poly pages on any Poly channel
- Can receive pages directly from Poly phones as well as other devices that can send standard multicast
- Supports call-in stored message recording
- Paging prioritization
- Loud/Night Ringer function - second SIP extension
- Supports delayed pages, i.e. call buffering
- Supports multiple user accounts
- Master analog volume adjustment via web interface or front panel LCD controls
- Fault sense input
- Line-in for background music
- NTP-based internal clock with battery back-up
- LCD display for monitoring device status, configuration and diagnostics
- Configurable alerts for amplifier temperature threshold, protection, and recovery modes.
- 19-inch rack mountable with removable rack ears
- TLS 1.2 and SRTP enhanced security for IP Endpoints in a local or cloud-based environment
- HTTPS web based configuration
- Support for Cisco SRST resiliency
- Autoprovisioning via HTTPS, HTTP or TFTP
- Configurable event generation for device health and status monitoring
- 802.11q VLAN tagging
-
* Number of speakers supported will depend on the tap setting and the baseline voltage in your typical configuration.
Continuous power output is up to 392W when in 70V mode and 160W when in 25V mode.
