Description

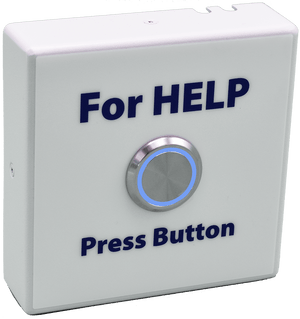

In an emergency, every second counts. The CyberData 011049 SIP Call/Panic Button gives your team a simple, reliable way to call for help or trigger a page announcement with just one press. It automatically dials a pre-set number and plays your custom audio message—up to 80 seconds long—repeating continuously until the call is answered. Mount it discreetly under a desk, on a wall, or in any high-risk area, and you’re done.
Our Expert Take: Customers love this button because it turns any VoIP system into a fast-response safety tool without extra hardware or complicated wiring. Whether you run a school, bank, courthouse, retail store, or manufacturing line, it delivers instant alerts that can prevent small incidents from becoming big problems. The tamper and door-closure signals add an extra layer of security, while the built-in relay lets you control doors or lights automatically. It’s PoE-powered, so installation is quick and clean. We see it saving time and boosting confidence for teams that need reliable emergency communication every single day.
Key Features
- One-touch call to any pre-set IP phone or extension—so help is only a press away
- Upload your own custom audio message up to 80 seconds that plays and repeats continuously until answered
- Door-closure and tamper-alert signals keep you informed of any unauthorized access
- DTMF-controlled dry relay contact for auxiliary control, like unlocking doors or activating lights
- Call-progress light shows exactly what’s happening at a glance
- Works seamlessly with Cisco Call Manager and Singlewire InformaCast environments
- Supports an optional RGB strobe kit for visual alerts in noisy areas
- Full TLS 1.2 and SRTP security so your emergency calls stay protected on-premise or in the cloud
- Autoprovisioning and HTTPS web configuration make setup fast for IT teams
- 802.1Q VLAN tagging and Cisco SRST resiliency for rock-solid network performance
Technical Specifications
| Specification | Details |
|---|---|
| Ethernet | 10/100 Mbps |
| Protocol | SIP RFC 3261 compatible |
| Power | PoE 802.3af or +8 to +12 VDC @ 1000 mA (supply not included) |
| Relay | 1 A @ 30 VDC |
| Audio Codecs | G.711 a-law, G.711 μ-law, G.722, G.729 |
| Security | TLS 1.2, SRTP, HTTPS |
| Operating Temp | -40 °C to 55 °C (-40 °F to 131 °F) |
| Humidity | 5–95 %, non-condensing |
| Dimensions | 4.53 in × 1.58 in × 4.53 in (115 mm × 40.2 mm × 115 mm) |
| Weight | 1.0 lb (0.45 kg) |
| Compliance | CE, RoHS, FCC Part 15 Class A, ICES-3 Class A, IEEE 802.3, TAA |
| Warranty | 5 years limited |
Frequently Asked Questions
How does the CyberData 011049 work when pressed?
Press the button and it instantly calls your pre-set number. Once answered, it plays and repeats your custom audio message until the call ends.
Can I use my own voice message?
Yes—upload any audio file up to 80 seconds long through the simple web interface.
Does it need a separate power supply?
No. It runs on standard PoE (802.3af) or you can use a optional +8 to +12 VDC supply if preferred.
Is it compatible with my existing phone system?
It works with most SIP-based VoIP systems, Cisco Call Manager, and Singlewire InformaCast.
Where should I mount it?
Under desks, on walls, or in any discreet location—perfect for classrooms, lobbies, or assembly lines.
What happens if someone tampers with it?
It sends an immediate alert so you know right away.
