Description

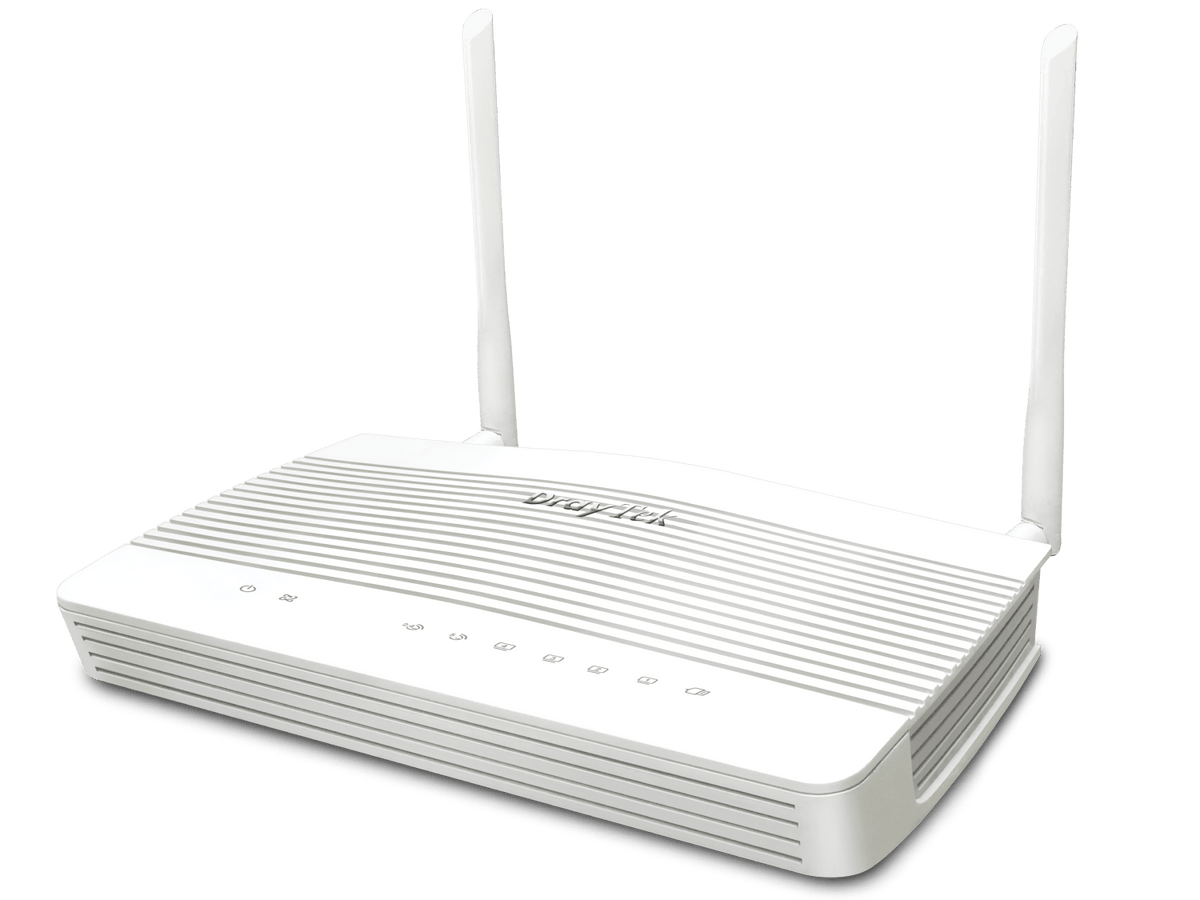

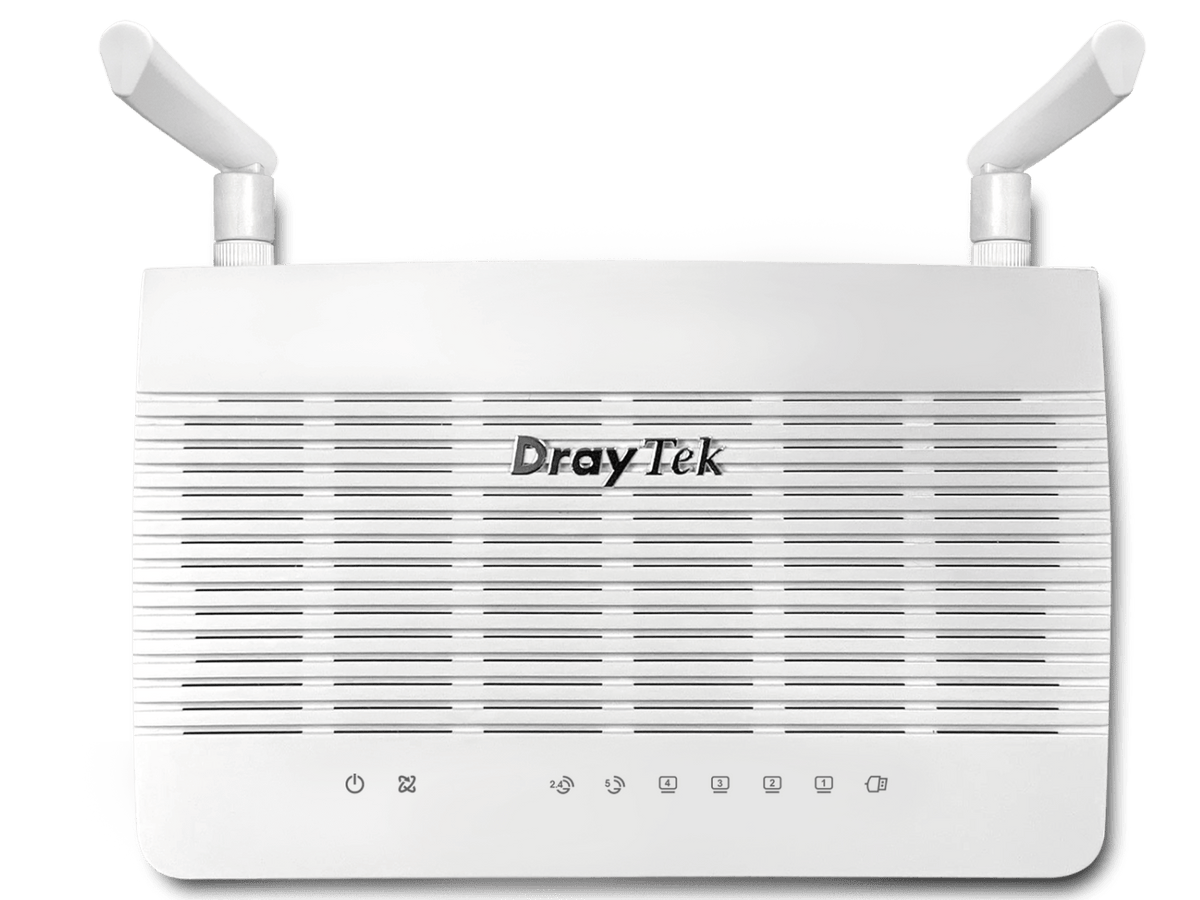

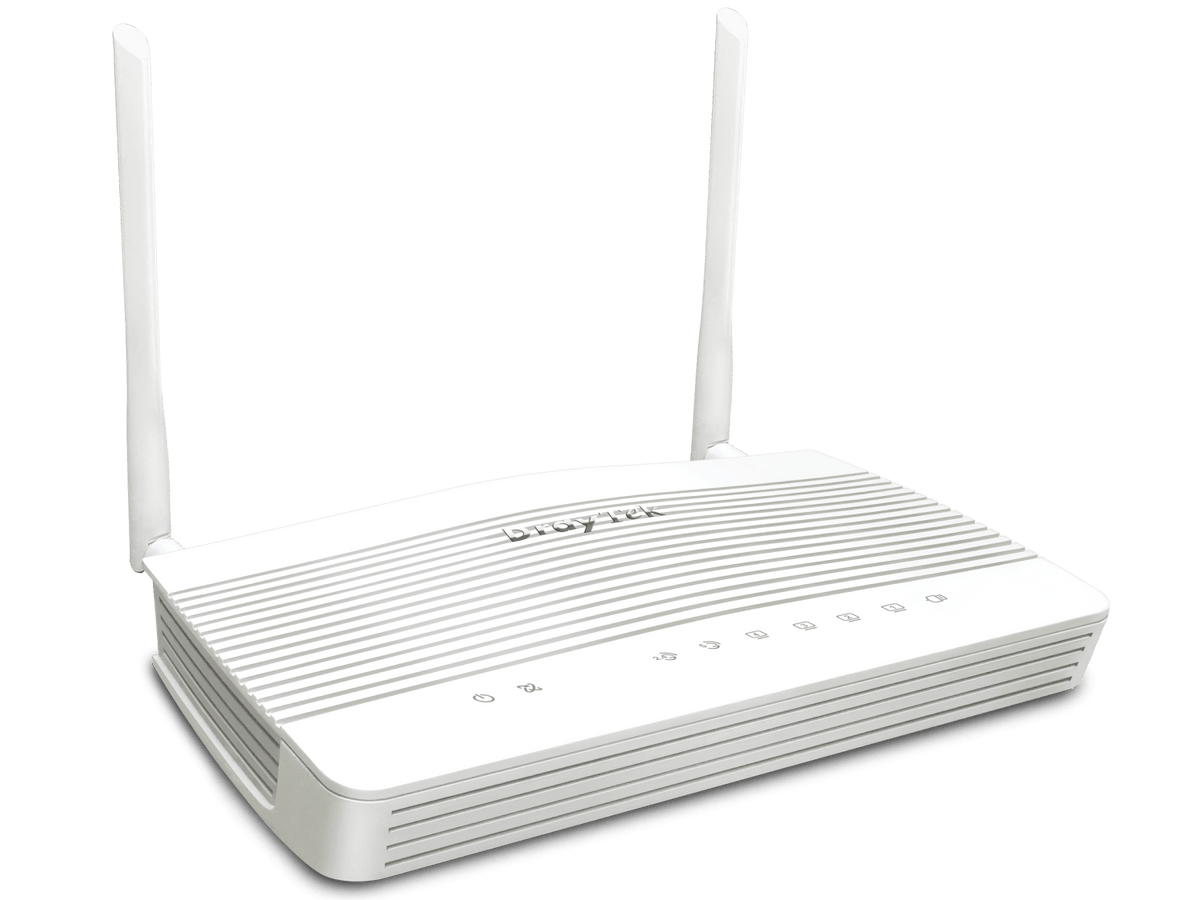

The DrayTek Vigor2136ax is a 2.5G dual-WAN security VPN router with built-in Wi-Fi 6 AX3000. It provides two 2.5GbE WAN ports (one fixed and one LAN/WAN switchable), three Gigabit LAN ports, NAT throughput of up to 2300 Mbps and IPsec VPN throughput of up to 390 Mbps, with WireGuard, OpenVPN and IKEv2 support.
Key Features
- 2.5G dual-WAN – 1x fixed 2.5GbE WAN plus 1x 2.5GbE LAN/WAN switchable port, with cellular WAN via USB and Wireless WAN.
- 2300 Mbps NAT throughput – Up to 2300 Mbps NAT with 50K NAT sessions.
- Wi-Fi 6 AX3000 – 2.4 GHz 802.11ax 2x2 MIMO and 5 GHz 802.11ax 3x3 MU-MIMO with up to 574 / 2402 Mbps link rates.
- VPN – IPsec, L2TP over IPsec, IKEv1/IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN and WireGuard; IPsec (AES-256) up to 390 Mbps, WireGuard up to 50 Mbps; EasyVPN.
- Security – URL/IP reputation, Threat Protection, Identity and Access Management (IAM) and port knocking.
- Network segmentation – 4 LAN subnets, 8 VLANs and 2 hotspot profiles.
- Central management – Virtual AP Controller (20 APs), mesh (7 nodes), Virtual Switch Controller (5 switches) and VigorACS (since V5.3.0).
Technical Specifications
| Category | Specification |
|---|---|
| WAN | 1x fixed 2.5GbE RJ-45 WAN; 1x 2.5GbE RJ-45 LAN/WAN switchable |
| LAN | 3x GbE RJ-45 |
| USB | 2x USB 2.0 (cellular WAN via USB) |
| NAT Throughput | 2300 Mbps |
| NAT Sessions | 50K |
| IPsec VPN Throughput (AES-256) | 390 Mbps |
| WireGuard Throughput | 50 Mbps |
| VPN Protocols | IPsec, L2TP over IPsec, IKEv1/IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN, WireGuard |
| Routing | Static, policy, inter-VLAN, RIP, BGP, OSPF |
| LAN Subnets / VLANs | 4 / 8 |
| Hotspot Profiles | 2 |
| Wireless Standard | 2.4 GHz 802.11ax 2x2 MIMO; 5 GHz 802.11ax 3x3 MU-MIMO (AX3000) |
| Max. Link Rate | 2.4 GHz: 574 Mbps; 5 GHz: 2402 Mbps |
| Antennas | 2x external, 1x internal; gain 2.6 dBi (2.4 GHz) / 2.7 dBi (5 GHz) |
| SSIDs | 8 (4 per band) |
| Management | Virtual AP Controller: 20; mesh: 7; Virtual Switch Controller: 5; VigorACS (since V5.3.0) |
| Power | DC 12V @ 1.5A; max. power consumption 18 W |
| Dimensions | 207 x 131 x 42 mm |
| Operating Environment | Temperature 0–45 °C; humidity 10–90%; storage -25–70 °C |
Package Contents
- Vigor2136ax router
- 2x antennas
- RJ-45 cable
- Power adapter
- Quick Start Guide
