Description

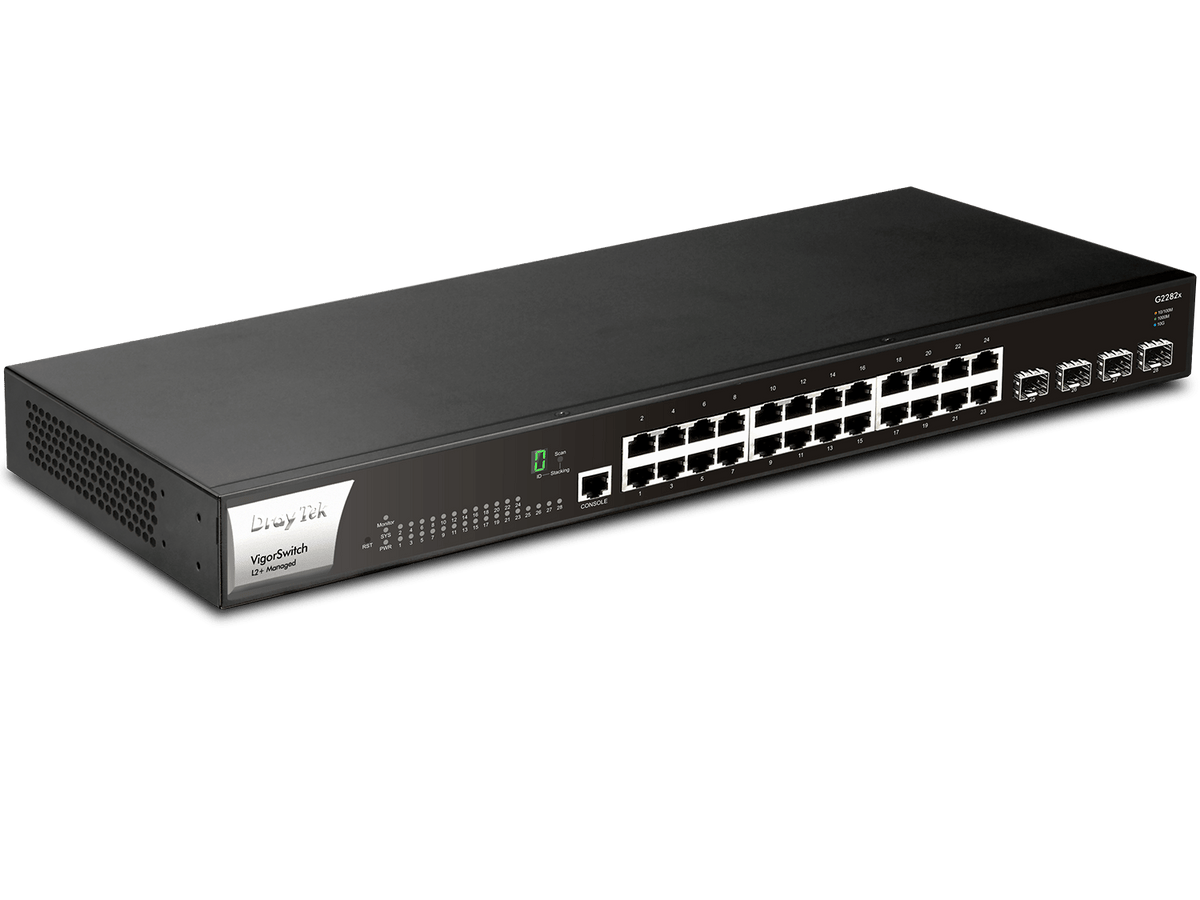

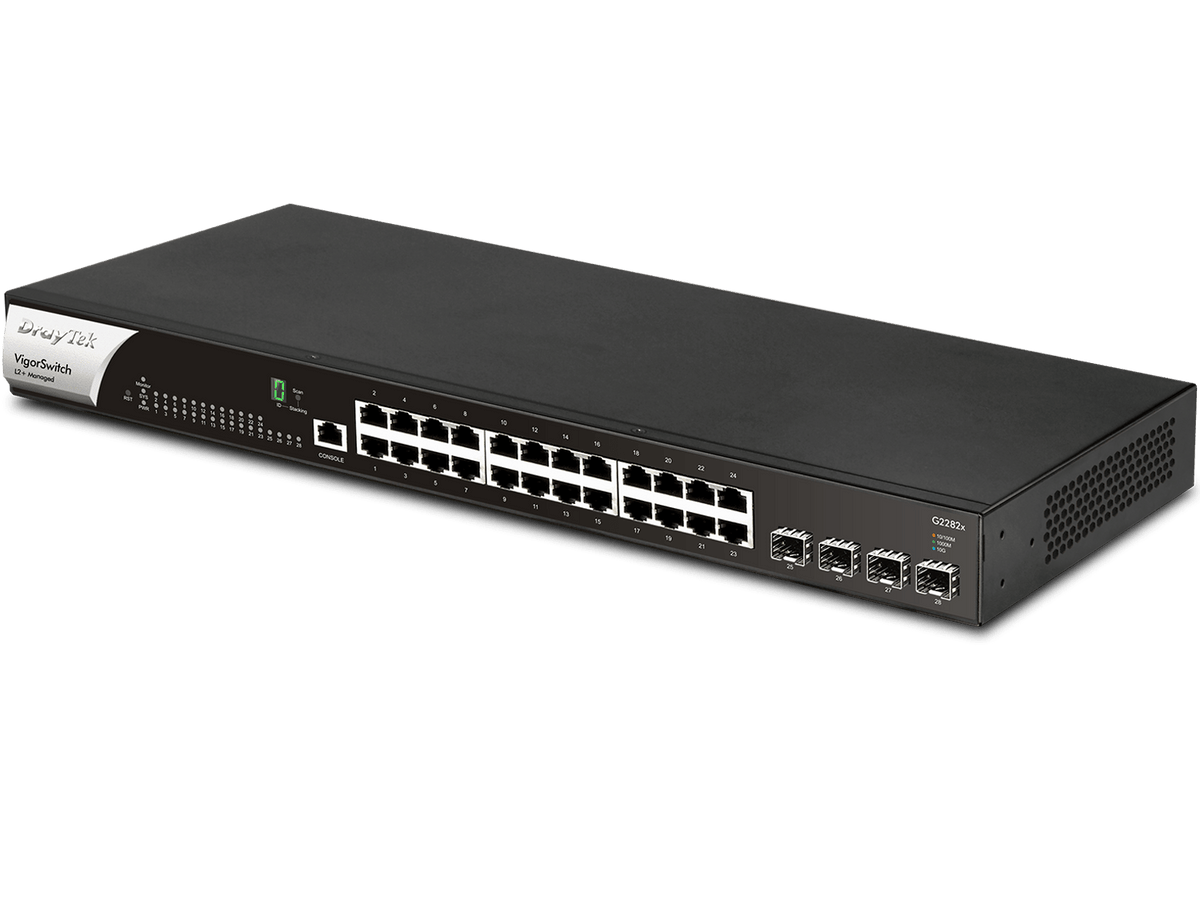

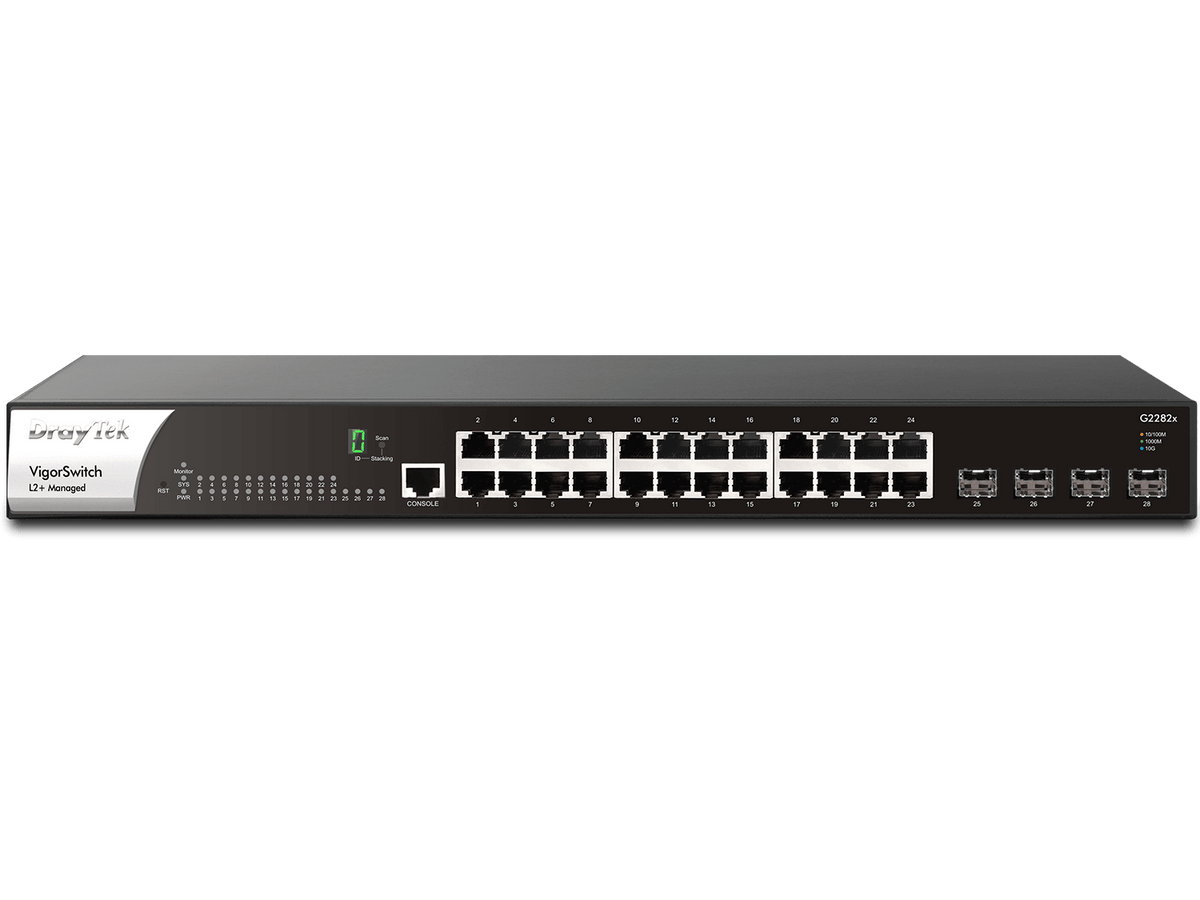

The DrayTek VigorSwitch G2282x is a 28-port L2+ managed 10G switch. It provides 24 Gigabit RJ-45 ports and 4 10G SFP+ (1G/10G) ports, 128 Gbps switching capacity and a 95.2 Mpps forwarding rate, and supports stacking of up to 4 units plus Layer 3 static and VLAN routing.
Key Features
- 24 GbE + 4x 10G SFP+ – 24x Gigabit RJ-45 ports and 4x 10G SFP+ (1G/10G) ports.
- High performance – 128 Gbps switching capacity, 95.2 Mpps forwarding rate, 12 Mbit buffer and 12 KB jumbo frames.
- Stacking – Stack up to 4 units in line or ring topology (since firmware 2.10.1; stacking only with P2282x/G2282x), managed under one IP.
- L2+ / Layer 3 features – Static route, VLAN route and DHCP server.
- VLAN and multicast – 512 VLANs (tag, MAC, protocol, management, voice and surveillance VLAN), GVRP, QinQ, IGMP snooping v2/v3 and MLD v1/v2.
- Security – RADIUS/TACACS+, 802.1X, IP source guard, DAI, DHCP snooping, IP conflict prevention and loop protection.
- Management – HTTP/HTTPS, Telnet, SSHv2, SNMP v1/v2c/v3, RMON, sFlow, LLDP-MED, dual image, OpenVPN client and VigorACS/VigorConnect (since V2.9.1).

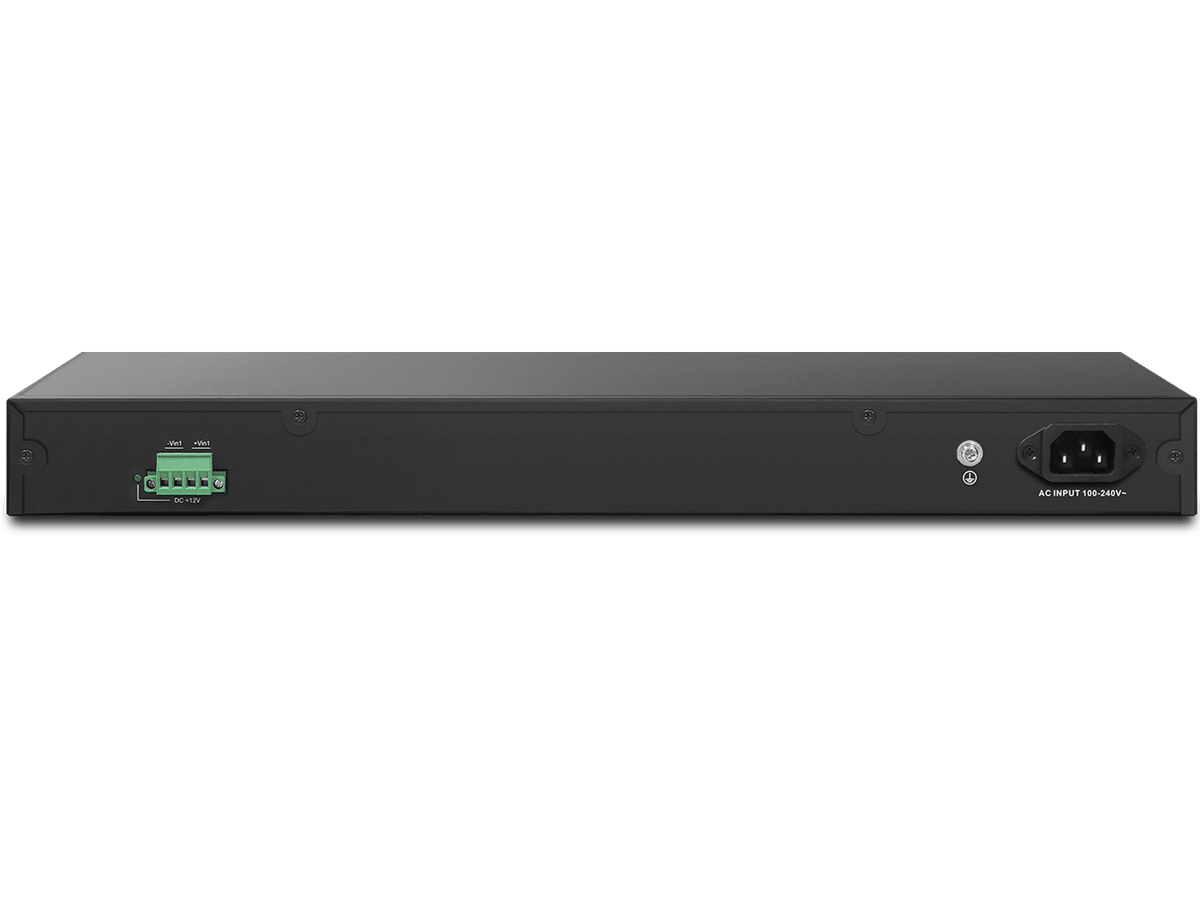

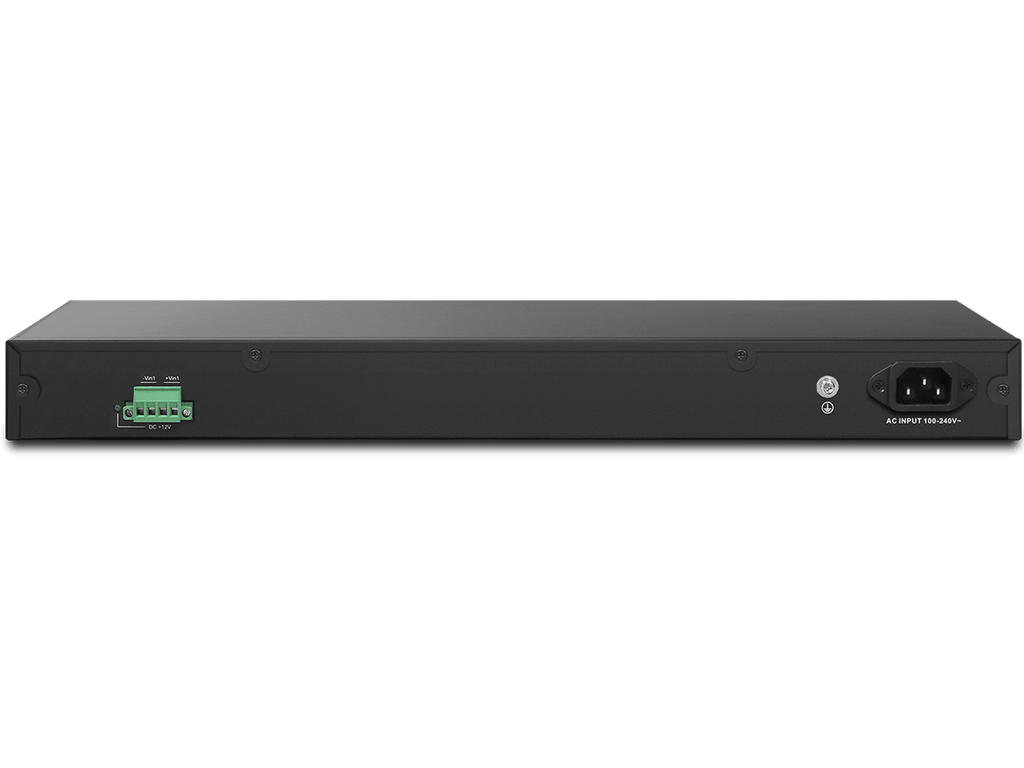

- Power backup – AC power input plus a backup DC 12V input.
Technical Specifications
| Category | Specification |
|---|---|
| Ports | 24x GbE RJ-45; 4x 10G SFP+ (1G/10G); 1x RJ-45 console |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.2 Mpps (64 bytes) |
| Buffer Size | 12 Mbit |
| MAC Address Table | 16k |
| Jumbo Frame | Up to 12 KB |
| Spanning Tree | STP, RSTP, MSTP |
| Link Aggregation | 8 groups of 8 ports (static/LACP) |
| Stacking | Up to 4 units; line or ring topology |
| VLAN | 512 VLANs; tag-based, MAC-based, protocol-based, management, voice and surveillance VLAN; GVRP; QinQ |
| Layer 3 | Static route, VLAN route, DHCP server |
| Multicast | IGMP snooping v2/v3, MLD v1/v2; 256 multicast groups |
| QoS | 8 queues |
| Surveillance | ONVIF |
| Security | RADIUS, TACACS+, 802.1X, IP source guard, DAI, DHCP snooping, IP conflict prevention, loop protection |
| Management | HTTP/HTTPS, Telnet, SSHv2, SNMP v1/v2c/v3, RMON, sFlow, LLDP-MED, dual image, OpenVPN client, VigorACS/VigorConnect (since V2.9.1) |
| Power | AC 100–240V @ 0.7A; backup DC 12V @ 3A; max. power consumption 36 W |
| Form Factor | 1U rack mount |
| Dimensions | 440 x 205 x 44 mm |
| Weight | 2690 g |
| Operating Environment | Temperature 0–50 °C; humidity 10–90%; storage -20–70 °C |
Package Contents
- VigorSwitch G2282x
- Rack mount kit
- Console cable
- Power cord
- Quick Start Guide
