Description

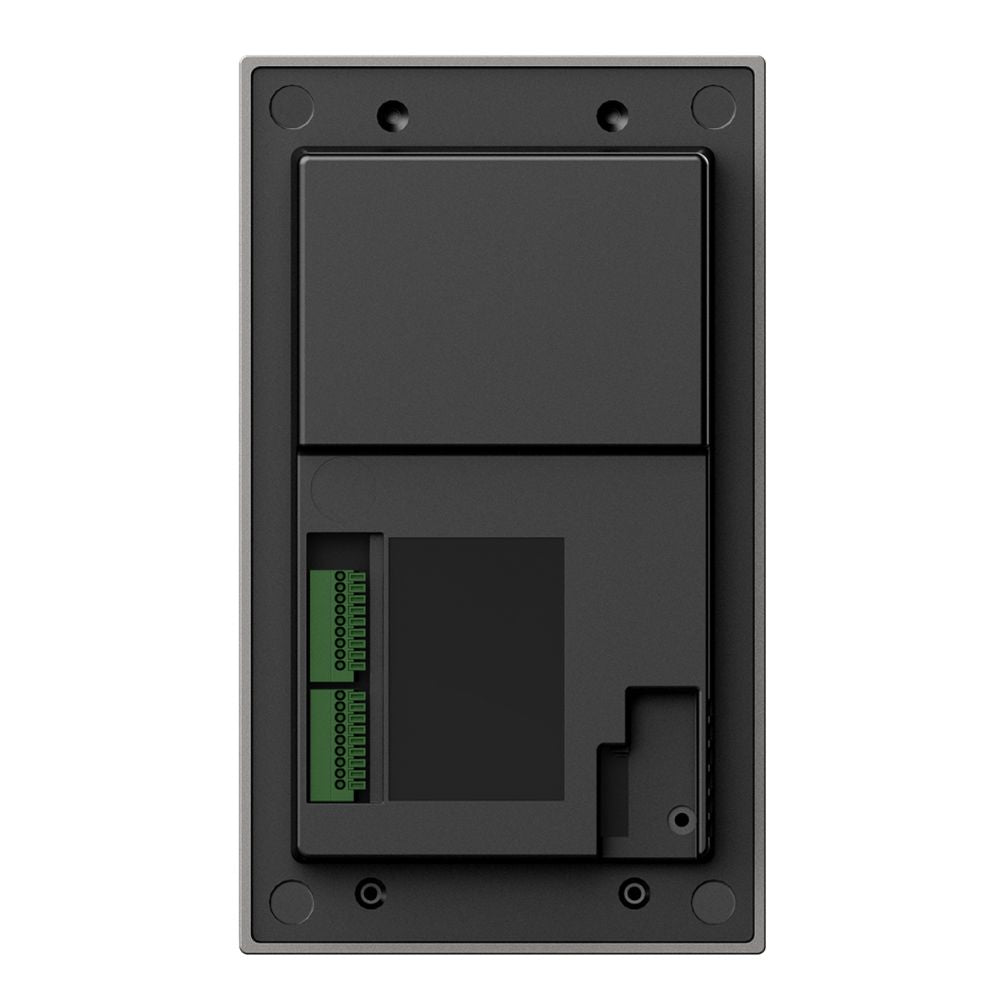

Need reliable, crystal-clear communication at your gates, weigh stations, parking entrances, or loading docks? The Fanvil A12 IP Audio Intercom gives facilities managers and business owners powerful 10W audio with smart noise reduction so every call and announcement stays crystal clear—no more shouting or missed instructions. Built tough with IP66 weatherproofing and IK10 vandal resistance, it handles rain, dust, extreme temperatures, and rough use while integrating seamlessly with your existing SIP phone system and door-access hardware.
The Telecom Spot Take
Here’s the straight talk from us: the Fanvil A12 is the intercom small-to-medium businesses and enterprise facilities teams actually need when standard door phones fall short in noisy or outdoor environments. Its turbo sound chamber plus dual-mic tech with AEC/ANR/AGC/AVC means voice pickup reaches 5 meters and broadcasts hit 100 dB—perfect for busy gates or warehouses. Facilities managers love the simple relay outputs for door strikes and the Wiegand port for card readers, while IT directors appreciate the 2 SIP lines, PoE+ power, and rock-solid compatibility with Asterisk, 3CX, and other platforms. At -40 °C to +70 °C it just works, year-round, with almost zero maintenance thanks to the self-check function and SD-card recording. Bottom line? It solves real pain points fast and keeps your people safe and productive.
Key Features
- 10W speaker with unique turbo sound chamber – Delivers 90 dB full-duplex calls and 100 dB broadcasts so your announcements reach farther and sound louder than typical intercoms—ideal for noisy loading docks or large gate areas.
- Advanced dual-microphone noise reduction with AEC, ANR, AGC & AVC – Picks up voices clearly up to 5 meters away even in wind, traffic, or machinery noise, giving your teams reliable two-way talk without repetition.
- Rugged IP66 waterproof/dustproof + IK10 anti-riot rating – Stainless steel panel and aluminum alloy body stand up to rain, snow, dust, and impacts—perfect for outdoor gates, weigh scales, and industrial entrances.
- Built-in relays, Wiegand, and short-circuit I/O ports – Connect door strikes, card readers, and alarm lights directly so one device handles both audio and access control.
- 2 SIP lines, SD card slot & USB port – Supports speed dial, multicast, auto-answer, and recording/preset broadcasts—plus easy integration with your current VoIP system.
- Wide temperature range (-40 °C to +70 °C) and PoE+ power – Install anywhere without worrying about weather or extra power runs; works reliably in extreme heat or cold.
Technical Specifications
| Category | Details |
|---|---|
| Audio | 10W speaker, 90 dB full-duplex hands-free, 100 dB broadcast, dual-mic noise reduction, AEC/ANR/AGC/AVC, voice pickup up to 5 m, voice loop self-check |
| Codecs | Wideband: G.722, Opus; Narrowband: G.711A/U, G.729A/B, iLBC, G.723.1, G.726-32K |
| SIP Lines | 2 |
| Key Features | Speed dial, programmable DSS key (1 with LED), auto-answer, multicast, anonymous call, call forwarding to multicast, time plan/task management |
| Interfaces | 1× RJ45 (PoE+ 802.3at), 1× Line-out (active speaker), 2× short-circuit input, 2× short-circuit output (relay: DC30V/2A or AC125V/0.5A), 1× Wiegand, 1× RS485, 1× USB, 1× Micro SD card slot, 1× tamper alarm switch, DC 12-24V input |
| Network | 10/100 Mbps Ethernet, IPv4/IPv6, static/DHCP/PPPoE, VPN (L2TP/OpenVPN), VLAN, RTP/RTCP/SRTP |
| Protocols | SIP v1/v2, STUN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069, auto-provisioning |
| Management | Web portal, configuration export/import, firmware upgrade, syslog, HTTP API |
| Protection | IP66 waterproof/dustproof, IK10 vandal-resistant |
| Operating Temp | -40 °C to +70 °C |
| Material & Install | Stainless steel panel + aluminum alloy shell; wall-mount or flush-mount |
| Dimensions | 205 × 120 × 54.5 mm (with wall-mount bracket) |
| Weight | 1.71 kg (net) |
Comparison at a Glance
- Vs typical 2W entry phones: A12’s 10W turbo speaker and 100 dB broadcast reach farther and cut through noise—while IP66/IK10 beats basic plastic housings.
- Vs older analog intercoms: Full SIP integration, 2 lines, and remote management—no extra wiring or separate controller needed.
- Vs basic SIP door phones: Adds SD-card recording, advanced noise algorithms, and 5 m pickup plus relay/Wiegand ports for true access-control combo in one rugged unit.
Frequently Asked Questions
How loud is the Fanvil A12?
It delivers 90 dB for crystal-clear hands-free calls and up to 100 dB for broadcasts—loud enough for busy outdoor areas.
Can it control doors and gates?
Yes—two short-circuit outputs with relays plus Wiegand support let you link door strikes and card readers directly.
Does it work in rain, snow, or extreme heat/cold?
Absolutely. IP66 waterproof/dustproof and IK10 vandal resistance plus -40 °C to +70 °C operation make it perfect for outdoor use year-round.
Is it easy to integrate with our existing phone system?
Very. It supports 2 SIP lines and works with Asterisk, 3CX, Broadsoft, and most mainstream platforms—plus auto-provisioning.
Do I need a separate power supply?
No—PoE+ (802.3at) powers it over the network cable, though DC 12-24V is also supported if preferred.
Can it record announcements or calls?
Yes—the built-in Micro SD card slot lets you store and play preset broadcasts or record for later review.
Please see Fanvil A12 Datasheet for more information.
