Fanvil A233 IP Horn Speaker – IP66, 2 SIP Lines, HD Voice and Multicast

FanvilSKU: A233

Condition: New

Price:
Sale price$219.99

Login for lower price
Stock:
In stock

Have a question? Call us! 866-369-3394

Secure payments

Free shipping on orders over $500*

Pre-sales consultation

Top Rated Customer Care

Description

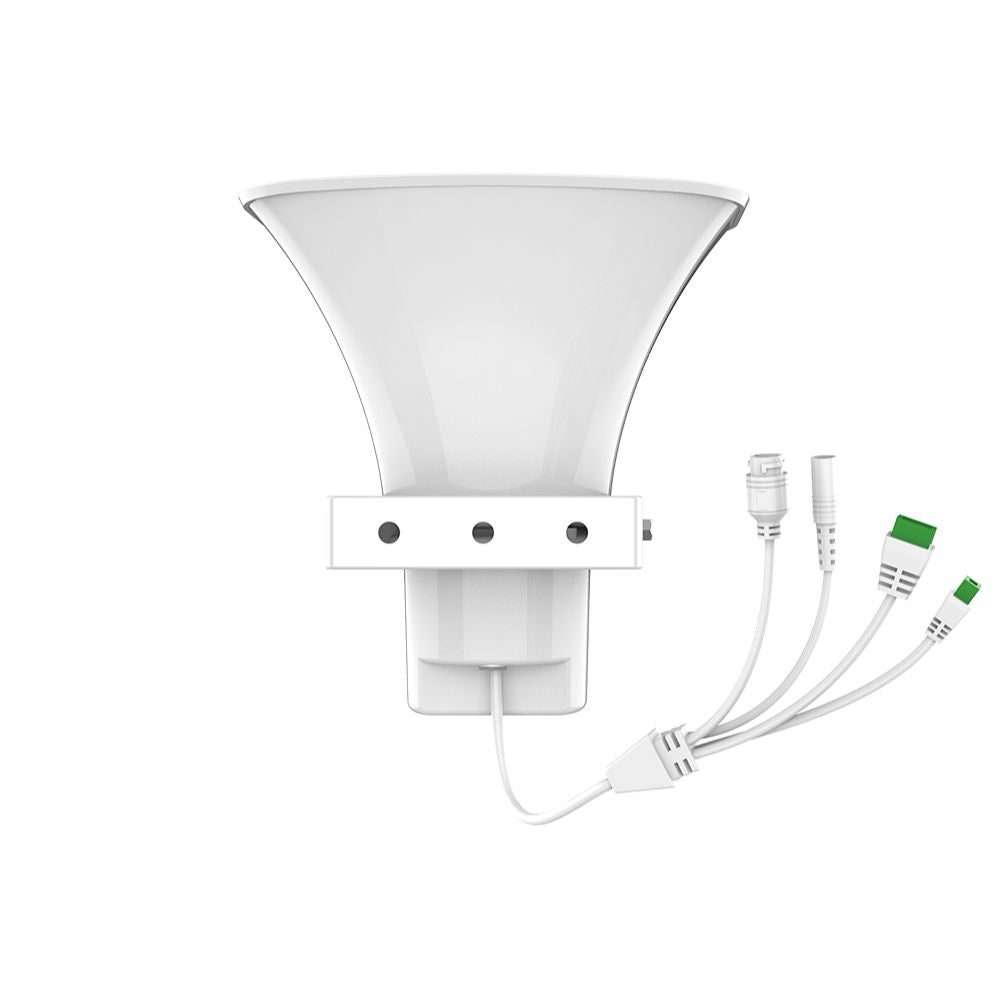

Fanvil A233 IP Horn Speaker – IP66, 2 SIP Lines, HD Voice and Multicast

The Fanvil A233 is a commercial-grade IP horn speaker for IT and facilities teams that need loud, weather-resistant SIP paging outdoors. It can run alone or connect to unified communications, video, access control, signage, or a fire alarm so you can manage paging, scheduled messages, and two-way intercom. An IP66 housing is built for rain, dust, and harsh outdoor sites.

The Telecom Spot Take

This is a strong fit for our customers who need a SIP horn outdoors, managed from a web browser, DM software, FDMCS, or the Fanvil broadcast intercom app. Plan power: output is 8W on PoE, 15W on PoE+ (IEEE 802.3at Class 4), and 30W on 24V DC at 2A. The 120 dB max SPL is measured at 1 meter at 30W, so that figure applies on DC power. For an 802.3af-only switch, set Speaker Power to 7W in the web interface so the port is not overloaded. It is built for paging and alerts, not full-range music (350 Hz–7.5 kHz).

Key Features

  • Outdoor SIP paging in one horn. Use it as a standalone IP audio terminal or tie it into unified communications, video surveillance, Fanvil broadcast and intercom, access control, digital billboards, or fire alarm systems so paging and alerts are configured in one place.
  • Weather-ready IP66 housing. The published IP66 rating means the enclosure is built to keep out dust and water, which is why this model is a practical fit for exposed outdoor locations.
  • Power tiers that match your switch. Speaker power is 8W on PoE, 15W on PoE+ (IEEE 802.3at Class 4), and 30W on a 24V DC 2A supply. If you only have 802.3af (AF) PoE, set Speaker Power to 7W in the web interface so the port is not overloaded.
  • Loud horn output when DC-powered at 30W. The 8-ohm driver is rated 30W. Sensitivity is 107±3 dB at 1 m / 1W, and max SPL is 120 dB at 1 m / 30W — that maximum applies at the 30W DC rating, not on PoE.
  • HD paging and two-way talkback. HD voice uses G.722 and Opus, with a built-in omnidirectional microphone for two-way intercom and self-test. Two SIP lines and 20 multicast partitions cover typical paging groups.
  • Scheduled and emergency messages on the device. 24MB of built-in audio storage holds MP3 and WAV files for timed broadcasts, emergency notifications, and alarms. Volume can be adjusted remotely from the web interface.

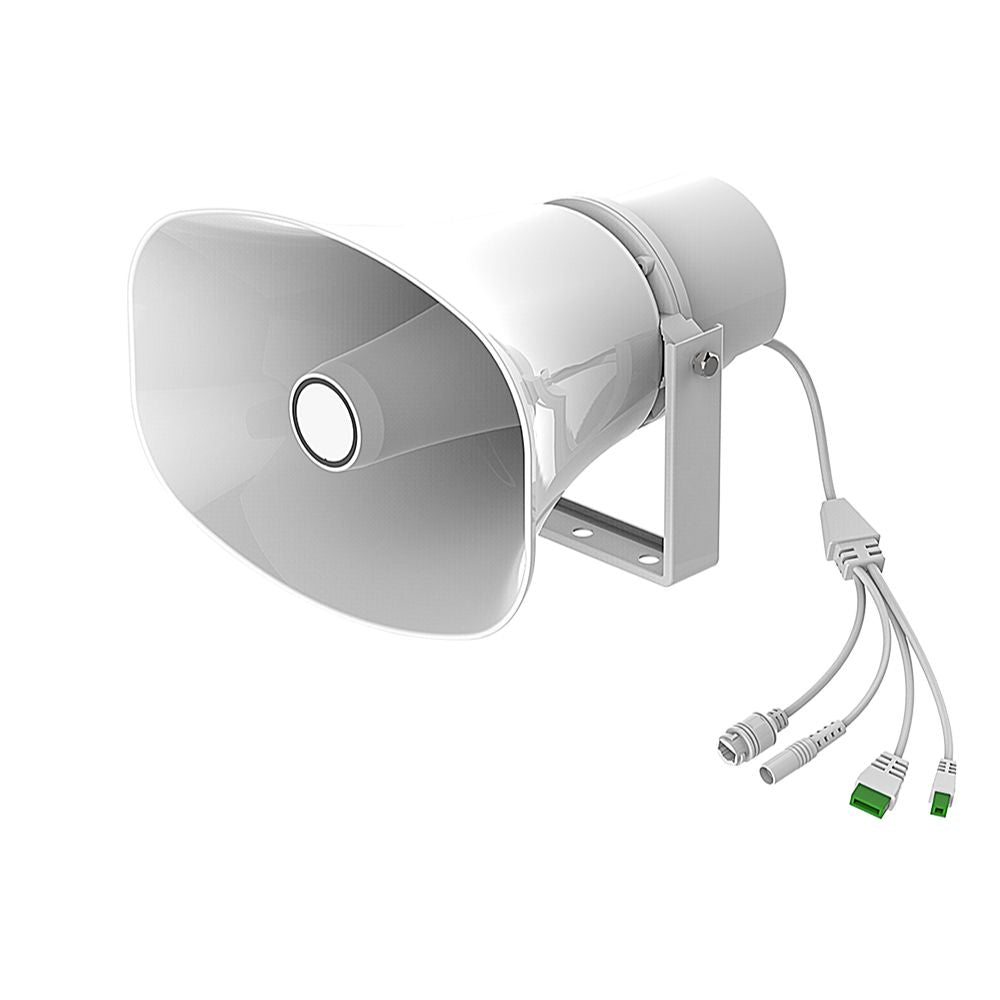

  • Simple mounting and linkage I/O. A U-bracket is included for aiming the horn. One short-circuit input and one short-circuit output (maximum 30V / 2A) can link a security or alarm device, and the speaker supports video linkage with an external IP camera.
  • IT-friendly management. Provision it over FTP, TFTP, HTTP, HTTPS, DHCP option 66, SIP PnP, or TR-069, and manage it from the web portal, DM software, FDMCS, or the Fanvil broadcast intercom app. The network port is 10/100 Mbps, not Gigabit.

Technical Specifications

Specification Details
Model / SKU Fanvil A233
Product type Commercial-grade IP horn speaker / IP audio terminal
SIP lines 2 SIP lines; SIP 2.0 over UDP/TCP/TLS
Audio codecs G.711A/U, G.729A/B, iLBC, G.723, G.726-32K, G.722, Opus
HD voice G.722 and Opus; lossless broadcast via MP3 and WAV
Speaker 8 Ω, 30W driver; frequency response 350 Hz–7.5 kHz; sensitivity 107±3 dB (1 m / 1 W); max SPL 120 dB (1 m / 30 W)
Speaker power by supply PoE: 8W; PoE+: 15W; DC 24V/2A: 30W
Power input PoE / PoE+ (IEEE 802.3at, Class 4) or DC 24V/2A (circular jack). If both are connected, the DC adapter is used first.
802.3af (AF) setup note Default PoE mode is AT. For AF-mode switches, set Speaker Power to 7W under Device Settings > Media Settings > Speaker Power.
Microphone Built-in omnidirectional mic; sensitivity −38±3 dB, 2.2 kΩ, 2V bias; supports self-test
Multicast 20 multicast partitions; dynamic multicast
Onboard storage 24MB for audio files, scheduled tasks, emergency notification, and alarms
I/O 1 short-circuit input; 1 short-circuit output (max 30V/2A, terminal socket); external IP camera video linkage
Network 1 × 10/100 Mbps RJ45; IPv4, IPv6, or both; static IP, DHCP, or PPPoE; VLAN, LLDP, QoS; VPN (L2TP / OpenVPN)
Security and media RTP/RTCP/SRTP; STUN; HTTP/HTTPS; Action URL / Active URI
Management Web portal, DM software, FDMCS, Fanvil broadcast intercom app; auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP option 66/SIP PnP/TR-069; config import/export, firmware upgrade, syslog, web packet dump
Device functions Default auto-answer, network time sync, remote volume, four operating modes (serverless, converged communication, Fanvil broadcast intercom, external linkage)
Ingress protection IP66
Operating temperature −30°C to 60°C (−22°F to 140°F)
Storage temperature −40°C to 70°C
Operating humidity 10% to 95%
Installation U-bracket
Color White
Dimensions (W × H × D) 285 × 285 × 205 mm
Weight 1.90 kg

Comparison at a Glance

Here is how the A233 horn stacks up against two other Fanvil speakers in the same family: the A212 wall-mounted speaker and the compact A513W video speaker. Use the published figures to match the enclosure and output to the job.

Model Fanvil A233 Horn Speaker Fanvil A212 Wall-mounted Speaker Fanvil A513W Video Speaker
Form / mount Horn, U-bracket Wall-mounted (angle bracket optional) Wall- or ceiling-mounted
Ingress protection IP66 Not published on the product listing IP66
Speaker power 8W PoE, 15W PoE+, 30W at 24V DC 15W PoE+/DC 24V 8.5W PoE+/DC 24V
Frequency response 350 Hz–7.5 kHz 100 Hz–20 kHz 600 Hz–10 kHz
Sensitivity 107±3 dB (1 m / 1 W) 88±3 dB (1 m / 1 W) 100±5 dB (1 m / 1 W)
Max SPL 120 dB (1 m / 30 W) 105 dB (1 m) 100 dB (1 m / 10 W)
Operating temperature −30°C to 60°C −20°C to 55°C −40°C to 70°C
Best-fit takeaway Outdoor horn paging and alerts Wider-band wall speaker where an IP rating is not specified Compact IP66 speaker when you also want a video unit

FAQ

Can the A233 run on standard PoE, or do I need PoE+?

It supports PoE and PoE+. Speaker power is 8W on PoE and 15W on PoE+, and the unit is specified for IEEE 802.3at Class 4. If your switch is 802.3af (AF) only, set Speaker Power to 7W in Device Settings > Media Settings > Speaker Power so the port is not overloaded. For the 30W output, use a 24V DC 2A supply.

How loud is the A233?

Sensitivity is 107±3 dB at 1 meter at 1W. Max SPL is 120 dB at 1 meter at 30W, which is the DC 24V/2A power rating. On PoE or PoE+, expect the lower 8W or 15W output, not the 30W / 120 dB figure.

Is the A233 rated for outdoor use?

Yes. It has an IP66 rating for dust and water protection and an operating range of −30°C to 60°C, which makes it suitable for most outdoor and harsh environments.

Does it support two-way intercom, or is it paging only?

It does both. A built-in omnidirectional microphone supports two-way intercom and a self-test function, and HD voice uses G.722 and Opus. Auto-answer is on by default.

What happens if I connect both a PoE switch and a 24V adapter?

The A233 uses the external 24V DC adapter first. If that adapter fails, it can fall back to PoE from the switch.

Will it work with my SIP phone system?

It has two SIP 2.0 lines and can run in serverless mode, a converged communications mode, Fanvil broadcast intercom mode, or an external linkage mode. Confirm SIP compatibility and provisioning (FTP, TFTP, HTTP, HTTPS, DHCP option 66, SIP PnP, or TR-069) against your platform before you standardize on it.
