Description

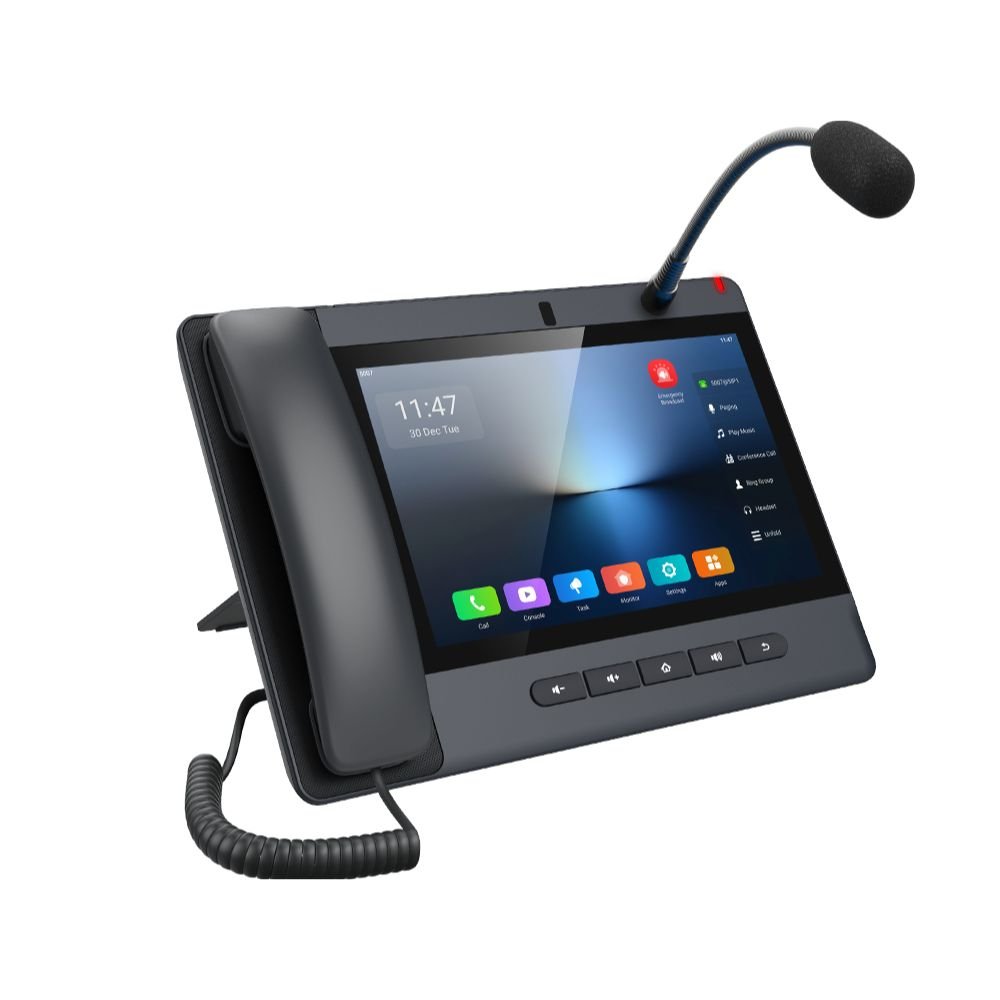

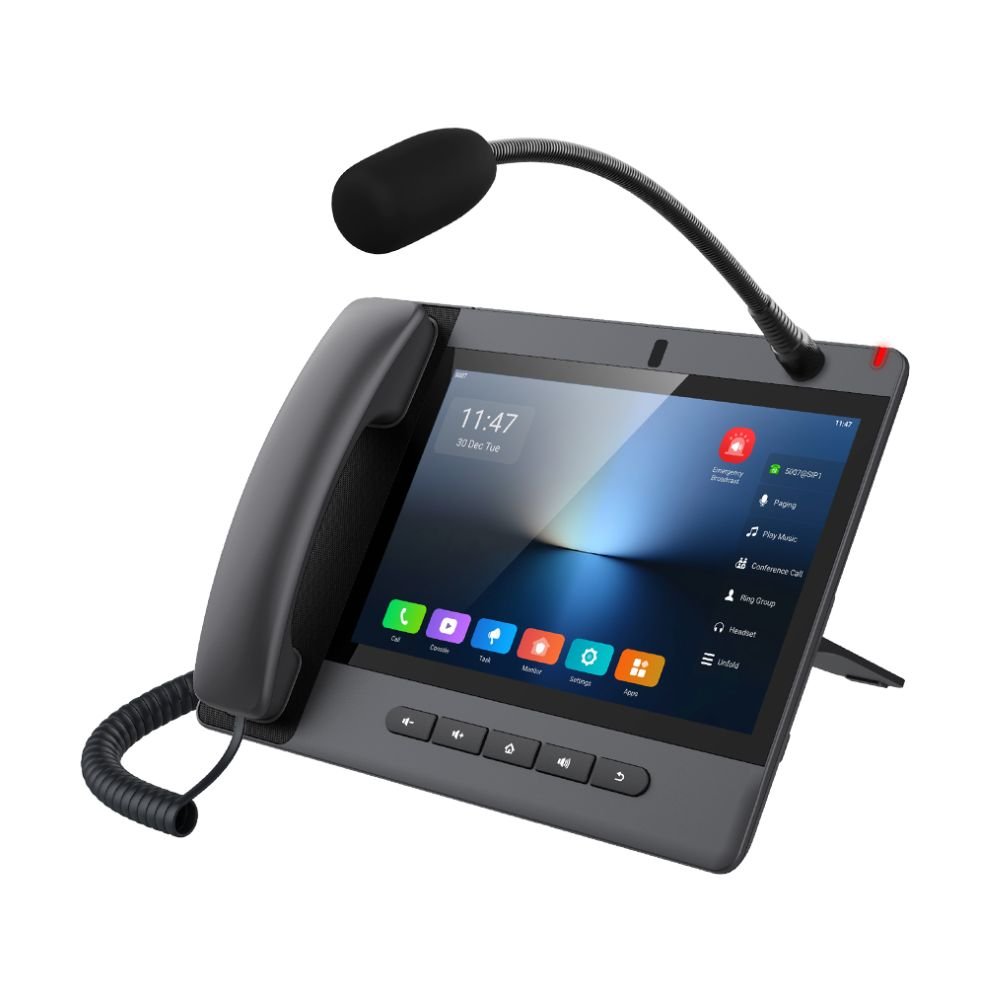

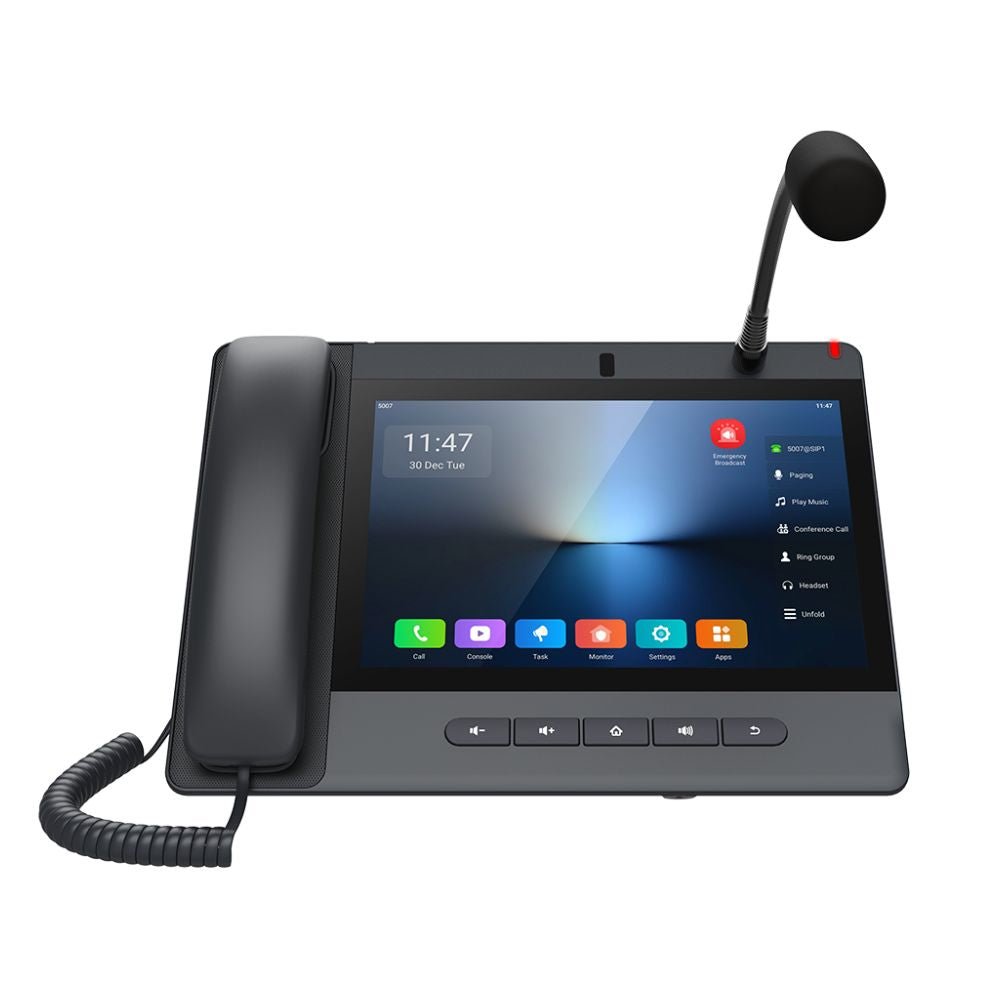

If your team needs fast, reliable communication in busy command centers, security ops, or large facilities, the Fanvil A330i changes the game. This Android 14-based console IP video phone gives IT directors and facilities managers a single touchscreen hub for paging, video calls, monitoring, and managing up to 300 IP endpoints.
With its crisp 10.1-inch 1280×800 display, 13MP camera with privacy shutter, and gooseneck microphone, every interaction feels clear and professional—even in noisy environments. Full-duplex audio with noise reduction keeps conversations smooth, while dual Gigabit Ethernet, Wi-Fi 6, and Bluetooth 5.4 make deployment effortless.
Whether you run a hospital campus, manufacturing floor, or corporate headquarters, the A330i turns complex coordination into simple, one-touch tasks.
The Telecom Spot Take
Customers tell us the biggest headache in large operations is juggling multiple devices for paging, monitoring, and team coordination. The Fanvil A330i solves that by packing everything into one powerful console.
Its built-in unified communication system discovers devices automatically and lets you control up to 300 endpoints from one screen—perfect for scaling without extra servers or headaches. The 13MP camera and HDMI output mean you can run video tours or extend displays to a wall monitor, while the gooseneck mic and push-to-talk handset keep hands free for real work.
For small-to-medium enterprises or enterprise control rooms that outgrew basic desk phones, this model delivers professional-grade reliability without the enterprise price tag. It’s exactly what command-center teams and security directors ask for when they want speed, clarity, and future-proof flexibility.
Key Features
- 10.1-inch 1280×800 color touchscreen – Intuitive navigation so your team can launch calls, paging, or monitoring with a single tap—no training required.
- 13MP adjustable camera with mechanical privacy shutter – Crystal-clear video calls and real-time monitoring up to 1080p; shutter gives instant privacy when needed.
- Gooseneck microphone + full-duplex audio with noise reduction – MP3-quality sound stays clear even in loud environments; everyone hears and speaks naturally without echoes or background noise.
- Centralized management of up to 300 IP endpoints – One console discovers, deploys, and controls your entire fleet—ideal for growing facilities or multi-site operations.
- One-touch live paging, scheduled broadcasts & rapid conferencing – Trigger audio or video sessions instantly via touch, schedule, DTMF, network commands, or alarm inputs; unattended mode auto-forwards calls to on-duty staff.
- Dual Gigabit Ethernet, Wi-Fi 6 & Bluetooth 5.4 – Rock-solid wired or wireless connectivity plus easy pairing with headsets or peripherals.
- Rich I/O ports (8 short-circuit inputs, RS-485, HDMI, Line in/out) – Integrate with access control, alarms, or external displays without extra hardware.
- 20 SIP lines + 10-party audio / 3-party video conferencing – Handle multiple simultaneous conversations while keeping video crisp and audio HD.
- Android 14 OS with third-party app support – Run custom software or familiar business tools directly on the device.
- PoE+ power option – Single-cable installation saves time and reduces clutter in control rooms or dispatch desks.
Technical Specifications
| Category | Details |
|---|---|
| Operating System | Android 14.0 |
| Display | 10.1-inch (1280 × 800) touchscreen; 5 physical keys (Volume-, Volume+, Home, Hands-free, Return) |
| Camera (A330i) | 13 megapixel adjustable with mechanical privacy shutter |
| Microphone | Gooseneck + directional HD microphone |
| Handset | PTM (push-to-talk) handset (optional) with RJ9 ports |
| Audio | Full-duplex, AEC, NR, PLC, 20 Hz–20 kHz frequency response, MP3-quality |
| Video | H.264 / H.265 (optional); up to 1080p; 5–30 fps; MP4 recording |
| SIP Lines | 20 |
| Conference | 10-party audio / 3-party video |
| Network | Dual 10/100/1000 Mbps Ethernet (PC bypass), Wi-Fi 6 (2.4/5 GHz), Bluetooth 5.4, IPv4/IPv6 |
| Protocols | SIP 2.0, RTP/RTCP/SRTP, STUN, DHCP, 802.1x, TR-069, HTTP/HTTPS |
| Interfaces | 2× RJ45, 8× short-circuit input, 1× short-circuit output, 1× RS-485, 1× HDMI, 1× Line-in, 1× Line-out, USB 2.0 Type-A, USB 3.0 Type-C, TF card slot |
| Power | Optional DC 12V/3A or PoE+; consumption 3.08–24.2 W (adapter) / 2.13–20.1 W (PoE) |
| Installation | Desktop (adjustable stand angles 45°/50°) |
| Dimensions | 309 × 214 × 187 mm (45° stand) / 309 × 226 × 167 mm (50° stand) |
| Operating Conditions | 0–45 °C, 10–95 % humidity (non-condensing) |
FAQ
What makes the Fanvil A330i different from a regular IP phone?
It’s a dedicated console designed for command centers. The large touchscreen, 13MP camera, gooseneck mic, and ability to manage 300 endpoints let facilities teams handle paging, monitoring, and multi-party calls from one device instead of juggling several.
Does the A330i support video calls and monitoring?
Yes—H.264 video up to 1080p plus HDMI output for wall-mounted displays or video tour mode. The mechanical privacy shutter keeps sensitive areas secure when the camera isn’t needed.
Can it integrate with existing security or access systems?
Absolutely. Eight short-circuit inputs, one output, and RS-485 let you connect alarms, door controls, or sensors directly. One-touch triggers make it easy to broadcast alerts or start recordings.
How easy is installation for IT teams?
Very. PoE+ or DC power, dual Gigabit ports with PC bypass, Wi-Fi 6, and automatic device discovery mean you can deploy and manage it quickly—often with zero extra cabling.
Is the A330i suitable for small businesses or only large enterprises?
It scales perfectly. Small facilities love the simple touchscreen interface, while larger organizations use the 300-endpoint management and unattended forwarding to keep operations running smoothly around the clock.
What audio quality can we expect in noisy environments?
MP3-level clarity with background noise reduction, full-duplex AEC, and a gooseneck mic that picks up voices clearly even when hands are busy—exactly what dispatch and facilities teams need.
