Description

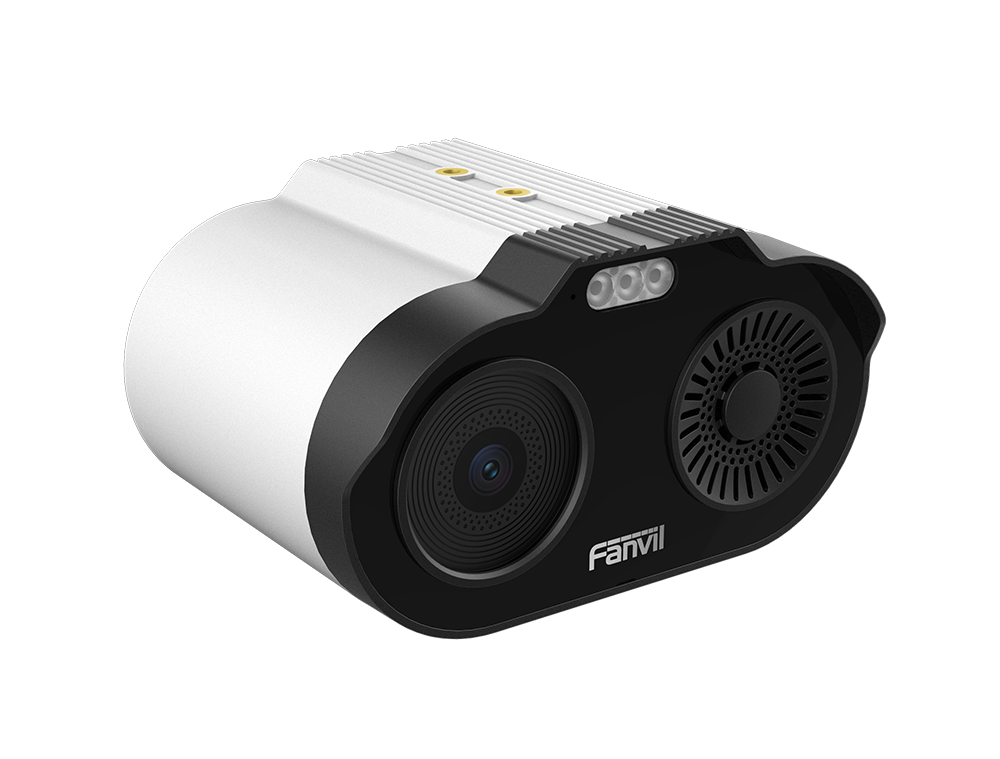

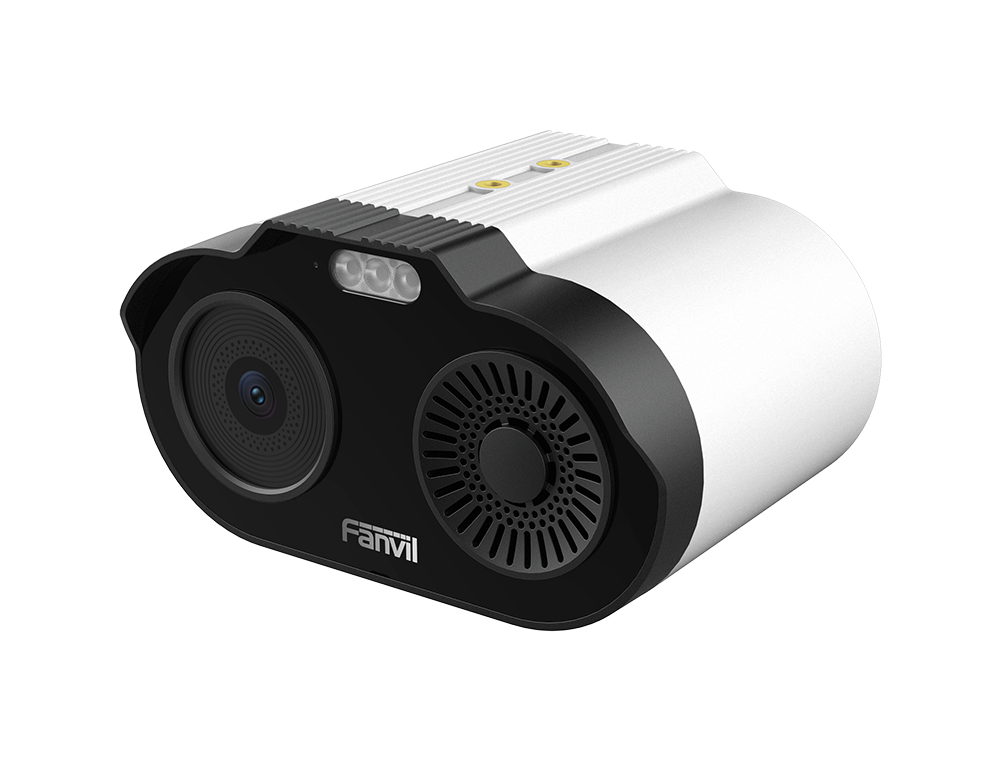

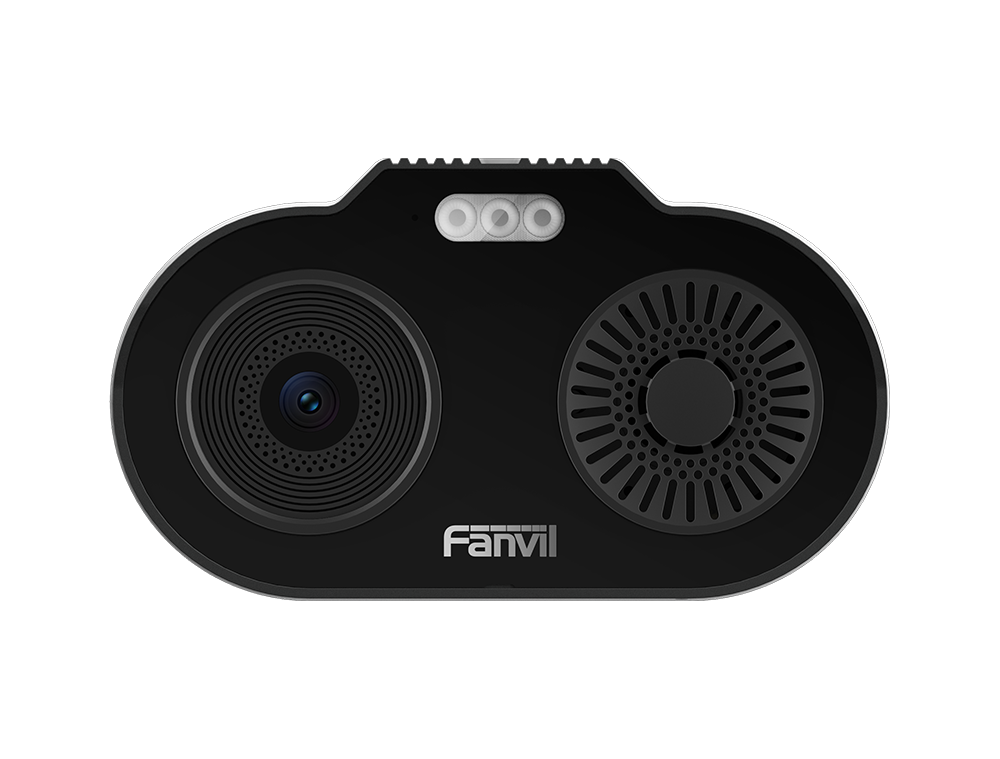

The Fanvil A513W All-in-One Video Speaker brings broadcasting, video monitoring, and two-way intercom together in one outdoor-ready device. It is built for facilities managers, IT directors, and business owners who need faster response to security events without managing multiple separate systems.
With a 4MP camera, 10W high-power speaker, and AI human detection, the A513W detects potential risks, issues voice warnings, and lets your team talk to people on site in real time. It works in harsh outdoor conditions thanks to IP66 protection and a wide operating temperature range.
The Telecom Spot Take
This unit stands out because it combines three critical functions—broadcast, surveillance, and intercom—into a single rugged device. The 4MP wide-angle camera with infrared and white-light illuminators plus HDR delivers usable day and night video. The 10W speaker with turbo acoustic design and dual-microphone noise cancellation keeps announcements and conversations clear even in noisy outdoor areas. AI human detection triggers warning lights and pre-recorded or live voice alerts automatically. Facilities teams gain a practical Detect-Warn-Respond workflow that integrates with SIP phones, third-party VMS platforms, and unified communications systems. It is a strong fit for outdoor entrances, parking areas, campuses, and industrial sites where one device can reduce cabling, installation time, and ongoing maintenance.
Key Features
- 4MP wide-angle camera with infrared and white-light illuminators plus HDR for clear day and night imaging
- 10W high-power speaker with turbo acoustic structure for strong, intelligible outdoor audio
- Dual-microphone array with advanced noise-cancellation algorithms for clear two-way communication (effective mic pickup up to 5 m)
- AI human detection that automatically identifies people and can trigger warning lights plus voice broadcasts
- SIP and ONVIF support for easy integration with Fanvil console phones, third-party VMS, and UC platforms
- Wi-Fi connectivity for flexible deployment and installation
- Two short-circuit inputs and one relay output for linking sensors, alarms, or locks
- MicroSD card support for event-based audio and video recording
- IP66-rated housing and operating temperature range of –40 °C to 70 °C for reliable outdoor performance
- PoE (IEEE 802.3at) or external power adapter options for simple installation
Technical Specifications
| Category | Specification |
|---|---|
| Camera | 4 MP wide-angle, Starlight, IR + white light, HDR |
| Speaker | 10 W high-power with turbo acoustic structure |
| Microphones | Dual-mic array with noise cancellation (5 m range) |
| AI Features | Human detection with automatic alerts |
| Protocols | SIP, ONVIF, RTSP |
| Network | 10/100 Mbps Ethernet + Wi-Fi |
| Power | PoE (802.3at Class 4) or external adapter |
| Inputs/Outputs | 2 short-circuit inputs, 1 relay output |
| Storage | MicroSD card for event recording |
| Protection | IP66 |
| Operating Temperature | –40 °C to 70 °C |
| Primary Use | Outdoor broadcasting, monitoring & intercom |
| Package Contents | Video speaker, Quick Install Guide, Waterproof Kit, Screws *Optional WM101 Wall Mount Kit sold seperately |
Comparison at a Glance
- Versus basic outdoor SIP speakers: The A513W adds a full 4MP camera and AI human detection so you get visual verification and automatic alerts in one unit.
- Versus separate camera + speaker combinations: One device reduces mounting points, cabling, and power runs while keeping SIP and ONVIF compatibility.
- Versus lower-power outdoor intercoms: The 10 W speaker and dual-mic noise cancellation deliver clearer audio over longer distances in noisy environments.
FAQ
What can the Fanvil A513W do?
It combines outdoor broadcasting, live video monitoring, and two-way intercom in a single IP66-rated device with AI human detection.
Does it work with existing video management systems?
Yes. It supports ONVIF so it can connect to many third-party VMS platforms in addition to SIP-based systems.
How is it powered?
It supports Power over Ethernet (PoE) or an external power adapter.
Is it suitable for outdoor use year-round?
Yes. It carries an IP66 rating and operates from –40 °C to 70 °C.
Can it record events?
Yes. It supports a MicroSD card for event-triggered audio and video recording.
Who benefits most from this device?
Facilities managers, security teams, and IT directors at schools, campuses, industrial sites, parking areas, and commercial buildings that need proactive outdoor communication and monitoring.
