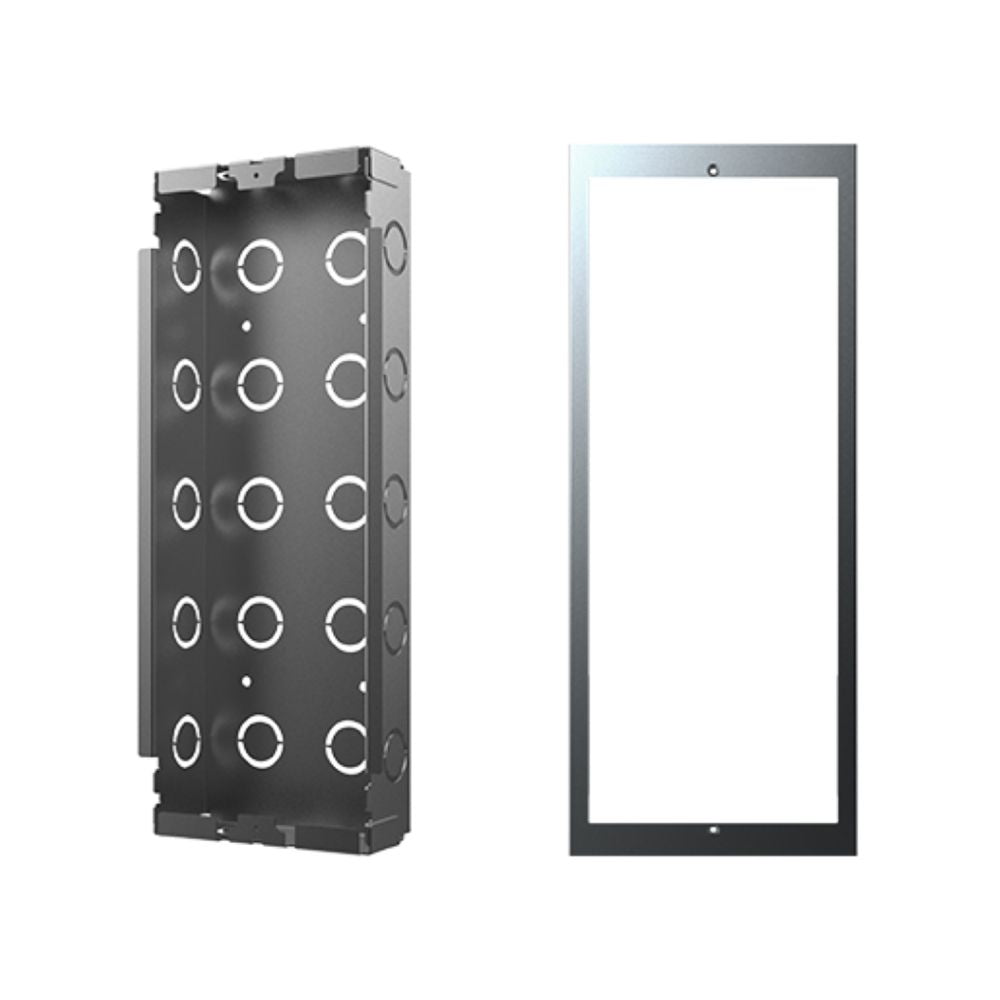

Fanvil EX103 Flush Mounting Kit for i66 i67 – Aluminum Frame & SGCC Box
Want the Fanvil i66 or i67 to sit in the wall instead of on it? The EX103 is Fanvil’s optional flush mounting kit for those two face-recognition door phones. It uses a slim aluminum frame panel and a steel brick box so the station can be built into the wall. That keeps the entry looking clean and uses less space at the door.
The Telecom Spot Take
This kit is for customers who already chose the i66 or i67 and need a recessed look—lobbies, gated offices, apartments, and sites where a box sticking off the wall is a problem. Fanvil sizes the frame at 336 × 135 × 3 mm and the brick box at 322 × 132.6 × 50.1 mm, so the cutout is known before anyone opens the wall. The frame is aluminum alloy. The box is SGCC steel. Working temperature is −40°C to 70°C, which matches outdoor door-phone duty. If the job is surface-mount, the phone already ships with a wall bracket. Buy EX103 only when the plan is flush.
Key Features
- Made for Fanvil i66 and i67 only. Fanvil lists those two models and no others. That matters for procurement: do not order EX103 for i61, i62, i63, or i64.
- Flush, embedded wall install. The kit is built for in-wall mounting so the door phone sits even with the finish. That saves projection at the door and keeps cabling inside the box.
- Aluminum alloy frame panel (336 × 135 × 3 mm). A thin metal face frames the station. At 3 mm thick and 96 g, it is a trim piece, not a bulky housing.
- SGCC brick box (322 × 132.6 × 50.1 mm). The 50.1 mm-deep steel box is the part that goes in the wall. Facilities teams can plan the opening from these numbers instead of guessing.
- Wide working temperature (−40°C to 70°C). The accessory is rated for the same outdoor swing as Fanvil’s i66/i67 door phones, so it is not limited to indoor hallways.
- Optional package, not required for every job. Fanvil calls EX103 optional. Surface mounting still uses the wall bracket that ships with the phone.
Technical Specifications
| Item | Fanvil specification |
|---|---|
| Model | EX103 |
| Product type | Flush mounting accessory package (optional) |
| Compatible models | Fanvil i66 and i67 face recognition door phones |
| Frame panel size | 336 × 135 × 3 mm |
| Brick box size | 322 × 132.6 × 50.1 mm |
| Frame material | Aluminum alloy |
| Brick box material | SGCC |
| Working temperature | −40°C to 70°C |
| Frame panel weight | 96 g |
| Brick box weight | 616.2 g |
| Combined listed weight | 712.2 g |
| Package dimensions | 365 × 152 × 62 mm |
| Outer carton | 327 × 257 × 385 mm |
| Units per carton | 8 pcs |
| Related door phone size (i66/i67) | 300 × 115.6 × 35 mm |
Comparison at a Glance
Use manufacturer sizes only. These kits are not interchangeable.
- EX103 vs included wall bracket. The i66/i67 ships with a wall bracket for surface mount. EX103 is the optional path when the station must sit inside the wall instead of on it.
- EX103 vs Fanvil EX102. EX102 is for i62, i63, and i64. Its frame is 216.8 × 112 × 3 mm and its box is 198.6 × 106.6 × 50.3 mm. Those openings will not fit i66/i67.
- EX103 vs Fanvil EX101. EX101 is for i61 only (frame 199.7 × 112 × 3 mm). Wrong kit for an i66 or i67 job.
FAQ
Does the EX103 work with any Fanvil door phone?
No. Fanvil lists only the i66 and i67.
Do our customers need this kit to install an i66 or i67?
No. Fanvil ships a wall bracket for surface mounting. EX103 is only for flush, in-wall work.
How big is the wall opening?
Plan around the brick box: 322 × 132.6 × 50.1 mm. The visible frame is 336 × 135 × 3 mm.
Can this kit sit outdoors?
Fanvil rates the accessory from −40°C to 70°C, the same temperature band published for these door phones.
What is in the package?
Fanvil describes EX103 as a flush mounting accessory package with a frame panel and a brick box. Combined listed weight is 712.2 g (96 g frame + 616.2 g box).
Will an EX102 box work if EX103 is out of stock?
No. The EX102 opening is much smaller and is specified for i62/i63/i64 only.
