Description

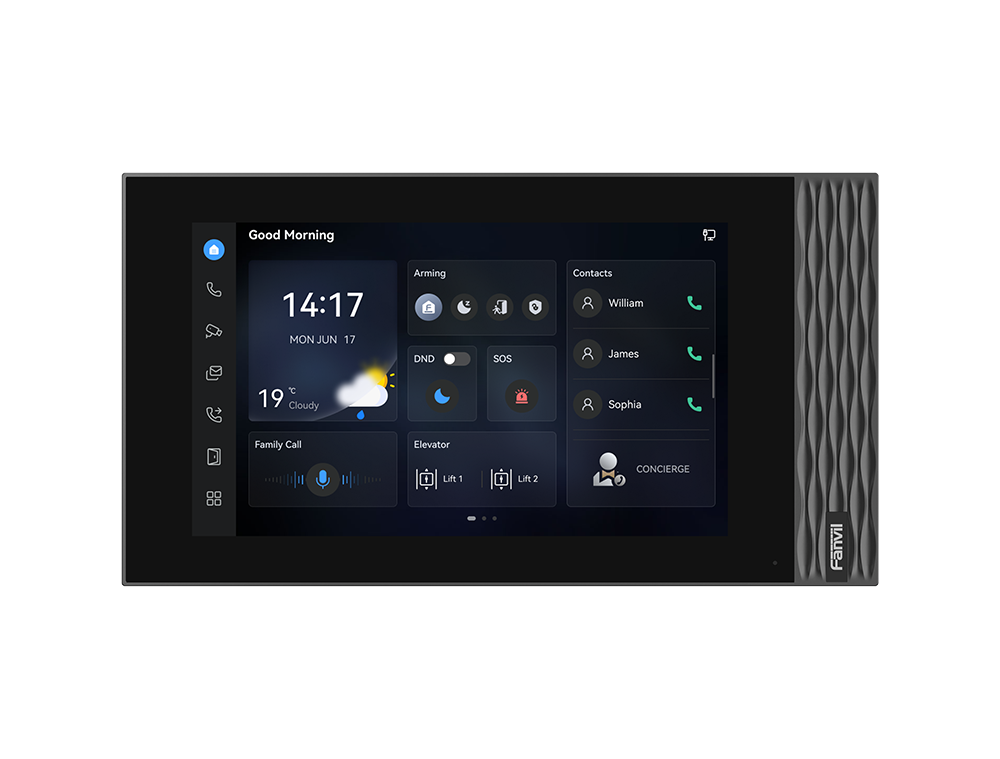

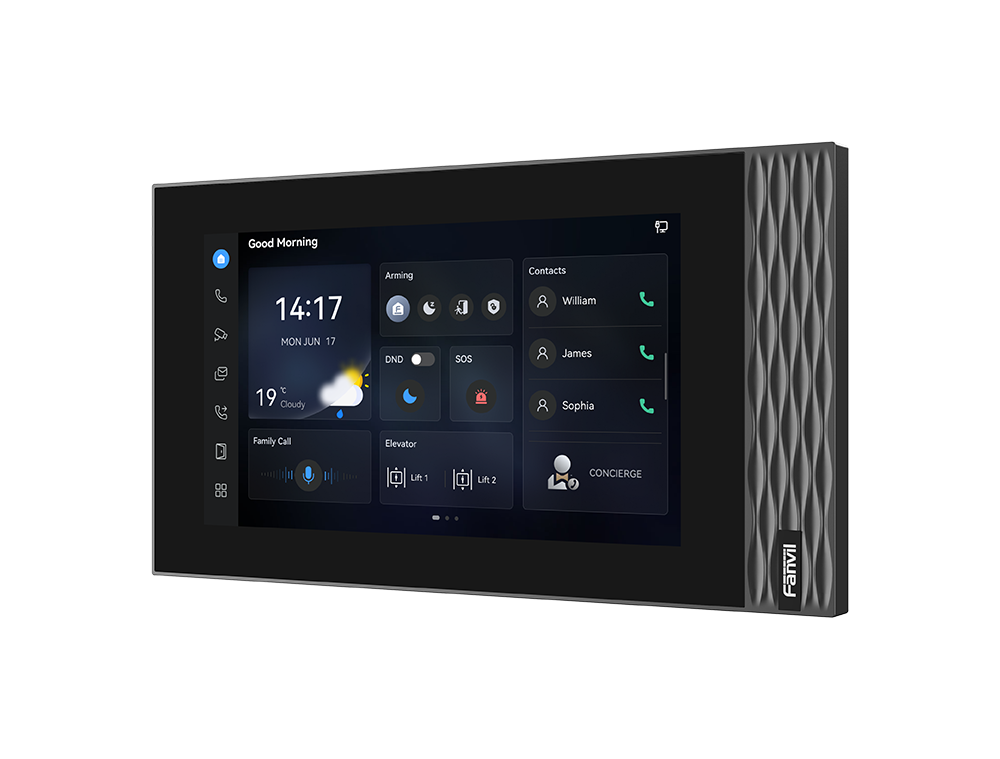

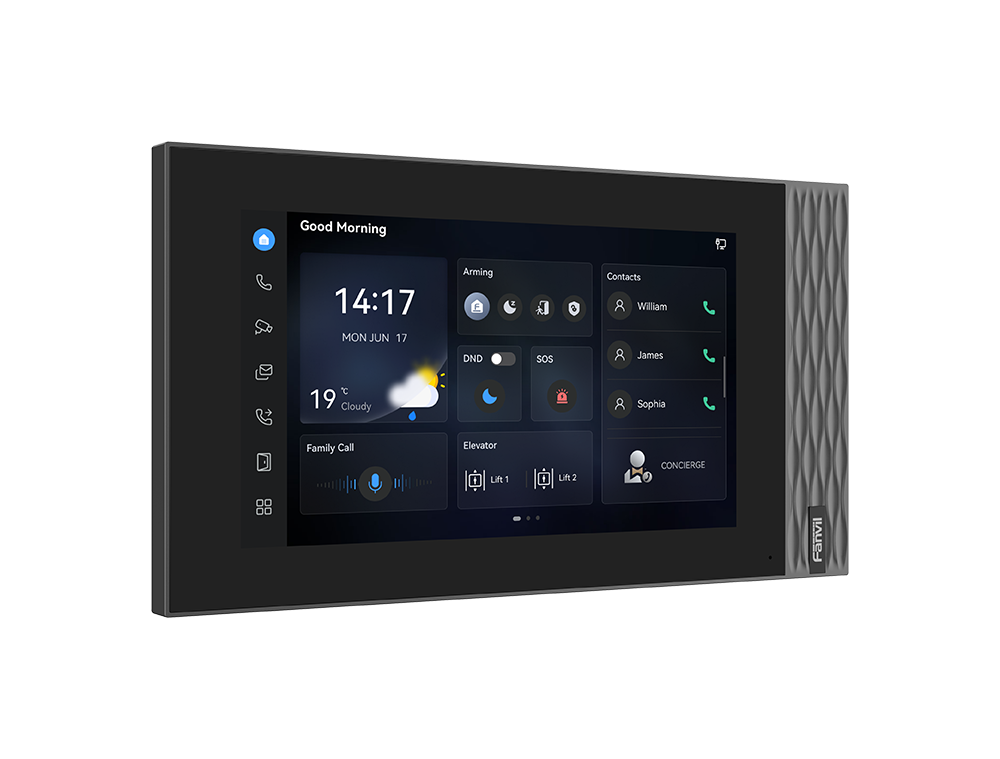

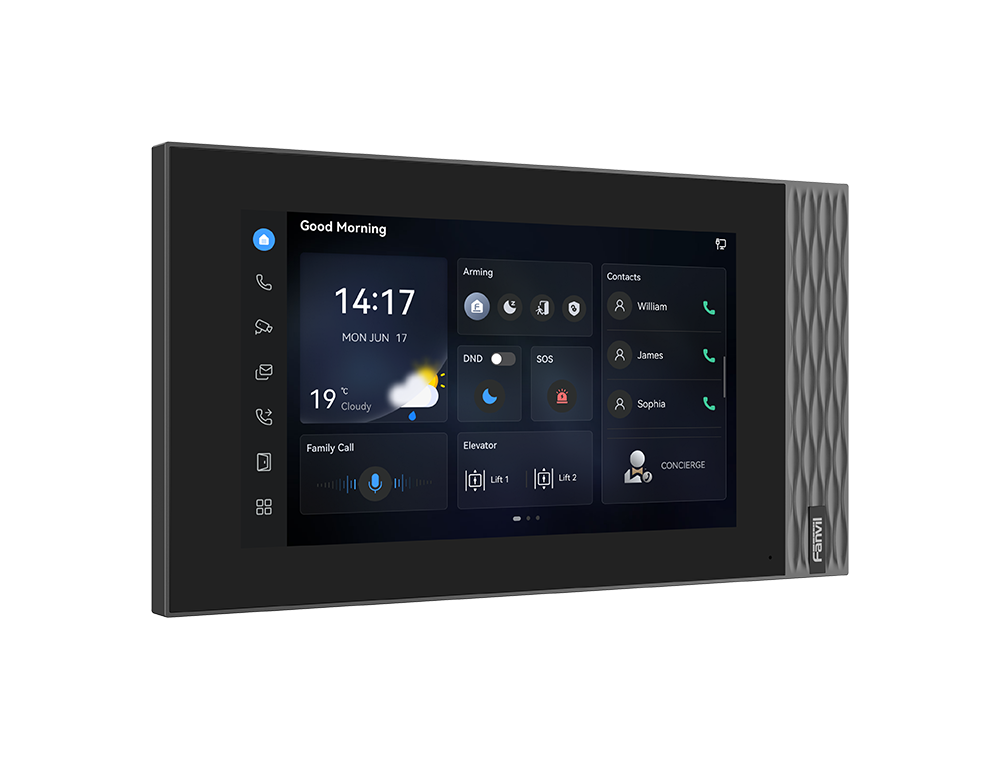

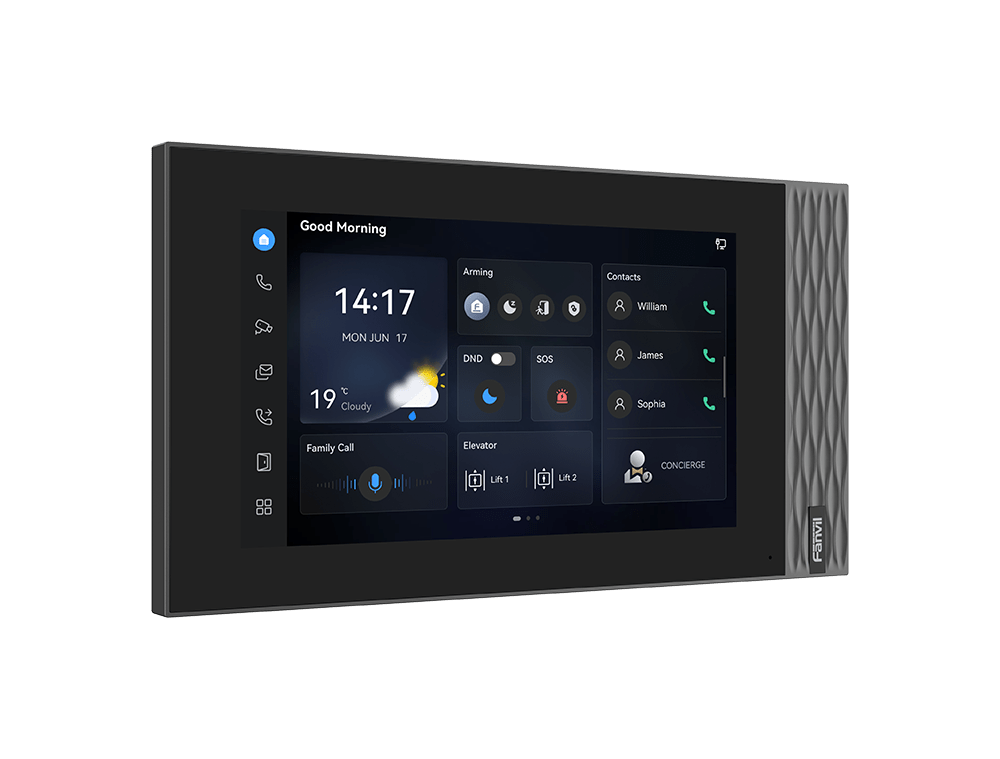

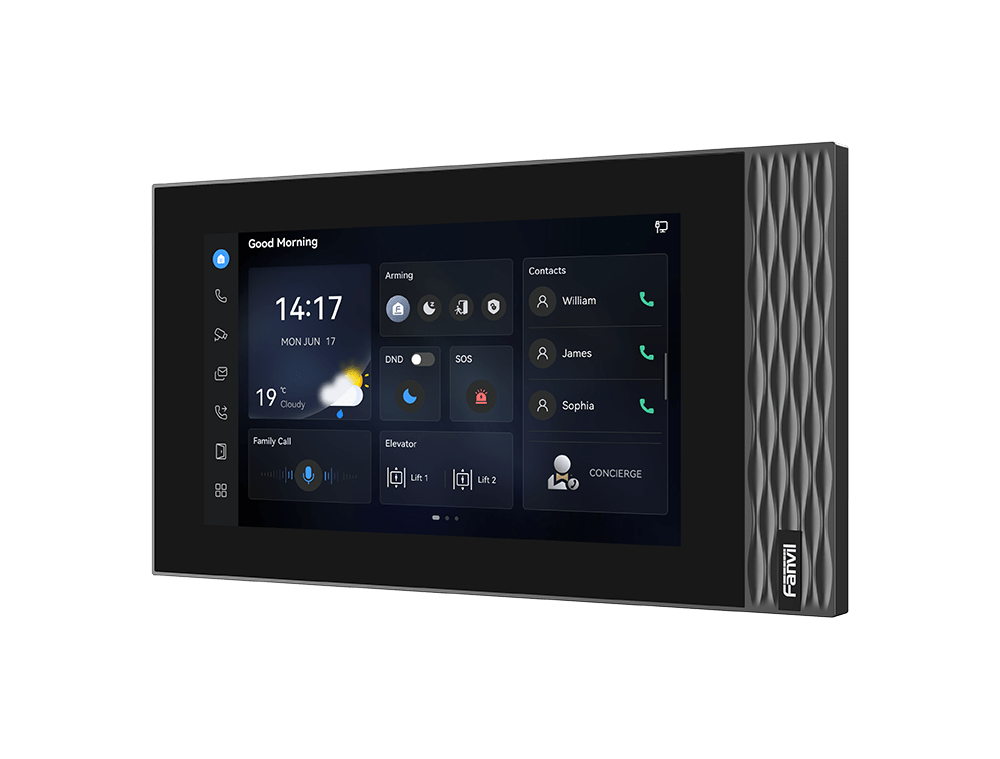

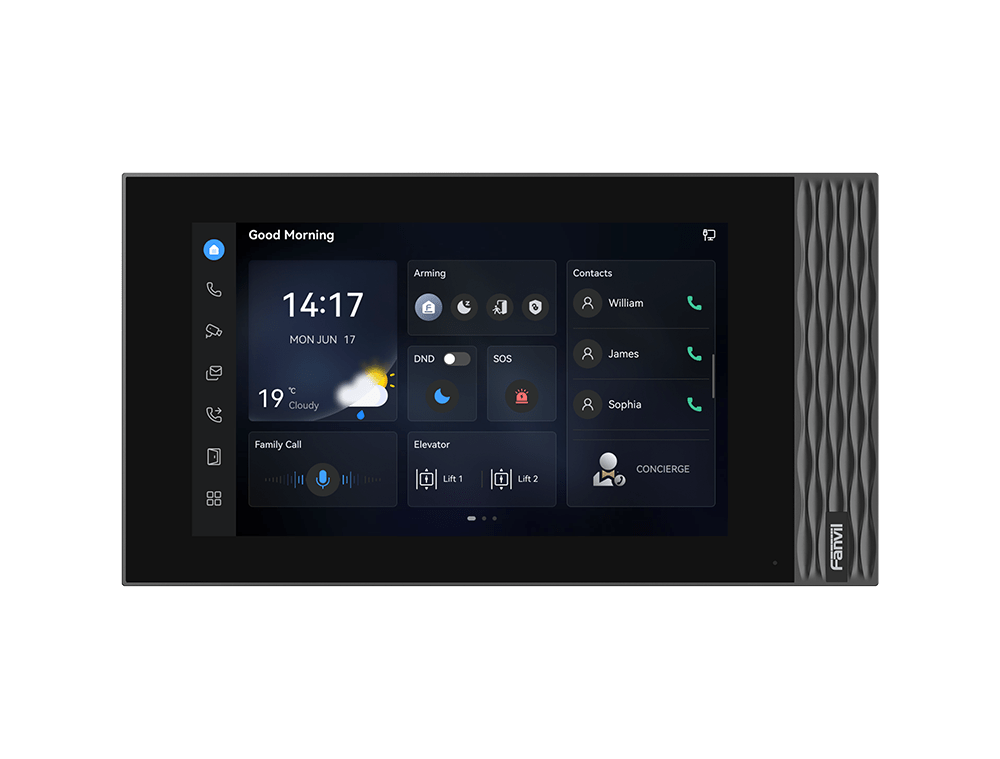

The Fanvil i554W SIP Indoor Station puts clear video intercom control right at your fingertips with a bright 7-inch capacitive touchscreen. Built for residential complexes, office buildings, and villas, it lets users answer calls, see visitors, unlock doors, and talk room-to-room with a single tap. Wi-Fi 6 connectivity and simple wall mounting make it a practical choice when running new Ethernet isn’t ideal.
The Telecom Spot Take
Our customers who manage multi-unit buildings or small offices often need an indoor station that is both easy to deploy and reliable day after day. The i554W stands out because it combines a sharp 1024 × 600 touchscreen with native Wi-Fi 6, giving facilities teams flexible placement options without sacrificing SIP compatibility or audio quality. The one-touch family call feature and smart noise cancellation deliver the practical, no-fuss experience property managers and IT directors look for in a cost-effective upgrade.
Key Features
- 7-inch capacitive color touchscreen (1024 × 600) – Large, responsive display makes answering visitors, unlocking doors, and navigating menus quick and intuitive for residents and staff.
- Native Wi-Fi 6 (2.4 GHz) – Faster, more efficient wireless connection reduces the need for new cabling in retrofit projects while maintaining stable SIP performance.
- HD speaker with smart noise cancellation – Crystal-clear two-way audio keeps conversations understandable even in busy hallways or open offices.
- One-touch family call – Instant room-to-room communication for apartments, villas, or multi-room office suites.
- PoE or 12 VDC power (optional)– Flexible power options simplify installation on existing network infrastructure.
- Multiple alarm & control interfaces – 8 alarm inputs, short-circuit output, doorbell input, and RS-485 support integration with existing security and access systems.
- Sleek gunmetal gray ABS housing – Modern look that blends into residential and commercial interiors.
- Wall-mount ready – Compatible with CN, US, UK, and EU junction boxes for straightforward upgrades.
Technical Specifications
| Category | Details |
|---|---|
| Display | 7-inch color capacitive touchscreen, 1024 × 600 |
| Wi-Fi | 2.4 GHz Wi-Fi 6 (IEEE 802.11 b/g/n/ax) – i554W only |
| Network | 1 × RJ45 10/100 Mbps self-adaptive Ethernet |
| Power | 12 VDC 1 A (optional) or PoE 802.3af |
| Speaker | 2 W multimedia speaker with smart noise cancellation |
| Audio Codecs | Narrowband: G.711a/u, G.723.1, G.726, G.729AB, iLBC Wideband: G.722, Opus Full-duplex with AEC |
| Video Decoding | H.264 / H.265 (optional); up to 1080p |
| Protocols | SIP 2.0 over UDP/TCP/TLS |
| Interfaces | 8 alarm inputs, 1 short-circuit output, 1 doorbell input, 1 RS-485 |
| Additional Functions | One-touch family call, remote door unlock, DND with schedule, messaging, custom ringtones |
| Dimensions | 216 × 118 × 24 mm (8.50" × 4.65" × 0.94") |
| Material / Color | ABS, gunmetal gray |
| Operating Temp | −10 °C to +50 °C (14 °F to 122 °F) |
| Installation | Wall mount (CN/US/UK/EU boxes); desktop stand optional (sold separately) |
| Applications | Residential communities, office buildings, villas |
| Package Contents | Indoor Station, Mounting Template, Mounting Bracket, 8-Pin Cable, 9-Pin Cable, QIG |
Comparison at a Glance
- vs. Fanvil i554 (non-W model) – The i554W adds native Wi-Fi 6 for wireless flexibility; the standard i554 is Ethernet-only.
- vs. older 7-inch Fanvil indoor stations – Newer acoustics, Wi-Fi 6 efficiency, and refined UI deliver clearer audio and easier daily use based on manufacturer design updates.
- vs. basic non-touch indoor monitors – Full capacitive touchscreen + SIP video support + multiple alarm inputs give residents and staff more control without extra devices.
FAQ
Does the i554W support Wi-Fi?
Yes. The i554W includes 2.4 GHz Wi-Fi 6 (IEEE 802.11 b/g/n/ax). The non-W i554 model does not.
Can it power via PoE?
Yes. It supports PoE 802.3af as well as 12 VDC 1 A power.
What video resolutions does it decode?
Hardware decoding of H.264 and optional H.265 up to 1080p (QVGA, CIF, VGA, 4CIF, 720p, 1080p).
Is room-to-room calling available?
Yes. One-touch family call provides clear, instant intercom communication between stations.
How is it mounted?
Wall mounting is compatible with standard CN, US, UK, and EU junction boxes. A desktop stand is available separately.
What environments is it designed for?
Residential communities, office buildings, and villas seeking a cost-effective SIP indoor station upgrade.
