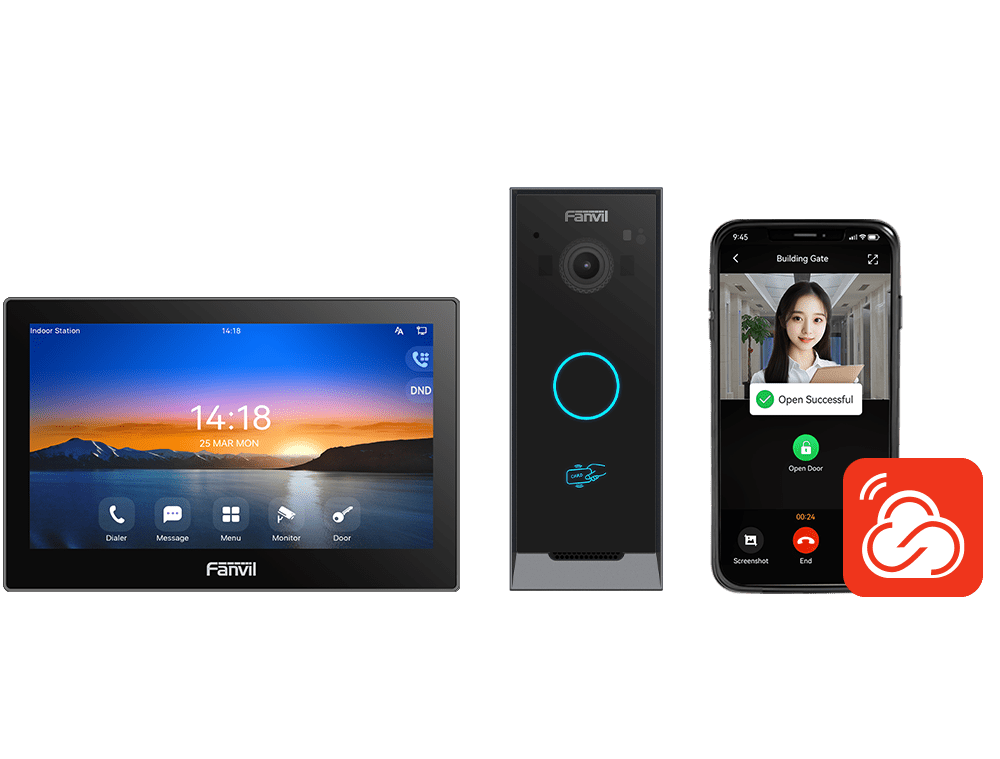

Fanvil VIK-01 IP Video Intercom Kit
The Fanvil VIK-01 is a powerful, all-in-one IP video intercom solution engineered for modern villas and single-family residences. This complete kit includes the i504W SIP indoor touch panel, the i60 outdoor video door phone, and full mobile access via the Fanvil Link App—delivering crystal-clear HD video calls, seamless two-way communication, and multiple door unlocking options.
Whether you're at home or away, monitor and control access directly from your mobile device or the 7" indoor screen. With CCTV integration, remote unlocking, and plug-and-play setup, the VIK-01 delivers a professional-grade smart security experience.
Please see Fanvil VIK-01 Datasheet for more information.
Key Features
- Remote Door Control – Open doors from anywhere via the indoor station or Fanvil Link App (electronic door lock not included
- HD Video Calling – Crisp, real-time visuals with support for up to 1080p resolution.
- App-Based Management – Monitor, unlock, and interact from your smartphone.
- Multiple Unlocking Methods – DTMF code, IC card, BLE, indoor switch, and remote access.
- Easy Installation – Wall-mounted, plug-and-play design for fast deployment.
- Dual-Band Wi-Fi – 2.4GHz/5GHz connectivity for optimal performance.
- CCTV Support – View live feeds on mobile and indoor station.
- HD Audio with Echo Cancellation – Clear full-duplex audio communication.
- Rugged Outdoor Design – IP65 rated with IR night vision and wide 140° camera angle.

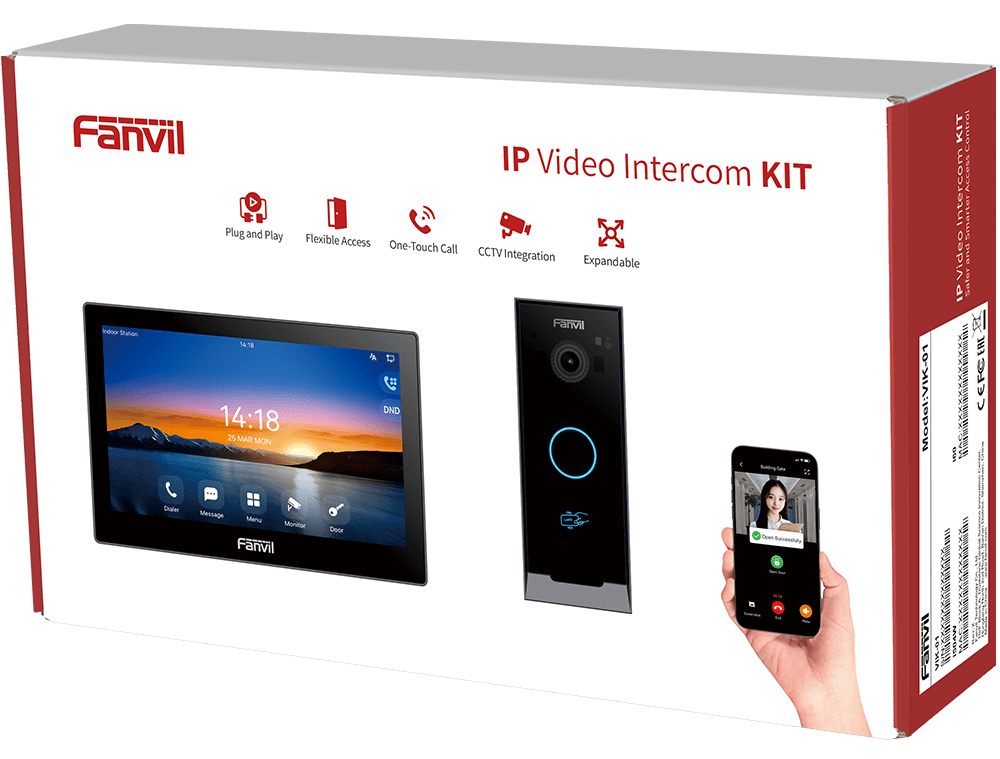

What’s in the Box:
- Fanvil i504W SIP Indoor Station
- Fanvil i60 Video Door Phone
- Installation Accessories & User Manual
Technical Specifications:
Fanvil i504W Indoor Station:
- Display: 7” capacitive touchscreen (1024x600)
- Wi-Fi: Dual-band 2.4G/5G
- Power: PoE 802.3af or DC 12V/1A
- Audio: OPUS, G.722, G.711, and more
- Video Support: H.264/H.265 up to 1080p
- Interface: 8 alarm inputs, RS485, doorbell input
- Mounting: Wall-mounted
- Dimensions: 177.38 x 113.99 x 22.5mm
Fanvil i60 Door Phone:
- Camera: 2MP CMOS, infrared support
- View Angle: 140° FOV
- Lock Methods: DTMF, IC card, BLE, remote
- Build: ABS+PC, IP65 rated
- Installation: Wall or flush-mounted
- ONVIF Support: Profile S
- Wiegand I/O: Supported (26/34 bit)
- Power: PoE 802.3af Class 3 or DC 12V/1A
- Operating Temp: -40℃ to +70℃
- Dimensions: 50 x 130 x 30mm
