Description

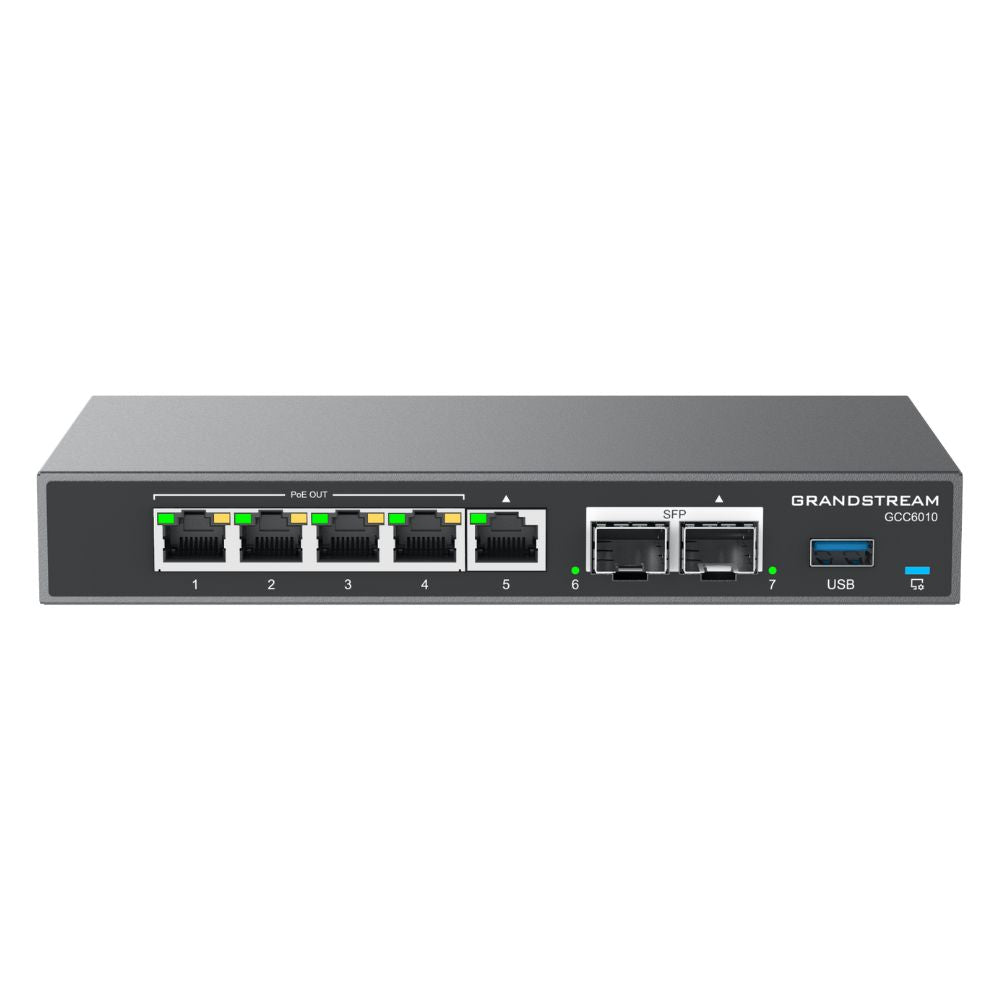

Small and growing businesses often juggle too many separate devices just to keep phones ringing, data secure, and teams connected. The Grandstream GCC6010 solves that problem with a true all-in-one convergence platform. It packs a capable IP PBX, next-generation firewall, high-speed VPN router, and managed Gigabit switch into a single compact metal unit.
Designed specifically for small organizations, the GCC6010 delivers enterprise-grade security and collaboration tools without the usual complexity or multiple vendor headaches. With built-in PoE, 2.5G SFP uplinks, and centralized management through Grandstream’s free GDMS platform, it gives you a clean, reliable foundation that scales as your team grows. One device. One management interface. Far less to worry about.
The Telecom Spot Take
For many of our customers running small offices, retail locations, or professional practices, the GCC6010 represents a smart consolidation play. Instead of managing a separate router, firewall appliance, switch, and PBX server, you get everything in one reliable box with a single power cord and one dashboard.
The standard default capacity supports up to 24 users and 8 concurrent calls with a free firmware upgrade to version v1.0.7.54 or later (devices running earlier firmware versions are limited to 12 users and 4 concurrent calls; standard default capacity is upgradeable) covers the needs of most small teams right out of the box, while the clear upgrade path through Grandstream’s platform makes growth straightforward. The four PoE ports and 2.5G SFP connectivity make it especially practical when you’re already using or planning to add Grandstream IP phones, cameras, or access points. If you value simplicity, strong perimeter security, and lower ongoing management overhead, this is one of the cleanest convergence options available in this price range.
Key Features
- True all-in-one design — Combines IP PBX, next-generation firewall, VPN router, and network switch in a single device, reducing hardware count, power consumption, cabling, and points of failure.
- Built-in IP PBX with room to grow — Supports 24 users and 8 concurrent calls by default (firmware v1.07.54 or later) with rich calling features, video conferencing via Wave clients, and easy provisioning of Grandstream endpoints.
- Enterprise-grade security without the enterprise price — Next-generation firewall includes anti-virus, Layer 3-7 IDS/IPS (up to 900 Mbps), deep packet inspection, SSL detection, content filtering, and DoS protection.
- High-performance VPN for hybrid work — Delivers 2.5 Gbps routing and 1 Gbps IPsec VPN throughput plus support for OpenVPN, WireGuard, PPTP, and L2TP with multi-WAN failover.

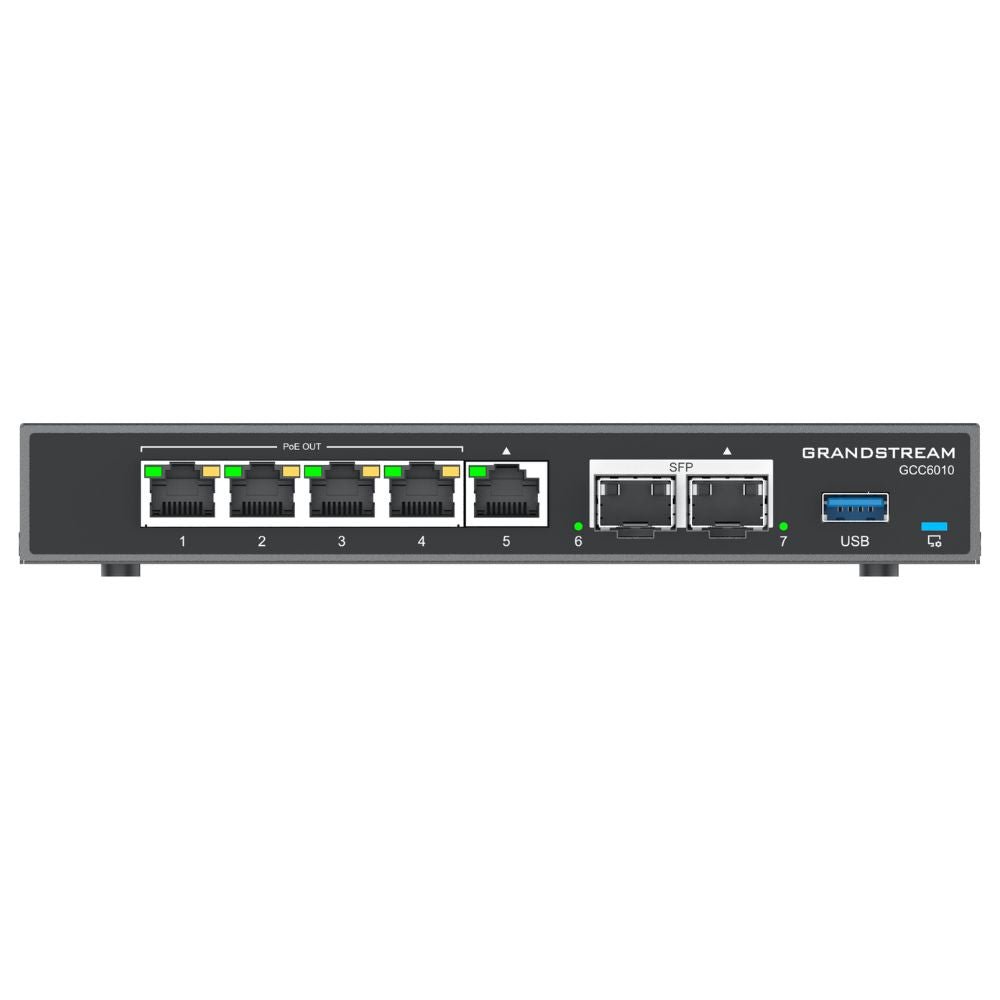

- Practical switching with PoE — 5× Gigabit Ethernet ports, 2× 2.5G SFP ports, and 4× PoE out ports (802.3af/at, 36W total). Power phones, cameras, and APs directly.
- Centralized, easy management — Free GDMS cloud platform for zero-touch provisioning, monitoring, and updates. Also supports local web GUI, mobile app, SSH, and SNMP.
- Smart traffic handling — Advanced QoS with application-aware prioritization and VoIP optimization keeps voice and video clear even under load.
Technical Specifications
| Hardware | |
|---|---|
| CPU | Quad-core CA53, 2.0 GHz |
| Memory | 2 GB RAM, 32 GB eMMC Flash |
| Network Ports | 2 × 2.5G SFP + 5 × Gigabit Ethernet (configurable, max 3 WAN) |
| PoE Output | 4 × PoE out (802.3af/at), max 36 W total |

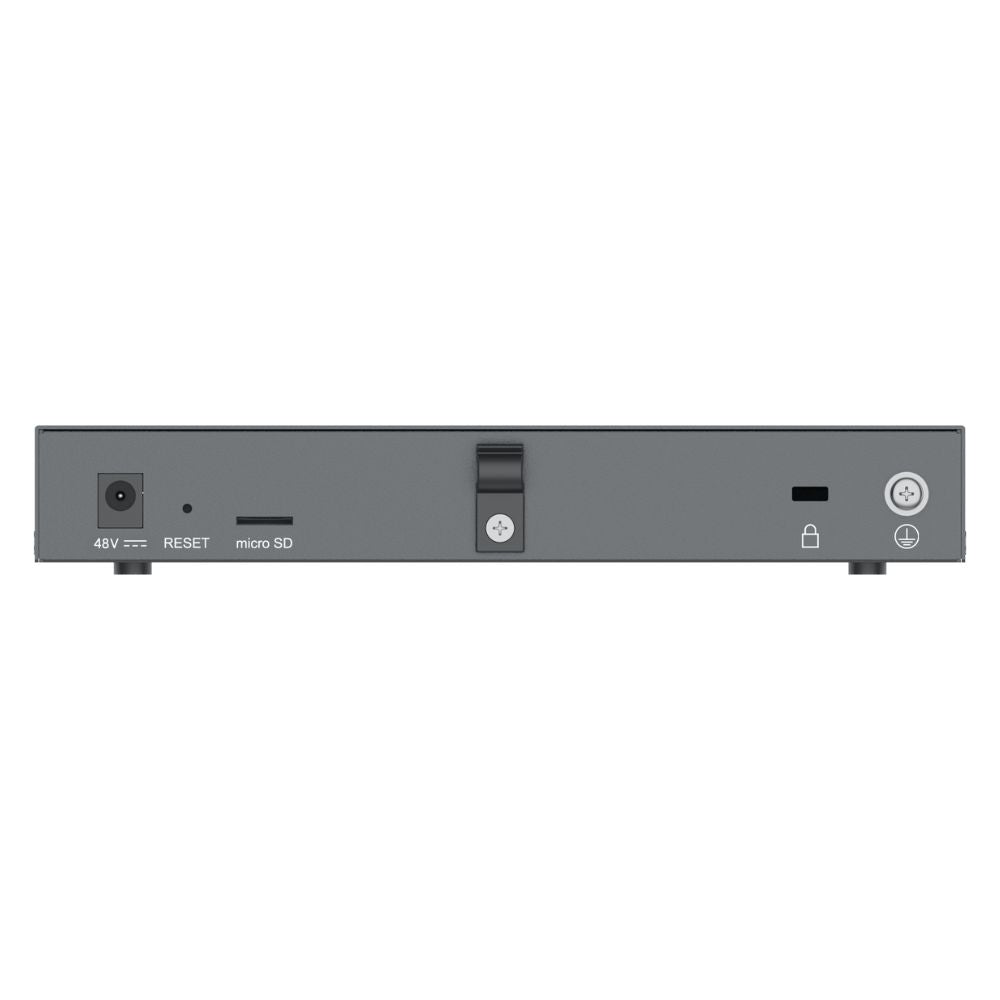

| Auxiliary Ports | 1 × Micro-SD, 1 × USB 3.0, 1 × Reset |
| Mounting | Desktop and wall-mountable |
| Dimensions (W × D × H) | 191 × 101 × 29 mm |
| Weight | Unit: 520 g |
| Power Supply | 48 VDC 1 A (48 W) universal adapter |
| Operating Temperature | 0 °C to 45 °C |
| Performance | |
|---|---|
| Router Throughput | 2.5 Gbps |
| IPsec VPN Throughput | 1 Gbps |
| NAT Sessions | 160,000 |
| IDS/IPS Throughput | 900 Mbps |
| IP PBX (Default) | |
|---|---|
| Capacity | 24 users and 8 concurrent calls with a free firmware upgrade to version v1.0.7.54 or later (devices running earlier firmware versions are limited to 12 users and 4 concurrent calls; standard default capacity is upgradeable) |
| Key Features | Call forwarding, transfer, parking, intercom/paging, IVR, emergency calling, audio/video conferencing via Wave |
| Codecs | Opus, G.711, G.722, G.729, T.38, H.264/H.263/VP8 |
Comparison at a Glance: GCC6010 Series Models
- GCC6010 — Best balance for most small offices. 5× GbE + 2× 2.5G SFP, 4× PoE, desktop/wall mount.
- GCC6010W — Built-in dual-band Wi-Fi 6 instead of extra switch ports. Ideal when wireless coverage is needed without adding an access point.
- GCC6011 — 10× GbE ports, optional M.2 SSD, rack-mount kit. Best for growing deployments or rack environments.
All models share the same powerful core performance and default PBX capacity.
Frequently Asked Questions
What is the default PBX capacity on the GCC6010?
It supports Supports 24 users and 8 concurrent calls by default (firmware v1.07.54 or later). Upgrade packages are available through Grandstream’s platform when you need higher capacity.
How strong is the built-in firewall?
The next-generation firewall includes anti-virus, Layer 3-7 IDS/IPS, deep packet inspection, SSL detection, and content filtering. It delivers up to 900 Mbps of IDS/IPS performance.
Can the GCC6010 handle remote workers?
Yes. It offers 1 Gbps IPsec VPN throughput plus WireGuard and OpenVPN support, multi-WAN load balancing, and failover for reliable remote access.
Do I need separate management software?
No. Use Grandstream’s free GDMS cloud platform for centralized provisioning, monitoring, firmware updates, and topology views. Local web GUI and mobile app are also included.
Is the GCC6010 a good fit with Grandstream IP phones and cameras?
Yes. The four PoE ports power compatible endpoints directly, SFP uplinks provide high-speed connectivity, and built-in QoS prioritizes voice and video traffic.
Backed by Grandstream’s 3-year warranty. In stock and ready to ship from The Telecom Spot in Austin, Texas. Fast nationwide shipping available.
Please see the Grandstream GCC6010 Datasheet for more details
