Description

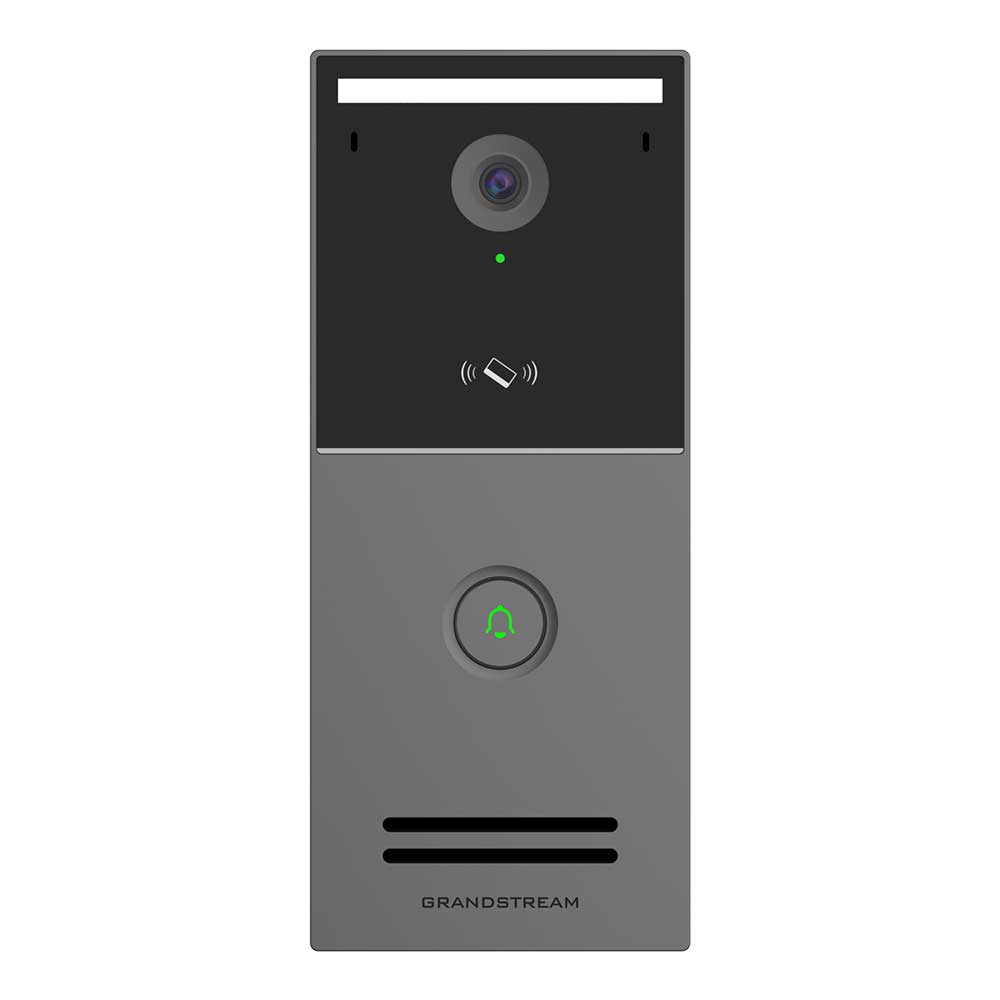

Grandstream GDS3726 Smart IP Video Door Station with 4MP Camera & RFID Access
The Grandstream GDS3726 is a rugged smart IP video door station with a 4MP ultra HD sensor, 1080p video, RFID card reader, doorbell key, PoE, and advanced access control – ideal for secure entry at offices, warehouses, schools, and multi-tenant buildings.
At the core is a 4MP HDR image sensor with an AI image signal processor, delivering crisp 1080p full HD video and a wide 127° horizontal field of view. That means you can clearly identify faces and activity in front of the door, even in difficult lighting. Integrated white LED “intelligent fill light” helps capture usable images under extremely low light within roughly 10 feet (3 m).
The GDS3726 uses a metal housing rated IP66 and IK10, so it’s built for outdoor entrances, exposed perimeters, and high-traffic areas where vandal resistance matters. Instead of a full numeric keypad, the GDS3726 uses a dedicated doorbell key plus internal anti-tamper and reset buttons, making it a clean, simple option when you want card-based or remote access rather than PIN codes.
Built-in dual microphones and a 3W speaker, together with AI-based noise reduction, support clear two-way audio between visitors and staff or reception. The GDS3726 speaks standard SIP, so it integrates smoothly with IP PBXs, SIP intercom phones, and paging endpoints, and ties in with Grandstream devices such as GSC357x intercom stations, GXV Series video phones, the Wave Mobile App, and GNS network storage for a complete end-to-end solution.
Day-to-day management is handled via Grandstream’s SecureAccess mobile app and GDS Manager software, which allow you to configure users, card credentials, door schedules, and remote unlocking—from on-site or off-site.
For more information, please see the Grandstream GDS3726 Datasheet
Quick Model Differences:
- GDS3725: 15-key numeric keypad, added Wiegand 26/34 input and output, Built with a metal casing to make it IP66 weatherproof and IK10 vandal resistant
- GDS3726: 1 doorbell key, added Wiegand 26/34 input and output, Built with a metal casing to make it IP66 weatherproof and IK10 vandal resistant
- GDS3727: 1 doorbell key, Built with a plastic casing IK07 and IP66 weatherproof, Wi-Fi 6
Key Features & Benefits
- 4MP ultra HD sensor with 1080p video output – capture detailed images while streaming and recording at up to 1920×1080 @ 30fps
- Wide 127° (H) field of view – monitor a broad area at the door, gate, or entry vestibule with a single device
- AI ISP and intelligent fill light – advanced image processing, HDR, and white LED illumination help identify people within about 3 m (10 ft), even in very low light
- Metal housing, IP66 & IK10 – weatherproof and vandal-resistant construction for demanding outdoor or semi-outdoor installations (GDS3725 & GDS3726)
- Simple doorbell-style interface – front-facing doorbell key with anti-tamper and reset buttons inside the housing; ideal when card or remote access is preferred over PIN pad use
- RFID card access with NFC support – built-in IC/ID reader supports 13.56 MHz & 125 kHz credentials (MIFARE Classic, Ultralight, PLUS, DESFire) and up to 5,000 stored IDs
- Multiple door-opening methods – PIN/card-based access (where configured), NFC, BLE, mobile app, QR code, and SIP calls to authorized endpoints for remote unlock workflows
- Integrated intercom audio – dual microphones, 3W speaker, and AI noise reduction provide clear two-way communication at the door
- Built-in PIR & AI motion detection – AI-based motion analytics and a PIR sensor (approx. 3–5 m / 10–16 ft) support intrusion and loitering alerts
-
Advanced analytics & alarms – AI-based motion detection, PIR sensor, 3 alarm inputs, 2 alarm outputs, and 2 SSR relays for locks, door strikes, or sirens
- PoE or DC power – single-cable installation with 802.3af PoE or 9–36V DC power input
- ONVIF Profile S support – integrates with third-party NVRs and VMS platforms for video recording and monitoring
Technical Highlights
- Camera: 4MP HDR sensor, H.264 + Motion JPEG
- Lens & View: F2.2, approx. 127° (H) × 70° (V) × 152° (D)
- Illumination: White light with 6 LEDs for day/night operation
- Video: Up to 1920×1080 @ 30 fps
- PIR Sensor: Approx. 3–5 m (10–16 ft) range
- Audio: 2 microphones, 3W speaker, AI noise reduction
- RFID: 13.56 MHz & 125 kHz, up to 5,000 card records
- Interfaces: 1× RJ45 with PoE, RS485, Wiegand 26/34 in & out, 3× alarm in, 2× alarm out, 2× SSR relays, SD card slot (up to 256 GB)
- Power: 9–36V DC (12W) or 802.3af PoE (Class 3)
- Housing: 204 × 87 × 35.5 mm, approx. 1.56 kg; IP66, IK10 rated
- Operating Environment: –30°C to +60°C; 10–90% RH (non-condensing)
- Package: GDS3726 Device, Quick Installation, Guide, Wall Bracket, IC Card, Rain cover (optional)
