Description

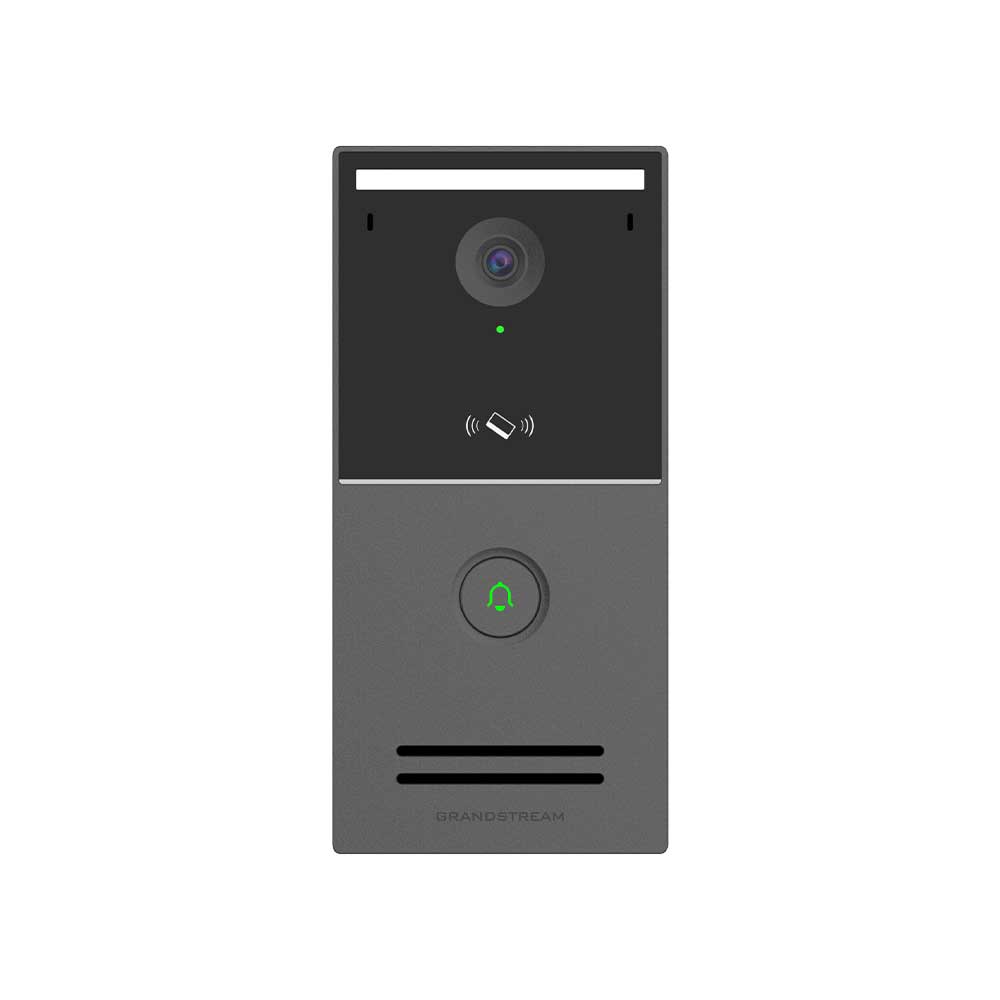

Grandstream GDS3727 Smart IP Video Door Station with Wi-Fi 6 & BLE
The Grandstream GDS3727 is a smart IP video door station designed for modern access control, visitor management, and security monitoring. With a 4MP camera sensor, AI-powered image processing, and onboard Wi-Fi 6 and Bluetooth BLE, it delivers high-quality 1080p video and flexible door control for offices, warehouses, multi-tenant buildings, schools, and more.
The GDS3727 integrates with Grandstream’s free GDS Manager software and SecureAccess mobile app so you can manage users, RFID cards, PINs and permissions from a central interface. Administrators can review event logs, receive snapshots, and choose from multiple remote door opening methods. SIP support enables direct calling to Grandstream GSC series intercoms, GXV video phones, the Wave mobile app and other standards-based SIP endpoints.
For more information, please see the Grandstream GDS3727 Datasheet
Quick Model Differences:
- GDS3725: 15-key numeric keypad, added Wiegand 26/34 input and output, Built with a metal casing to make it IP66 weatherproof and IK10 vandal resistant
- GDS3726: 1 doorbell key, added Wiegand 26/34 input and output, Built with a metal casing to make it IP66 weatherproof and IK10 vandal resistant
- GDS3727: 1 doorbell key, Built with a plastic casing IK07 and IP66 weatherproof, Wi-Fi 6
Key Benefits at a Glance
- 4MP Ultra HD camera with HDR and wide 127° horizontal field of view for clear identification at the door.
- Full HD 1080p video plus intelligent white LED fill light for low-light and night-time visibility.
- Built-in dual microphones and 3W speaker with AI noise reduction for clear, hands-free two-way audio.
- Integrated Wi-Fi 6 (2.4/5GHz) and Bluetooth BLE 5.0 for flexible, wireless deployments and mobile access methods.
- Multiple door-opening methods: PIN codes, IC/ID RFID cards, NFC, BLE, mobile app, QR code and SIP call.
- AI-based motion and behavior analysis plus PIR sensor (approx. 3–5m) to detect visitors or suspicious activity.
- Secure access control with solid-state relay (SSR), alarm inputs/outputs and RS485 for integration with door hardware and other security devices.
- Rugged outdoor design with IP66 weatherproofing and IK07 impact protection.
- Easy management through Grandstream SecureAccess mobile app, Cloud, and GDS Manager software.
- Standards-based SIP support for integration with IP PBXs, video phones, Grandstream Wave app and other SIP endpoints.
Ideal Use Cases
- Business entrances and employee doors needing video verification and secure, logged access.
- Multi-tenant or multi-building sites where tenants use cards, PINs, or mobile credentials to enter.
- Schools, campuses and healthcare facilities that need visual confirmation and event records.
- Warehouses, loading docks and perimeter gates where weather protection and rugged design are critical.
Grandstream GDS3727 Technical Specifications
| Model | Grandstream GDS3727 Smart IP Video Door Station |
|---|---|
| Camera & Video | 4MP 1/3" HDR image sensor; H.264 (High/Main/Base Profile) and Motion JPEG; up to 1920x1080 video and snapshots at up to 30 fps; wide dynamic range (WDR) up to 120 dB; 127°(H) x 70°(V) x 152°(D) field of view; day/night operation with white light and 6x LEDs. |
| AI & Detection | AI ISP image processing, AI-based motion/behavior analysis, PIR sensor (approx. 3–5 m / 10–16 ft). |
| Audio | 2 built-in microphones, 3W speaker; AI noise reduction; support for G.711µ/a, G.722, G.726-32, G.729; DTMF in-band, RFC2833 and SIP INFO; VAD, CNG, AEC, PLC, AJB, AGC, ANS. |
| Networking | 1x RJ45 10/100 Mbps with integrated PoE (802.3af Class 3); dual-band Wi-Fi 6 (802.11 a/b/g/n/ac/ax, 2.4 GHz & 5 GHz); Bluetooth BLE 5.0. |
| Telephony & SIP | SIP paging, multicast paging, call waiting with priority override, account sharing; H.264 video; Layer 2/3 QoS (802.1Q/802.1p, 802.11e, ToS, DiffServ, MPLS). |
| Security & Encryption | User/admin passwords; Ed25519/X25519-based authentication; 256-bit AES-encrypted configuration; TLS, SRTP, HTTPS, 802.1x media access control. |
| Access Control & I/O | 1x solid-state relay (SSR) for door strike or lock control; 2x alarm inputs; 1x alarm output; RS485 for integration with external devices. |
| RFID & Credentials | Built-in IC/ID card reader; 13.56 MHz & 125 kHz; supports MIFARE Classic 1K/4K, MIFARE Ultralight, MIFARE Plus and MIFARE DESFire; up to 5000 RFID numbers. |
| Buttons | 1 doorbell key; 1 anti-tamper button (back); 1 reset button (inside). |
| Storage | MicroSD slot, supports cards up to 256 GB for local recording and snapshots. |
| Management & Apps | Supported by Grandstream Cloud, SecureAccess Mobile App, and GDS Manager application; snapshots and event images can be sent to email, FTP, GDS Manager, Cloud server and SecureAccess app. |
| Power | DC 12V, 12 W or PoE 802.3af Class 3. |
| Environmental | Operating temperature: -30°C to +60°C; storage: -30°C to +70°C; operating humidity: 10–90% non-condensing. |
| Enclosure & Rating | Plastic casing; IP66 weatherproof and IK07 impact protection; designed for outdoor installations. |
| Dimensions & Weight | Approx. 180.6 x 86.6 x 29 mm; unit weight around 0.524 kg. |
| Compliance | FCC, CE, RCM, IC, IP66, IK07. |
What You Get
- Grandstream GDS3727 IP Video Door Station
- Wall bracket and mounting hardware
- IC card
- Quick installation guide
- Optional rain cover (depending on kit/model)
If you have questions about sizing, integration with your existing PBX or video endpoints, or choosing between Grandstream door station models, contact The Telecom Spot team and we’ll be happy to help.
