Description
Need Wi-Fi past the last interior wall? Buy the GWN7670ELR. It is Grandstream’s outdoor Wi-Fi 7 AP for yards, docks, and campuses. You get BE3600 speed, IP67 weatherproofing, 2.5 GbE PoE+, and an SFP port for fiber. One AP holds 512 clients. Plan coverage up to 350 meters on a clear path. Use it when the parking lot has to stay on the same network as the building.
The Telecom Spot Take
Choose this SKU when the AP lives outside and copper may not reach the pole. You get Wi-Fi 7 plus Xtra Range 2.0 on 5 GHz, IP67, and 512 clients. The indoor twin is the GWN7670E. The older outdoor cousin is the GWN7670LR (256 clients, IP66). Stay here if you want the tougher shell and the extra client headroom. Mount kits are in the box. You still need PoE+ power, and an SFP optic if you run fiber.
Key Features
- Wi-Fi 7 BE3600: 3.6 Gbps wireless. 2.5 Gbps wired. 2.4 GHz 2×2:2 and 5 GHz 3×3:2 MU-MIMO.
- Xtra Range 2.0: Extra punch on 5 GHz so the cell holds up across a yard or quad.
- 350-meter coverage: That is the clear-path ceiling. Trees and metal will cut it. Survey before you promise a number.
- 512 clients: Double the GWN7670LR. Better fit for a shift-change lot or a busy campus walk.
- 1,000 PPSK keys: Give each guest or vendor their own key. Skip the shared guest password.
- Copper or fiber: 2.5 GbE PoE+ in. SFP out. Single-mode fiber up to 20 km when the closet is far away.
- IP67 box: Rain, snow, sand, wind. −30 °C to 60 °C. Do not hang an indoor AP out here.

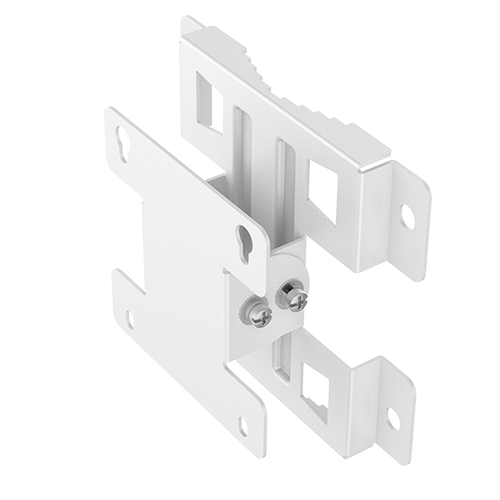

- Pole or wall: Mount kits ship with the unit. No third-party bracket for a basic hang.
- Wi-Fi 7 tools: MLO, 4096-QAM, Multi-RU, preamble puncturing. Clients that support them get cleaner airtime.
- Staff and guest SSIDs: 32 SSIDs, mesh, captive portal, and QoS on the same radio.
- Free controllers: Built-in UI for up to 50 local GWN APs. GDMS in the cloud with no cap. GWN Manager on your server.
- Locked-down boot: Unique certificate, random default password, WPA2/WPA3, rogue-AP tools, and client isolation.
Technical Specifications
| Specification | Details |
|---|---|
| Model | GWN7670ELR |
| Product type | Dual-band Wi-Fi 7 BE3600 long-range outdoor access point |
| Wi-Fi standards | IEEE 802.11 b/g/n/ac/ax/be; Wi-Fi CERTIFIED 7™ |
| Radios / MIMO | 2.4 GHz 2×2:2 MU-MIMO; 5 GHz 3×3:2 MU-MIMO; DL/UL OFDMA |
| Aggregate wireless throughput | 3.6 Gbps (2.4 GHz up to 688 Mbps; 5 GHz up to 2882 Mbps) |
| Wired throughput | 2.5 Gbps |
| Wi-Fi 7 features | MLO, 4096-QAM (4K QAM), Multi-RU (MRU), preamble puncturing |
| Coverage | Up to 350 meters / 1,148 feet (varies by site) |
| Concurrent clients | 512 |
| SSIDs | 32 total, 16 per radio |
| PPSK accounts | Up to 1,000 |
| Antennas | 5 single-frequency antennas; omnidirectional 360° coverage; high-gain 5 GHz with Xtra Range 2.0 |

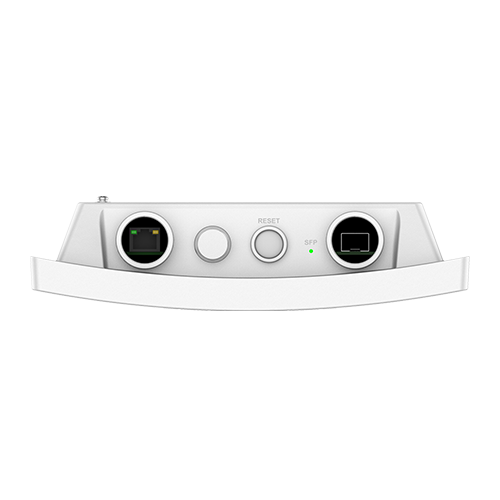

| Network ports | 1× 2.5 GbE RJ45 (PoE input); 1× SFP (single-mode / multi-mode; single-mode up to 20 km) |
| Power | IEEE 802.3at PoE+; maximum consumption 16 W |
| Enclosure | IP67 weatherproof |
| Operating temperature | −30 °C to 60 °C (−22 °F to 140 °F) |
| Security | Open system, OSEN, WPA2-PSK, WPA2-802.1X, WPA3-SAE, WPA3-802.1X, WPA/WPA2, WPA2/WPA3; secure boot; unique certificate and random default password per device; MAC filtering; client isolation; OS filtering; inbound/outbound traffic rules; rogue AP detection and containment; ARP and ND attack defense |
| WLAN extras | Mesh, captive portal, advanced QoS |
| Management | Local Web UI; embedded controller (up to 50 local GWN APs); GDMS Networking (unlimited); GWN Manager (on-premises); GDMS app |
| Dimensions | 270 mm × 230 mm × 57 mm |
| Mounting | Wall or pole; kits included |
| Typical sites | Enterprises, warehouses, stadiums, parks, hospitals, schools, campuses, loading docks, parking lots |
Comparison at a Glance
| GWN7670ELR | GWN7670LR | GWN7670E | |
|---|---|---|---|
| Best for | Outdoor yards, campuses, fiber runs | Outdoor coverage on a smaller client count | Indoor offices and retail |
| Wi-Fi | Wi-Fi 7 BE3600 | Wi-Fi 7 BE3600 | Wi-Fi 7 BE3600 |
| 5 GHz MIMO | 3×3:2 MU-MIMO + Xtra Range 2.0 | 2×2:2 MIMO | 3×3:2 MU-MIMO + Xtra Range 2.0 |
| Clients | 512 | 256 | 512 |
| Coverage (listed) | Up to 350 m | Up to 350 m | Up to 175 m |
| Enclosure | IP67 | IP66 | Indoor |
| Uplink | 1× 2.5 GbE PoE+ + 1× SFP (up to 20 km SM) | 1× 2.5 GbE PoE+ + 1× 2.5G SFP | 1× 2.5 GbE PoE+ |
| Max power | 16 W, 802.3at | 15.5 W, 802.3at | 17 W, 802.3at |
| Mount | Wall or pole, kits included | Wall or pole, kits included | Wall, ceiling, or junction box |
FAQ
Is this the indoor GWN7670E in a plastic shell?
No. Same Wi-Fi 7 BE3600 class and the same 5 GHz 3×3:2 plus Xtra Range 2.0 idea, but this SKU adds IP67, wall/pole hardware, a 350-meter outdoor coverage figure, and an SFP port. Do not hang an indoor GWN7670E outside.
Do I need fiber to use it?
No. Power and data can ride the 2.5 GbE RJ45 port with PoE+. Use the SFP port when the pole is far from the switch closet. Single-mode fiber is listed up to 20 km. The SFP module itself is not listed as in-box, so order the optic that matches your plant.
What power does it need?
IEEE 802.3at PoE+. Peak draw is 16 W. Plan a PoE+ switch port or injector. An 802.3af Class 0 drop is not the right feed for this model.
How many devices can join one AP?
512 concurrent Wi-Fi clients. That is the published ceiling. Real throughput per client still depends on band, client radios, and how busy the air is.
How do we manage a stack of these?
One AP can run a local controller for up to 50 GWN APs. Grow past that with free GDMS Networking in the cloud or GWN Manager on a server you own. There is also a GDMS phone app for status checks.
Will 350 meters hold up behind racking or trees?
Grandstream lists up to 350 meters / 1,148 feet and notes that coverage varies by environment. Use that number for site planning, then survey. Metal, foliage, and neighboring Wi-Fi all cut the usable cell.
