Description

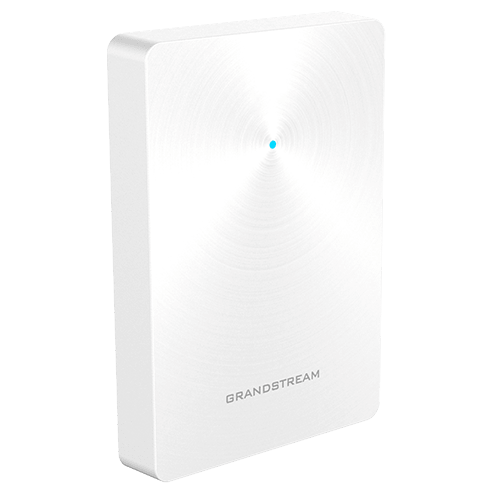

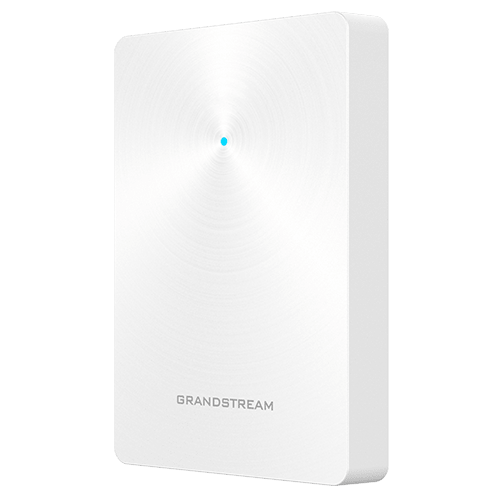

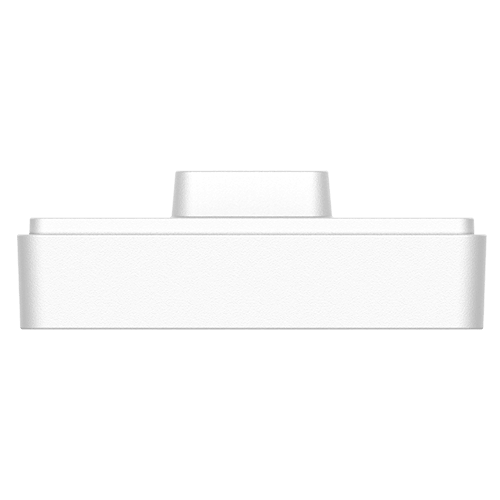

Grandstream GWN7671 Wall-Mounted Dual-Band Wi-Fi 7 AP, BE3600, 2.5GbE PoE In, 2x GbE PoE Out
The Grandstream GWN7671 is a wall-mounted dual-band Wi-Fi 7 BE3600 access point designed for small-to-medium businesses. It uses 2.4 GHz 2×2:2 and 5 GHz 3×3:2 MU-MIMO with DL/UL OFDMA technology, and supports Wi-Fi 7 features including Multi-Link Operation (MLO), 4096-QAM, Multi-RU (MRU) and preamble puncturing.
For wired connectivity, the GWN7671 has one 2.5 GbE RJ45 port with PoE input (802.3at) and two 1 GbE RJ45 ports with PoE output, so it can power endpoints such as IP phones and cameras. On the 5 GHz band, its 3×3:2 antenna architecture dedicates one extra antenna to Xtra Range 2.0 technology, with wireless rates of up to 2,882 Mbps at channel bandwidths of up to 160 MHz.
The GWN7671 can be managed from its local web UI, whose embedded controller manages up to 50 local GWN APs, from GDMS Networking (cloud) or from GWN Manager (on-premise). Grandstream positions it for hotels, apartments, offices and commercial shops.
Grandstream GWN7671 Features
- 3.6 Gbps aggregate wireless throughput and 2.5 Gbps wired throughput
- Dual-band 2.4 GHz 2×2:2 and 5 GHz 3×3:2 MU-MIMO with DL/UL OFDMA

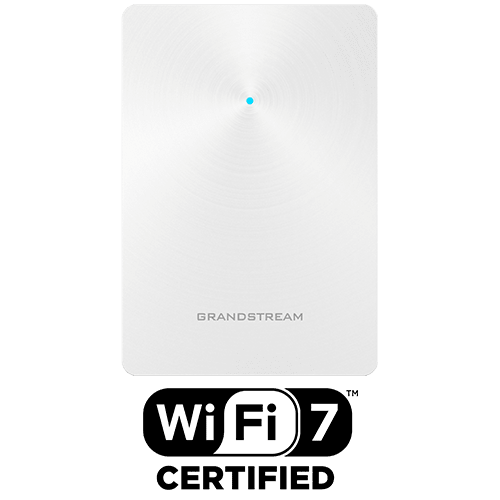

- Wi-Fi CERTIFIED 7 with MLO, 4K QAM, MRU and preamble puncturing
- Xtra Range 2.0 technology on the 5 GHz band
- Up to 175-meter (574.15 ft) coverage range
- Up to 256 concurrent Wi-Fi client devices; 32 SSIDs (16 per radio)

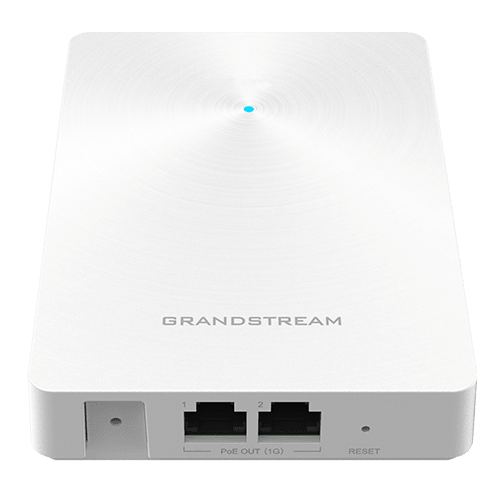

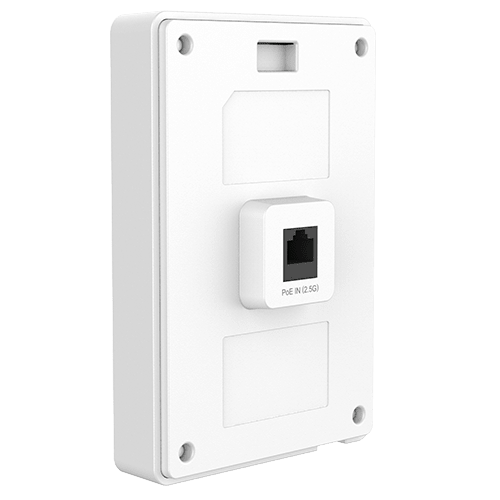

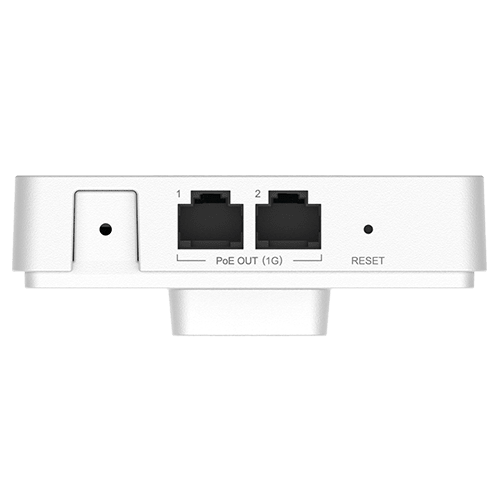

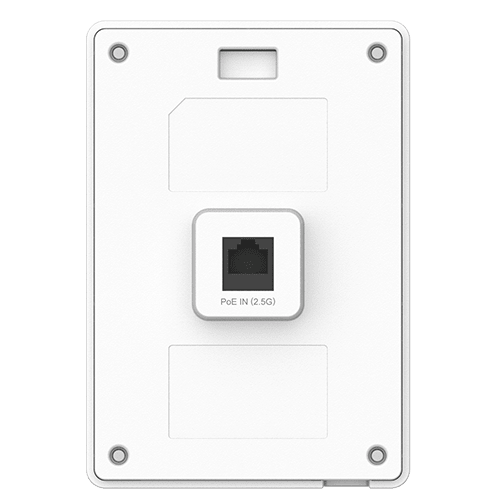

- 1× 2.5 GbE RJ45 port with PoE input (802.3at) and 2× 1 GbE RJ45 ports with PoE output
- Up to 1,000 PPSKs and captive portal support (RADIUS, Social Login, Vouchers, Password, SAML SSO, Active Directory)
- Mesh, bridge and extender modes; 802.11k/v/r and Layer 2 roaming
- WPA2/WPA3 Personal and Enterprise, WPA3-OWE; anti-hacking secure boot and critical data/control lockdown via digital signatures; unique security certificate and random default password per device
- Embedded controller manages up to 50 local GWN APs; GDMS Networking offers free cloud management for unlimited GWN APs; GWN Manager supports up to 3,000 GWN APs on-premise
- Maximum power consumption 13.5 W (excluding PoE output)
- Unit dimensions 143 mm × 99 mm × 33.5 mm; unit weight 373 g; in-wall mount
- Operating temperature 0 °C to 40 °C (32 °F to 104 °F); humidity 10%–90% non-condensing
- Certifications: FCC, CE, RCM, IC

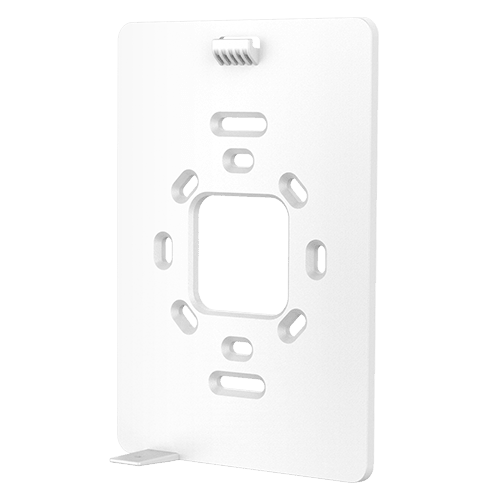

- In the box: GWN7671 AP, quick installation guide, certification regulatory information, mounting bracket, 4 plastic expansion bolts, 4 tapping screws (ST3.5 × 32 mm), 1 pan head machine screw (M3 × 6 mm)
See Grandstream GWN7671 datasheet for more information.
