Description

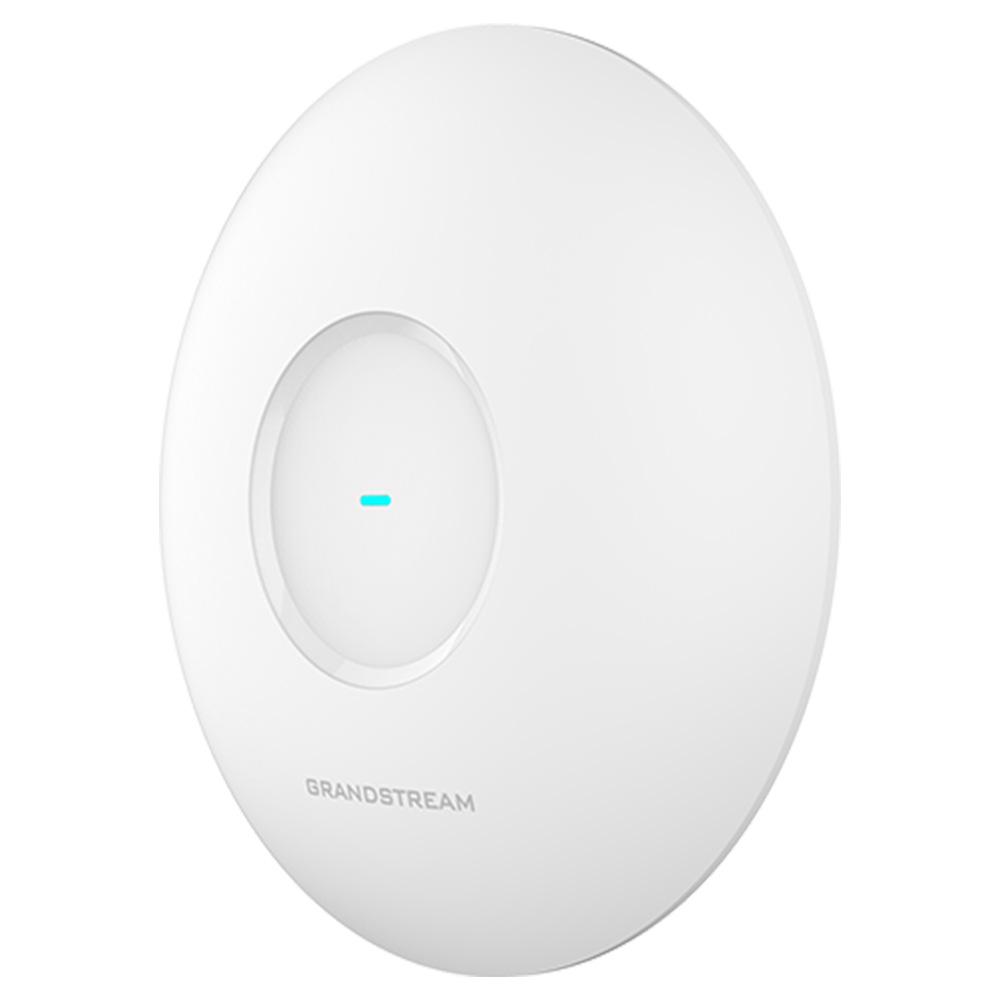

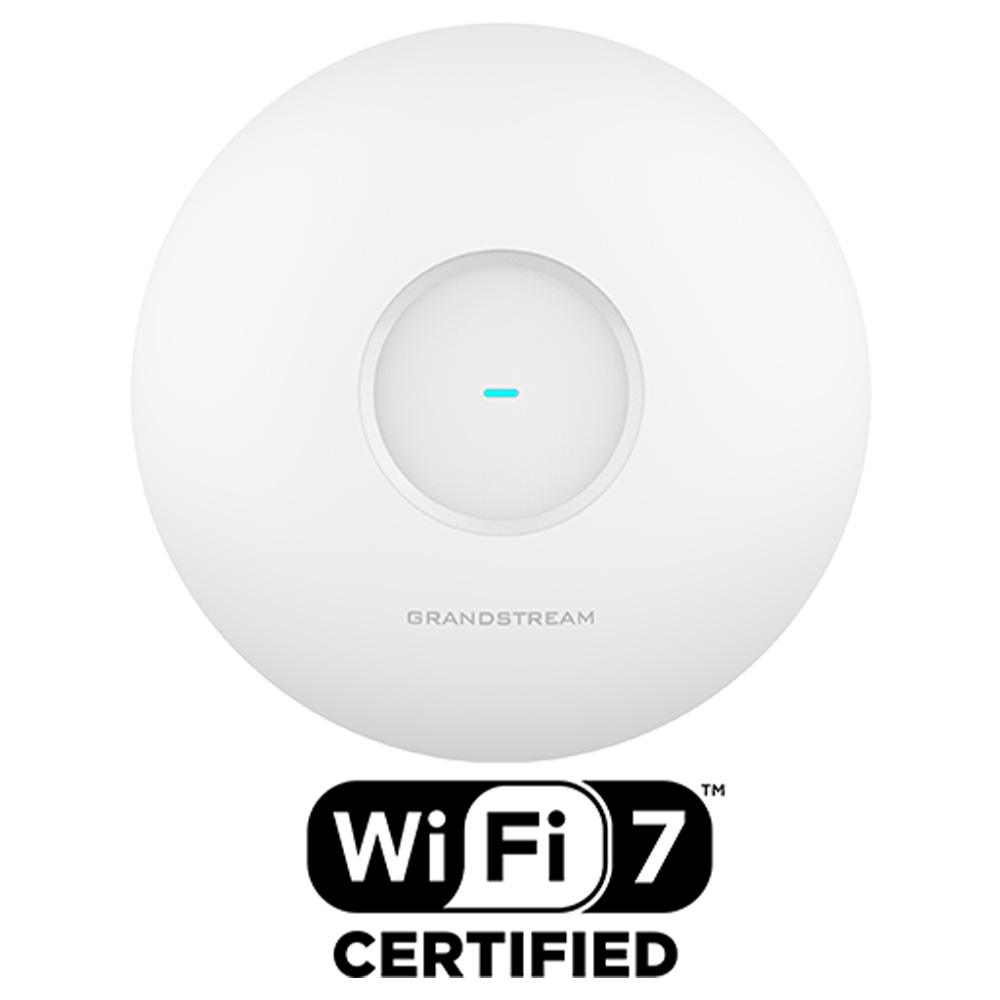

The Grandstream GWN7672L is a powerful enterprise-grade BE11000 tri-band Wi-Fi 7 access point built for medium wireless network deployments with medium-to-high user density. It delivers up to 11 Gbps aggregate wireless throughput across the 2.4 GHz, 5 GHz, and 6 GHz bands while supporting 384 concurrent client devices. With 2×2:2 MU-MIMO, DL/UL Enhanced OFDMA, Multi-Link Operation (MLO), 4K QAM, Multi-RU, and preamble puncturing, it brings next-generation capacity and efficiency to offices, commercial spaces, hospitality properties, and schools. A single 5 GbE port and 802.3at PoE+ support (max 22 W) keep installation simple and flexible.
The Telecom Spot Take
For IT directors and facilities managers who need reliable high-density Wi-Fi without overbuying ports or power, the GWN7672L hits a practical sweet spot. The single 5 GbE uplink and lower 22 W power draw make it easier to deploy on existing PoE+ switches than dual-port siblings, while still delivering full BE11000 performance and 384-client capacity. Free cloud management through GDMS Networking plus the built-in controller (up to 50 local APs) remove ongoing license costs. This is a strong fit for growing offices, retail floors, and classrooms that want Wi-Fi 7 speeds and modern security without complexity.
Key Features
- 11 Gbps aggregate wireless throughput – Combines 688 Mbps (2.4 GHz), 4,320 Mbps (5 GHz), and 5,765 Mbps (6 GHz) so high-bandwidth devices stay fast even when the network is busy.
- Tri-band 2×2:2 MU-MIMO with full Wi-Fi 7 toolkit – MLO, 4K QAM, Multi-RU, and preamble puncturing improve spectrum use and reduce interference for smoother performance.
- 384 concurrent clients – Handles medium-to-high density environments without forcing users onto slower bands.

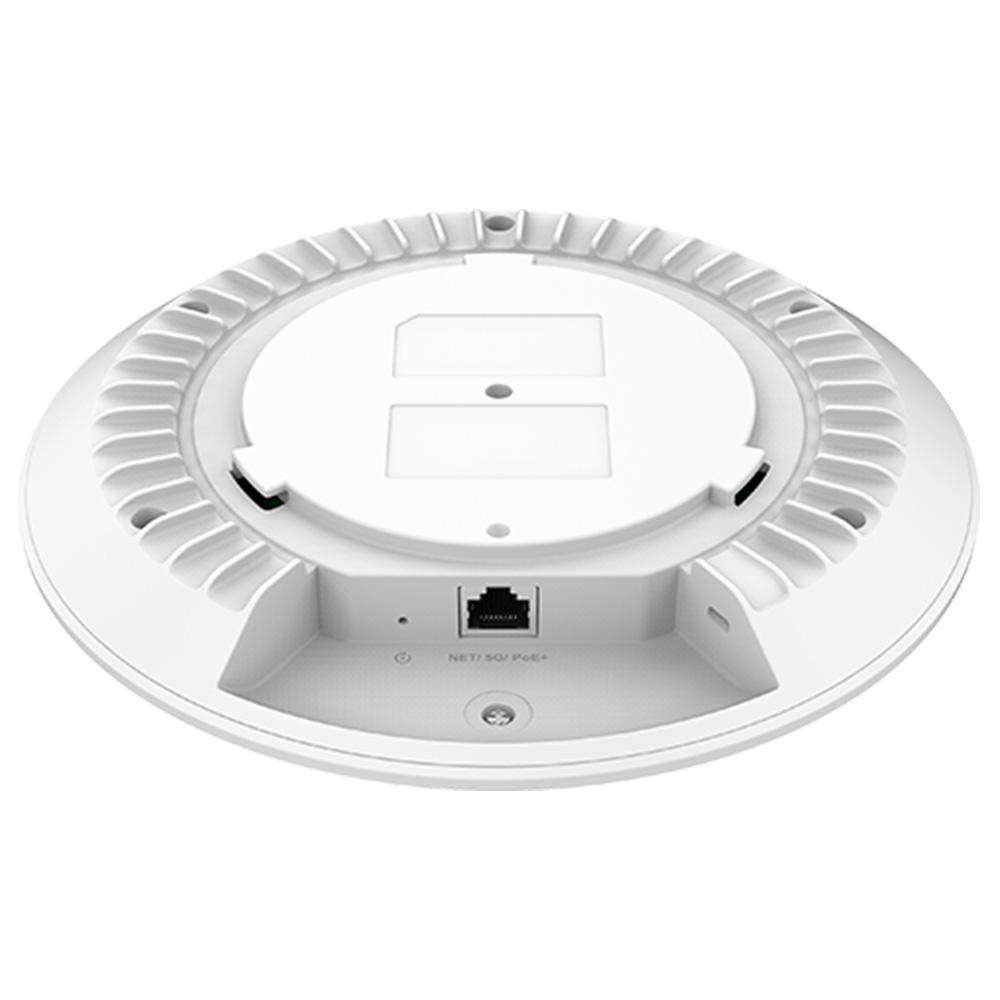

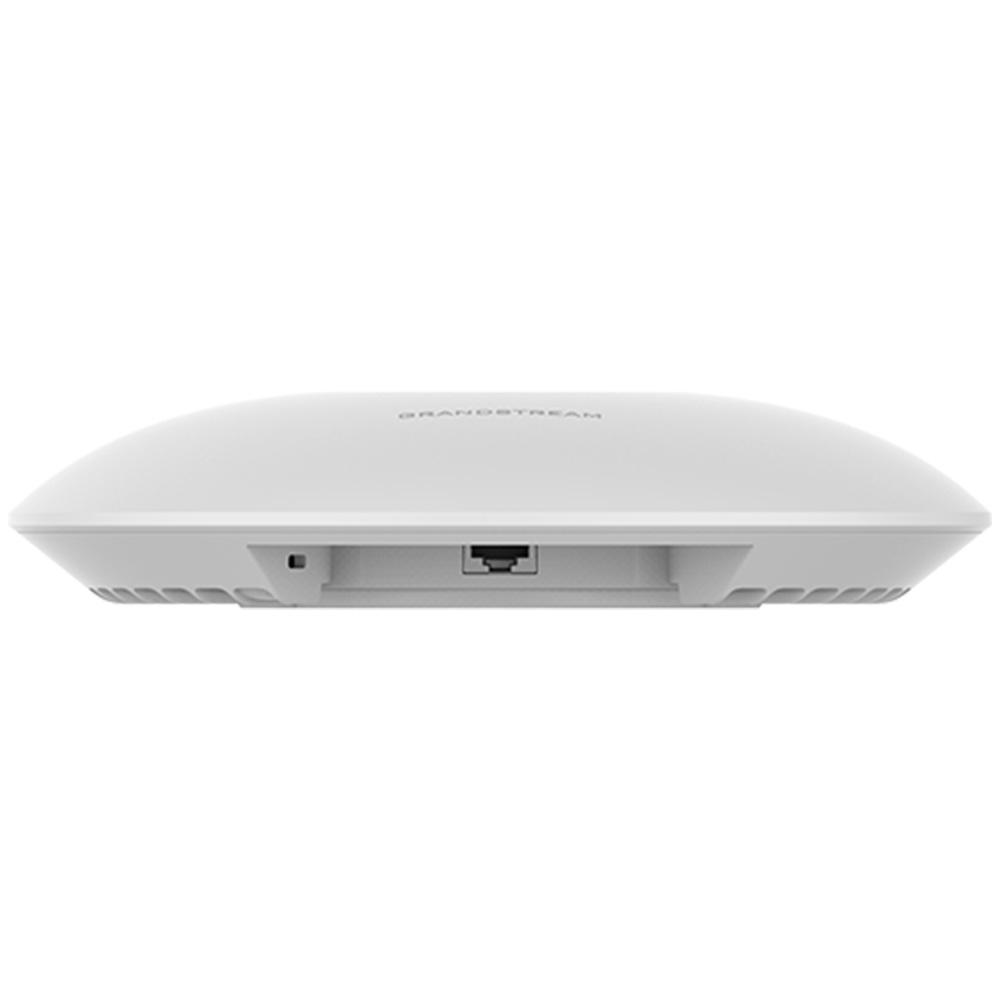

- Single 5 GbE RJ45 port with 802.3at PoE+ – One high-speed uplink and simple power delivery (max 22 W) simplify cabling and switch requirements.
- 48 SSIDs (16 per radio) – Gives IT teams the flexibility to separate staff, guests, IoT, and voice traffic cleanly.
- Up to 2,500 PPSK accounts – Delivers individualized, secure access credentials without the overhead of full 802.1X for every user.
- Enterprise security built in – WPA3, anti-hacking secure boot, unique security certificate and random default password per device, plus critical data lockdown via digital signatures.
- Flexible free management – Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited cloud management; GWN Manager provides on-premise control.

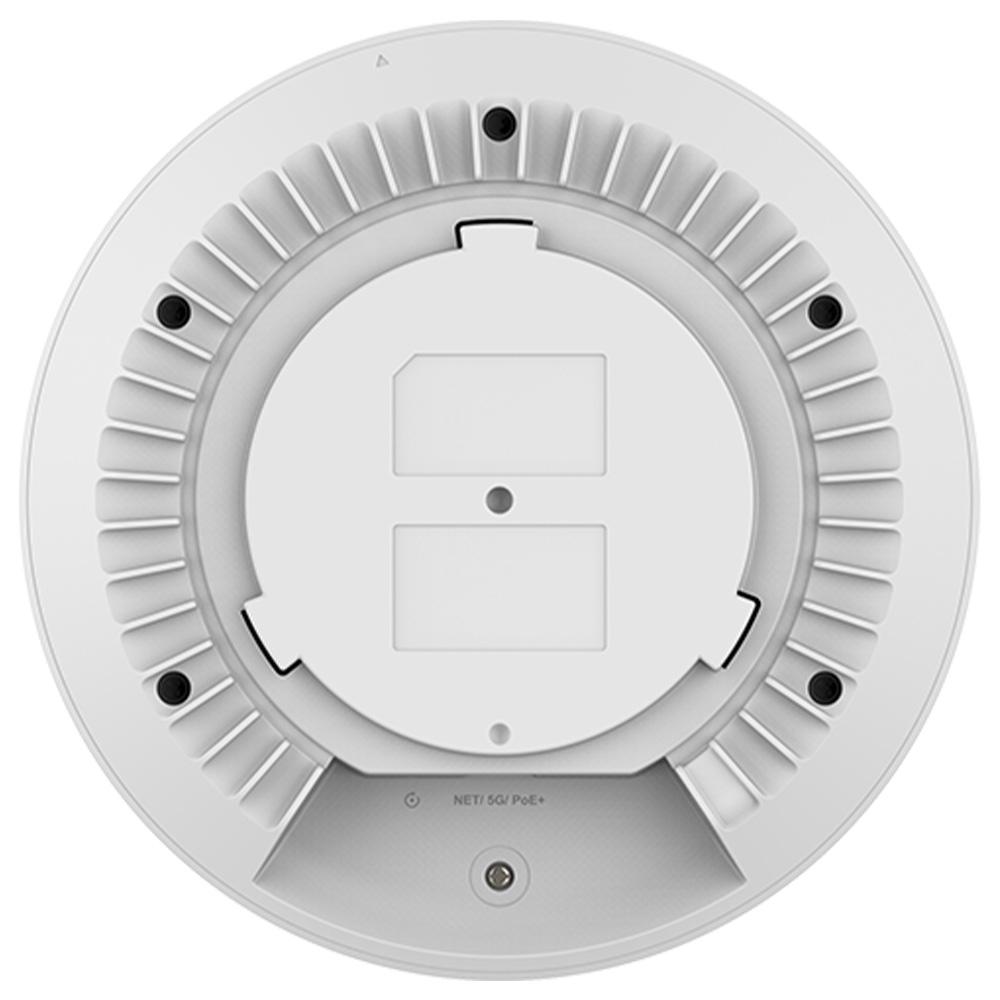

- Multiple mounting options – Wall, ceiling, and junction-box compatible for clean indoor installs.
Technical Specifications
| Specification | Details |
|---|---|
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Aggregate Wireless Throughput | 11 Gbps (BE11000) |
| 2.4 GHz Throughput | 688 Mbps (2×2:2 MU-MIMO) |
| 5 GHz Throughput | 4,320 Mbps (2×2:2 MU-MIMO) |
| 6 GHz Throughput | 5,765 Mbps (2×2:2 MU-MIMO) |
| Concurrent Clients | 384 |
| SSIDs | 48 total (16 per radio) |
| Network Interface | 1 × 5 GbE RJ45 |
| Power | 802.3at PoE+; Max 22 W |
| Antennas | 6 single-frequency (2.4 GHz: 2×3.5 dBi; 5/6 GHz: 2×5.5 dBi) |
| Dimensions | Ø220 mm × 48.5 mm |
| Mounting | Wall, ceiling, junction box |
| Operating Temperature | 0 °C to 45 °C |
| Management | Embedded controller (up to 50 APs), GDMS Networking, GWN Manager |
| Security | WPA3-SAE/Enterprise, WPA2, unique cert & password, secure boot, digital signature lockdown |
Comparison at a Glance
- vs. GWN7672: Same 11 Gbps wireless performance and 384-client capacity, but the GWN7672L uses one 5 GbE port and draws only 22 W instead of dual 5 GbE ports and 25 W. Better choice when you need simpler cabling and lower power.
- vs. dual-band Wi-Fi 6 APs: Adds the clean 6 GHz band, 320 MHz channels, MLO, and 4K QAM for higher real-world capacity and lower latency in dense spaces.
- vs. higher-end 4×4 Wi-Fi 7 models: Delivers strong BE11000 performance at a more accessible price and power level for medium-density deployments.
FAQ
Who is the GWN7672L best suited for?
Medium-density offices, commercial shops, hospitality properties, and education environments that need reliable tri-band Wi-Fi 7 performance and support for hundreds of concurrent devices.
Does it support Wi-Fi 7 features like Multi-Link Operation?
Yes. It includes MLO, 4K QAM, Multi-RU, and preamble puncturing across the three bands.
How is the access point managed?
You can use the free embedded controller (up to 50 local APs), free unlimited GDMS Networking cloud platform, or on-premise GWN Manager software.
What power source does it require?
It supports 802.3at PoE+ with a maximum power consumption of 22 W. No separate power adapter is required when using a compatible PoE+ switch.
How many SSIDs can I create?
Up to 48 SSIDs total (16 on each of the three radios).
Is the 6 GHz band available in all regions?
Availability of the full 6 GHz band depends on local regulations. Check regional compliance for your deployment area.
