Description

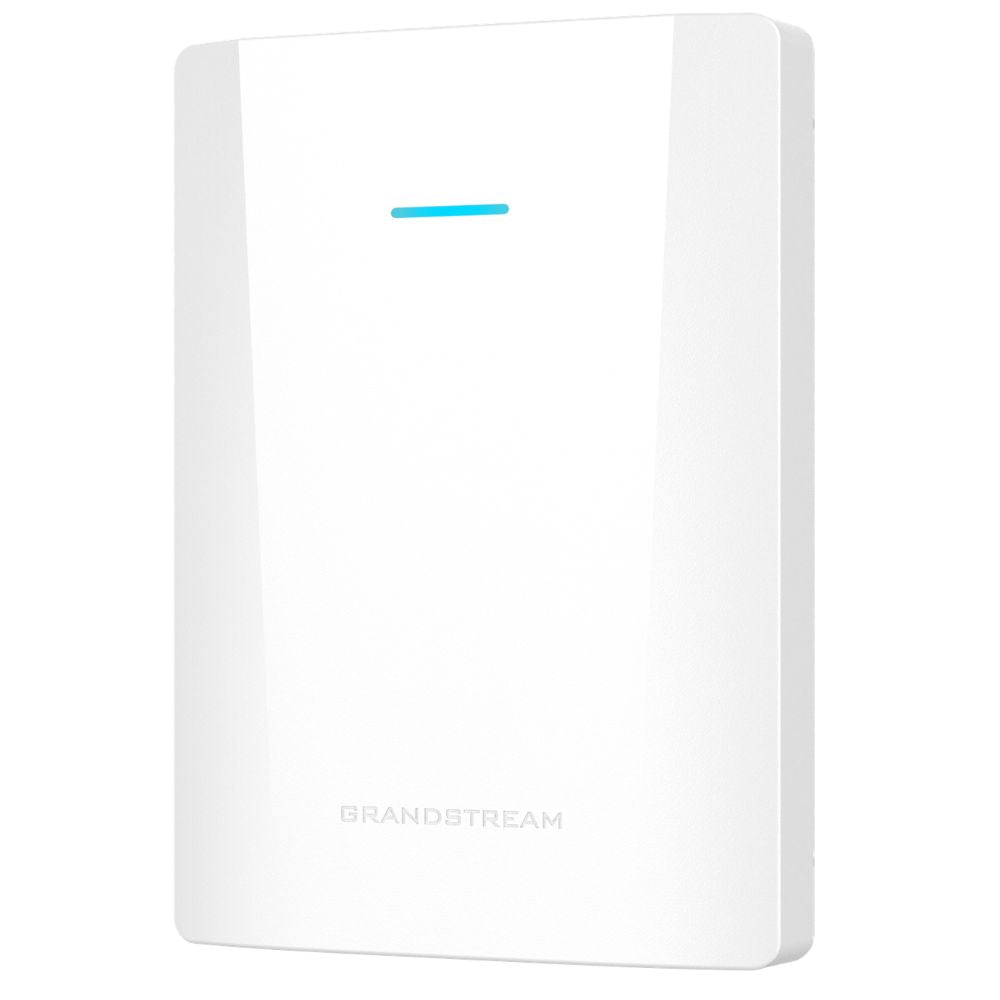

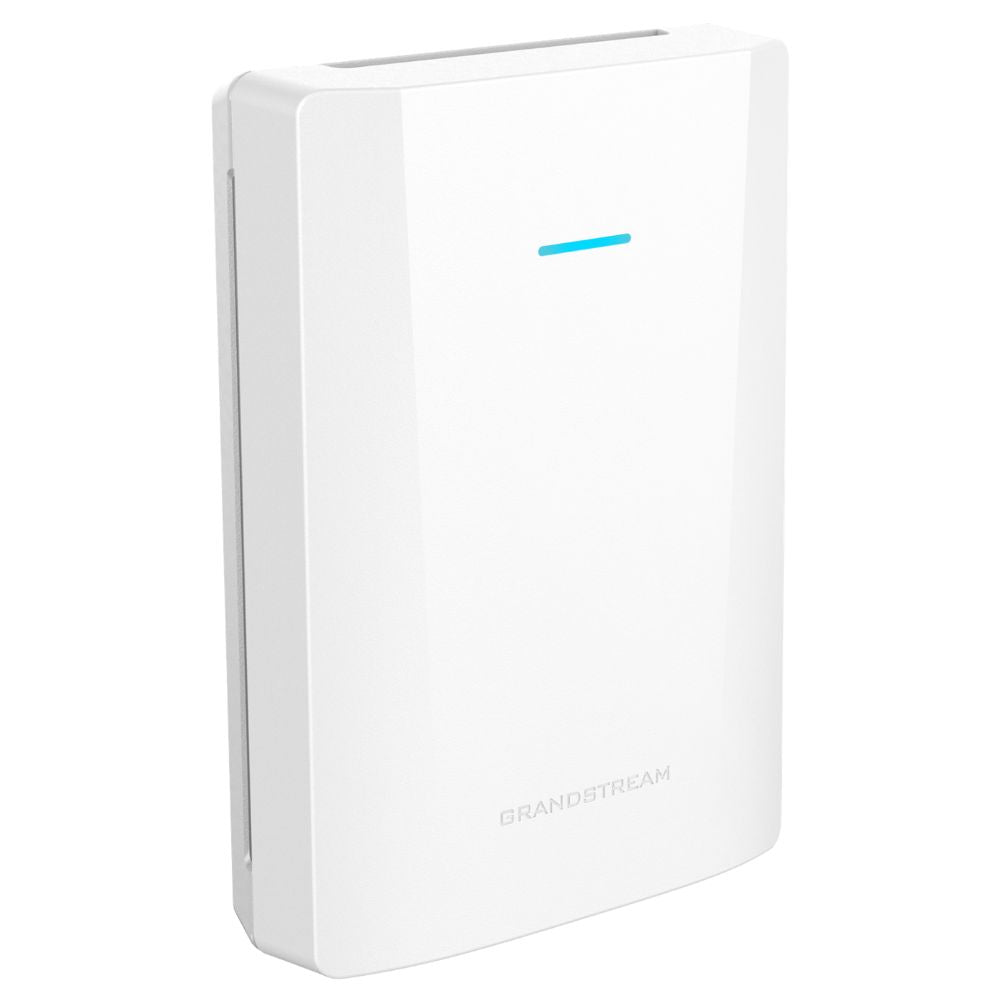

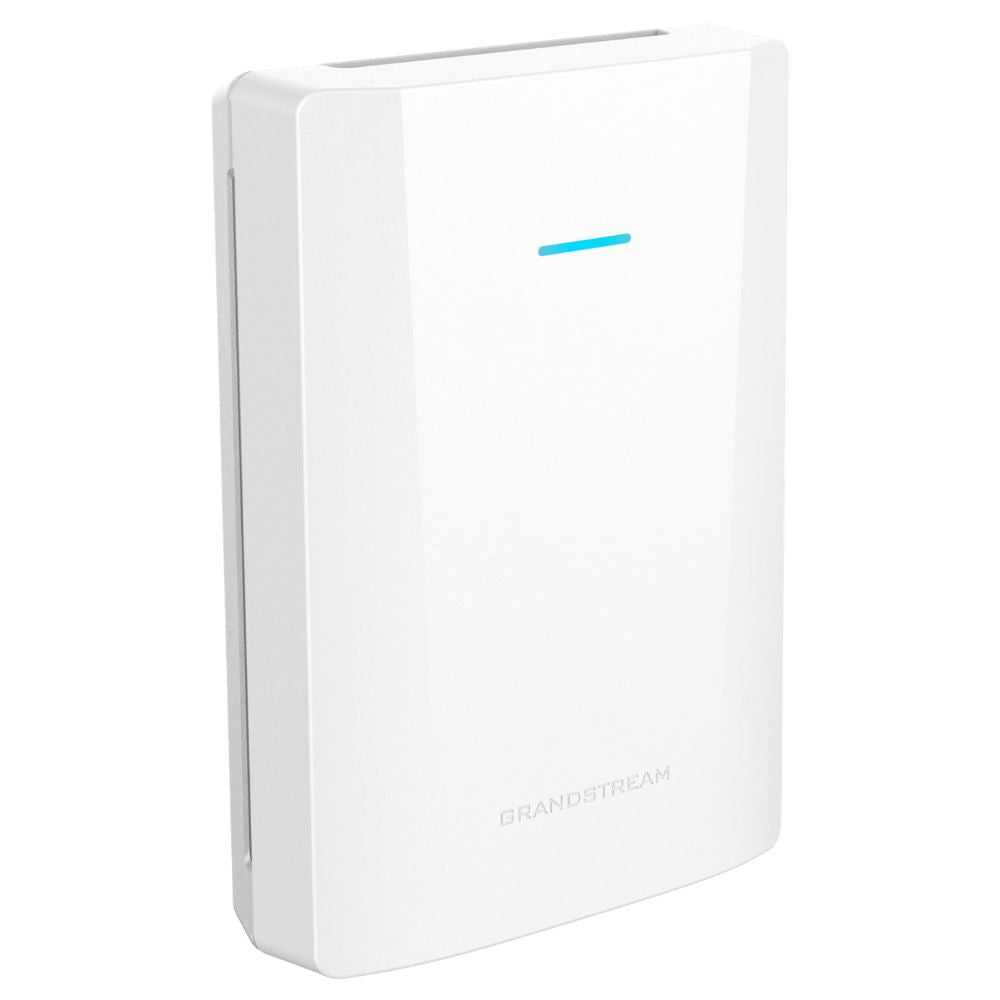

The Grandstream GWN7672WM is a wall-mounted tri-band Wi-Fi 7 access point built for medium-to-high density indoor spaces that need strong performance without visible ceiling clutter. It delivers up to 11 Gbps aggregate wireless throughput and supports 384 concurrent clients across the 2.4 GHz, 5 GHz, and 6 GHz bands. With flexible in-wall, on-wall, and junction-box mounting plus a paintable exterior, it blends into offices, hotels, retail spaces, and classrooms while providing modern Wi-Fi 7 features that keep users connected.
The Telecom Spot Take
This model stands out for teams that care about both speed and appearance. The paintable front cover and compact wall-mount form factor let facilities managers install high-capacity Wi-Fi without disrupting room aesthetics. IT directors get full Wi-Fi 7 capabilities—MLO, 4K QAM, MRU, and preamble puncturing—plus free cloud or on-premise management and support for up to 2,500 PPSK accounts. It is a practical choice when you need enterprise-grade tri-band performance in spaces where a traditional ceiling AP would look out of place.
Key Features
- 11 Gbps aggregate wireless throughput with tri-band 2×2:2 MU-MIMO, Multi-Link Operation (MLO), 4K QAM, Multi-RU, and preamble puncturing for higher efficiency and lower latency in busy environments.
- Supports 384 concurrent Wi-Fi client devices so offices, classrooms, and guest areas stay responsive during peak hours.
- Flexible mounting options (in-wall, on-wall, and junction box) plus a paintable exterior for clean, low-profile installations that match existing décor.
- Advanced QoS prioritizes real-time and low-latency applications such as voice and video.
- Enterprise security including anti-hacking secure boot, digital signature protection for critical data, unique security certificate, and random default password per device.
- Supports up to 2,500 PPSK accounts for individualized, secure user access.
- Free management via the built-in controller (up to 50 local GWN APs), GDMS Networking cloud platform, or GWN Manager on-premise software.
- Self-power adaptation with PoE+ (802.3at) detection for simpler deployment.
- Bluetooth Low Energy 5.3 support for location and IoT scanning needs.
Technical Specifications
| Specification | Details |
|---|---|
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Aggregate Wireless Throughput | 11 Gbps (BE11000) |
| 2.4 GHz Throughput | 688 Mbps (2×2:2 MIMO) |
| 5 GHz Throughput | 4320 Mbps (2×2:2 MIMO) |
| 6 GHz Throughput | 5765 Mbps (2×2:2 MIMO) |
| Concurrent Clients | 384 |
| SSIDs | 48 total (16 per radio) |
| Antennas | 7 single-frequency antennas |
| Network Interfaces | 1 × 5 GbE RJ45 (PoE input) |
| PoE | 802.3at PoE+; Max power consumption 25.5 W |
| Coverage | Up to 175 meters (environment dependent) |
| Security | WPA3, WPA2/WPA3, anti-hacking secure boot, unique certificate & random default password per device |
| Dimensions | 168.95 mm × 118.95 mm × 39.1 mm |
| Mounting | In-wall, on-wall, junction box |
| Management | Local Web UI, GDMS Networking, GWN Manager, embedded controller |
Comparison at a Glance
- Versus standard ceiling-style tri-band Wi-Fi 7 APs in the same class: the GWN7672WM prioritizes discreet wall or in-wall installation and a paintable finish while delivering the same 11 Gbps class throughput and 384-client capacity.
- Versus dual-band wall-mount Wi-Fi 7 models: adds the 6 GHz band, higher aggregate throughput, and greater client density for denser environments.
- Versus higher-end multi-radio models: offers a more compact, aesthetics-focused form factor at a lower complexity level for medium-density deployments.
FAQ
What mounting options does the GWN7672WM support?
It supports in-wall, on-wall, and junction-box installation for flexible placement that keeps the access point low-profile.
How many devices can connect at once?
The access point supports up to 384 concurrent Wi-Fi client devices.
Does it support modern Wi-Fi 7 features?
Yes. It includes Multi-Link Operation (MLO), 4K QAM, Multi-RU, and preamble puncturing along with tri-band 2×2:2 MU-MIMO.
What management options are available?
You can use the local web interface, the free GDMS Networking cloud platform, GWN Manager software, or the built-in controller that manages up to 50 local GWN access points.
Is the exterior customizable?
Yes. The front cover is paintable so it can match wall colors or décor.
What power does it require?
It supports 802.3at PoE+ with self-power adaptation and a maximum power consumption of 25.5 W.
