Description

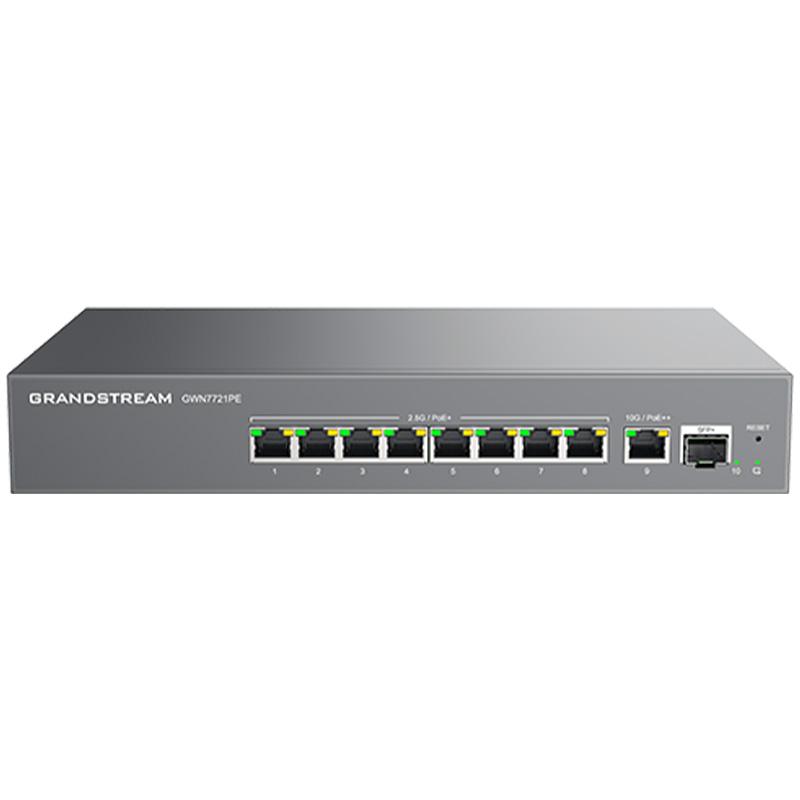

The Grandstream GWN7721PE is a Layer 2 Lite managed multi-gigabit switch built for small-to-medium businesses, hotels, home offices, and multi-dwelling units that need higher speeds and reliable power delivery without complexity. It combines eight 2.5-Gigabit Ethernet ports, one dedicated 10-Gigabit Ethernet port, and one 10G SFP+ uplink so our customers can connect modern Wi-Fi 6/7 access points, IP cameras, and workstations at multi-gig speeds while still having a high-speed copper or fiber backbone.
What sets the GWN7721PE apart is its flexible PoE design. All nine copper ports deliver power: ports 1–8 supply up to 30 W each (802.3af/at), while the dedicated 10G Ethernet port supplies up to 90 W (802.3bt PoE++). The total power budget is 130 W. This makes it practical for powering a mix of standard devices plus one high-draw Wi-Fi 7 access point or similar equipment from a single switch.
The Telecom Spot Take
For IT directors and facilities managers who are upgrading from gigabit switches, the GWN7721PE solves two common problems at once: multi-gig access speeds and the ability to power a high-demand device on the 10G port. The free management options (local web UI, GDMS cloud, or GWN Manager) keep ongoing costs low. It is best suited for businesses that need clean segmentation for guest, voice, and camera traffic while keeping the network simple to operate.
Key Features
- 8 × 2.5 Gigabit Ethernet ports + 1 × 10 Gigabit Ethernet port + 1 × 10G SFP+ port for flexible multi-gig connectivity and uplink options
- 9 PoE ports supporting 802.3af/at/bt — up to 30 W on ports 1–8 and 90 W on the 10G port, with a 130 W total budget and smart dynamic allocation
- 80 Gbps switching capacity and 59.52 Mpps forwarding rate for smooth performance under load
- Up to 32 VLANs, port-based and 802.1Q tagging, plus IGMP Snooping for clean traffic separation and efficient multicast
- Built-in QoS with 802.1p and DSCP priority so voice and video traffic stay clear
- Loop detection, cable testing, and port mirroring for fast troubleshooting
- STP/RSTP for network stability and link redundancy
- Free management via local web interface, GDMS Networking cloud, GWN Manager on-premise software, or the GWN App
- Metal enclosure with desktop, wall, and rack mounting options
Technical Specifications
| Feature | Specification |
|---|---|
| Model | GWN7721PE |
| Ports | 8 × 2.5G Ethernet, 1 × 10G Ethernet, 1 × 10G SFP+ |
| PoE Ports | 9 (802.3af/at/bt) |
| PoE Power | Ports 1–8: up to 30 W each; Port 9: up to 90 W; Max total 130 W |
| Switching Capacity | 80 Gbps |
| Forwarding Rate | 59.52 Mpps |
| Packet Buffer | 8 Mb |
| MAC Address Table | 16K |
| VLANs | Up to 32 (from 4K VLAN IDs), port-based & 802.1Q |
| Link Aggregation | Up to 5 LAG groups, up to 8 members per group |
| Jumbo Frames | Up to 9216 bytes |
| Management | Local Web UI, GDMS Networking, GWN Manager, GWN App, SNMP, LLDP |
| Power Supply | Internal 100–240 V AC, 50/60 Hz |
| Dimensions | 280 × 180 × 44 mm (11.02 × 7.08 × 1.73 in) |
| Weight | 1.848 kg (4.07 lb) |
| Mounting | Desktop, wall, rack |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Enclosure | Metal |
Comparison at a Glance
Compared with typical 8-port 2.5G PoE switches in the same segment, the GWN7721PE stands out with its dedicated 10G copper port that also delivers 90 W PoE++ (many competitors use a combo or shared uplink). It also offers a full 80 Gbps switching fabric and 16K MAC table capacity while keeping the total PoE budget at a practical 130 W.
FAQ
What devices can the GWN7721PE power?
It supports IP phones, IP cameras, Wi-Fi access points, and other PoE devices. Ports 1–8 deliver up to 30 W each; the dedicated 10G Ethernet port delivers up to 90 W for higher-power devices such as certain Wi-Fi 7 access points. Total budget is 130 W.
Can I manage it from the cloud?
Yes. Free management is available through GDMS Networking (cloud), GWN Manager (on-premise), the local web interface, or the GWN App.
Is the 10G port useful for copper uplinks?
Yes. The dedicated 10G Ethernet port lets you connect to a 10G copper uplink or high-bandwidth device without needing an SFP+ transceiver, while the SFP+ port remains available for fiber.
Does it support VLANs for guest and voice traffic?
Yes. It supports up to 32 VLANs with port-based and 802.1Q tagging so you can isolate guest, voice, camera, and data traffic.
