Description

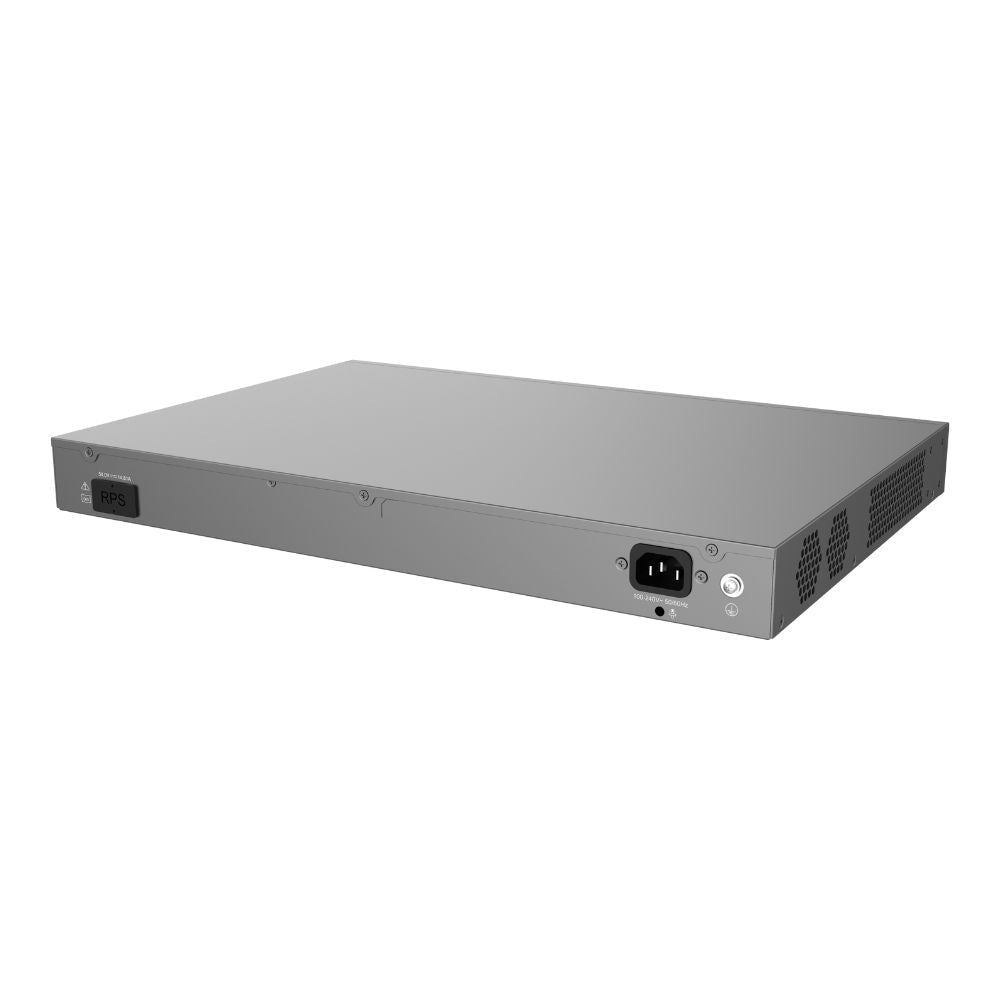

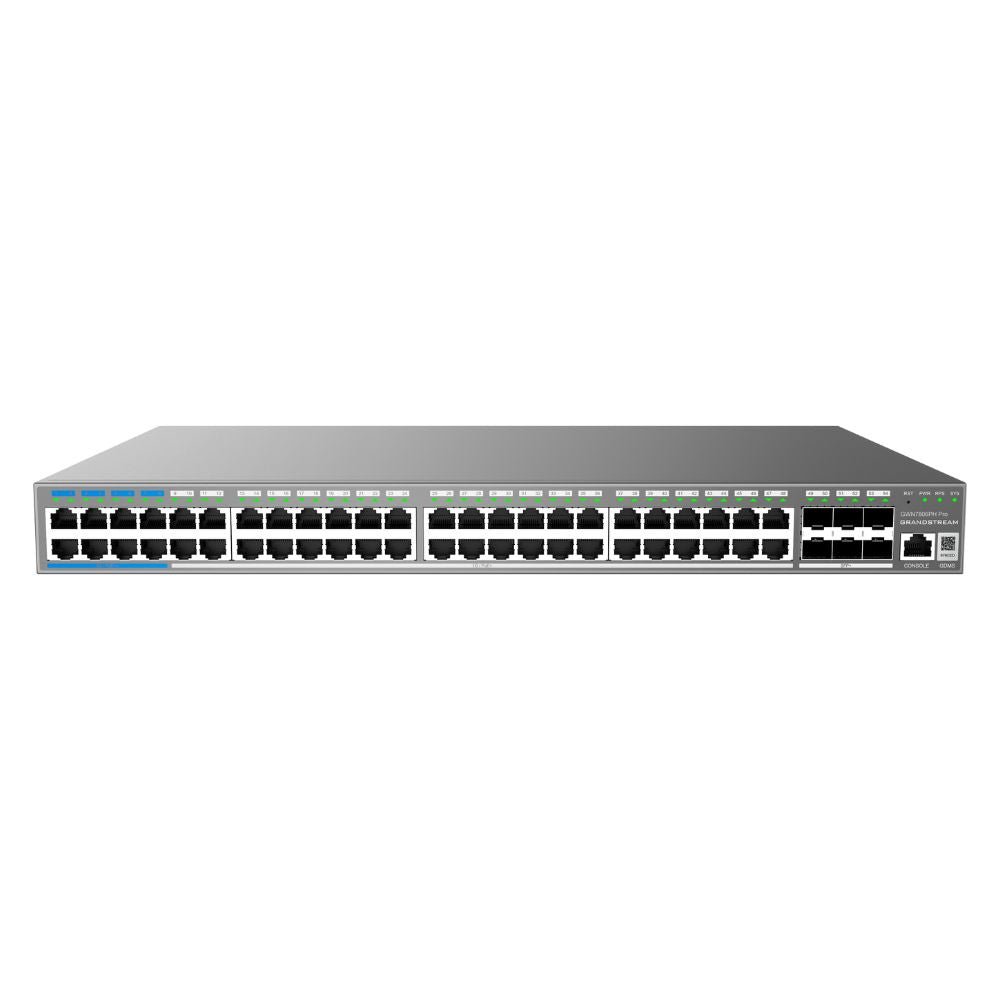

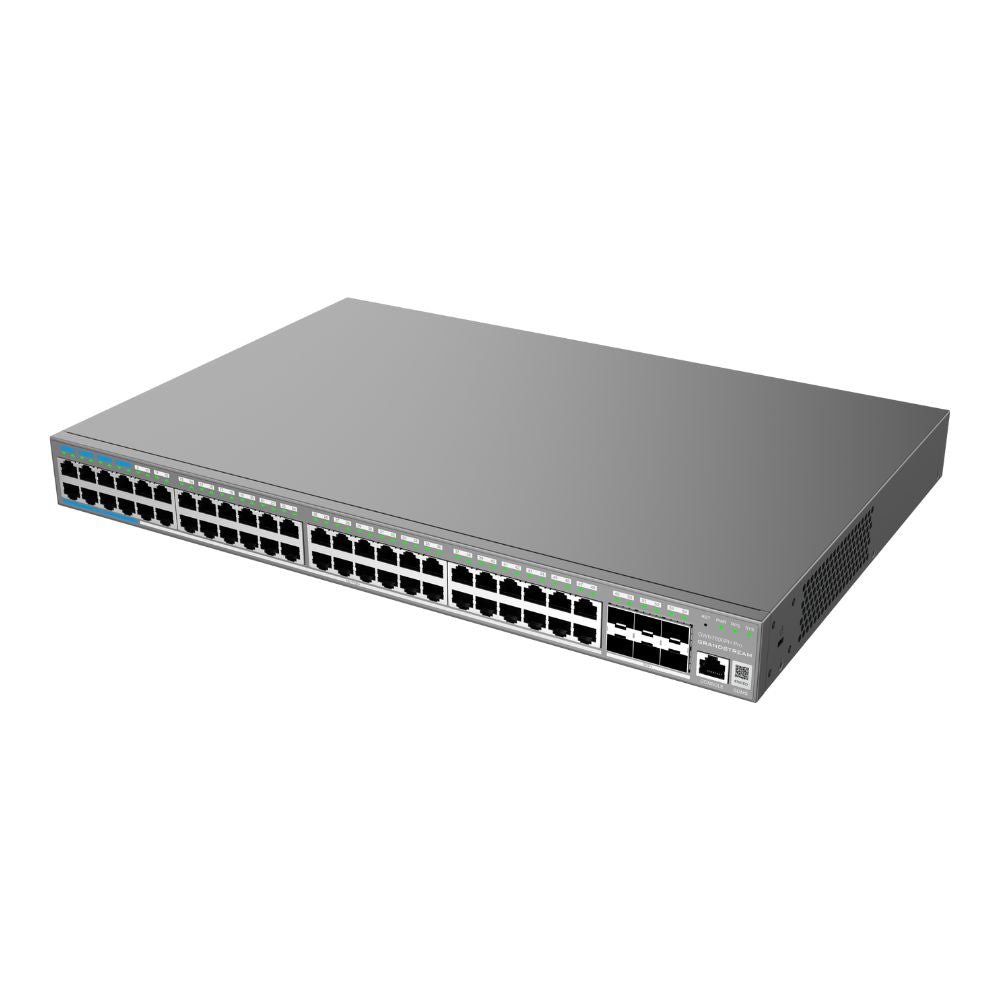

If you're running a growing office, retail space, or hybrid workspace that needs serious power and speed without the enterprise price tag, the Grandstream GWN7806PH Pro is exactly what you've been looking for. This Layer 2++ managed switch gives you 48 Gigabit PoE++ ports that can deliver up to 60W each (720W total budget) to power everything from IP phones and security cameras to wireless access points and video doorbells all in one rack-friendly unit. Add six blazing-fast 10G SFP+ uplinks and you’ve got the backbone for smooth 4K video, VoIP calls, and cloud applications without bottlenecks.
The Telecom Spot Expert Review
The GWN7806PH Pro stands out because it’s built for real-world SMB demands: the 720W PoE budget actually powers more devices simultaneously than most “60W per port” switches we’ve tested (thanks to smart dynamic allocation and priority settings).
What we love most:
- True PoE++ (802.3bt) on all 48 ports
- Stacking up to 8 units means your network grows without adding management headaches.
- Embedded controller + free GDMS cloud management feels like having a built-in IT manager.
Setup tip from our team: When powering a mix of Yealink phones, Grandstream APs, and Hikvision cameras, enable LLDP-MED and set port priorities in the WebUI—it automatically protects your most important devices if you ever hit the 720W ceiling. Takes about 10 minutes once you’re logged in.
Key Features
- 48 Gigabit PoE++ Ports – Every port delivers up to 60W (IEEE 802.3af/at/bt) with smart dynamic power allocation so you never waste watts.
- 720W Total PoE Budget – Powers dozens of phones, cameras, and access points at full power simultaneously.
- 6x 10Gigabit SFP+ Uplinks – Future-proof fiber or DAC connections for ultra-fast backbone links.
- Layer 2++ Capabilities – Static routing, advanced VLANs (4K), QoS, IGMP/MLD snooping, and ACLs for rock-solid performance and security.
- Stacking Support – Manage up to 8 switches as one logical device for simplified growth and redundancy.
- Flexible Management – Embedded WebUI controller, free GDMS Networking cloud, GWN Manager on-prem, or CLI—whatever fits your style.
- Enterprise-Grade Security – 802.1X, ARP inspection, DoS protection, port security, and more keep your network safe from day one.
- Reliability Built In – Dual-core 1GHz CPU, 512MB RAM, redundant power supply support, surge protection, and automatic fan control.
Comparison to Similar Models
Here’s how the GWN7806PH Pro stacks up against other Grandstream switches and popular alternatives (all specs from manufacturer datasheets):
| Model | PoE Ports | Max PoE Budget | Uplinks | Switching Capacity | Stacking | Best For | Price Point (approx.) |
|---|---|---|---|---|---|---|---|
| GWN7806PH Pro (this model) | 48 PoE++ | 720W | 6x 10G SFP+ | 216 Gbps | Up to 8 | High-power SMB with many devices | Mid-high |
| Grandstream GWN7806PL Pro | 48 PoE++ | 400W | 6x 10G SFP+ | 216 Gbps | Up to 8 | Smaller PoE needs | Lower |
| Grandstream GWN7806P (non-Pro) | 48 PoE+ | 400W | 6x 10G SFP+ | 216 Gbps | Up to 4 | Budget 48-port deployments | Lowest |
| Ubiquiti USW-Pro-48-PoE | 48 | 600W | 4x 10G SFP+ | 176 Gbps | No | UniFi ecosystem users | Similar |
| TP-Link TL-SG3452XMPP | 48 | 750W | 4x 10G SFP+ | 176 Gbps | No | Cost-focused deployments | Lower |
Choose the GWN7806PH Pro when you need the highest PoE budget and full 10G uplinks in a single managed unit- especially if you’re already in the Grandstream ecosystem.
Technical Specifications
- Ports: 48 × 10/100/1000 Mbps PoE++ RJ45, 6 × 10G SFP+
- PoE: IEEE 802.3af/at/bt, 60W per port max, 720W total budget
- Switching Capacity: 216 Gbps
- Non-blocking Throughput: 108 Gbps
- Forwarding Rate: 160.704 Mpps
- MAC Address Table: 32K
- VLANs: 4K (port-based, 802.1Q, MAC-based, Voice, QinQ)
- Management: WebUI, GDMS Cloud, GWN Manager, CLI
- Power: 100-240V AC, supports 1+1 external RPS (800W)
- Dimensions: 440 × 300 × 44 mm (1U rack-mount)
- Weight: ~5.3 kg
- Operating Temp: 0°C to 45°C
- Compliance: FCC, CE, RCM, IC
