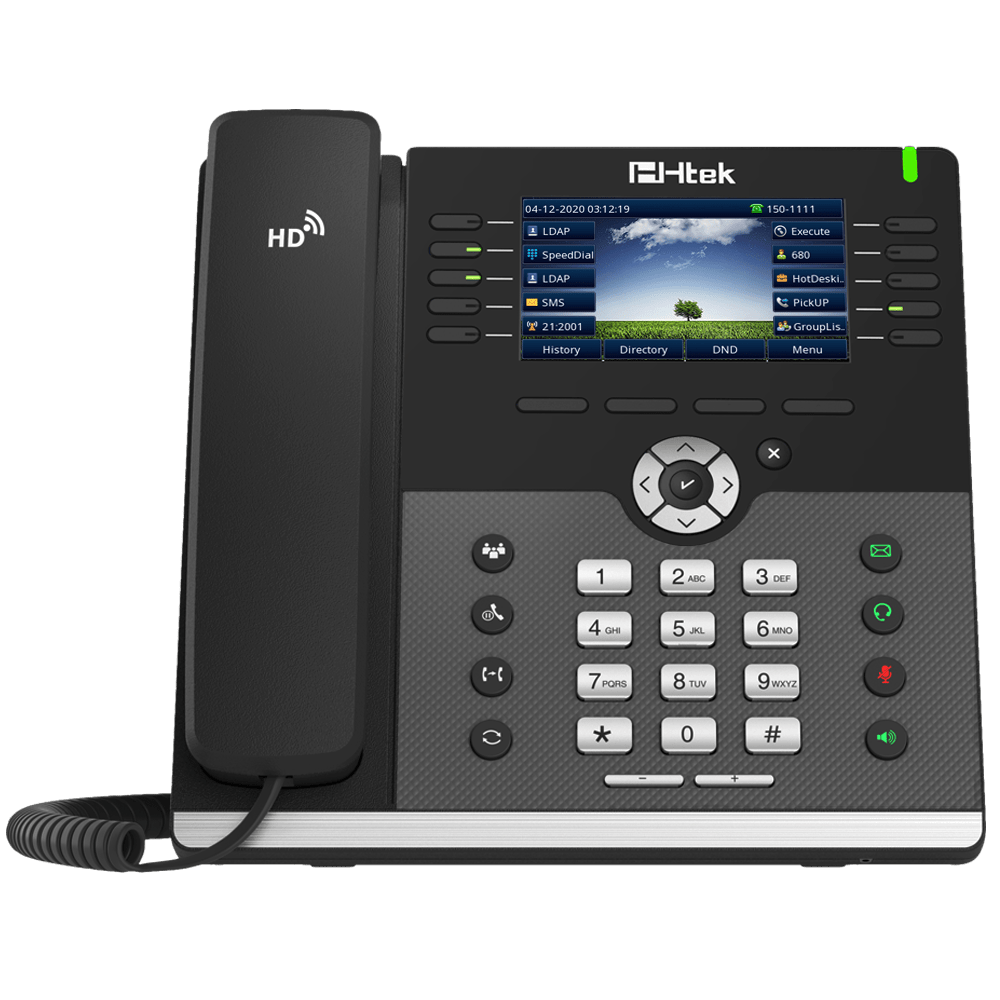

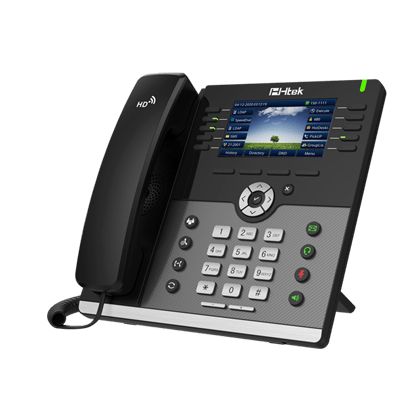

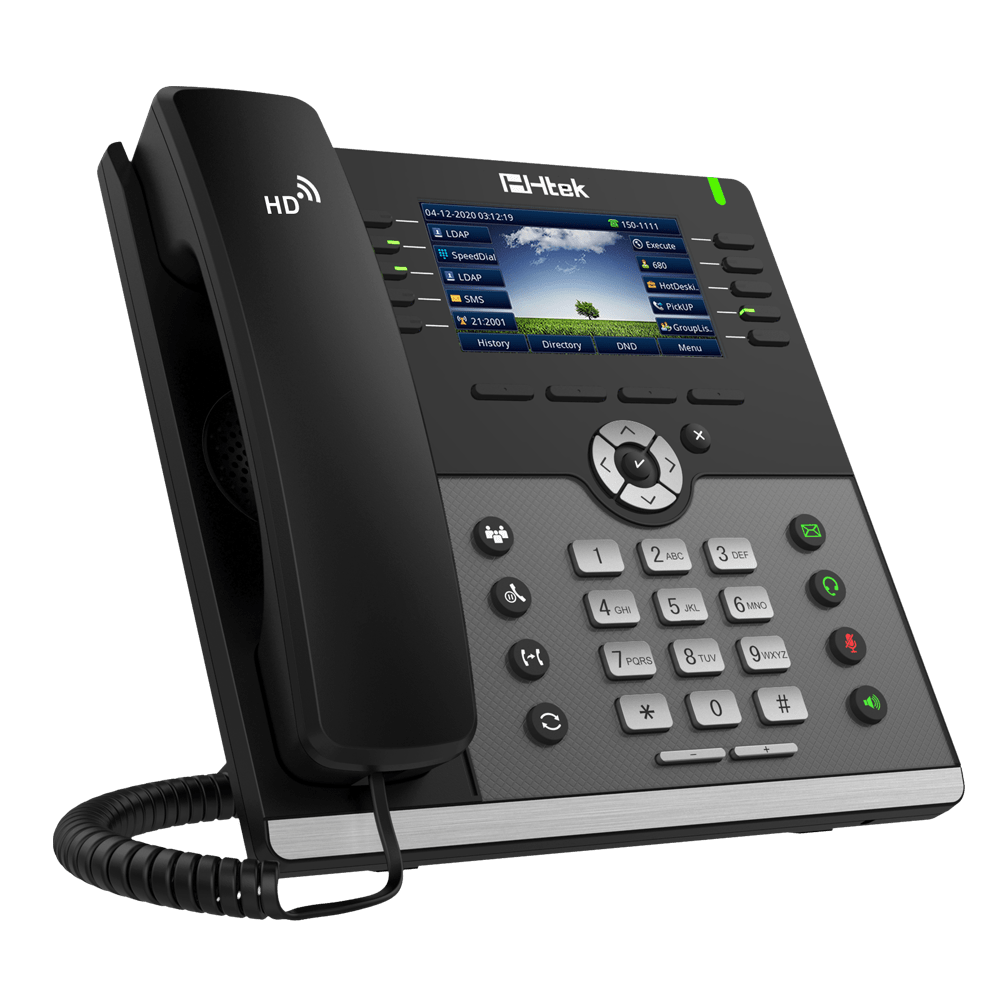

Htek UC926U v2 IP Phone

Htek UC926U v2 IP Phone – Wi-Fi 6, Bluetooth, HD Voice & 16 SIP Lines

Options:

• UC926U v2 w/Htek Brand Logo
• UC926U v2 w/No Brand Logo
• UC926U v2 w/Custom Brand Logo - These phones have a custom brandable screen. Before placing your order, a copy of your logo must be provided to your Sales Rep so the branding can be completed prior to the phone(s) being shipped to you (adds approx 2-3 business days).  Custom branded phones are not returnable.

A next-generation business desk phone built for performance, flexibility, and crystal-clear communication.

The Htek UC926U V2 is designed for executives, operators, and power users who rely on fast networking, multi-line SIP performance, and flawless audio quality. With built-in dual-band Wi-Fi 6, Bluetooth 5.4, a 4.3" color display, and support for 16 SIP accounts, this phone fits modern VoIP deployments where reliability and mobility matter.

Engineered with Htek’s upgraded HD voice components and acoustic shield technology, the UC926U V2 delivers exceptional clarity during calls — even in open office environments. And with Gigabit Ethernet, PoE, USB accessories, and support for up to six expansion modules, it adapts easily to high-volume call-handling setups.

See Htek UC926 v2 datasheet for more spec details

Key Features

Ultra-Clear HD Audio

• Enhanced handset, speakerphone, and audio hardware for high-quality sound.
• Supports HD codecs including Opus and G.722 for clear voice across varying network conditions.
• Acoustic Shield technology helps reduce background noise for focused conversations.

Built-In Wi-Fi 6 & Bluetooth 5.4

• Dual-band Wi-Fi 6 (2.4 GHz / 5 GHz) for high-speed, stable wireless connectivity.
• Integrated Bluetooth 5.4 for pairing with wireless headsets and compatible accessories.

Advanced Expansion & USB Options

• USB 2.0 port for:
  • Phone firmware upgrades and system repair
  • USB call recording
  • Screensaver and wallpaper storage
  • Connecting USB hub, USB headset, EHS30 adapter, or panic button
• Supports up to 6 color expansion modules (UC46) with up to 240 paperless DSS keys.
• Wall-mountable design and adjustable stand for flexible deployment.

Fast Deployment & Zero-Touch Provisioning

• Compatible with Htek RPS (Redirection and Provisioning Service) for true "zero-touch" rollout.
• Supports Htek Device Management System (HDMS) for remote firmware updates and device management.
• Easy to deploy, easy to use, and easy to manage for large or distributed teams.

Security & Platform Compatibility

• Advanced security with TLS 1.3, SRTP, ZRTP, HTTPS certificate management, and AES-encrypted configuration files.
• Supports IPv4/IPv6, OpenVPN, IEEE 802.1X, and VLAN.
• Compatible with major SIP platforms such as 3CX, BroadSoft, NetSapiens, and most standards-based VoIP services.

Technical Specifications

Display & User Interface

• 4.3" color TFT-LCD display (480 x 272 pixels) with backlight.
• 24-bit color depth for clear visual presentation.
• LED for call and message waiting indication (dual-color red/green).
• LEDs for line status information.
• Wallpaper support and multi-language user interface.
• Intuitive interface with icons, soft keys, and caller ID with name, number, and photo.

SIP & Call Features

• Up to 16 SIP accounts.
• 6-way audio conferencing.
• Call hold, mute, DND (Do Not Disturb).
• One-touch speed dial and hotline.
• Call forward, call waiting, call transfer.
• Redial, call return, auto answer, direct IP call.
• Group listening, SMS, emergency call.
• Ringtone selection and provisioning.
• Per-account dial plan configuration.
• RTCP-XR (RFC3611) and VQ-RTCPXR (RFC6035) support.

IP-PBX & Productivity Features

• Busy Lamp Field (BLF).
• Bridged Line Appearance (BLA).
• Anonymous call & anonymous call rejection.
• Voicemail support.
• Intercom and paging.
• Call park and call pickup.
• Music on hold.
• Hot-desking and flexible seating.
• Call recording capability.

Audio Features

• HD Voice: HD speaker, HD handset, HD codec.
• Supported codecs:
  • iLBC
  • G.722
  • G.711 (A/µ)
  • Opus
  • G.723.1
  • G.729AB
  • G.726-32
  • G.722.1
• DTMF: In-band, RFC 2833, SIP INFO.
• Full-duplex hands-free speakerphone with AEC.
• Additional processing: AEC, VAD, AGC, CNG, PLC, AJB.

Video Support

• Supports receiving video calls with H.264 video codec.
• Maximum supported video resolution: 1080p.

Directory & Call History

• Local phonebook supporting up to 10,000 entries.
• XML/LDAP remote phonebook integration.
• Intelligent search and phonebook import/export.
• Call history for dialed, received, missed, and forwarded calls.
• Blacklist support.

Keys & Programmable Buttons

• 10 line keys with LED indicators.
• Line keys can be configured as up to 36 paperless DSS keys (4-page view).
• 8 feature keys: voicemail, headset, mute, speaker, conference, hold, transfer, redial.
• 4 context-sensitive soft keys.
• Navigation keys (including cancel) and dedicated volume keys.

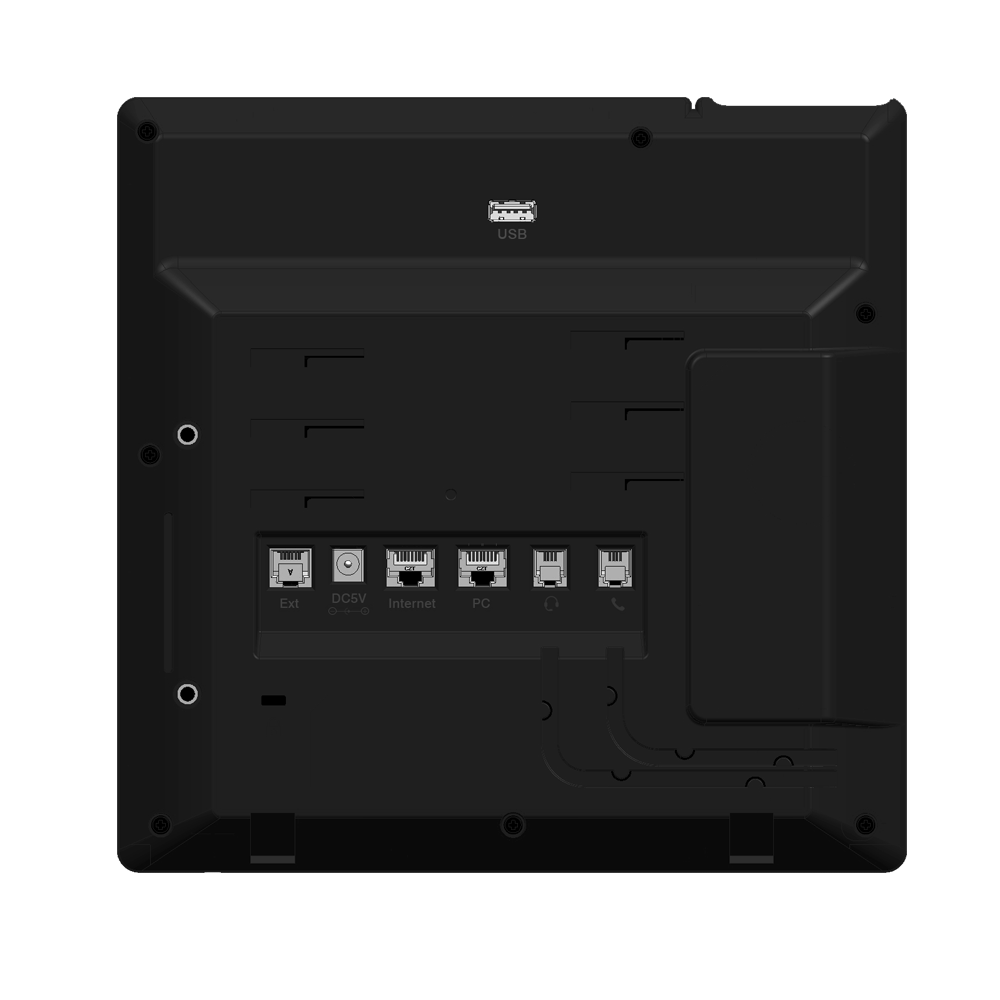

Interfaces & Connectivity

• Dual-port Gigabit Ethernet.
• Power over Ethernet (IEEE 802.3af, Class 3).
• IEEE 802.3az Green Energy Efficient Ethernet.
• 1 x RJ9 (4P4C) handset port.
• 1 x RJ9 (4P4C) headset port.
• 1 x RJ12 (6P6C) EXT port for expansion modules.
• Supports up to 6 expansion modules.
• 1 x USB port for:
  • Phone upgrade and system repair
  • Call recording
  • Wallpaper and screensaver loading
  • Connecting USB hub, EHS30, panic button, or USB headset

Wi-Fi & Bluetooth

• Built-in dual-band Wi-Fi 6:
  • Standards: IEEE 802.11a/b/g/n/ac
  • Transmission rate: up to 600 Mbps
  • Frequency: 2.4 GHz and 5 GHz
• Built-in Bluetooth 5.4:
  • Enhanced Data Rate (EDR) compliant (2 Mbps and 3 Mbps)
  • Frequency range: 2.402 GHz – 2.480 GHz
  • Backward compatible with Bluetooth 5.3 and earlier versions

Network & Security

• SIP v1 (RFC2543) and v2 (RFC3261) support.
• SIP server/proxy redundancy.
• NAT traversal via STUN.
• IP assignment via static or DHCP.
• Built-in HTTP/HTTPS web server.
• Time and date synchronization using SNTP.
• DNS NAPTR/DNS SRV (RFC 3263).
• QoS:
  • Layer 2: 802.1Q, 802.1P
  • Layer 3: ToS, DiffServ, MPLS
• TLS 1.3, SRTP, ZRTP for secure signaling and media.
• HTTPS certificate manager and AES-encrypted configuration files.
• Digest authentication using MD5/MD5-sess.
• IEEE 802.1X, OpenVPN, IPv4/IPv6, LLDP/CDP, DHCP VLAN.

Management & Provisioning

• Configuration via web browser, LCD menu, or auto-provisioning.
• Auto-provision via HTTP/HTTPS/FTP/TFTP.
• Auto-provision with Plug and Play (PnP).
• Supports SNMP and TR-069 for remote management.
• Reset to factory defaults and remote reboot.
• Local tracing log export and system log.
• Phone lock for personal privacy protection.

Physical & Environmental

• Stand with 2 adjustable angles.
• Wall-mountable (optional wall-mount footstand required).
• External universal AC adapter (optional):
  • AC 100–240 V input
  • DC 5 V/1.2 A output
• Power consumption (PSU): 2.0–4.6 W.
• Power consumption (PoE): 2.5–5.5 W.
• Operating temperature: -10°C to 50°C.
• Operating humidity: 10%–95%.

Package Contents

• Htek UC926U V2 phone.
• Footstand.
• Handset.
• Handset cord.
• Ethernet cable.
• Quick reference manual.
• Optional: Power adapter.
• Optional: Wall-mount footstand.

Why Choose the Htek UC926U V2?

If you’re looking for a reliable, feature-rich desk phone that keeps pace with modern VoIP workloads, the Htek UC926U V2 is a strong choice for busy offices, operators, and executives. With Wi-Fi 6, Bluetooth 5.4, HD audio, expansion module support, and powerful provisioning tools, it delivers the performance IT teams expect and the ease of use that end users appreciate.
