Description

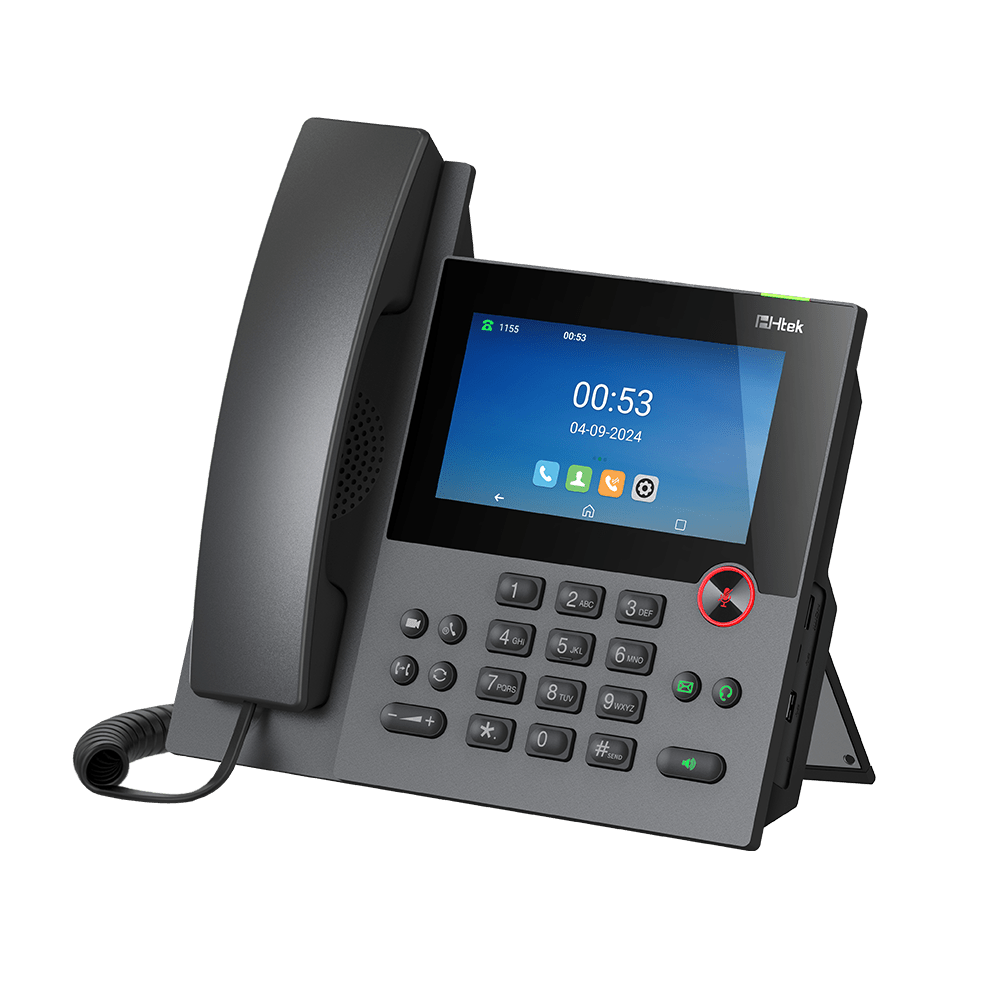

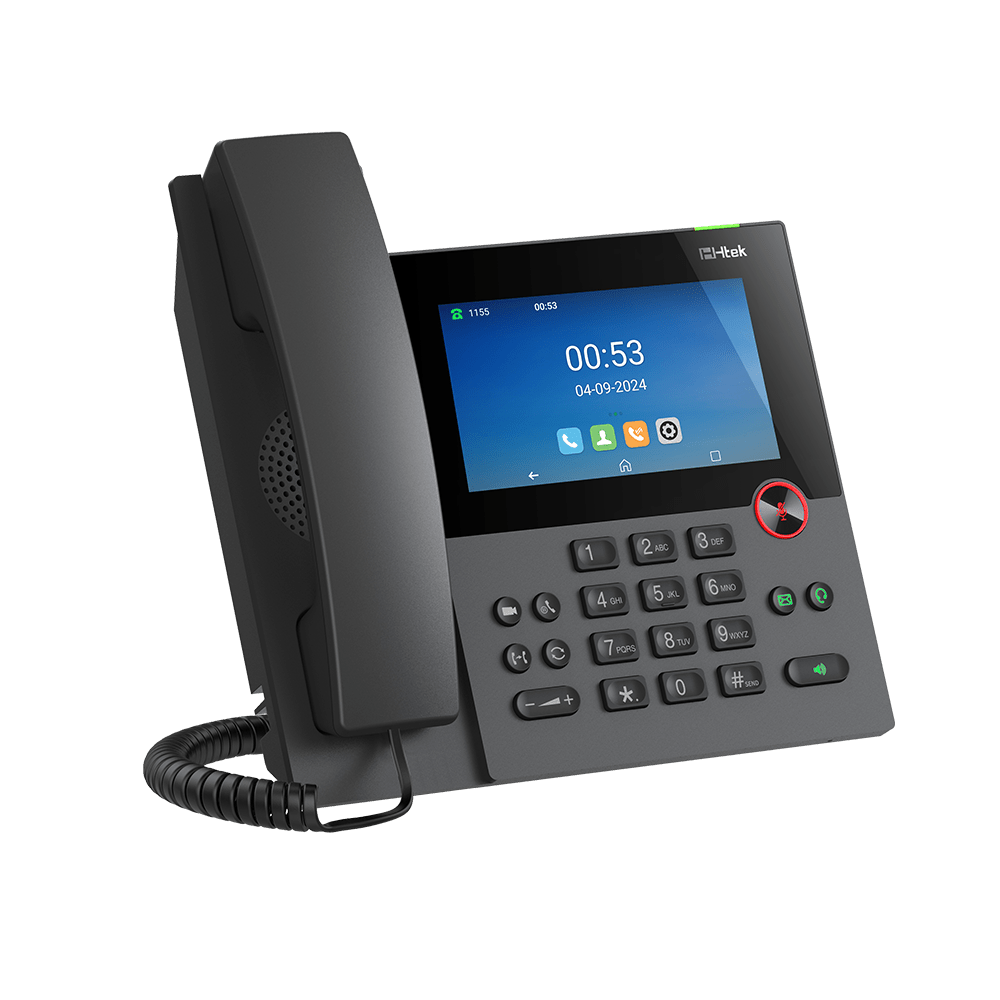

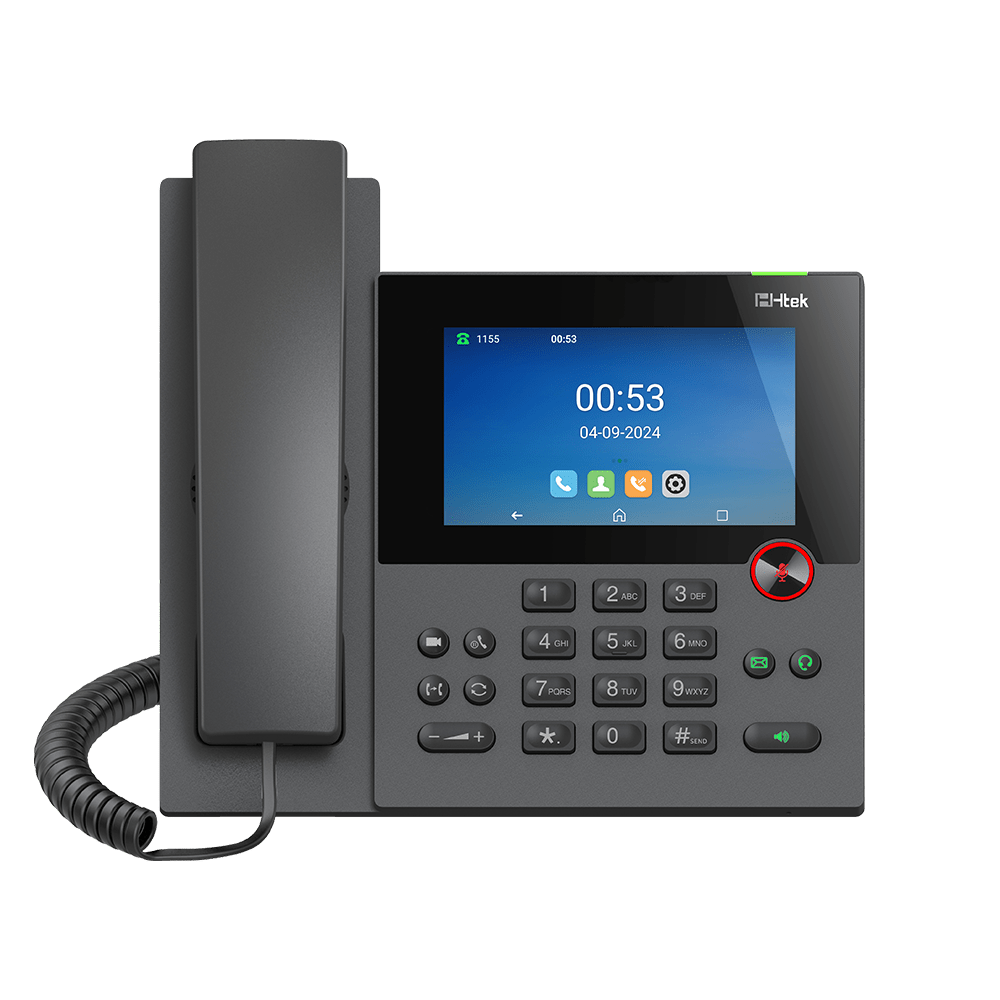

Htek UCV10 Lite Touch-Screen IP Phone – 5" HD SIP Phone with Wi-Fi, Bluetooth (UVC10-Lite)
Options:
- UCV10 Lite w/Htek Brand Logo
- UCV10 Lite w/No Brand Logo
- UCV10 Lite w/Custom Brand Logo - These phones have a custom brandable screen. Before placing your order, a copy of your logo must be provided to your Sales Rep so the branding can be completed prior to the phone(s) being shipped to you (adds approx 2-3 business days). Custom branded phones are not returnable.
The Htek UCV10 Lite is built for teams that want a clean, powerful, and easy-to-use desk phone without overpaying for features they’ll never use. Its bright 5-inch HD touch display makes navigation feel more like a smartphone than a traditional desk phone, and the built-in Wi-Fi, Bluetooth, and HDMI output give you the flexibility to work the way you prefer.
Even in busy office environments, the UCV10 Lite delivers clear conversations thanks to its advanced noise-blocking technology and HD audio hardware. It also supports 10-party audio/video conferencing, making it a strong choice for teams that collaborate frequently.
Setup is simple too. Using Htek’s cloud provisioning tools, IT teams can roll out new phones quickly with “zero-touch” setup and manage devices remotely—perfect for growing businesses or distributed offices.
Whether you need a reliable SIP phone for your front desk, a feature-rich device for managers, or a flexible phone for hybrid work, the UCV10 Lite is built to handle it.
See Htek UCV10 Lite datasheet for more spec details
Key Benefits
- Smart 5" HD touch screen – 1280x720 multi-point IPS display that feels more like a smart device than a traditional phone.
- Crystal-clear audio – HD handset, HD speaker, and Acoustic Shield technology for clear conversations in busy offices.
- Built-in Wi-Fi and Bluetooth – Dual-band 2.4G/5G Wi-Fi and Bluetooth 5.0 keep your desk clean and flexible.
- HDMI output for external display – Extend your screen to a monitor or display for richer collaboration.
- Strong SIP compatibility – Supports up to 16 SIP accounts and common IP-PBX features for business calling.
- Easy deployment – Zero Touch Provisioning through Htek RPS and remote management with HDMS.
Product Highlights
5" HD Touch Display
- 5-inch 1280x720-pixel multi-point touch IPS screen
- Supports receiving 1080p HD video from the remote side
- Supports 10-way audio and video mixed conferencing (up to 4-way video display)
- Adjustable one-piece foot stand; supports wall mounting
HD Audio and Noise Reduction
- HD handset and HD hands-free speakerphone
- Acoustic Shield and advanced echo cancellation for clear, clean voice
- Excellent double-talk performance so both sides can speak naturally
- Audio codecs: Opus, G.722, G.711 (A/μ), G.729AB, G.726-32, iLBC, G.723.1
- Full-duplex speakerphone with AEC, VAD, CNG, PLC, AJB, AGC, ANS
Flexible Connectivity
- Dual-port Gigabit Ethernet with PoE support (IEEE 802.3af, class 3)
- Built-in dual-band Wi-Fi (2.4 GHz / 5 GHz), IEEE 802.11a/b/g/n/ac
- Built-in Bluetooth 5.0 for Bluetooth headsets and calls; supports BTP50 Bluetooth handset
- 1 x USB Type-A 3.0 and 1 x USB Type-C 2.0 for headsets, recording and storage
- Micro SD card slot for storage expansion and media
- HDMI port for fast screen projection to an external display
Enterprise Features and Security
- Up to 16 SIP accounts
- Call hold, mute, DND, call forward, call waiting, call transfer
- One-touch speed dial and hotline
- Redial, call return, auto answer, direct IP call
- Ten-way audio and video mixed conferencing (up to 4-way video)
- Busy Lamp Field (BLF), Bridged Line Appearance (BLA)
- Intercom, paging, call park, call pickup, hot-desking, music on hold
- Voice mail and call recording support
- Security: TLS 1.3, SRTP, ZRTP, AES-encrypted configuration, 802.1X, OpenVPN
- QoS with 802.1p/Q VLAN tagging and Layer 3 ToS/DSCP
- IPv4/IPv6, LLDP/CDP, DHCP VLAN support
Easy Deployment and Management
- Configuration via web browser, LCD menu, or auto-provisioning
- Auto-provision using HTTP/HTTPS/FTP/TFTP
- Supports Htek RPS for Zero Touch Provisioning
- Supports Htek Device Management System (HDMS) for remote configuration and firmware updates
- TR-069, Plug-and-Play (PnP) support
- Local and system log export; phone lock for privacy protection
- Support to install or uninstall apps via auto-provision
Directories and Call History
- Local phonebook with up to 10,000 entries
- Black list support
- XML/LDAP remote phonebook
- Smart dialing and search
- Phonebook import and export
- Call history: dialed, received, missed, forwarded
Interfaces and Keys

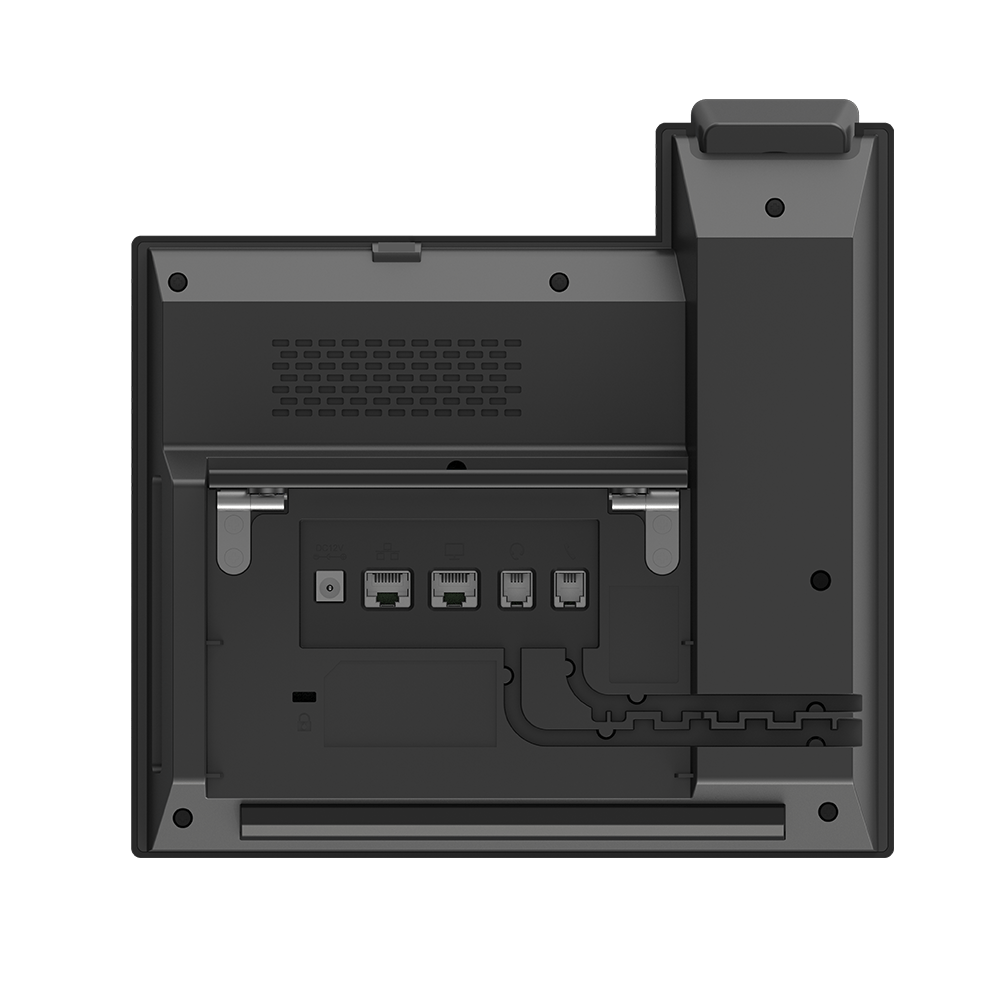

Interfaces
- 2 x Gigabit Ethernet ports
- 1 x RJ9 handset port
- 1 x RJ9 headset port
- 1 x USB Type-A (3.0)
- 1 x USB Type-C (2.0)
- 1 x Micro SD card slot
- 1 x HDMI port
- 1 x Security lock port
Feature Keys
- Up to 276 one-touch DSS keys
- 8 dedicated keys: Mute, Message, Headset, Video, Hold, Redial, Transfer, Speakerphone
- Volume control key
Physical and Environmental
- Built-in stand with multiple adjustable angles
- Wall mountable (optional footstand required for wall mounting)
- Optional external AC adapter: AC 100–240 V input, DC 12 V / 2 A output
- Power consumption (with PSU): 3.5 W – 9 W
- Power consumption (PoE): 4 W – 10 W
- Operating temperature: 0–40°C
- Storage temperature: -10–60°C
- Operating humidity: 10–90%
Package Contents
- UCV10 Lite phone device
- Footstand
- Handset
- Handset cord
- Ethernet cable
- Quick Reference Manual
- Power adapter (optional)
- Wall-mount footstand (optional)
Ideal Use Cases
- Professional office desk phone for employees and managers
- Front desk and reception areas needing a modern, touch-based SIP phone
- Hybrid and remote-friendly workplaces using Wi-Fi and Bluetooth peripherals
- Environments that require secure, managed VoIP deployments with remote administration
