Description

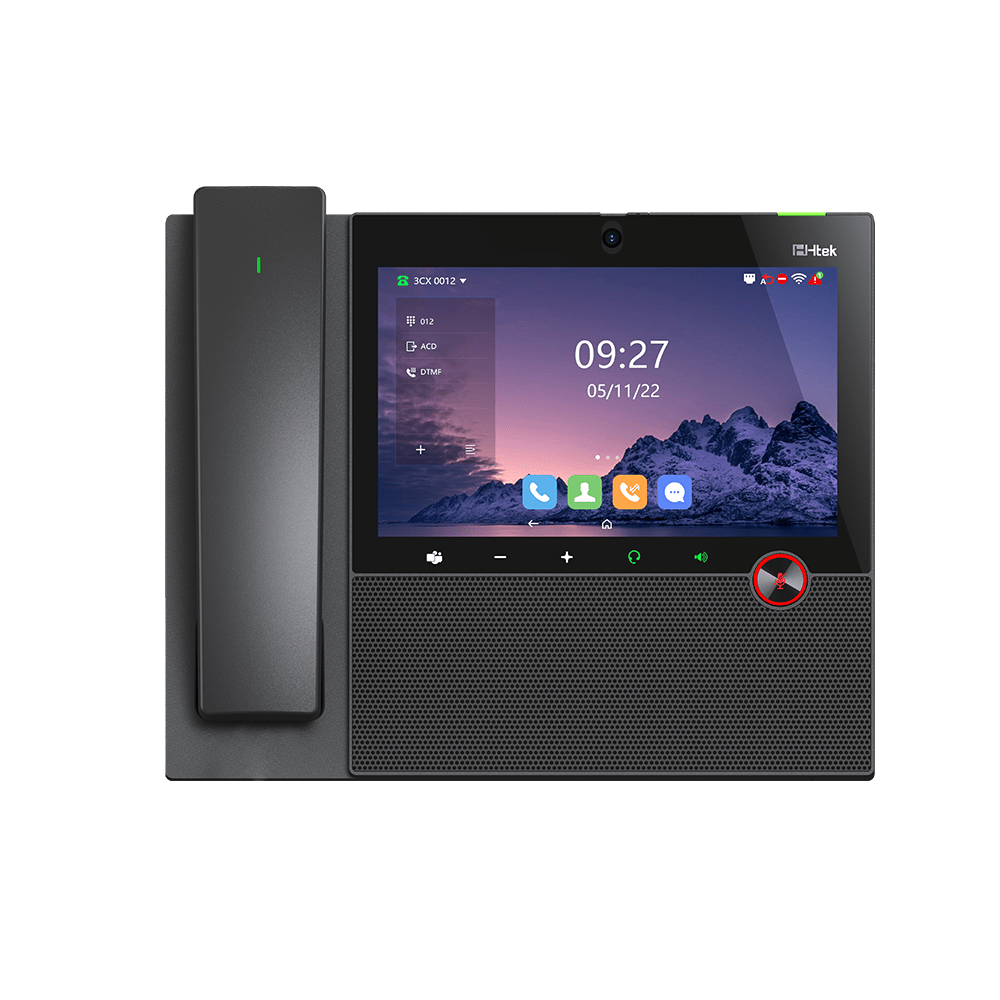

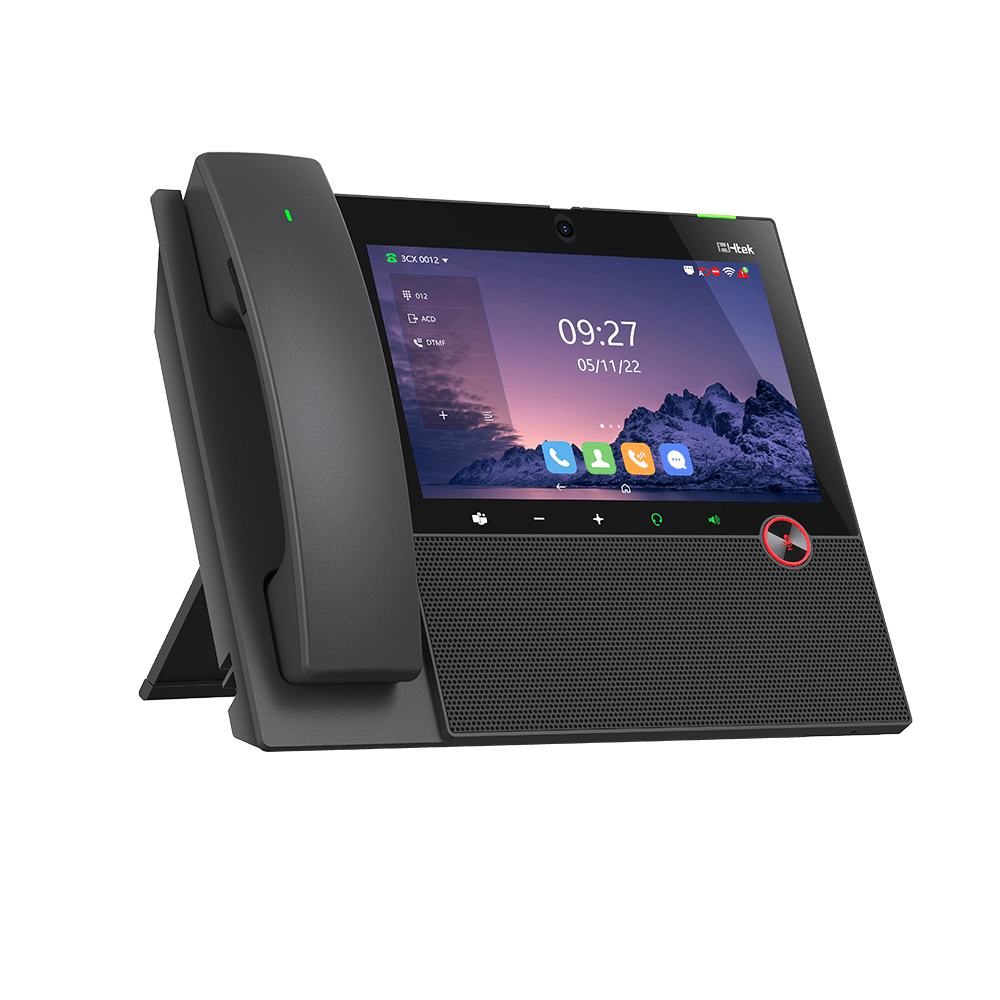

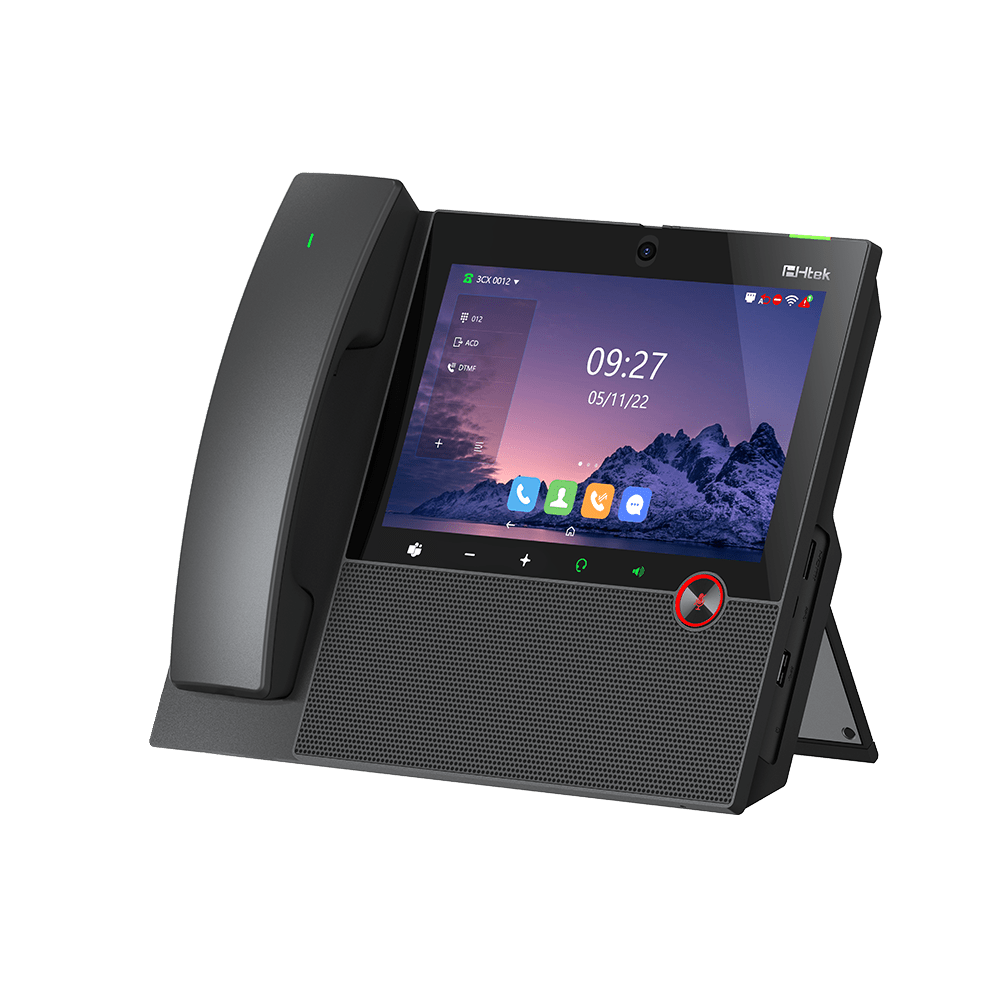

Htek UCV52 Pro Touch-Screen IP Phone – Android IP Video Desk Phone with 8" Touchscreen & 8MP Camera (UCV52-PRO)
Options:
- UCV52 Pro w/Htek Brand Logo
- UCV52 Pro w/No Brand Logo
- UCV52 Pro w/Custom Brand Logo - These phones have a custom brandable screen. Before placing your order, a copy of your logo must be provided to your Sales Rep so the branding can be completed prior to the phone(s) being shipped to you (adds approx 2-3 business days). Custom branded phones are not returnable.
The Htek UCV52 Pro is a powerful Android 14 enterprise video IP phone built for modern offices and remote collaboration. Its 8-inch HD touchscreen, 8MP camera, and 1080p video turn your desk into a ready-to-use video meeting station.
With support for the wireless BTP50 Bluetooth handset, dual-band Wi-Fi, Bluetooth 5.0, and dual Gigabit Ethernet with PoE, the UCV52 Pro offers flexible connectivity for any workspace. Clear audio is ensured by Acoustic Shield noise reduction, full-duplex HD voice, and support for advanced codecs including Opus.
The UCV52 Pro handles up to 16 SIP accounts, 4-way video conferencing, and 20-way mixed audio/video calls, making it ideal for executive offices, reception desks, and hybrid work environments. Multiple USB ports, HDMI output, and MicroSD expansion provide room for apps and integrations, while enterprise-grade security (TLS 1.3, SRTP, ZRTP, VPN options) keeps communications protected.
Designed for speed, clarity, and flexibility, the UCV52 Pro is an excellent choice for organizations that need a reliable video-enabled desk phone with the familiarity of Android and the performance of a high-end SIP device.
See Htek UCV52 Pro datasheet for more spec details
Key Features at a Glance
- Android 14 operating system with quad-core Cortex-A55 CPU
- 8-inch 1280 × 800 multi-point IPS touch display
- Built-in 8MP camera with 1080p HD video
- Supports wireless Bluetooth handset BTP50 for cable-free calling
- Dual-band Wi-Fi (2.4 GHz / 5 GHz) and Bluetooth 5.0
- Dual Gigabit Ethernet ports with PoE support
- Up to 16 SIP accounts and 20-way mixed audio/video conferencing
- Acoustic Shield and advanced AEC for clear, noise-reduced audio
- Three USB ports (USB-A 3.0, USB-A 2.0, USB-C 2.0) plus HDMI output
- Supports EHS30, expansion modules, and wall mounting
Ideal For
- Executive and manager desktops needing integrated video conferencing
- Reception and front desk positions handling high call volume
- Hybrid and remote teams that rely on secure SIP-based communications
- Organizations standardizing on Android-based collaboration endpoints
Technical Specifications
System and Display
- Operating system: Android 14
- CPU: Quad-core Cortex-A55
- Memory: 4 GB RAM, 32 GB eMMC flash
- Display: 8-inch 1280 × 800 multi-point IPS touch screen
Wireless Handset (BTP50 Support)
- Compatible wireless Bluetooth handset: BTP50
- Bluetooth version: 5.3
- Controls: handset key, speakerphone key, mute key, volume keys
- HD speaker and HD audio codec
- Battery capacity: 720 mAh
- Talk time: up to 30 hours
- Standby time: up to 300 hours
- Approximate range: up to 10 meters from the phone
- Functions: place/answer/hang up/redial/reject/mute calls, volume control, voice indication
- Handset location tone and low battery indication
- Firmware upgrade support
Phone Features
- Up to 16 SIP accounts
- Call hold, mute, DND (Do Not Disturb)
- One-touch speed dial and hotline
- Call forward, call waiting, call transfer
- Redial, call return, auto answer, direct IP calling
- 4-way video conferencing
- Up to 20-way mixed audio and video conferencing (up to 4-way video)
- SMS and emergency calling support
- Custom dial plans per account
- AP mode wireless access point
- On-screen keyboard
- Door phone features: intercom, one-button open, preview, monitor
- Notification and control centers
- Third-party Android application support
Video
- Video support: up to 1080p HD
- Built-in 8-megapixel camera
- Video codecs: H.265, H.264 High Profile, H.264, H.263, VP9, VP8
Audio
- HD handset, HD speaker, HD audio codec support
- Acoustic Shield noise reduction
- Smart noise suppression for far-end audio
- Audio codecs: Opus, G.722, G.711(A/µ), G.729A/B, G.726-32, iLBC, G.723.1
- DTMF: In-band, RFC2833, and SIP INFO
- Full-duplex hands-free speakerphone with AEC
- VAD, CNG, AEC, PLC, AJB, AGC, ANS
Keys and DSS
- 276 one-touch DSS keys
- 3 dedicated keys: headset, mute, speakerphone
- Volume control key
- Dedicated touch key for Teams
Directory & IP-PBX Features
- Local phonebook: up to 10,000 entries
- Black list support
- XML/LDAP remote phonebook
- Smart dialing and search/import/export options
- Call history: dialed, received, missed, forwarded
- BLF (Busy Lamp Field), BLA (Bridged Line Appearance)
- Anonymous call and rejection
- Voicemail, intercom, paging
- Call park, call pickup
- Music on hold, hot-desking
- Call recording support

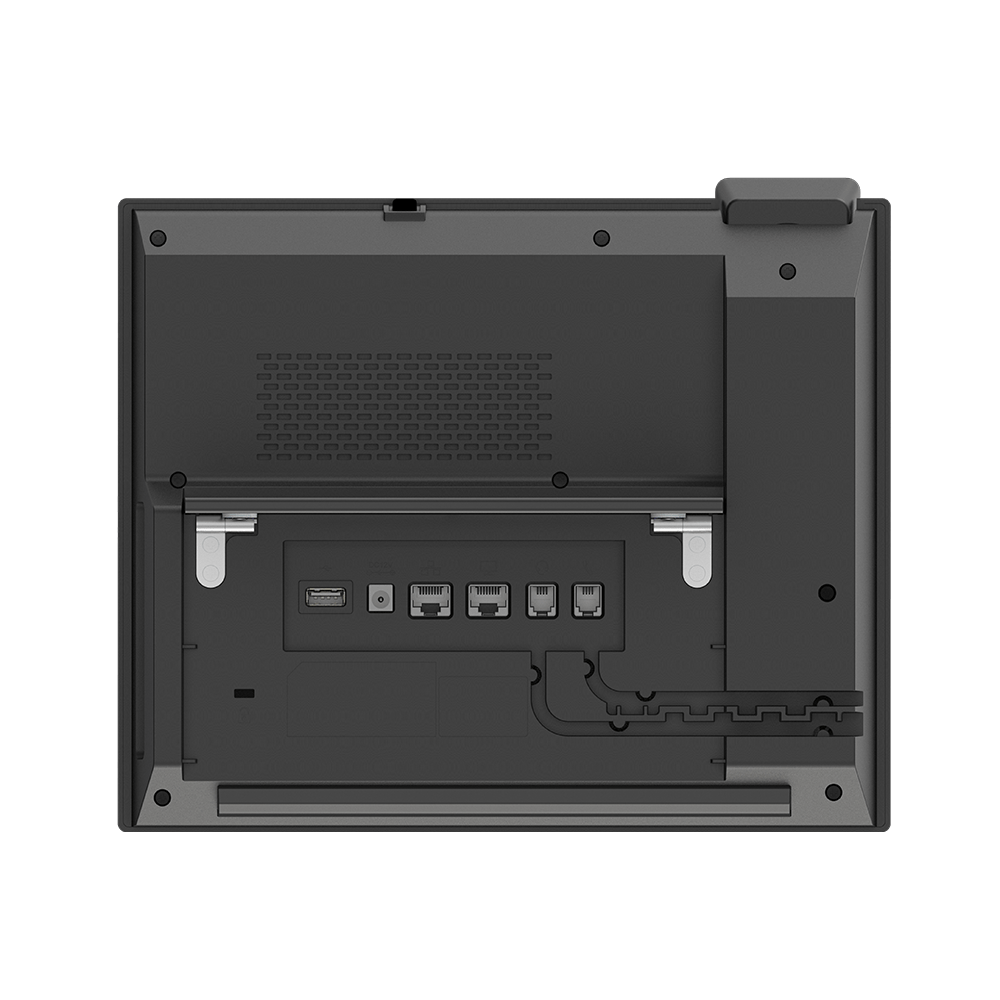

Interfaces
- Dual-port Gigabit Ethernet
- Power over Ethernet (IEEE 802.3af), class 3
- IEEE 802.3az energy-efficient Ethernet
- 1 × USB Type-A 3.0 port
- 1 × USB Type-A 2.0 port
- 1 × USB Type-C 2.0 port
- 1 × RJ9 handset port
- 1 × RJ9 headset port
- 1 × HDMI port
- 1 × Micro SD card slot
- 1 × security lock port
Wi-Fi and Bluetooth
- Built-in dual-band Wi-Fi
- Standards: IEEE 802.11a/b/g/n/ac
- Transmission rate: up to 867 Mbps (dynamic)
- Frequency bands: 2.4 GHz and 5 GHz
- Built-in Bluetooth 5.0 for headset and call support
Network and Security
- SIP v1 (RFC 2543) and v2 (RFC 3261)
- Call server and SIP proxy redundancy
- NAT traversal using STUN
- IP assignment: static or DHCP
- Embedded HTTP/HTTPS web server
- Time and date via SNTP
- DNS-NAPTR/DNS-SRV
- QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS/DSCP
- Transport Layer Security (TLS 1.3), SRTP, ZRTP
- HTTPS certificate management and AES configuration encryption
- Digest authentication using MD5/MD5-sess
- IEEE 802.1X and OpenVPN support
- IPv4/IPv6, LLDP/CDP/DHCP VLAN
Management
- Configuration via web browser, LCD menu, or auto-provisioning
- Auto-provisioning via HTTP/HTTPS/FTP/TFTP
- PnP, Zero Touch, TR-069 support
- Factory reset and remote reboot
- Local tracing log and system log export
- Phone lock for privacy protection
- Install/uninstall apps via auto-provisioning
Physical and Power
- Built-in stand with multiple adjustable angles
- Wall-mountable (requires optional wall-mount stand)
- External power adapter: AC 100–240 V input, DC 12 V / 2 A output
- Power consumption (adapter): approx. 3.5 W–9 W
- Power consumption (PoE): approx. 4 W–10 W
- Operating temperature: 0°C to 40°C
- Operating humidity: 10% to 90%
Package Contents
- UCV52 Pro IP phone
- Footstand
- BTP50 wireless handset
- Ethernet cable
- Quick reference manual
- Power adapter (optional)
- Wall-mount stand (optional)
