Description

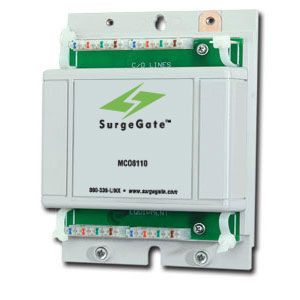

- Analog Station Set and Central Office Line Protector
- Protects up to 16-wires (8-pairs) using 110 punchdown in/out.
- Auto-Resetting Technology: PTC resistors open when a surge occurs protecting your equipment but unlike other fuses the PTCs close again once the surge passes.
- Expandable modular system
- Applications: Analog and Central Office lines for PBX or KSU
- Agency Approval: UL 497A (Secondary)
- Grounding Requirements: Uses Electrical AC Ground
- Recommended Grounding Impedance: <0.5 Ohm
- Signal Perfect Circuitry
- Auto-Resetting PTCs: 160 mA (8-10 Ohms)
- Clamping Level: 260V
- Response Time: 1-5 Nanoseconds
- Capacitance: <50pF
- Suppression Modes: Metallic and Longitudinal
- Wires Protected: 16-wires (8-pairs)
- Termination Type: 110 punchdown
- Protects up to 16-wires (8-pairs) using 110 punchdown in/out.
- Auto-Resetting Technology: PTC resistors open when a surge occurs protecting your equipment but unlike other fuses the PTCs close again once the surge passes.
- Expandable modular system
- Applications: Analog and Central Office lines for PBX or KSU
- Agency Approval: UL 497A (Secondary)
- Grounding Requirements: Uses Electrical AC Ground
- Recommended Grounding Impedance: <0.5 Ohm
- Signal Perfect Circuitry
- Auto-Resetting PTCs: 160 mA (8-10 Ohms)
- Clamping Level: 260V
- Response Time: 1-5 Nanoseconds
- Capacitance: <50pF
- Suppression Modes: Metallic and Longitudinal
- Wires Protected: 16-wires (8-pairs)
- Termination Type: 110 punchdown
