Description
Built for the Real Demands of Frontline Work
Frontline work happens in tough places—factory floors humming with machinery, busy hospital corridors, sprawling warehouses, and secure outdoor sites. Standard office phones simply aren’t built for that reality.

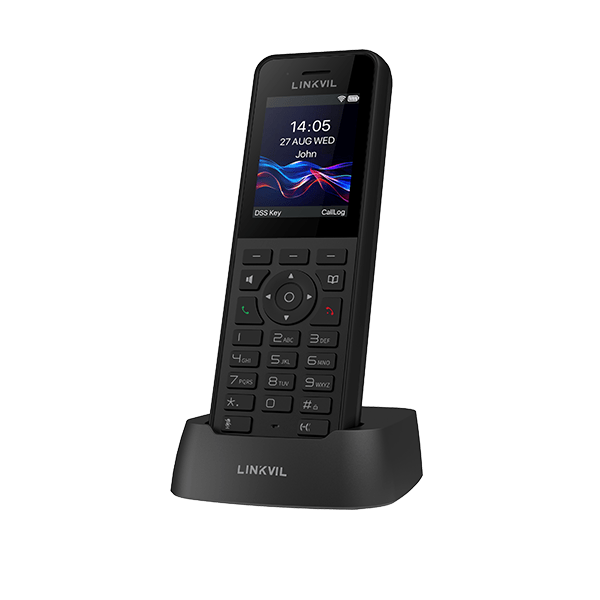

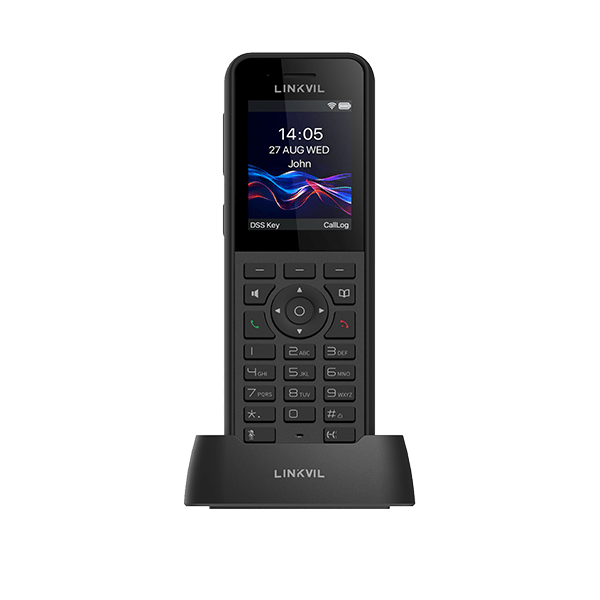

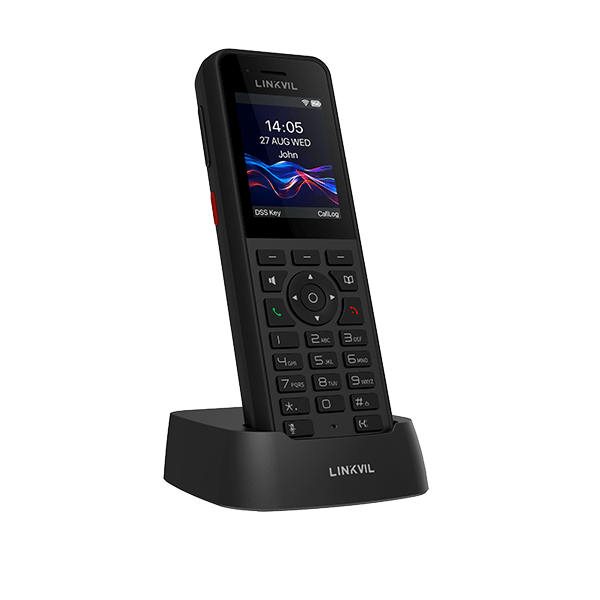

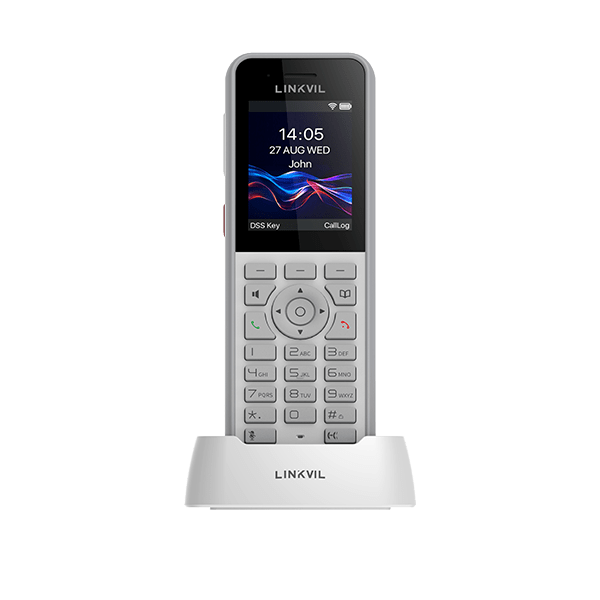

The LINKVIL W626W New-Generation Ruggedized Wi-Fi Phone is designed specifically for these environments. It combines serious physical durability with modern wireless performance and practical safety features that teams actually use every day.
Whether your staff are moving between zones, working long shifts, or need instant access to help in an emergency, the W626W keeps them connected, productive, and protected without adding complexity to your network.
The Telecom Spot Take
For facilities managers, IT directors, and operations leaders supporting mobile teams in industrial, healthcare, or logistics settings, the W626W offers a thoughtful balance of toughness and real-world usability. The IP67 rating and 1.8-meter drop resistance directly tackle the daily hazards that sideline lesser devices—dust, spills, and accidental drops. Dual-band Wi-Fi 6 with seamless roaming support means fewer dropped calls as people move across large facilities. With up to 13 hours of talk time on a single charge, it covers full shifts and overtime without constant battery swaps. The prominent red emergency key plus PTT functionality and intelligent alarm options (including man-down detection) provide meaningful safety support for lone workers or high-risk roles. For organizations that want dependable mobility, reduced device failures, and faster emergency response without overcomplicating their infrastructure, this phone delivers clear operational value.
Key Features
- Survives Real-World Abuse — IP67 dust and water protection plus 1.8-meter drop resistance keeps the phone working after the knocks, splashes, and drops that are part of daily life on factory floors, loading docks, and care units. Fewer replacements and less downtime for your team.
- Reliable Connections on the Move — Dual-band Wi-Fi 6 with 802.11k/v/r seamless roaming maintains strong, stable calls as workers move between access points or buildings. No more signal hunting or repeating conversations.
- All-Day Battery Life — The 3100mAh battery delivers up to 13 hours of talk time and 240 hours of standby. One charge easily covers extended shifts, reducing the hassle of mid-day charging or managing spare batteries.
- Instant Alerts When Seconds Count — A dedicated red emergency alarm key triggers immediate help. Combined with a PTT button for quick team calls and support for man-down or no-movement detection, it gives frontline and lone workers a fast way to signal for assistance.
- Clear Voice in Noisy Settings — HD audio with intelligent noise reduction, acoustic shield technology, and dual microphones cuts through machinery hum, alarms, and background chatter so every word is understood the first time.
- Hygiene-Ready for Sensitive Areas — Antibacterial materials and resistance to chemical cleaners make it suitable for healthcare facilities, food production lines, and clean manufacturing environments where sanitation is critical.
- Flexible Communication Tools — Supports up to 8 SIP accounts, 6-party audio conferencing, Bluetooth 5.0 for headsets, and H.264 video decoding for visual verification when paired with compatible accessories.
- Easy to Deploy at Scale — Auto-provisioning, TR-069 management, and straightforward setup help IT teams roll out units efficiently across multiple sites without heavy lifting.
Technical Specifications
Display & User Interface
- 2.4-inch TFT color screen (240 × 320 resolution)
- H.264 video decoding (supports up to 4CIF)
- Screen saver, personalized background, backlight adjustment, auto screen-off during calls
- 12-digit keypad, navigation keys, 6 function keys, 3 soft keys, PTT key, dedicated red alarm key
- White backlit keyboard with status indicator
Durability & Physical Build
- IP67 dust and water resistance
- 1.8-meter drop resistance
- Antibacterial materials, resistant to chemical cleaning
- Dimensions: 161 × 55 × 24.5 mm
- Operating temperature: -10 °C to 45 °C
- Storage temperature: -20 °C to 60 °C
- Operating humidity: 5–95% (non-condensing)
Battery & Power
- 3100 mAh rechargeable Li-ion battery
- Up to 13 hours talk time / 240 hours standby (laboratory data)
- Charging via Type-C or included charging base (5V/2A adapter)
- USB 2.0 Type-C port + contact pins
Network & Connectivity
- Dual-band Wi-Fi 6 (802.11a/b/g/n/ac/ax) – 2.4 GHz and 5 GHz
- Seamless roaming support (802.11k/v/r)
- Bluetooth 5.0
- Quick network connect via QR code or network sharing
Audio & Codecs
- HD audio with intelligent noise reduction and acoustic shield technology
- 2 microphones + 2W hands-free loudspeaker
- Acoustic Echo Cancellation (AEC), Automatic Gain Control (AGC), Voice Activity Detection (VAD), Comfort Noise Generation (CNG)
- Narrowband codecs: G.711A/U, G.726, G.723.1, G.729 series, iLBC
- Wideband codecs: G.722, Opus
- DTMF: In-band and out-of-band (RFC2833 / SIP INFO)
Call & Phone Features
- Up to 8 SIP accounts / lines
- 6-party audio conferencing
- Call waiting, forwarding, transfer, speed dial, intercom, DND, emergency call
- PTT one-touch calling
- Vibration, personalized ringtones, volume control
- Local phonebook (1,000 contacts) + remote XML/LDAP phonebook
- 600 call log entries
Security
- Voice encryption: SRTP
- Transmission encryption: TLS 1.2 / TLS 1.3
- Wireless encryption: WPA/WPA2-PSK/WPA3, 802.1X EAP
- Keypad lock and menu encryption
Management & Provisioning
- Auto-provisioning via FTP/TFTP/HTTP/HTTPS, DHCP Option 66, SIP PnP
- TR-069 and FDMCS management support
- Web-based firmware upgrade, configuration import/export, packet dump troubleshooting
- Syslog support
- Multi-language support available
Frequently Asked Questions
What environments is the LINKVIL W626W best suited for?
It is purpose-built for demanding settings such as manufacturing plants, healthcare facilities, warehouses, logistics operations, and security teams—anywhere phones face dust, moisture, drops, or need reliable wireless mobility throughout large sites.
How durable is the W626W?
It carries a full IP67 rating for dust and water protection and survives drops from up to 1.8 meters. The housing uses antibacterial materials that also resist chemical cleaners, making it suitable for hygiene-sensitive environments.
Will the battery last through a full shift?
Yes. Laboratory testing shows up to 13 hours of talk time and 240 hours of standby on a single 3100mAh charge—enough to cover extended workdays without mid-shift charging.
What emergency and safety features does it include?
A prominent red emergency alarm key for instant SOS calls, a dedicated PTT button for rapid team communication, and support for intelligent alarms including man-down and no-movement detection.
Will it work with my existing SIP phone system or PBX?
The W626W supports standard SIP protocols, up to 8 accounts, and common auto-provisioning methods including TR-069. It integrates with most modern IP PBX platforms used by businesses today.
Can I pair it with a headset or use video features?
Yes. Bluetooth 5.0 supports compatible headsets for hands-free operation. It also includes H.264 video decoding, enabling video preview when used with compatible LINKVIL accessories such as the A513W video speaker.
