Logitech MeetUp RoomMate Tap IP Bundle
Please see the new Logitech Huddle Room Bundle
Bundle includes: Meetup, Tap IP (Graphite), Logitech Compute Mount
With a compact all-in-one design that minimizes cable clutter, MeetUp is USB plug- and-play and simply works right out of the box with any video conferencing software application and cloud service—including the ones you already use.
The Logitech RoomMate will turn any space into an appliance based video conferencing room. RoomMate runs CollabOS, the unifying operating system within Logitech’s video bar appliances, providing a simple, consistent deployment across all meeting rooms, and allows you to easily deploy Microsoft Teams Rooms on Android, Zoom Rooms Appliances, and other leading video conferencing services
The Logitech Tap IP is a network-connected touch controller for Logitech room solutions. With clean cable management and a range of available mounts, Tap IP installs easily and stays up and running. Logitech Tap IP is certified or compatible as a touch controller for video conferencing services including: Microsoft Teams an Android, Zoom Rooms (any), RingCentral Rooms
Please see the following datasheets for more information:
Logitech Meetup Conference Camera System Specs
- Super-wide 120-degree field of view
- 3-microphone speakerphone
- Optional expansion microphone-ready
- 4K Ultra HD video calling (up to 3840 x 2160 pixels @ 30 fps); 1080p Full HD video calling (up to 1920 x 1080 pixels @ 30 fps); 720p HD video calling (up to 1280 x 720 pixels @ 30 fps); with supported clients
- All-in-one design
- Motorized pan/tilt
- Logitech lens
- 3 camera presets
- Bluetooth wireless technology
- RF remote control
- Multiple mounting options, including table and wall mount; optional TV mount available
- Kensington security slot
- Plug-and-play USB connectivity
- Works with most any video conferencing application or meetings service
- Skype for Business certified
- Microsoft Cortana certified
- Cisco Jabberand WebEx compatible
- Enhanced integration with Logitech Collaboration Program (LCP) members, including BlueJeans, Broadsoft, LifeSize Cloud, Vidyo, and Zoom
- 2-year limited hardware warranty from Logitech
Microphone Specs
- Pickup Range: 2.4 m /8’
- Pickup Range with Expansion Mic: 4.2 m /14’
- Sensitivity: -27dB
- Microphone frequency response: 90Hz - 16kHz for full voice reproduction and high intelligibility without noise
- Factory-paired, very low distortion broadside beamforming algorithm steers the microphones directly at the talker for the best voice pickup and noise reduction
- AEC (Acoustic echo cancellation)
- VAD (Voice activity detector)
- Microphone background noise suppression
- Pro-audio 32 kHz sampling rate
Speaker Specs
- Powerful rare-earth magnet
- Acoustically suspended speaker enclosure
- Volume adjustable to 95 dB SPL at 1/2 meter peak
- Speaker sensitivity 86.5+/-3dB SPL at 1/2 meter
- Distortion: 200 Hz–300Hz < 3%, 3000 Hz–10KHz < 1%
- Peak-limiting algorithm prevents even momentary speaker clipping to prevent distortion

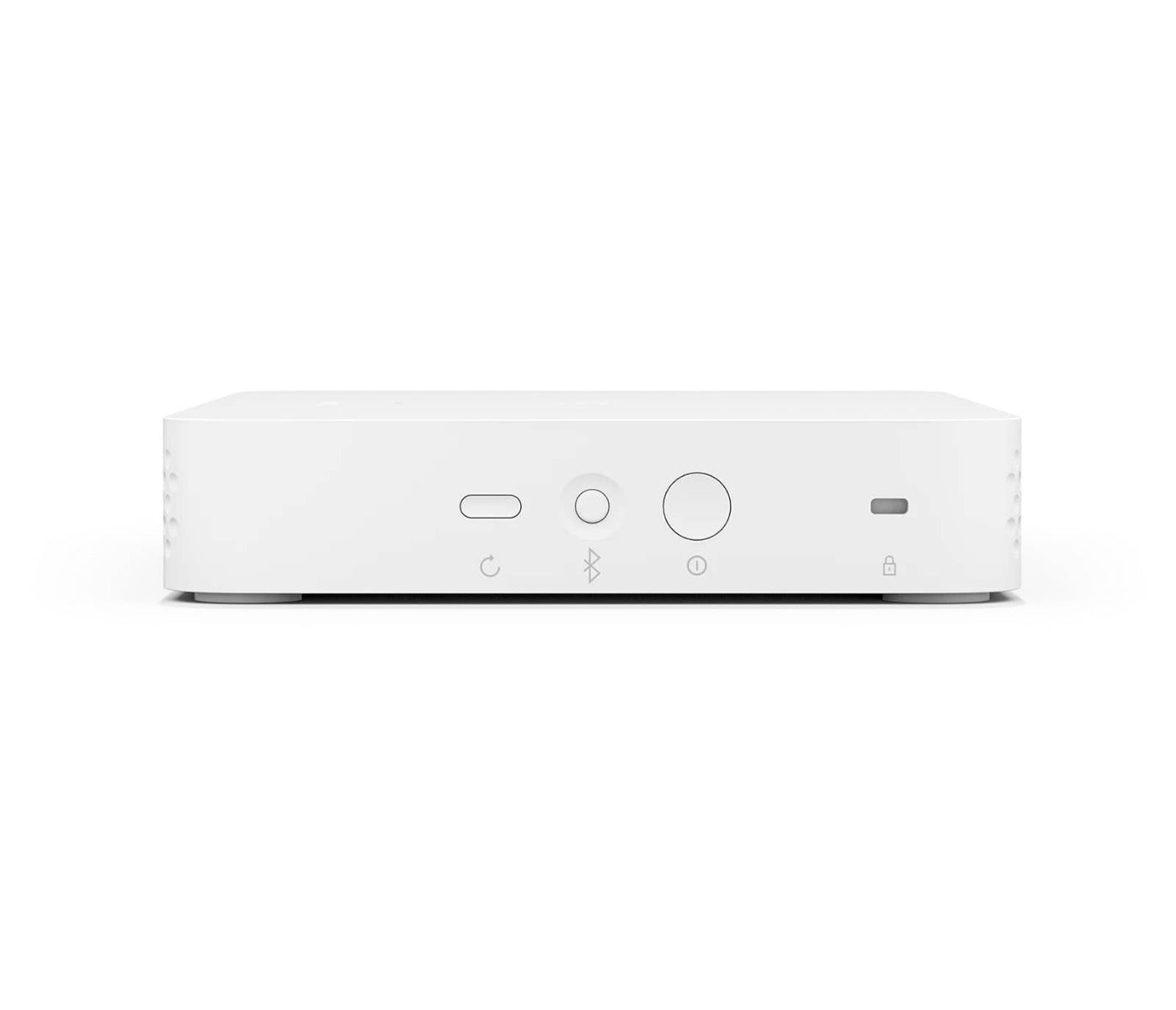

Logitech RoomMate Specs
- Appliance Mode: Supports Microsoft Teams Rooms on Android, Zoom Rooms, GoToRoom, Pexip Room, RingCentral Rooms
- Certified Hardware: Supports Logitech MeetUp, Rally Camera, Rally System, Rally Plus System, Tap, Tap IP
- Verified Hardware: Supports Biamp TesiraFORTÉ X 400, QSC Q-SYS Core 8 Flex, Shure IntelliMix P300. For latest information on compatible products, contact your preferred partner
- Network Protocol Support: IPv4, IPv6
- Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
- Interfaces: HDMI Out: 2, HDMI In: 1, USB: 3x Type A, Network: 10/100/1G Ethernet, WiFi: 802.11a/b/g/n/ac

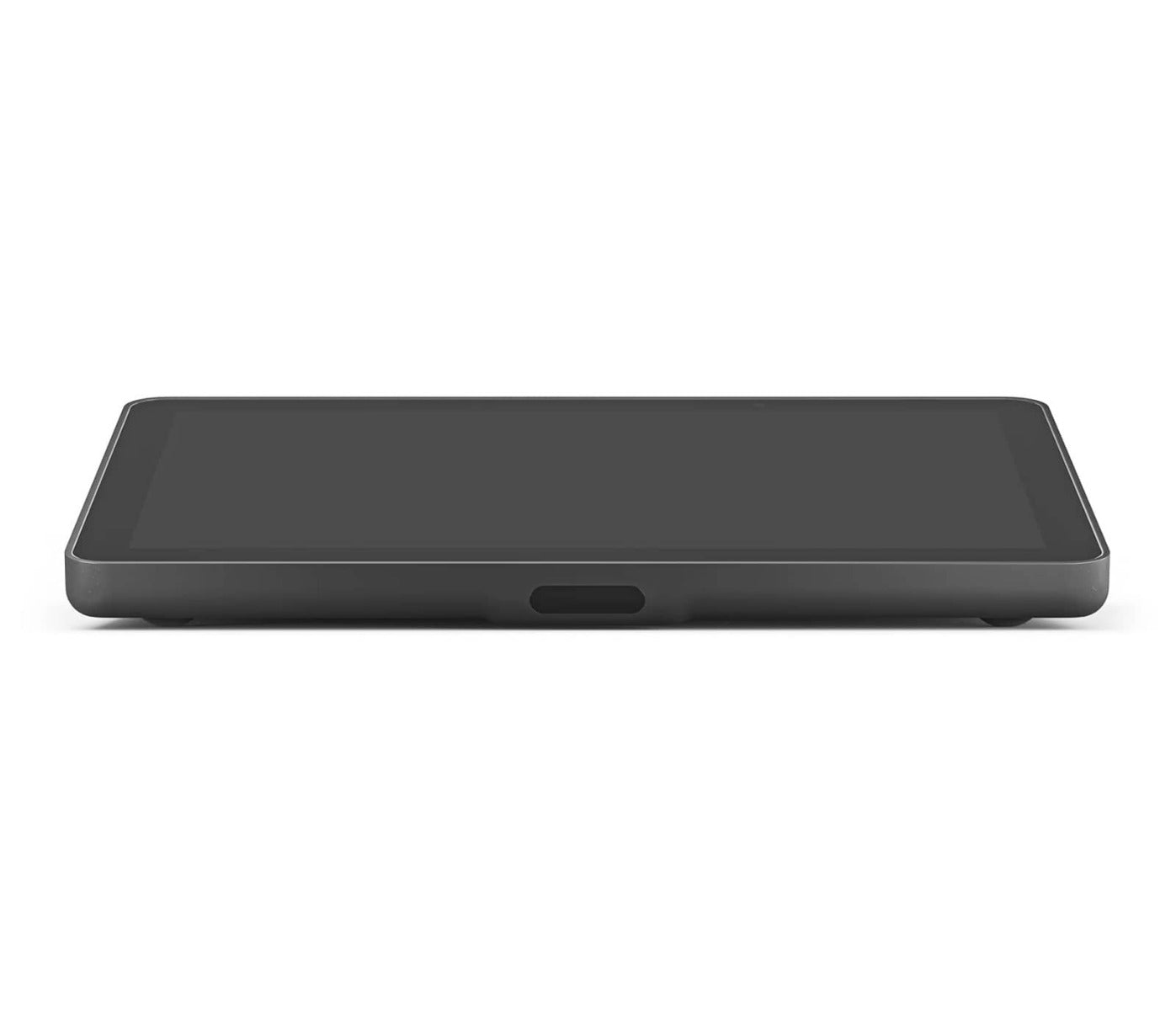

Logitech TAP IP Specs
- Logitech Tap IP is certified or compatible as a touch controller for video conferencing services: Microsoft Teams an Android, Zoom Rooms (any), RingCentral Rooms
- 10.1†diagonal touchscreen
- Power over Ethernet (PoE), IEEE 802.3af Type 1, Class 3 device
- Ethernet: 10/100mbps
- WiFi: 802.11a/b/g/n/ac
- Bluetooth 5.0
